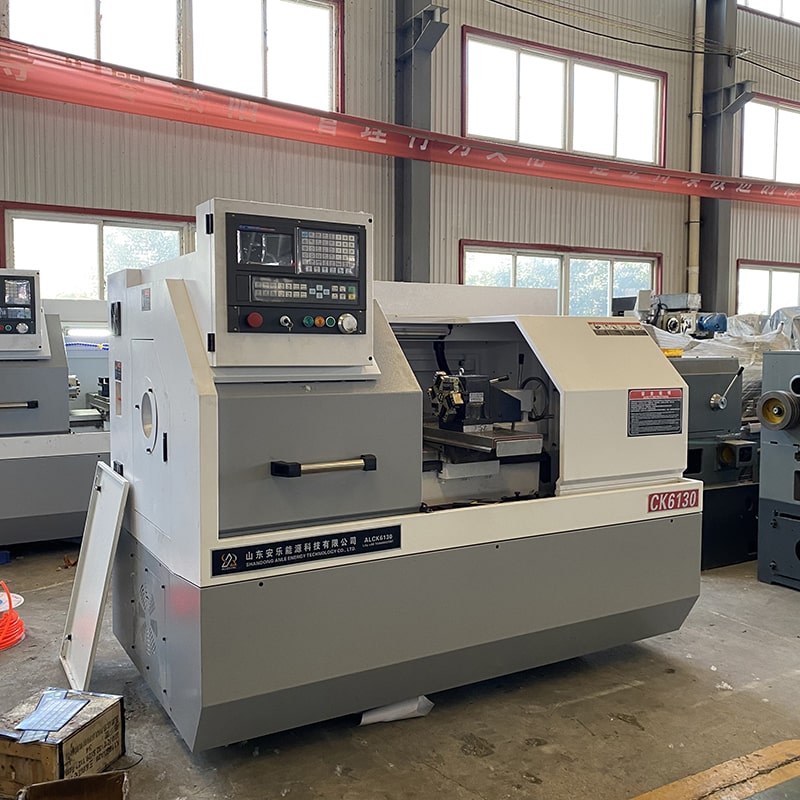

Flat bed cnc lathe machine CK6130 metal lathe machine

The cnc lathe machine can cut, drill, ream, ream and boring, etc., and has the advantages of high performance, high precision, low noise and so on.CNC horizontal lathe is an automatic machine tool with high precision and high efficiency. Using automatic cnc lathe can improve processing efficiency and create more value.

Product Description

Mini cnc lathe itself is a device for manufacturing machines. It can be said that cnc mini metal lathe is a mechanical device that can manufacture all parts of lathe machine mini cnc itself. Of course, cnc mini metal lathe machine can also use a series of machining methods to meet different needs. Processing requirements. The lathe was originally operated by hand, but now it is walking on a more specialized road step by step, and many types of lathes have been transformed for different workpiece processing.

Product Features:

1. The flat bed cnc lathe machined has high processing precision and stable processing quality;

2. High precision cnc lathe can carry out multi-coordinate linkage, and can process parts with complex shapes;

3. When CNC lathe manufacture changes the processing parts, generally only need to change the CNC program, which can save production preparation time;

4. The cnc lathe machine itself has high precision, good rigidity, favorable processing volume can be selected, and high productivity (generally 3 to 5 times that of ordinary machine tools);

5. CNC lathe has a high degree of automation, which can reduce labor intensity;

6. The mini cnc lathe machine has higher requirements for the quality of operators and higher technical requirements for maintenance personnel.

Product application:

1. High precision cnc lathe can process structural metal products, metal tool manufacturing, metal products for safety/fire protection

2. The application of flat bed cnc lathe machine in general parts: metal seal manufacturing, fastener/spring manufacturing, mechanical parts processing, and other general parts manufacturing.

3.cnc lathe manufacture can process steel castings, forgings and powder metallurgy products.

Product parameters

Item	Unit	CK6130
Max swing over bed	mm	Φ300
Maximum swing over slide	mm	Φ130
Spindle hole diameter	mm	Φ48
With hollow chuck pull rod through hole	mm	Φ40
Spindle speed limit	rpm	2200
Knife square size	mm	20×20 (four stations)
Clamping device		Collet/160 three-jaw chunk
X/Z direction fast moving speed	m/min	6/8
X stroke	mm	280
Z stroke	mm	500
Main motor power	KW	3
X axis repeat positioning accuracy	mm	0.01
Z axis repeat positioning accuracy	mm	0.01
Machine weight	KG	950
Dimensions (length × width × height)	mm	1600×1100×1650mm
