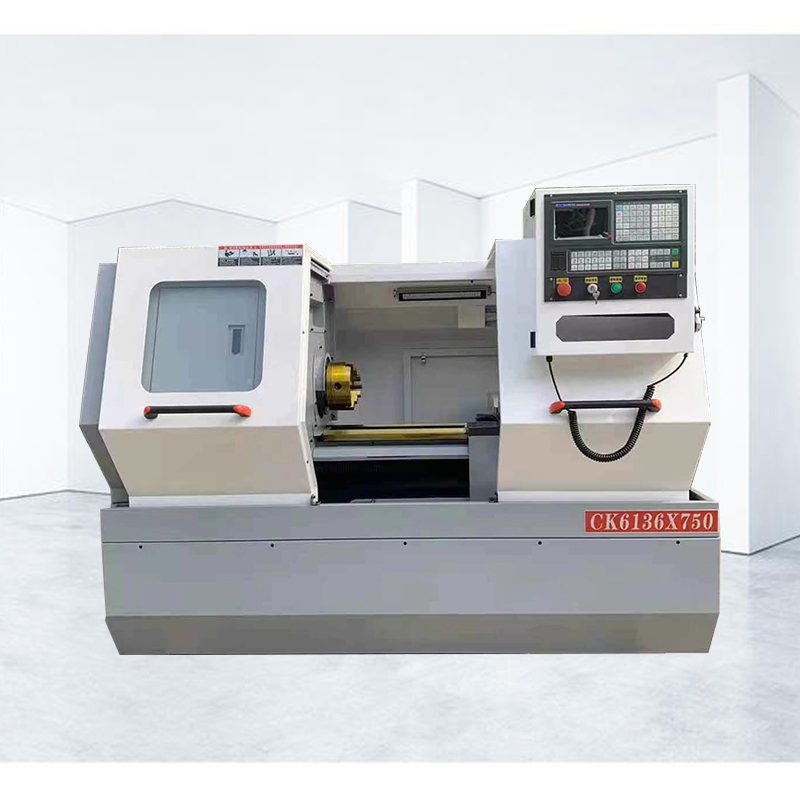

CNC horizontal lathe ALCK6136 for machining metal
Automatic cnc lathe is mainly used for the production and processing of inner and outer cylindrical surface layers of shaft parts or disc parts, which can cut grooves, punch holes, expand, hinge, punch holes, etc.
Product Description
The high precision cnc lathe can automatically process parts in strict accordance with the system. If you need to process different parts, you only need to change the operation process of the flat bed cnc lathe machine. The mini cnc lathe machine is extremely suitable for parts with complex shapes and high precision.
Product Features
1.Automatic cnc lathe has high machining accuracy and stable machining quality; and can process parts with complex shapes;
2. High precision cnc lathe has played a good economical effect in the mass production of complex parts.
3. The flat bed cnc lathe machine can be programmed with numerical control programs to shorten the processing time.
4.CNC lathe manufacture can solve some problems that cannot be solved by ordinary processing methods.
Product Parameters
The steps of mini cnc lathe machining parts:
1. According to the drawing and process plan of the machined part, write the program list with the specified code and program format, and record it on the carrier;
2. Input the program on the program carrier into the cnc unit through the input device;
3. After the cnc unit processes the input program, it sends a signal to the servo system of each coordinate of the cnc mini metal lathe;
4. The servo system drives the moving parts of the lathe machine mini cnc according to the signal sent by the cnc unit, and controls the necessary auxiliary operations;
5. The relative movement between the tool and the workpiece is driven by the mechanical parts of the cnc mini metal lathe machine to process the required workpiece;
6. Detect the movement of CNC lathe turning, and feed it back to the CNC unit through the feedback device to reduce the machining error. Of course, there is no detection and feedback system for the open-loop CNC horizontal lathe.
Video
Product Parameters
| Item |
Unit
|
ALCK6136
|
| Max swing over bed | mm | Φ360 |
|
Maximum turning diameter on the tool post
|
mm | Φ200 |
|
Maximum workpiece length between two centers
|
mm | 750 |
| Spindle motor power | KW | 5.5 |
| Dimensions | mm | 2350×1380×1640 |
