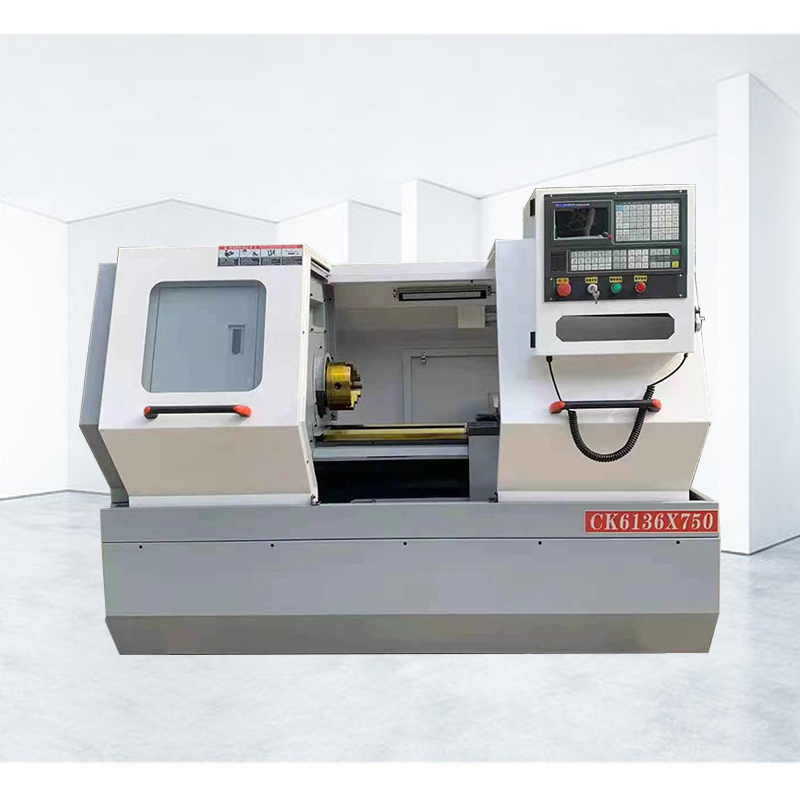

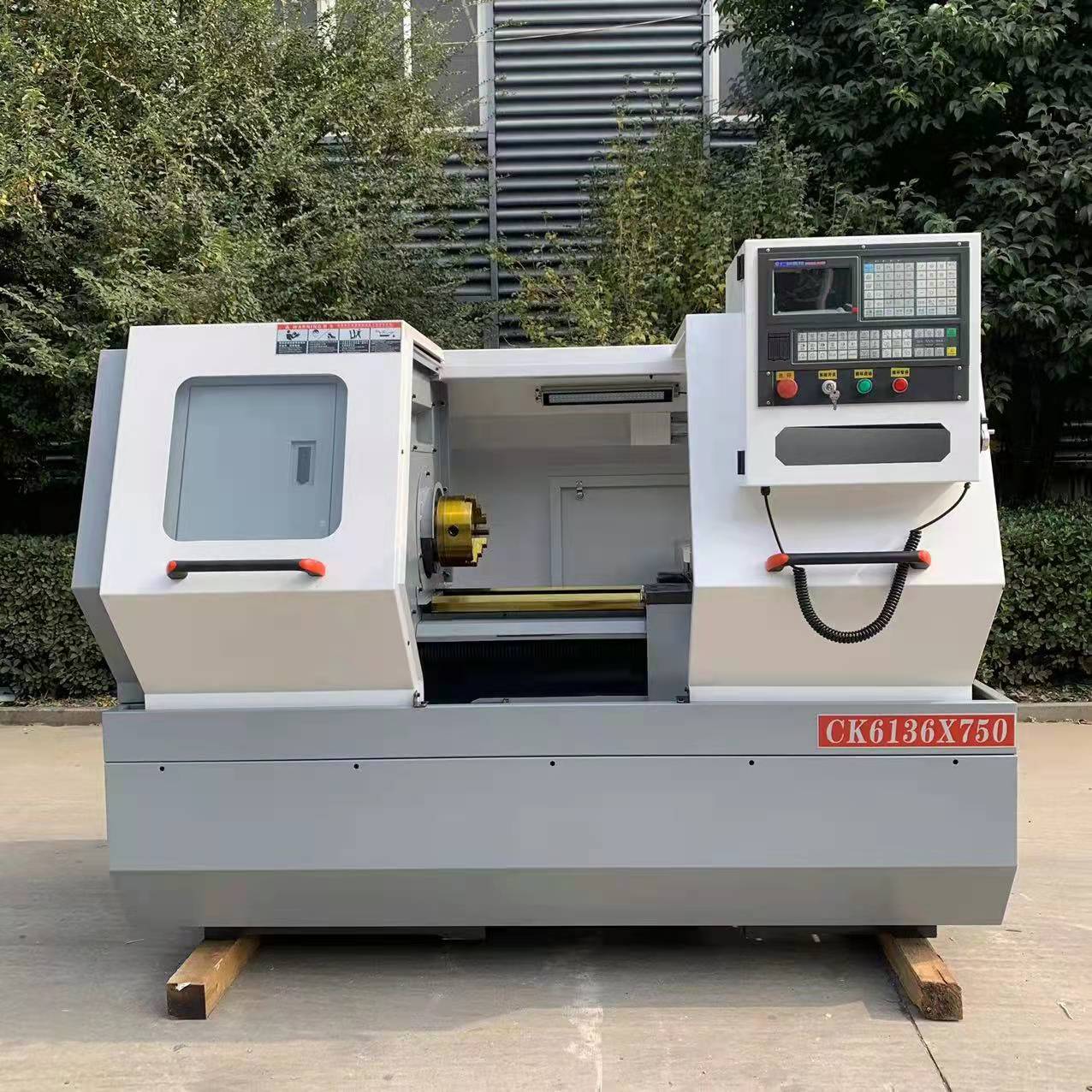

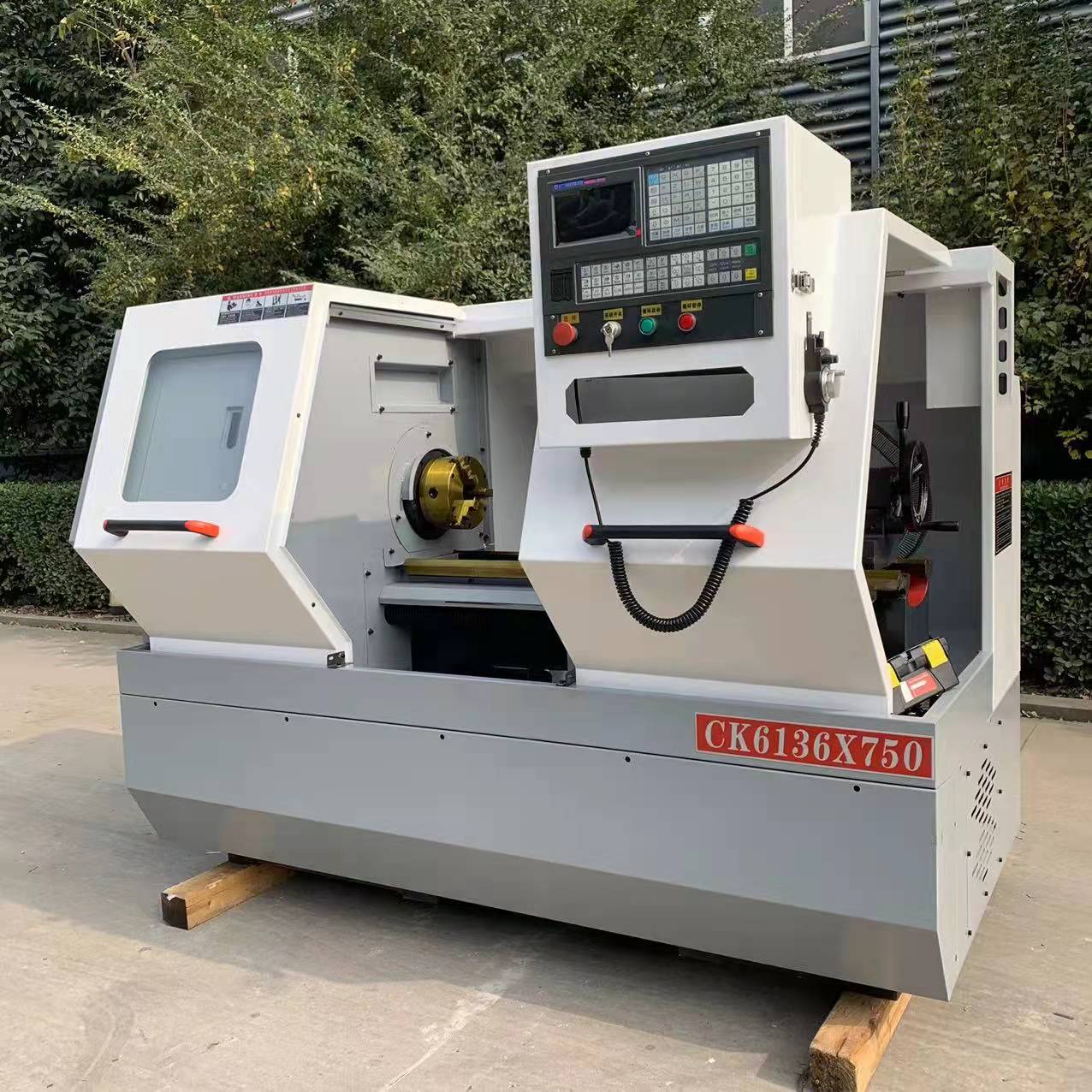

CNC lathe manufacturing ck6136 flat bed CNC lathe

Automatic CNC lathes are widely used in auto parts, hardware manufacturing, pneumatic parts, mobile phone parts, aviation parts and other industries.

Product Description

Flat bed CNC lathe is a high-precision, high-efficiency automatic machine tool that is widely used and is mainly used for the processing of rotating parts such as shafts and disk sleeves. The cnc lathe 3 axis has a wide variety and different specifications, which can improve the processing quality accuracy and processing time error accuracy, stabilize the processing quality, ensure the consistency of the quality of the processed parts, and greatly improve the working conditions.

Features:

1. CNC lathe has the automatic processing function of the control program, and generally does not require manual intervention during the processing

2. CNC turning displays the processing program, various process parameters, processing time, tool movement track and workpiece graphics, etc.

3. CNC metal lathe has an automatic alarm display function, according to the alarm signal or alarm prompt, you can quickly find the fault of the lathe. Ordinary lathes do not have the above functions.

4. The CNC turning center has a workpiece measurement system, which generally does not require manual measurement of the workpiece size during processing to ensure the machining accuracy of the workpiece.

CNC lathe CK6136 application:

Fully automatic CNC lathes are suitable for automation equipment such as automobile industry, national defense industry, petrochemical industry, shipbuilding, new energy, textile, electronics, and precision molds.
Video

Video

Product Specifications：

Item	Unit	ALCK6136-750
Max swing over bed	mm	Φ360
Maximum turning diameter on the tool post	mm	Φ200
Maximum workpiece length between two centers	mm	750
Spindle through hole diameter	mm	Φ52
Spindle speed range (infinite):	r/min	150-2000
Spindle motor power	kw	5.5
Tool handle size	mm	20x20
X stroke	mm	200
Z stroke	mm	750
Overall dimensions of machine tool (length×width×height)	mm	2350x1380x1640
Net weight	kg	1600
