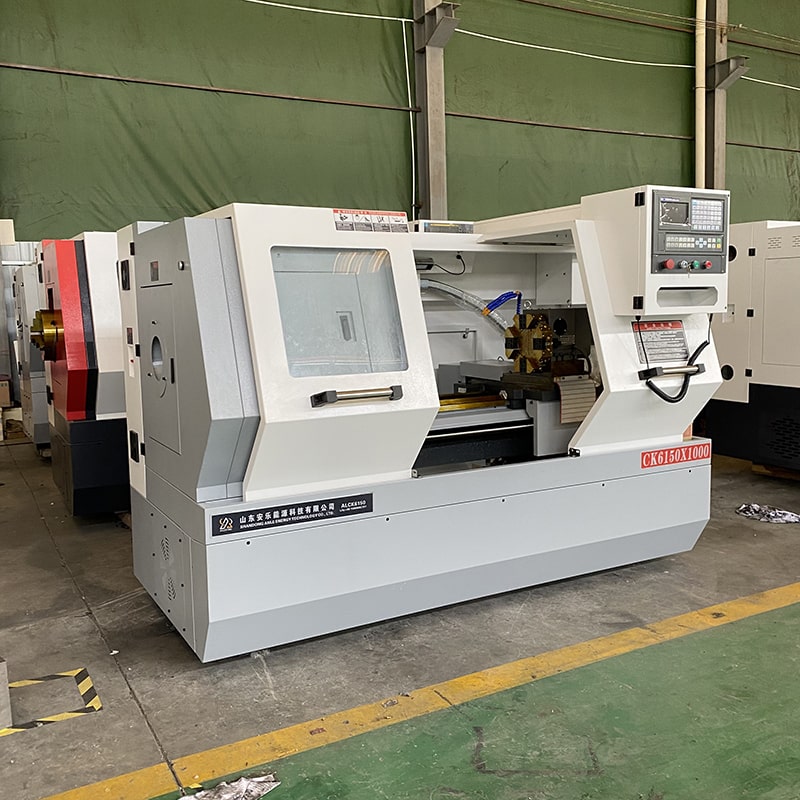

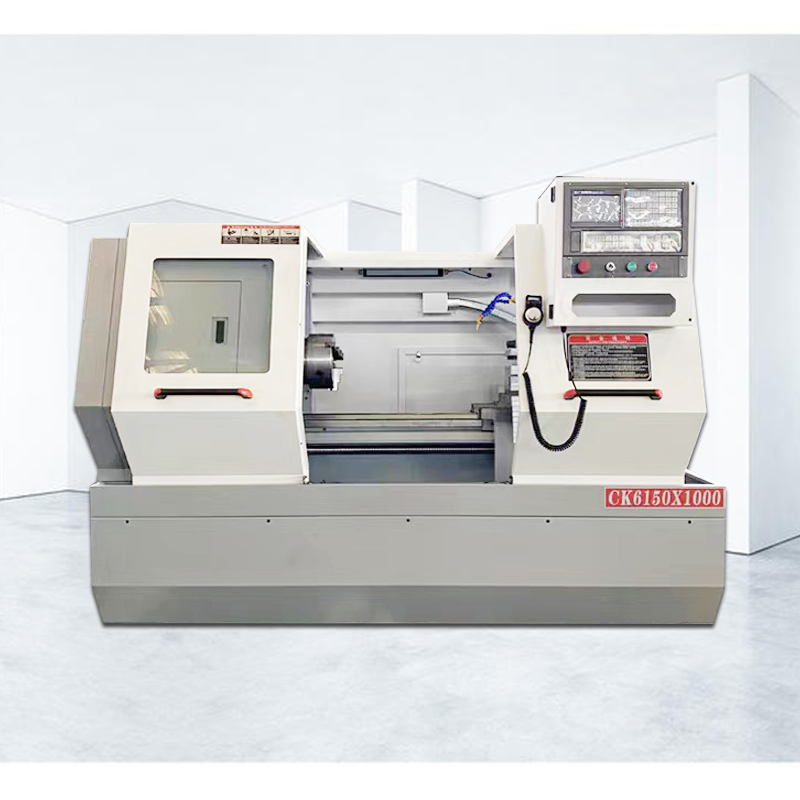

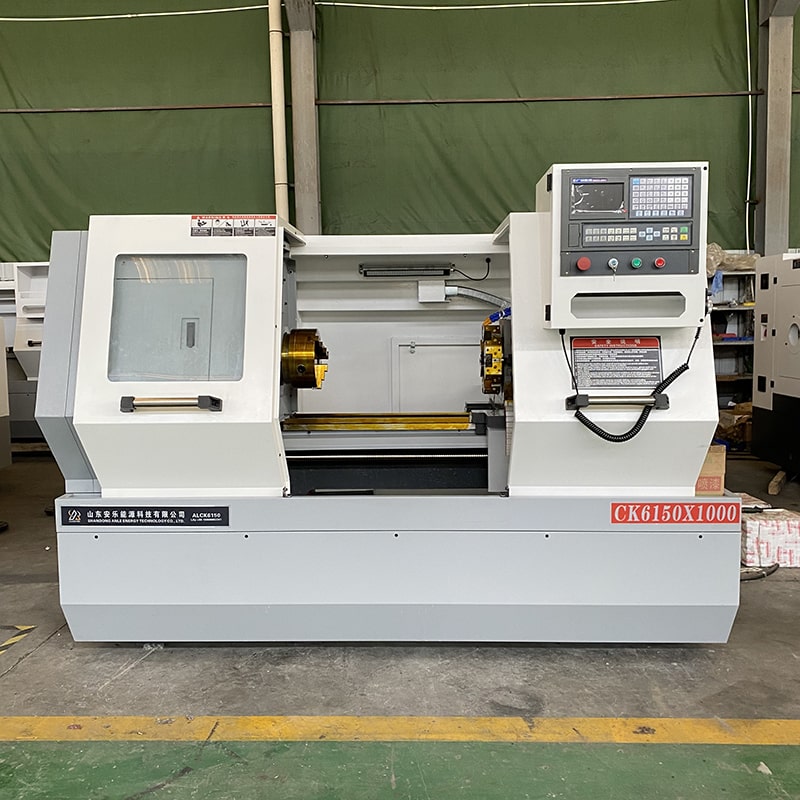

Horizontal CNC Lathe ck6150 metal lathe

CNC lathe for metal is suitable for metal fabrication, automotive industry, consumer electronics, micromechanics, precision tooling, medical and advanced industries.

Product Description

CNC lathe manufacturing is widely used for heavy turning with high productivity. Automatic lathe has complex machining geometries and various sizes.Flat bed CNC lathe has a wide variety and different specifications, which can improve the processing quality accuracy and processing time error accuracy, stabilize the processing quality, ensure the consistency of the quality of the processed parts , and greatly improve the working conditions.

Features:

1. CNC lathe has strong adaptability to processing objects, adapts to the characteristics of single-piece production of molds and other products, and provides a suitable processing method for the manufacture of molds;

2. The flat bed CNC lathe has high processing precision and stable processing quality; it has high rigidity, can choose favorable processing dosage, and has high productivity

3. The automatic lathe machine tool has a high degree of automation, which can reduce labor intensity and is conducive to the modernization of production management.

4. Horizontal CNC Lathe has high quality and technical requirements for operators and high reliability.

Application fields of CNC metal lathes:

Fully automatic CNC lathes are suitable for aerospace, auto parts, hardware manufacturing, pneumatic parts, mobile phone parts, aviation parts and other industries.

video

Video

Product Specifications

Item	Unit	ALCK6150*1000
Max swing over bed	mm	Φ500
Maximum swing over slide	mm	Φ290
Maximum cutting diameter	mm	Φ500
Maximum processing length	mm	1000
X/Z axis maximum stroke	mm	300/1000
X/Z axis minimum displacement unit	mm	0.001
Spindle hole diameter	mm	Φ82
Main motor power (frequency conversion)	kW	7.5
Frequency converter	kW	7.5
Repeated positioning accuracy of tool post	mm	≤0.004
Diameter of tailstock sleeve	mm	Φ65
Tailstock sleeve stroke	mm	130
Electricity demand (power/current)	kW/A	15kW/20A
Weight	Kg	2500
Machine size	mm	303016002050
