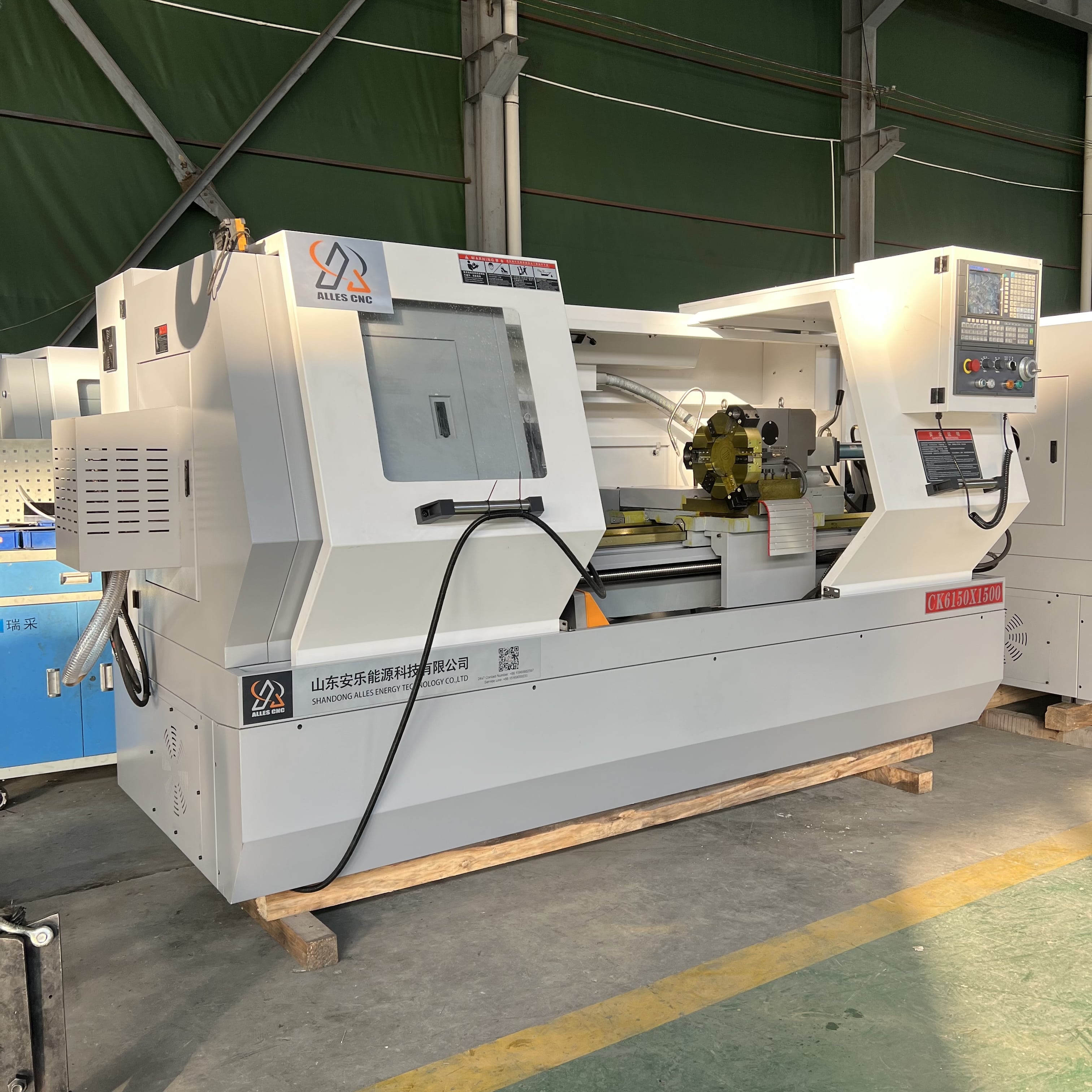

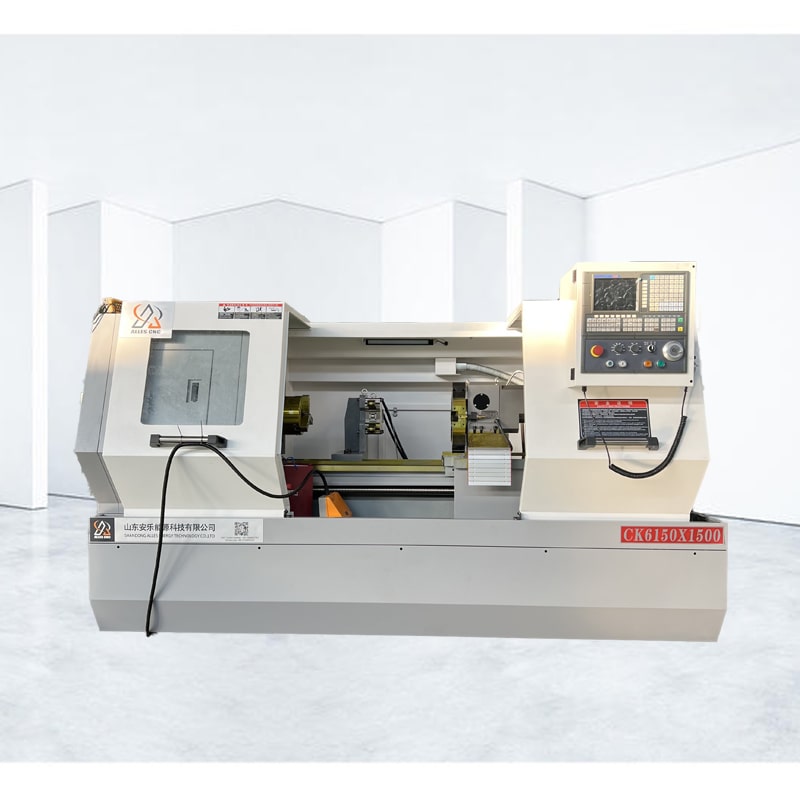

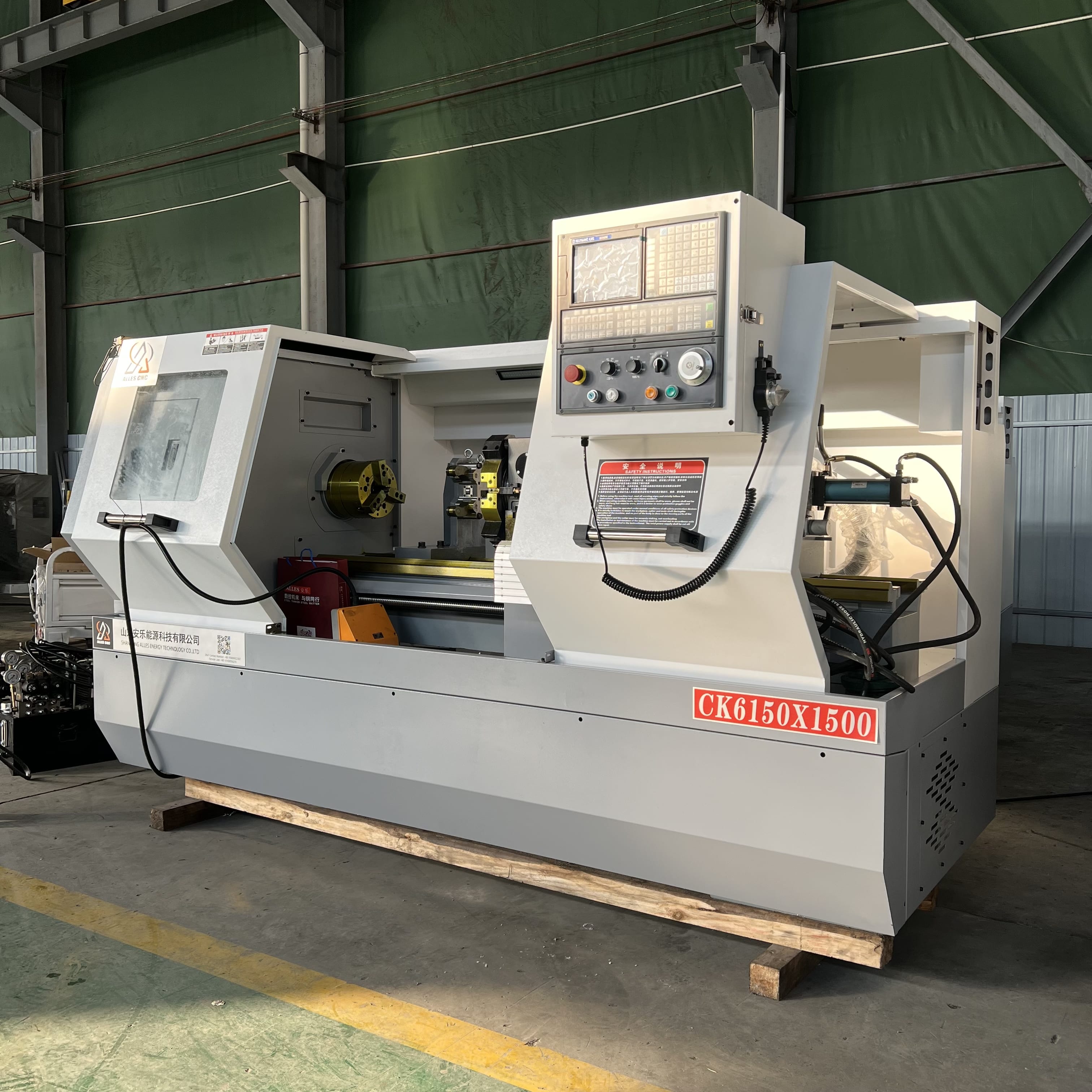

CNC lathe for metal CK6150 Automatic cnc lathe
Metal CNC lathe is widely used in weapon manufacturing, automobile industry, hardware manufacturing, pneumatic parts, mobile phone parts, aviation parts and other industries.
Product Description
The flat bed CNC lathe adopts the design and manufacture of electromechanical integration, with beautiful appearance, reasonable structure, wide range of uses, convenient operation, high precision, high rigidity, high speed and rapidity, low price miniature precision CNC lathe
feature:
1. Horizontal CNC Lathe has the automatic processing function of the control program. Generally, no manual intervention is required in the processing process, and it can generate and receive various signals to control the active processing process.
2. Automatic lathe displays the processing program, various processing functions, and good precision and stability.
3. CNC lathe has an automatic alarm display function, and can quickly find lathe faults according to the alarm signal or alarm prompt. Ordinary lathes do not have the above functions.
4. CNC lathe manufacturing has a workpiece measurement system. Generally, it is not necessary to manually measure the size of the workpiece during processing to ensure the processing accuracy of the workpiece.
5. Flat bed CNC lathe can realize automatic control, and can automatically complete the processes of turning inner and outer circles, end faces, grooving, random cones, spherical surfaces, metric and imperial cylinders, and conical threads of various parts.
Product Specifications
CNC lathe CK6150 application:

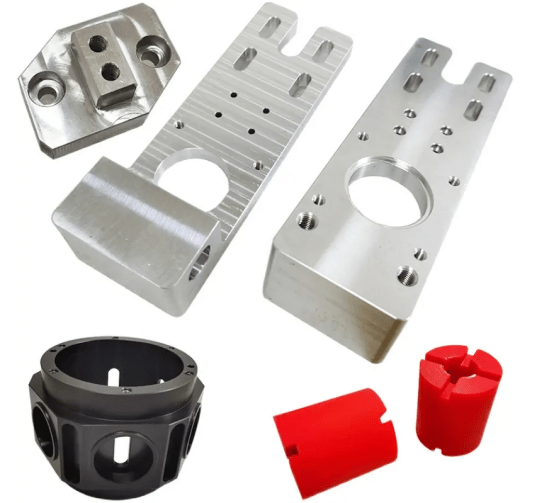

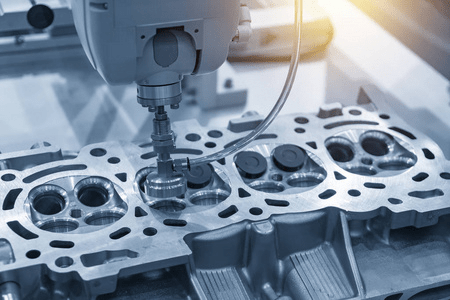

CNC turning is mainly suitable for automobile manufacturing, ships, aerospace, automobile shaft parts processing, rail transit, electronic communication equipment, molds, power generation equipment, etc.
Video
Video
| Item | Unit | ALCK6150*1500 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1500 |
| X/Z axis maximum stroke | mm | 1500 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
| Spindle speed limit | rpm | 150-2000/60-1600 |
| Main motor power (frequency conversion) | kW | 7.5 |
| Frequency converter | kW | 7.5 |
| X/Z axis rapid traverse speed | m/min | 6/8 |
| Tool bar size | mm | 25*25 |
| Repeated positioning accuracy of tool post | mm | ≤0.004 |
| Diameter of tailstock sleeve | mm | Φ65 |
| Tailstock sleeve stroke | mm | 130 |
