Flat bed CNC lathe ck6136 CNC lathe for metal
CNC lathes are mainly suitable for automobile manufacturing, ships, aerospace, power generation equipment, automobile shaft processing, etc.
Product Description

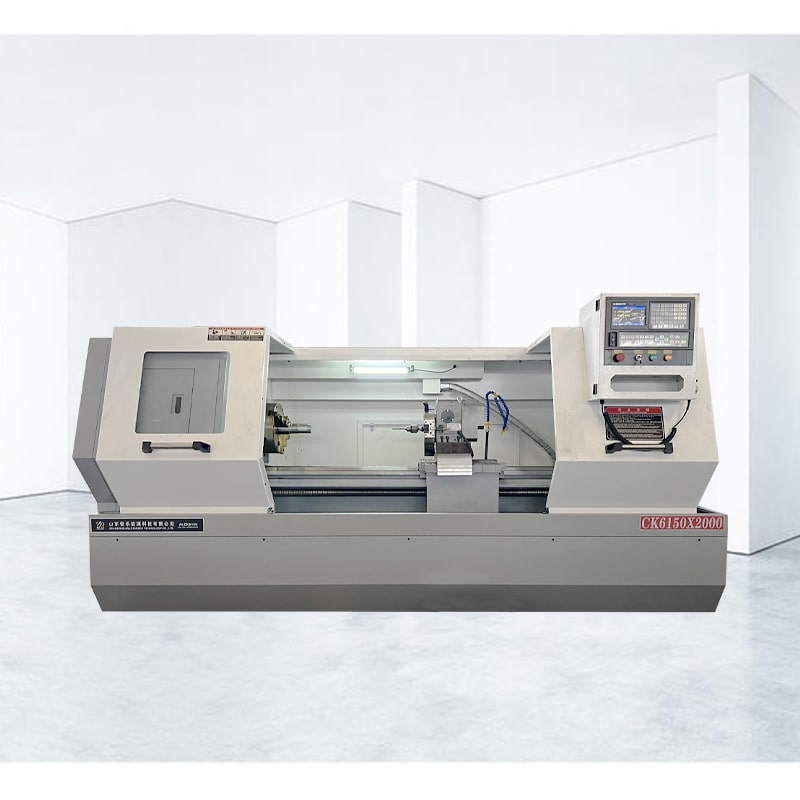

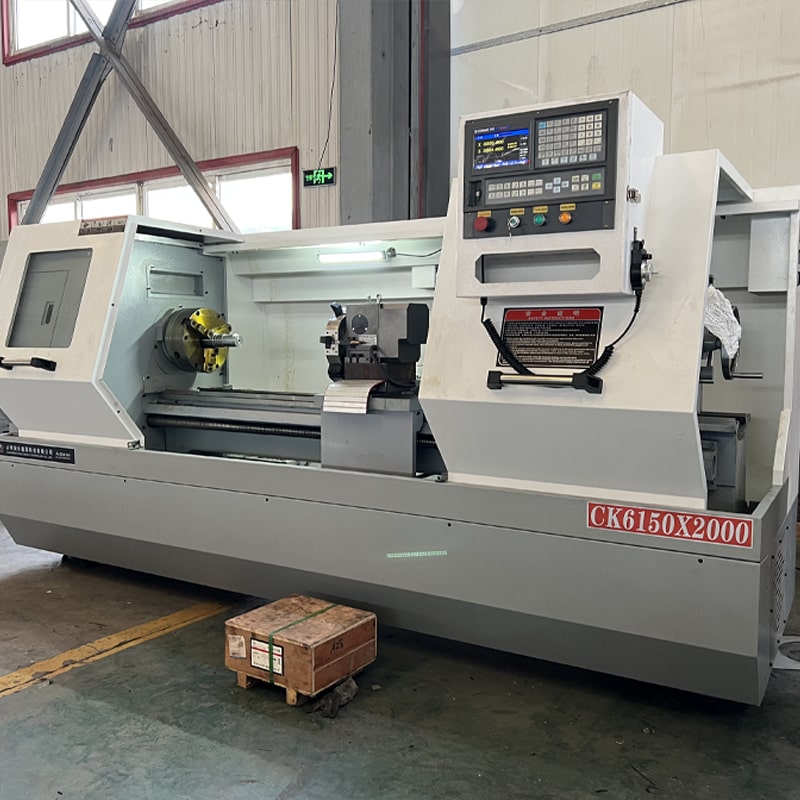

CK6150 CNC lathe is one of our company's economical series of CNC products. Its entire structure is developed, designed and manufactured according to the requirements of CNC machine tools. The spindle has high cutting characteristics and can provide cutting power well. The stop mechanism makes this model have the excellent characteristics of good precision stability, strong rigidity, small thermal deformation of the spindle unit, good thermal stability, and good precision retention. Rough, semi-finish and finish machining can be realized on this machine tool, which greatly improves the utilization rate and efficiency of equipment.
Video
Video
Product Specifications
Features:
1. Horizontal CNC lathes have high processing performance for the processing of shaft and disk parts.
2. Automatic cnc lathe is suitable for processing parts with large batches, high processing precision and high dimensional consistency requirements, especially for military, aerospace, automobile, mold, instrumentation and other mechanical processing industries.
3. Metal lathe performs efficient, high-volume, high-precision processing of parts. It is a high-efficiency, high-precision, high-quality, high-efficiency, low-cost machine tool.
CNC lathe CK6150 application:
CNC lathe manufacturing are suitable for automation equipment such as automobile industry, national defense industry, petrochemical industry, shipbuilding, new energy, textile, electronics, and precision molds.
Video
Video
Product Specifications
| Item | Unit | ALCK6150-2000 |
| The maximum turning diameter on the bed | mm | Φ500 |
| Maximum turning diameter on the carriage | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 2000 |
| X/Z axis maximum stroke | mm | 2000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle aperture | mm | Φ82 |
| Spindle speed limit | rpm | 150-2000/60-1600 |
| Main motor power (frequency conversion) | kw | 7.5 |
| Inverter | kw | 7.5 |
| X/Z axis | N.m | 5/7.5 |
| Tailstock sleeve diameter | mm | Φ65 |
| Tailstock sleeve stroke | mm | 130 |
