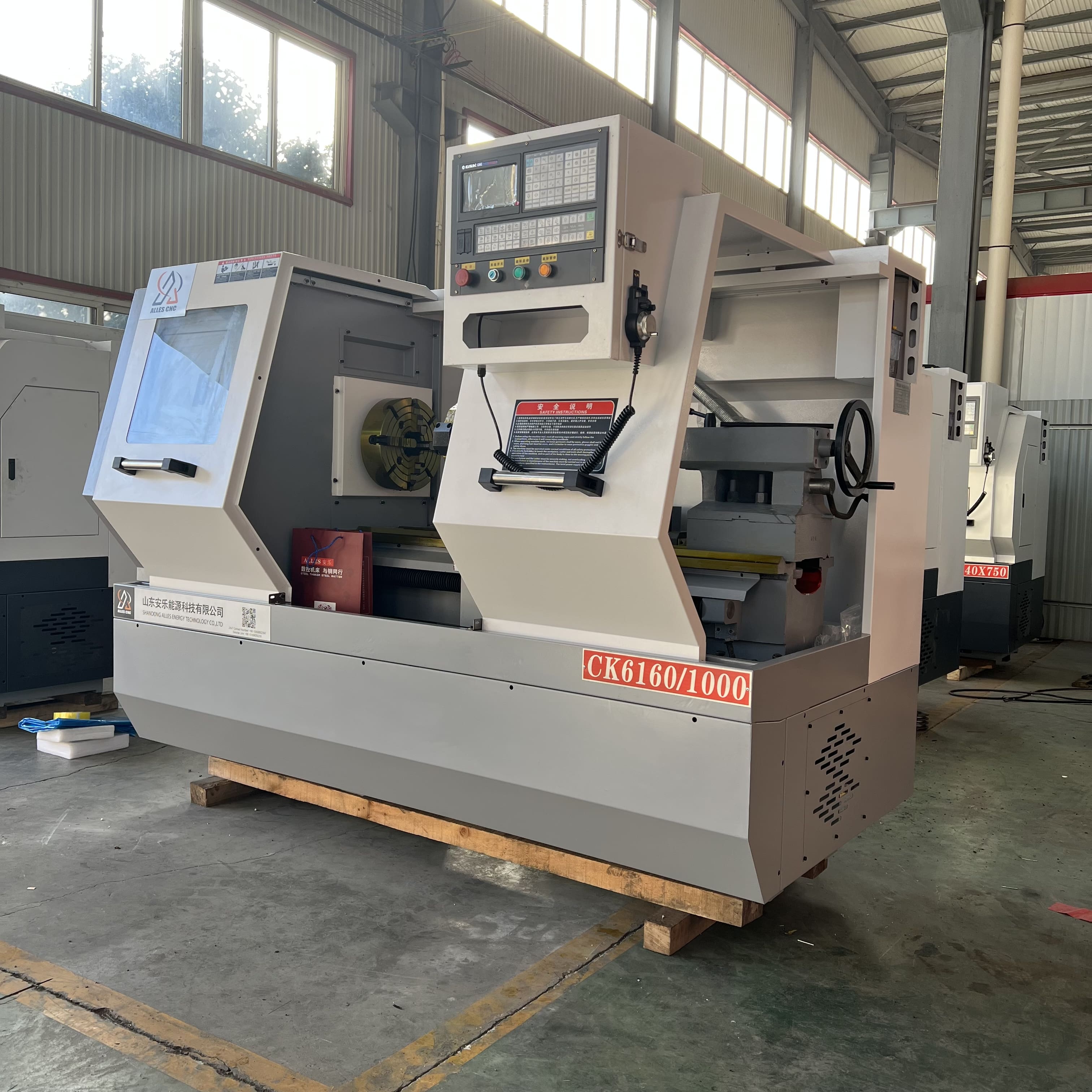

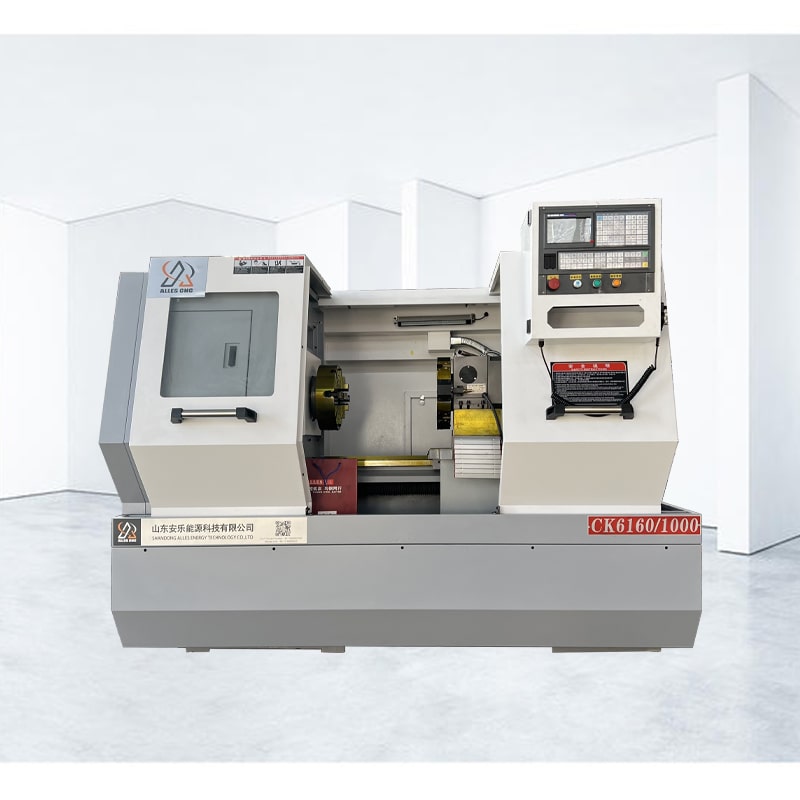

Automatic cnc lathe ck6160 Flat bed CNC lathe
Automatic CNC lathes are widely used in auto parts processing, hardware manufacturing, pneumatic parts, mobile phone parts, aviation, ship parts and other industries.
Product Description
Flat bed CNC lathe is widely used in heavy turning machining with higher productivity.
Automatic cnc lathe is used for processing complex geometric shapes and various sizes, and is mainly used for machining workpieces such as short shafts and discs. Processing various metric and imperial internal and external threads.
CNC lathe for metal can not only turn the outer circle, grooving and chamfering, but also perform drilling, reaming, expanding, rolling and other operations.
Product Specifications
Features:
1. Horizontal CNC Lathe has the automatic processing function of the control program, and generally does not require manual intervention during the processing
2. CNC metal lathe displays the processing program, various process parameters, processing time, tool movement track and workpiece graphics, etc.
3. CNC turning has an automatic alarm display function, according to the alarm signal or alarm prompt, you can quickly find the fault of the lathe. Ordinary lathes do not have the above functions.
4. Automatic lathe has a workpiece measurement system, which generally does not require manual measurement of the workpiece size during processing to ensure the machining accuracy of the workpiece.
CNC lathe CK6160 application:
Metal lathe is suitable for automation equipment such as automobile industry, national defense industry, petrochemical industry, shipbuilding, new energy, and precision molds.
Video
Video
Product Specifications
| Model | Unit | ck6160x1000 |
| Maximum turning diameter of bed | mm | Φ600 |
| Maximum turning diameter of carriage | mm | Ф310 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1000 |
| X/Z axis maximum stroke | mm | 300/(1000/1500) |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Ф82 (105/130) |
| Spindle speed limit | rpm | 150-1600 |
| Main motor power (frequency conversion) | kW | 11 |
| Frequency converter | kW | 11 |
| X/Z axis rapid traverse speed | m/min | 6/8 |
| Tool bar size | mm | 25*25 |
| Diameter of tailstock sleeve | mm | Φ75 |
| Tailstock sleeve stroke | mm | 200 |
| Net weight of machine tool | kg | 3000 |
| Machine size (length×width×height) | mm | 2940*1400*1700 |
| Electricity demand (power/current) | kW/A | 15kW/20A |
