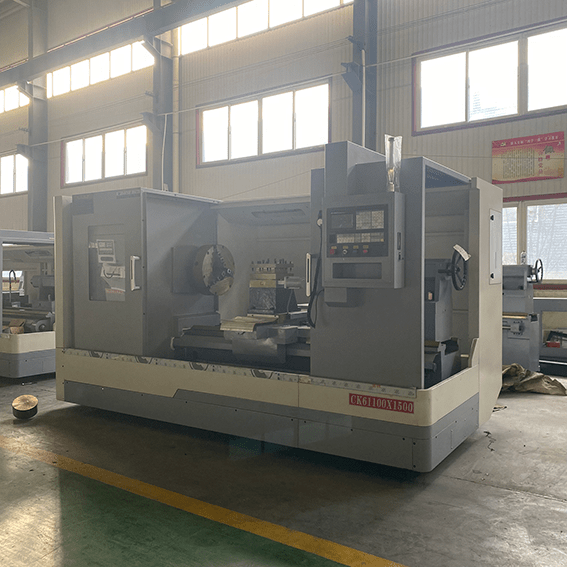

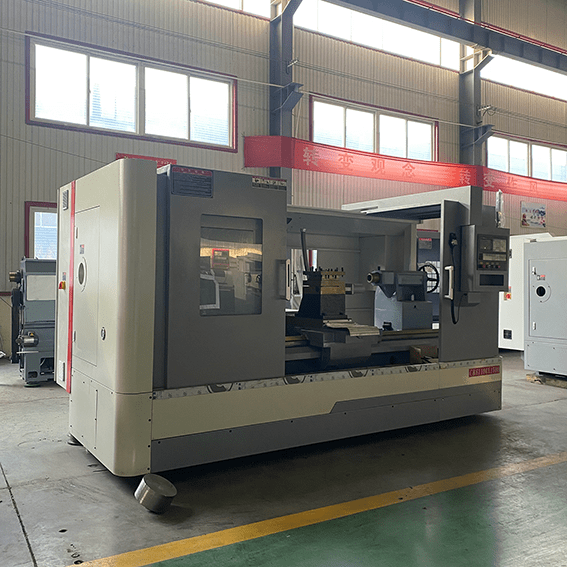

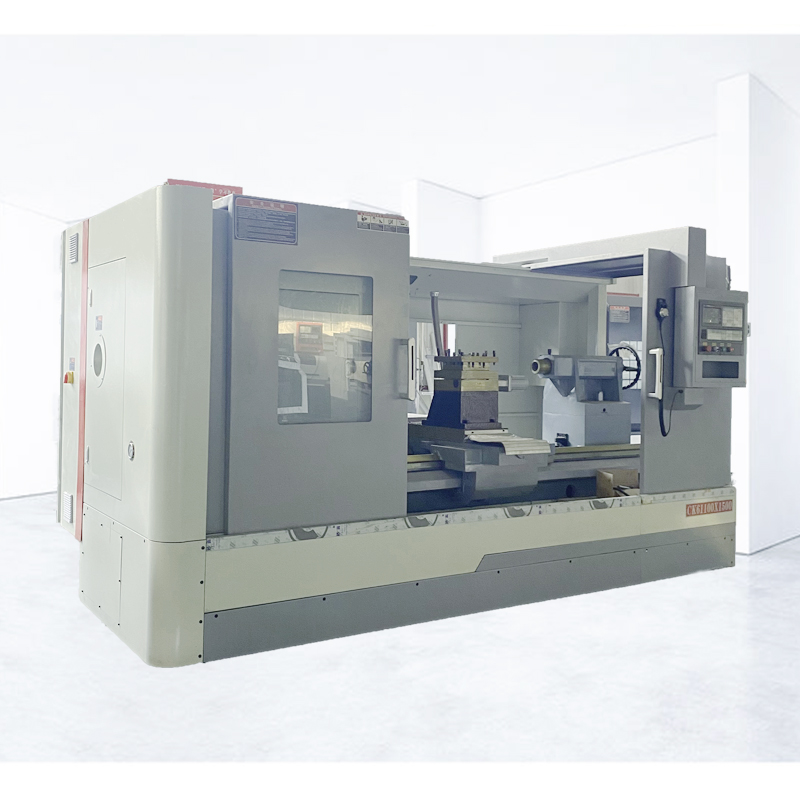

Horizontal CNC Lathe ALCK61100X1500 CNC lathe for metal
ALCK61100X1500 CNC lathe is a high-precision, high-efficiency CNC machine tool. It adopts advanced numerical control technology, which can realize high-precision processing and automatic production.
Product Description
CNC lathe for metal ALCK61100X1500 has the characteristics of high precision, high processing efficiency, high degree of automation and wide applicability, and can be widely used in high-precision machinery manufacturing fields such as aerospace, military industry, and machinery manufacturing.
Video
Product Specifications
Features:
1. CNC lathe for metal equipment adopts high-precision servo control system, which can realize high-precision processing and improve the precision and quality of products.
2.Horizontal CNC Lathe ALCK61100X1500 adopts advanced tool cutting technology, which can realize efficient processing and improve processing efficiency and productivity.
3. Automatic lathe adopts numerical control technology to control the movement of the tool holder and the workpiece, which has a high degree of automation, can realize the processing of complex shapes, and reduces the labor intensity of the operator.
4. Flat bed CNC lathe ALCK61100X1500 can be used to process parts of various materials, with strong applicability and flexibility.
CNC lathe ALCK61100X1500application:
1. Automatic lathe can be used to manufacture aero-engine components, aircraft structural parts, spacecraft components, etc. Processing milling, turning, boring, drilling, etc.
2. ALCK61100X1500 CNC lathe can be used to manufacture various parts in the military field. Processing turning, boring, milling, etc.
3. CNC lathe for metal ALCK61100X1500 can be used to manufacture various mechanical parts, molds, tooling, etc.
Video
Product Specifications
|
Content
|
Unit | ALCK61100x1500 |
| Maximum turning diameter of bed | mm | Φ1000 |
| Maximum turning length | mm | 1500 |
| Maximum bar diameter | mm | Φ500 |
| Spindle hole diameter | mm | Φ105 |
| Spindle speed range | r/min | 30-84/53-150/125-350/300-835 |
| X/Z axis travel | mm | 500/1500 |
| X/Z axis screw diameter × pitch | mm | φ3208/φ5010 |
| X/Z direction moving speed | m/min | 4/6 |
| Tailstock sleeve stroke | mm | Φ100/250 |
| Main motor power | Kw | 11 |
| Machine Net Weight | kg | 4700 |
| Machine Size（L×W×H） | mm | 3900/1900/2000 |
