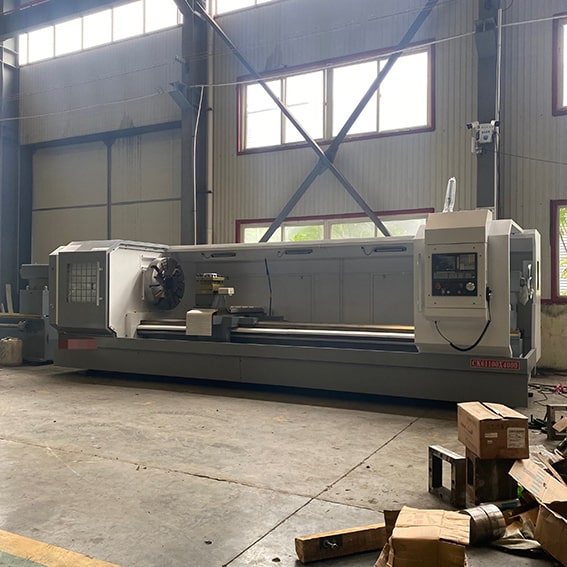

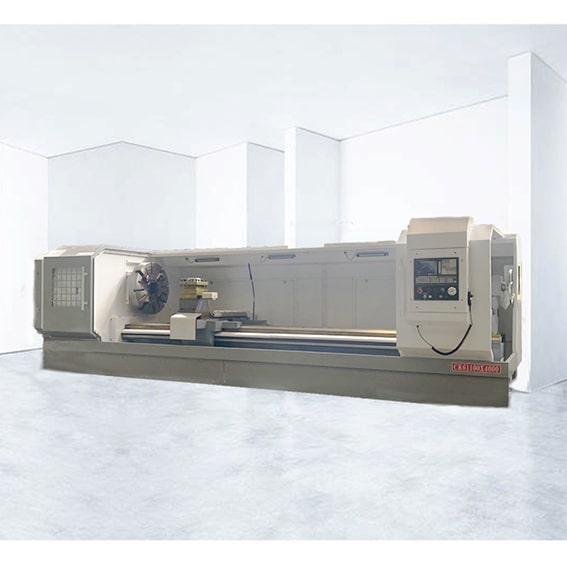

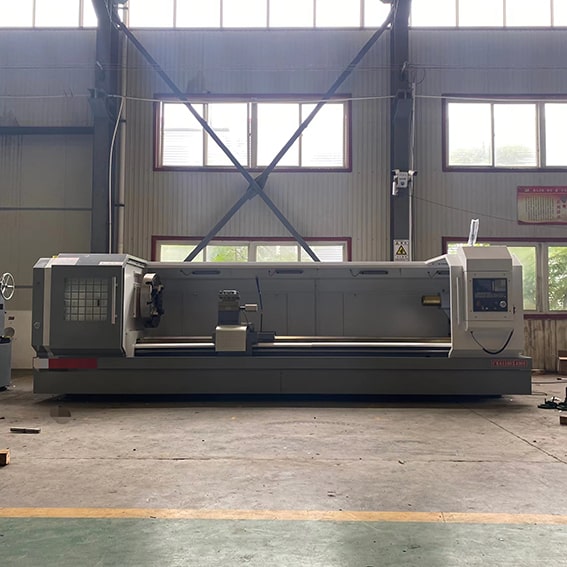

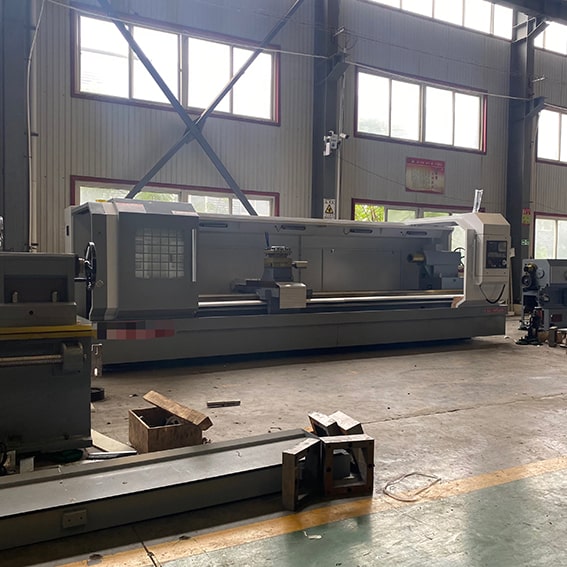

CNC lathe ALCK61100X4000 Horizontal CNC Lathe
CNC lathe ALCK61100X4000 has the characteristics of high precision, high efficiency and multi-function, it is widely used in the processing fields of various important parts.
Product Description
Horizontal CNC Lathe ALCK61100X4000 can be used for turning internal and external circles, threads, flanges, gears, splines, etc., as well as processing parts of various shapes.
Video
Product Specifications
Features:
1.Flat bed CNC lathe adopts high quality imported accessories. It has high precision, high stability and high reliability.
2. ALCK61100X4000 CNC lathe has the characteristics of high efficiency. It adopts a CNC system with a high degree of automation, which can realize high-speed and high-efficiency processing. In addition, it is also equipped with a multi-head turret and an automatic tool change system, which can complete multiple processes at one time, greatly improving production efficiency.
3.Horizontal CNC Lathe ALCK61100X4000 also has the characteristics of high precision, high stability and multi-function. It has a high-precision control system and a high-precision measurement system, which can ensure processing accuracy and stability.
CNC lathe ALCK61100X4000application:
ALCK61100X4000 Horizontal CNC Lathe is widely used in various industries, such as aviation, automobile, machinery manufacturing, electronics, medical equipment, etc. It is capable of processing a wide variety of materials, including metals, plastics, ceramics, and more.
ALCK61100X4000 flat bed CNC lathe has higher processing efficiency and stronger bearing capacity, and is suitable for processing larger parts.
Video
Product Specifications
|
Item
|
Unit | ALCK61100X4000 |
|
Swing over bed
|
mm | 1000 |
| Swing over cross slide | mm | 610 |
| Distance between centers | mm | 4000 |
| Guideway width | mm | 755 |
| Spindle bore | mm | 130 |
| Spindle speed range | rpm | 4-300 |
| Tool shank size | mm | 40x40 |
| X axis travel | mm | 520 |
| Z axis travel | mm | 3850 |
| X axis rapid traverse | mm/min | 4000 |
| Z axis rapid traverse | mm/min | 6000 |
| Tailstock quill diameter | mm | 160 |
| Tailstock quill travel | mm | 300 |
| Main spindle motor | Kw | 22 |
| Width x Height | mm | 2100x2100 |
| Length | mm | 7500 |
