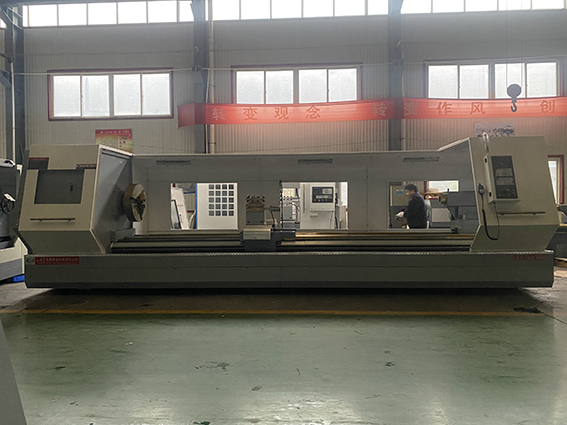

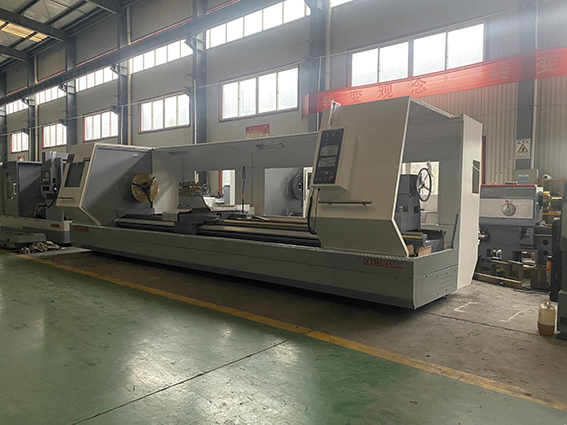

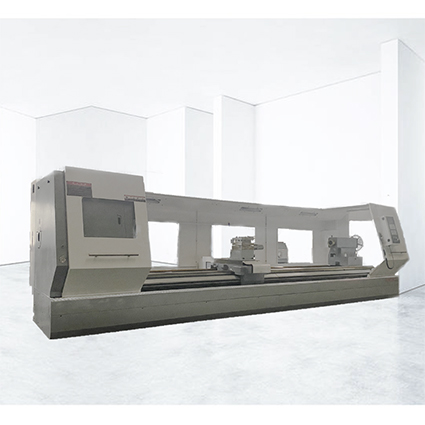

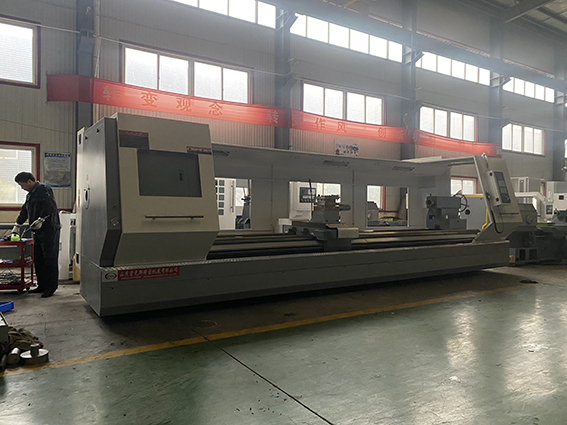

CNC lathe ALCK61100X5000 flat bed CNC lathe

Horizontal CNC Lathe ALCK61100X5000 is a widely used large-scale CNC lathe, featuring large processing range, high precision, strong stability, high reliability, etc., suitable for processing needs in various manufacturing fields

Product Description

CNC turning ALCK61100X5000 is mainly used in turning processing of complex structural parts, processing of shaft parts, processing of large nuts, etc. In the process of processing, it is necessary to pay attention to the setting of processing parameters, the selection of tools and the adjustment of fixtures to ensure the processing quality and efficiency.

Features:

1. Horizontal CNC Lathe ALCK61100X5000 has a large processing range and is suitable for processing large workpieces, such as ships and large mechanical equipment.

2. The CNC system adopted by ALCK61100X5000 Automatic lathe has the characteristics of high precision and high reliability, and can realize complex contour processing and high-speed cutting.

3. The flat bed CNC lathe ALCK61100X5000 tool holder has a stable structure, and the tool holder adopts a three-point support structure, which has high stability and can ensure processing quality and efficiency.

4. CNC turning ALCK61100X5000 has strong reliability, and the key components are international brands, with high reliability and long life.

CNC lathe ALCK61100X5000 application:

ALCK61100X5000 is widely used in various fields of manufacturing industry, such as shipbuilding, petroleum, chemical industry, machinery, rail transit, etc. Improve production efficiency and quality, reduce production costs.

Video

Product Specifications

Item	Unit	ALCK61100X5000
Swing over bed	mm	1000
Swing over cross slide	mm	610
Distance between centers	mm	5000
Guideway width	mm	755
Max. load capacity	T	6
Spindle bore	mm	130
Spindle speed range	rpm	4-300
Tool shank size	mm	40x40
X axis travel	mm	520
Z axis travel	mm	4850
X axis rapid traverse	mm/min	4000
Z axis rapid traverse	mm/min	6000
Tailstock quill diameter	mm	160
Tailstock quill travel	mm	300
Main spindle motor	Kw	22
Width x Height	mm	2100x2100
Length	mm	8500
