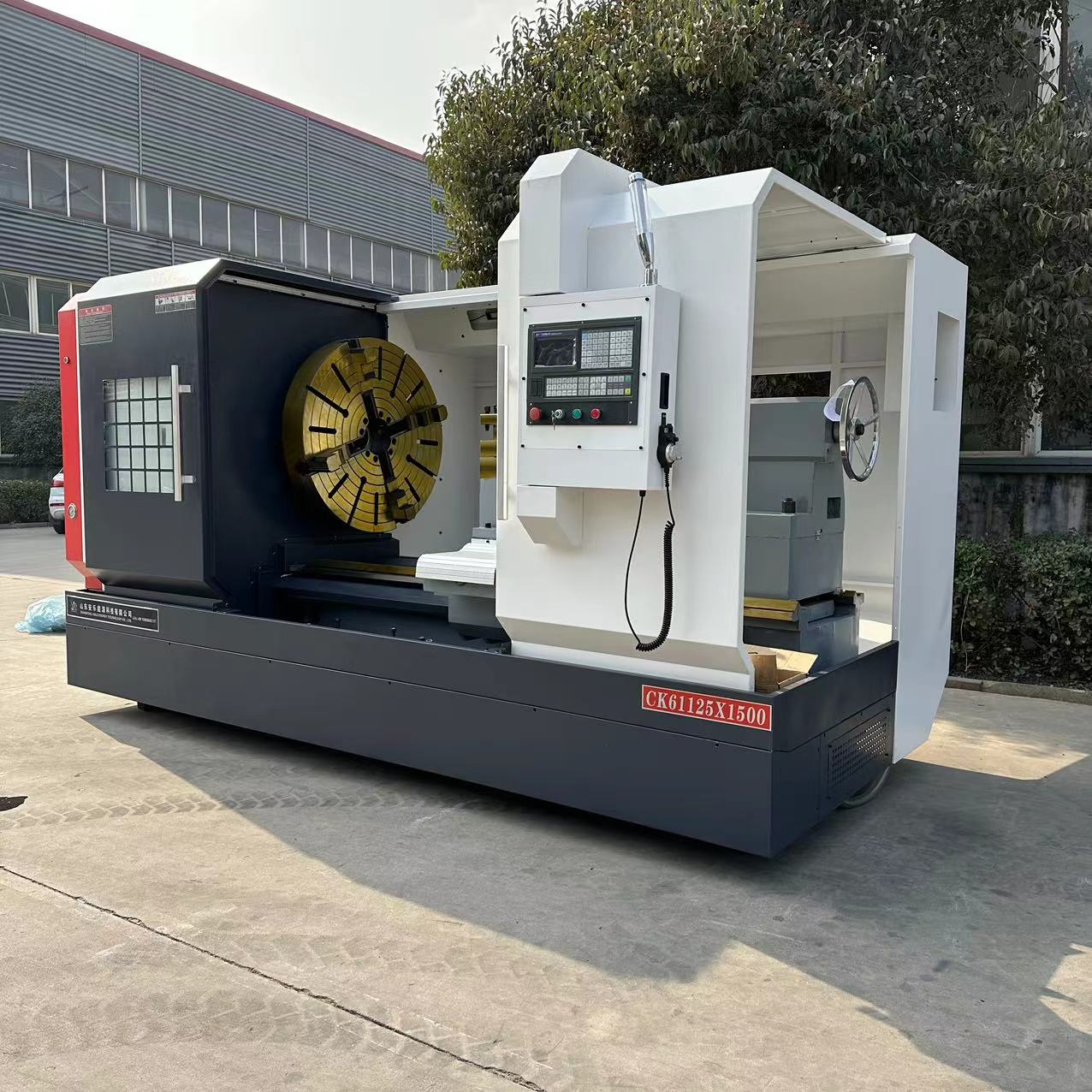

Automatic lathe ALCK61125X1500 flat bed CNC lathe
CNC lathe CK61125x1500 is a high-precision, high-efficiency and high-reliability CNC lathe CK61125x1500 mainly processes turning, boring, drilling, tapping, etc. in the machinery manufacturing industry.
Product Description
Horizontal CNC Lathe can process various large parts, such as shafts, flanges, gears, etc. It can also process various complex parts, such as crankshafts, camshafts, gearbox housings, aircraft engine parts, missile parts, etc.
Product Specifications
Features:
1.Horizontal CNC Lathe CK61125x1500 adopts digital control system, which has the processing characteristics of high precision, high efficiency and high reliability.
2. CNC lathe can achieve a positioning accuracy of 0.01 mm and a repeat positioning accuracy of 0.02 mm, which can meet the needs of high-precision parts processing.
3. The feed speed and processing speed of CNC turning can reach high-speed and high-efficiency levels, greatly improving production efficiency and product quality.
4. Flat bed CNC lathe CK61125x1500 also has the characteristics of intelligence, which can perform various operations such as automatic tool change and automatic calibration, reduce manual intervention, and improve production efficiency and stability.
Video
CNC lathe CK61125x1500 application:
CNC lathe CK61125x1500 can be widely used in machinery manufacturing, aerospace, military industry, automobile and other fields.
Product Specifications
|
Content
|
Unit | ALCK61125x1500 |
| Maximum turning diameter on the bed slide | mm | Φ1250 |
| Maximum turning diameter on the skateboard | mm | Φ900 |
| Maximum processing length | mm | 1500 |
| Effective processing length | mm | 1350 |
| Maximum machining diameter | mm | Φ1250 |
| Maximum bar diameter | mm | Φ630 |
| Spindle through hole diameter | mm | Ф105 |
| X/Z axis rapid traverse speed | m/min | 4/6 |
| X/Z axis travel | mm | 530/1500 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Tailstock sleeve diameter | mm | Φ100 |
| Tailstock sleeve stroke | mm | 250 |
| Machine net weight | kg | 5000 |
| Machine tool dimensions (length × width × height) | mm | 3700*1820*1780 |
| Electricity demand (power/current) | kW/A | 20kW/30A |
