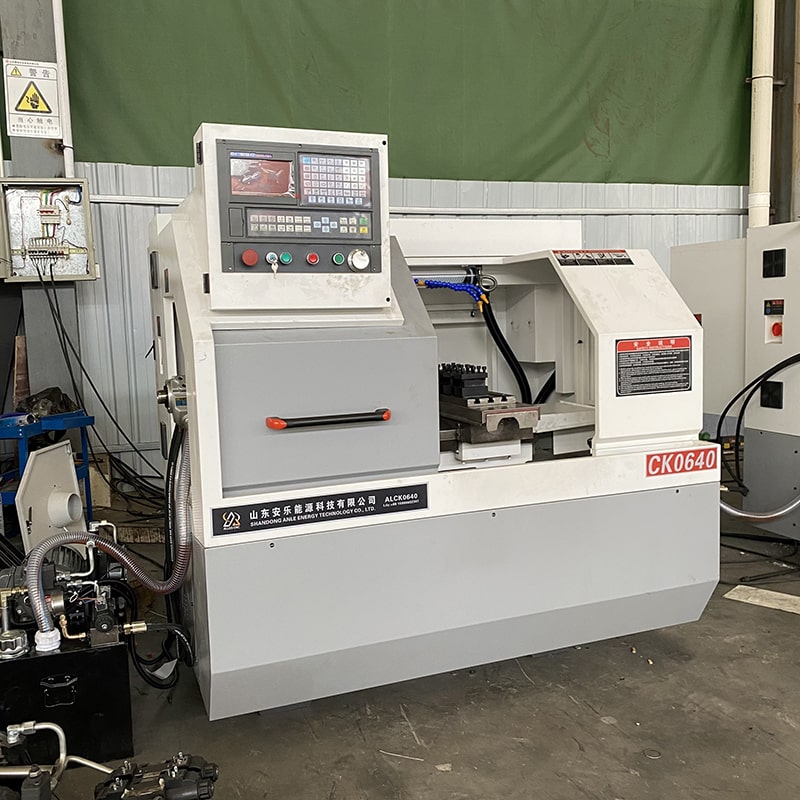

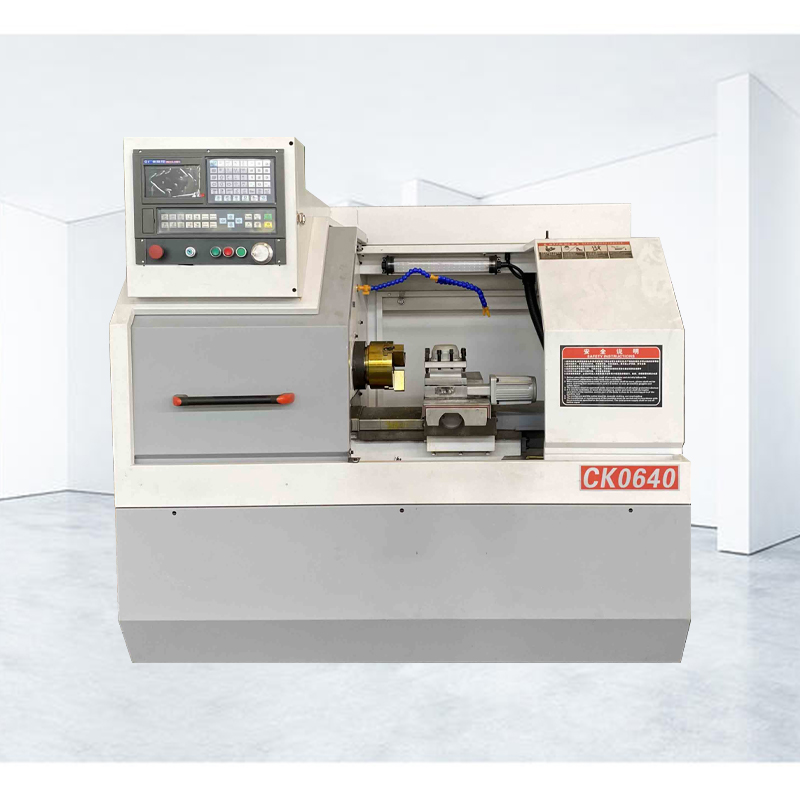

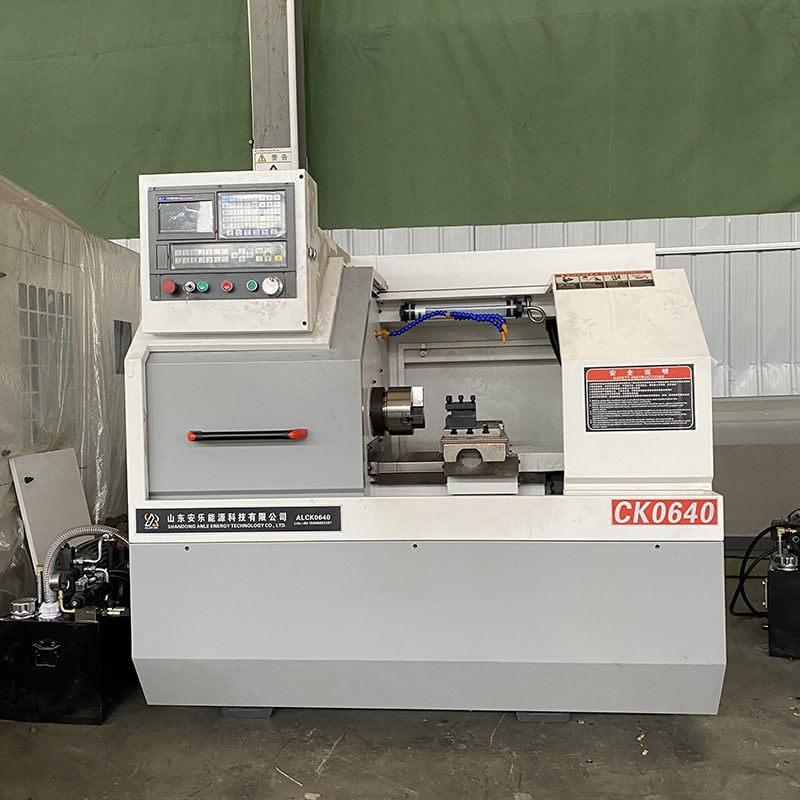

CNC lathe for metal ck0640 Automatic lathe
CNC lathe for metal is an advanced equipment widely used in the machinery manufacturing industry, which can realize the machining process with high precision, high efficiency and high reliability.
Product Description
The CNC lathe ALCK0640 can realize different axial and radial cutting, and can process parts of various shapes, such as cylinders, cones, spheres, etc. Horizontal CNC lathes can achieve high-precision hole processing, and can process holes of various sizes and shapes. CNC turning can realize efficient and high-precision thread processing, and can process various precision threads.
Video
Product Specifications
Features:
1. CNC lathe CK0640 adopts digital control system, which has the processing characteristics of high precision, high efficiency and high reliability.
2. Horizontal CNC Lathe can achieve positioning accuracy and repeat positioning accuracy, which can meet the needs of high-precision parts processing
3. The feed speed and processing speed of Automatic cnc lathe can reach high-speed and high-efficiency levels, greatly improving production efficiency and product quality.
4. CNC turning CK0640 also has the characteristics of intelligence, which can perform various operations such as automatic tool change and automatic calibration, reduce manual intervention, and improve production efficiency and stability.
CNC lathe for metal application：
CNC lathe CK0640 can be widely used in machinery manufacturing, automobile, aerospace, military and other fields. In the field of machinery manufacturing, it can process various small and medium-sized parts, such as shafts, flanges, gears, etc. In the field of automobile manufacturing, it can process various automobile parts, such as crankshafts, camshafts, gearbox housings, etc. In the field of aerospace and military industry, it can process various complex parts, such as aircraft engine parts, missile parts and so on.
Video
Product Specifications
|
Item
|
Unit | ALCK0640 |
| Max swing over bed | mm | Φ250 |
| Maximum swing over slide | mm | Φ120 |
| Spindle hole diameter | mm | Φ48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 3000 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Machine weight | Kg | 800 |
| Dimensions (length × width × height) | mm | 1620×1340×1680mm |
