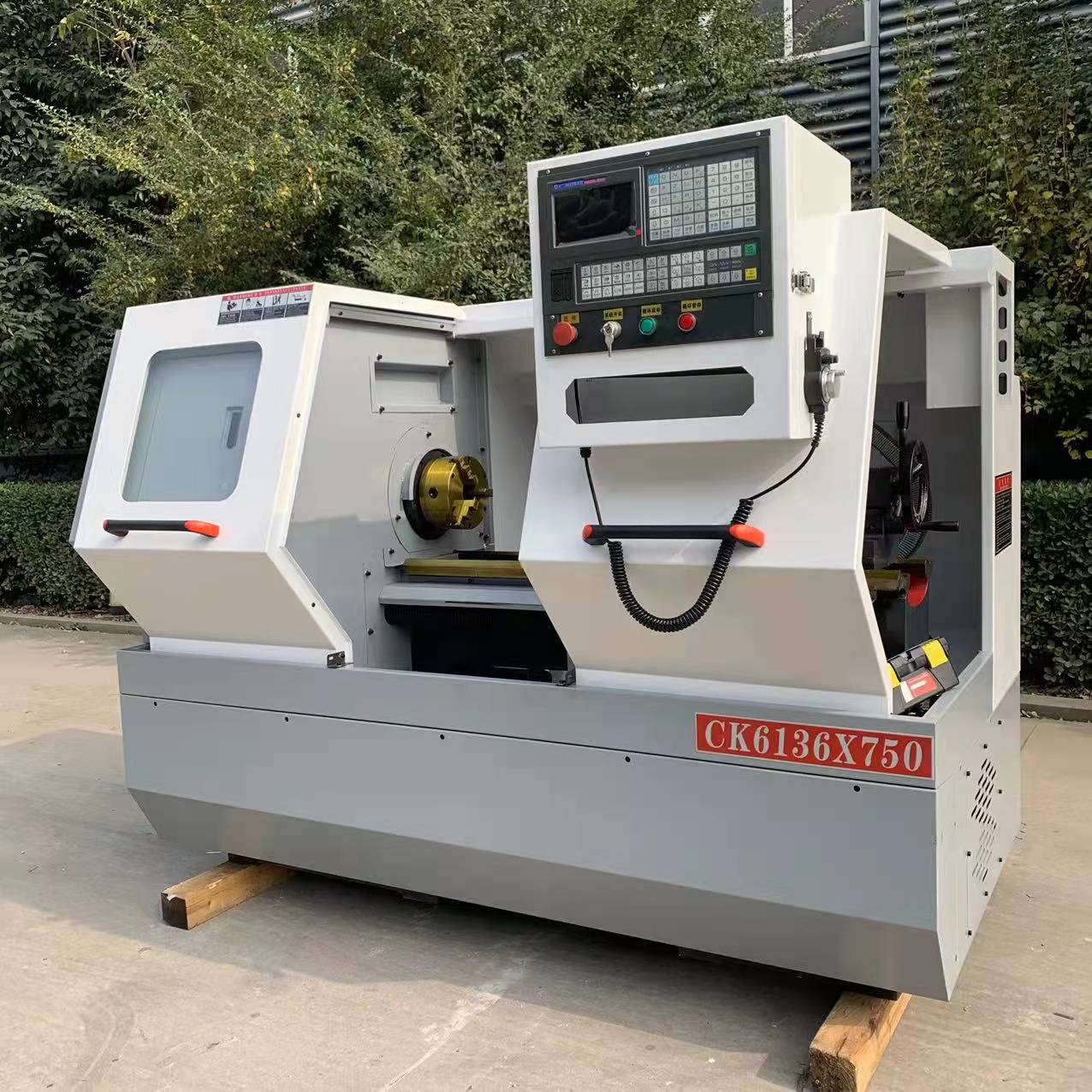

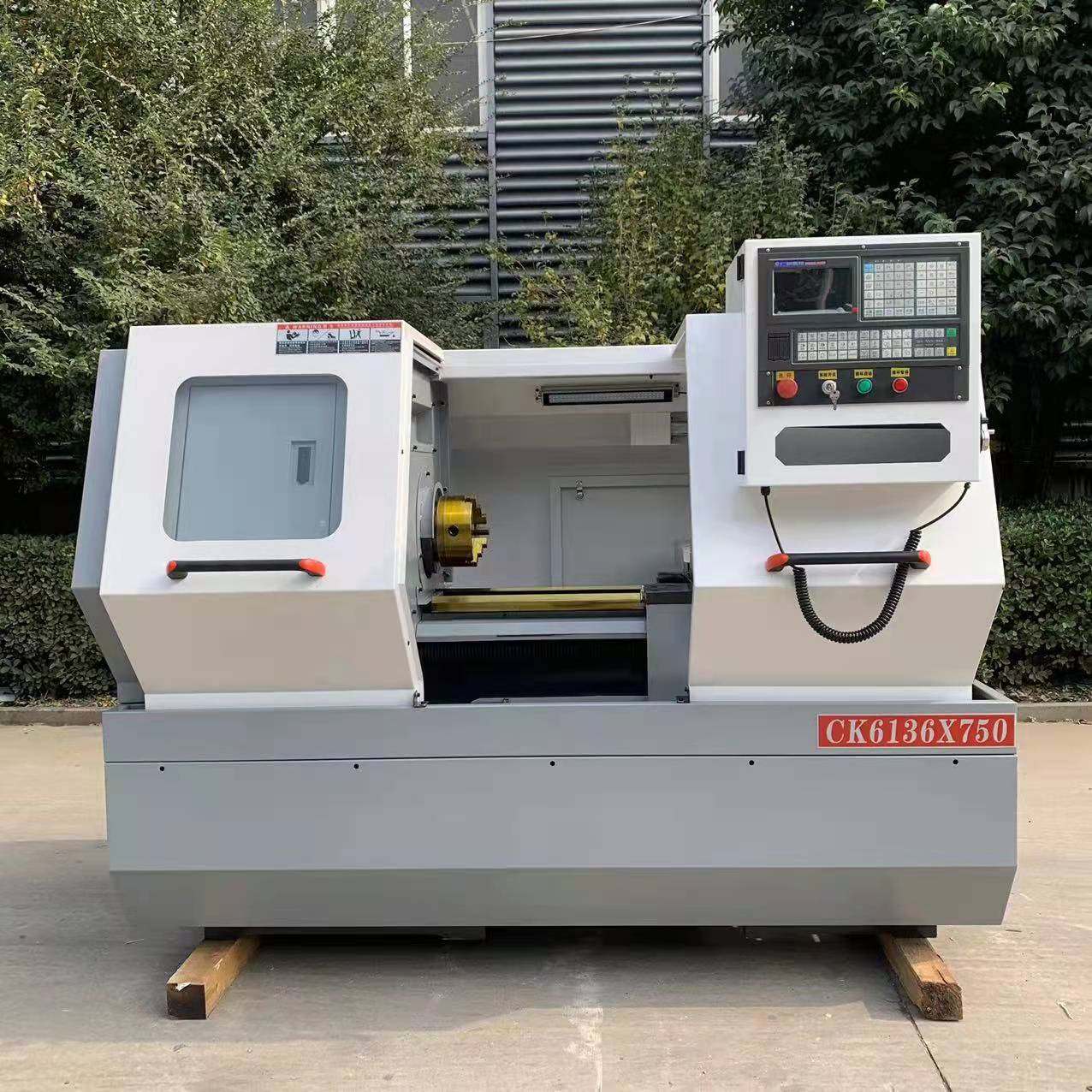

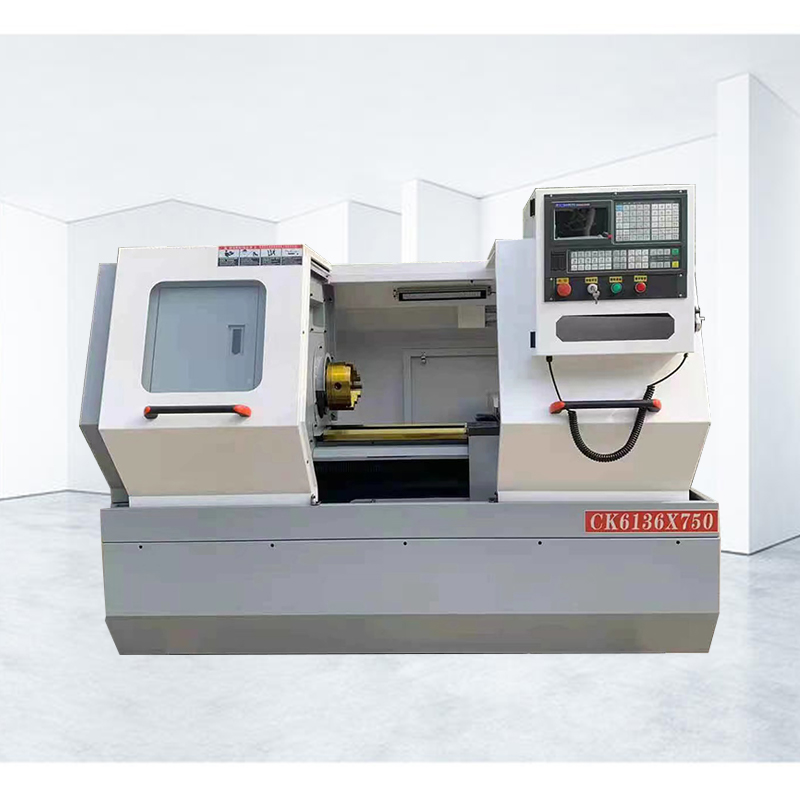

CNC Lathe For Metal ALCK6136 Horizontal CNC Lathe
Horizontal CNC Lathe can be used to produce various auto parts such as engine, transmission, brake system, steering system, etc. CNC lathe for metal ALCK6136 can be used for processing engine cylinder block, cylinder head, crankshaft, connecting rod and other parts.
Product Description
CNC lathe for metal is a kind of automatic processing equipment, which can automatically complete the processing of various complex shape parts according to the program control, and has the characteristics of high precision, high efficiency and high degree of automation. CNC lathe In the automobile manufacturing industry, CNC lathe is an important processing tool.
Video
Product Specifications
Features:
1.Horizontal CNC Lathe adopts high-precision ball screw and linear guide, so that the machining accuracy can reach 0.01mm.
2. CNC lathe uses a high-speed motor to drive the spindle, and the maximum speed can reach 3000rpm, which greatly improves the processing efficiency.
3. Adopting numerical control system control, automatic processing can be realized without manual operation, which improves production efficiency.
4. The flat bed CNC lathe can perform various processing methods such as turning, milling, drilling, tapping, etc., and is suitable for processing different types of parts.
5. CNC lathe for metal has the advantages of easy operation, safety and reliability, simple maintenance, etc. It is easy to operate and not easy to make mistakes.
CNC lathe CK6136 application:
Flat bed CNC lathe is widely used in machinery manufacturing, aerospace, automobile manufacturing, electronics, military and other fields.
1. Horizontal CNC Lathe ALCK6136 can process various parts with complex shapes in the machinery manufacturing industry, such as bearings, gears, pin shafts, etc., and can meet the needs of the machinery manufacturing industry for high-precision and high-efficiency processing.
2.Horizontal CNC Lathe ALCK6136 is more and more widely used in the aerospace industry. It is capable of processing various complex-shaped parts, such as aircraft engine parts, gas turbine parts, etc.
3.Flat bed CNC lathe ALCK6136 is also widely used in the automobile manufacturing industry. It is capable of processing various complex-shaped auto parts, such as engine crankshafts, reducer gears, etc.
4. ALCK6136 Horizontal CNC Lathe can process electronic parts of various complex shapes, such as electronic component housings, LED lamp holders, etc.
5. Flat bed CNC latheALCK6136 also has important applications in the military industry. It can process weapon parts and weapon parts of various complex shapes, so it has become an important processing equipment in the military industry.
Video
Product Specifications
|
Item
|
Unit | ALCK6136-750 |
| Max swing over bed | mm | Φ360 |
| Maximum turning diameter on the tool post | mm | Φ200 |
| Maximum workpiece length between two centers | mm | 750 |
| Spindle through hole diameter | mm | Φ52 |
| Spindle speed range (infinite): | r/min | 150-2000 |
| Spindle motor power | kw | 5.5 |
| Tool handle size | mm | 20×20 |
| X stroke | mm | 200 |
| Z stroke | mm | 750 |
| Overall dimensions of machine tool (length×width×height) | mm | 2350mm×1380mm×1640mm |
| Net weight | kg | 1600 |
