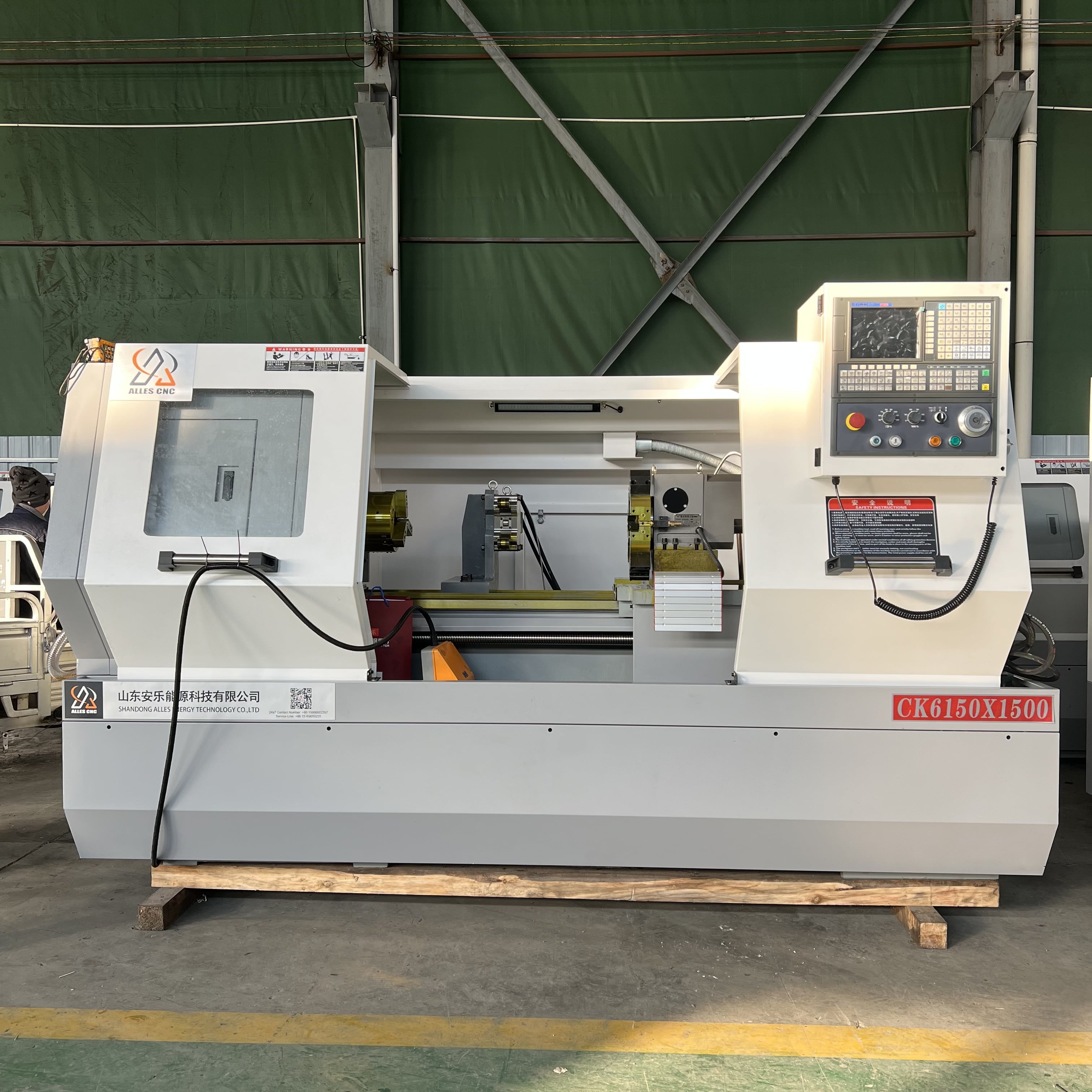

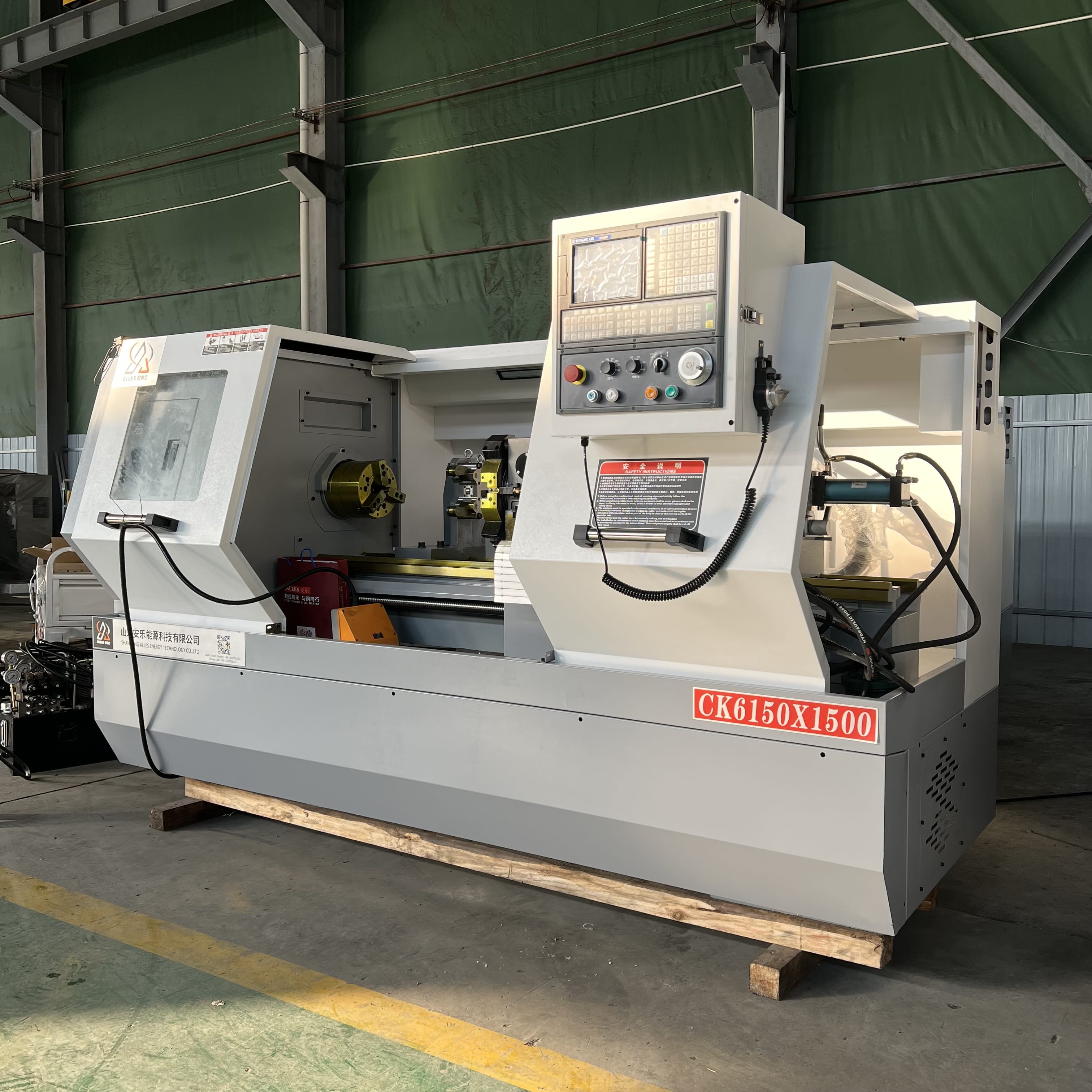

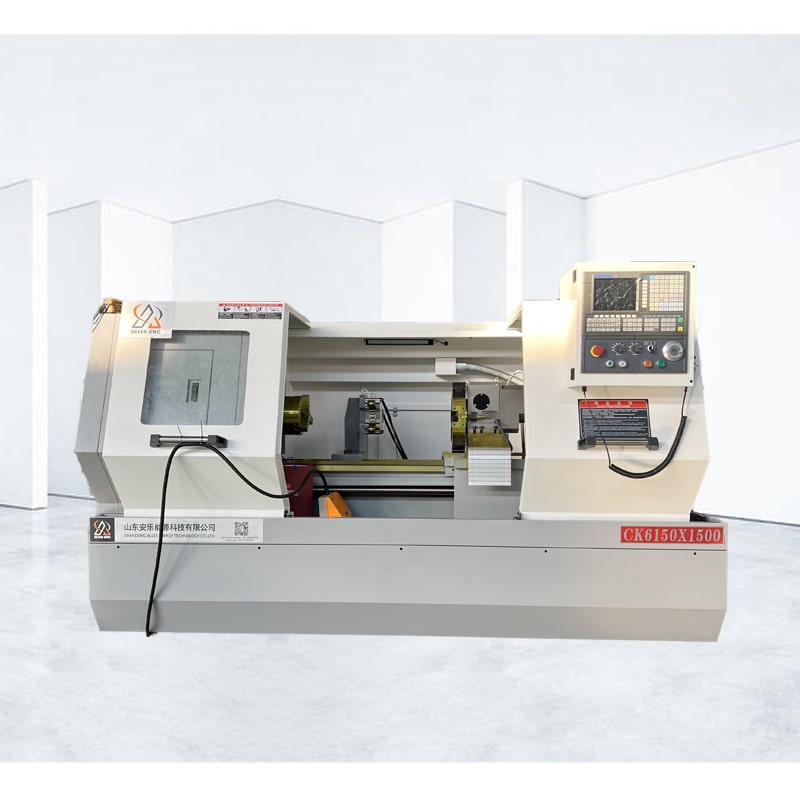

Horizontal CNC Lathe ALCK6150 Metal Lathe
ALCK6150x1500 CNC lathe is a high-performance, high-precision machine tool with strong stability and reliability, and has broad application prospects in various industries. In the field of automobile manufacturing, it provides an important technical guarantee for the production of high-quality, high-performance auto parts.
Product Description
CNC turning is a modern machine tool that controls cutting tools through digital programming for precise machining. Flat bed CNC lathe is equipped with high-performance spindles and cutting tools, which can process parts in many different materials.
\
Product Specifications
\
feature:
1. Automatic cnc lathe ALCK6150x1500 adopts advanced digital control system, which can perform processing operations quickly and accurately, improving production efficiency and processing accuracy.
2. Horizontal CNC Lathe ALCK6150x1500 has larger processing size and load capacity, and is suitable for processing larger workpieces and parts requiring high-precision processing. Its processing length can reach 1500mm, which can meet most processing needs.
3. CNC lathe for metal ALCK6150x1500 also has strong stability and reliability, adopts a durable machine tool structure and high-quality parts, and can maintain high precision and high efficiency in long-term production.
Video
CNC lathe CK6150 application:

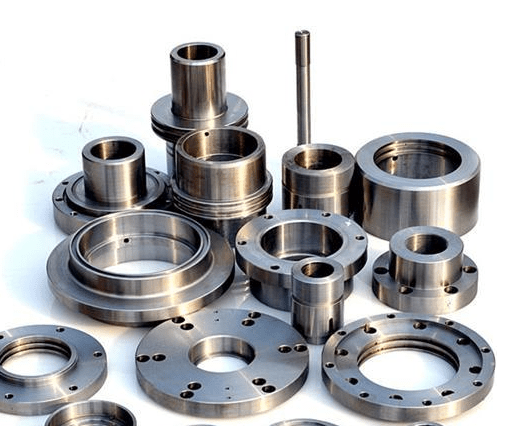

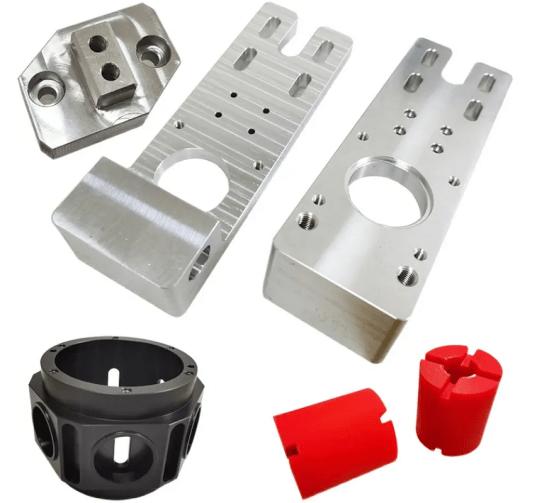

ALCK6150x1500 CNC lathe is widely used in machining, aerospace, electronics manufacturing, automobile manufacturing and other industries. ALCK6150x1500 CNC lathe can be used to process various axles, reducers, gears, crankshafts and other important parts, which greatly improves the production efficiency and quality level of automobile manufacturing.
Video
Product Specifications
|
Item
|
Unit | ALCK6150*1500 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1500 |
| X/Z axis maximum stroke | mm | 1500 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
| Spindle speed limit | rpm | 150-2000/60-1600 |
| Main motor power (frequency conversion) | kW | 7.5 |
| Frequency converter | kW | 7.5 |
| X/Z axis rapid traverse speed | m/min | 6/8 |
| Tool bar size | mm | 25*25 |
| Repeated positioning accuracy of tool post | mm | ≤0.004 |
| Diameter of tailstock sleeve | mm | Φ65 |
| Tailstock sleeve stroke | mm | 130 |
| Electricity demand (power/current) | kW/A | 15kW/20A |
