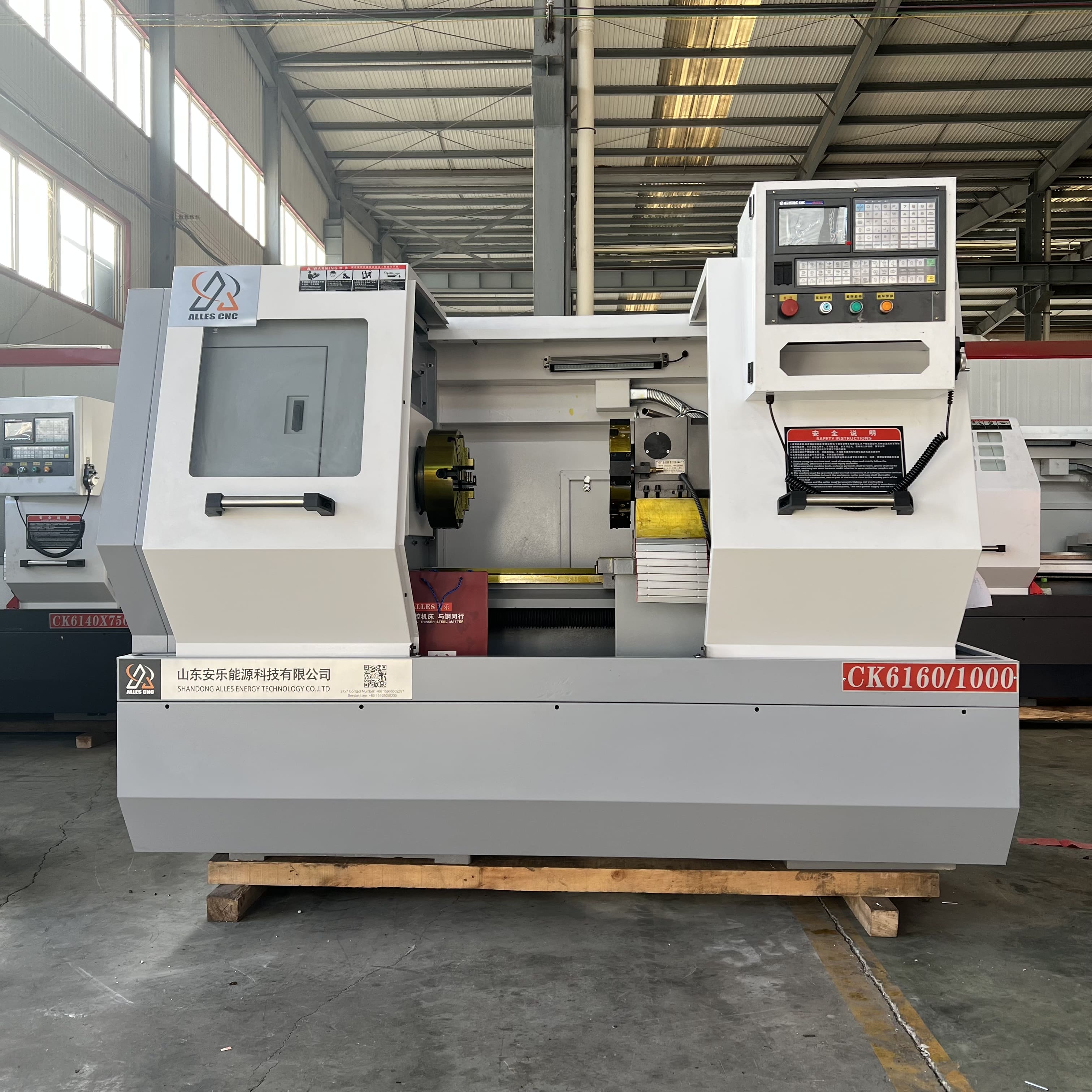

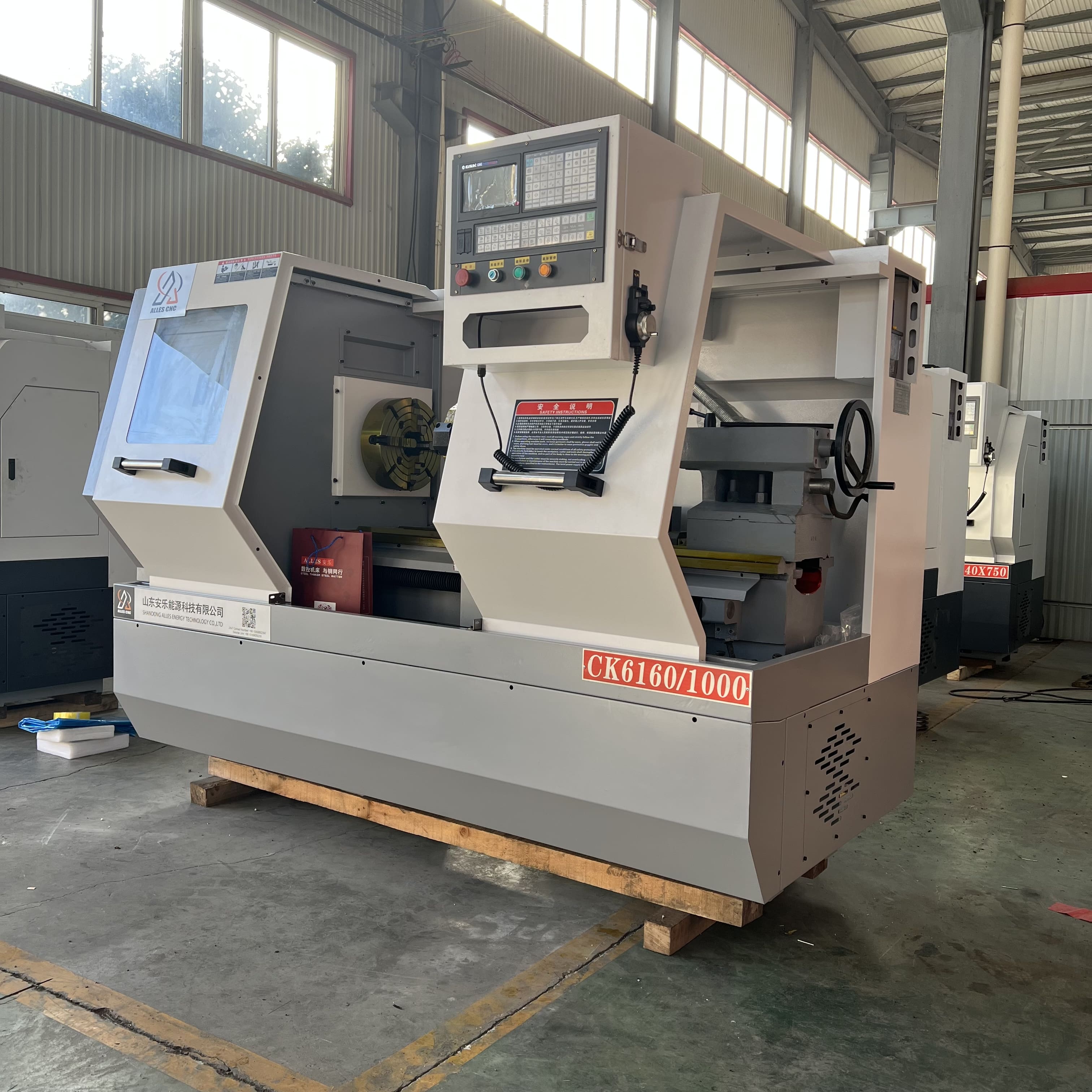

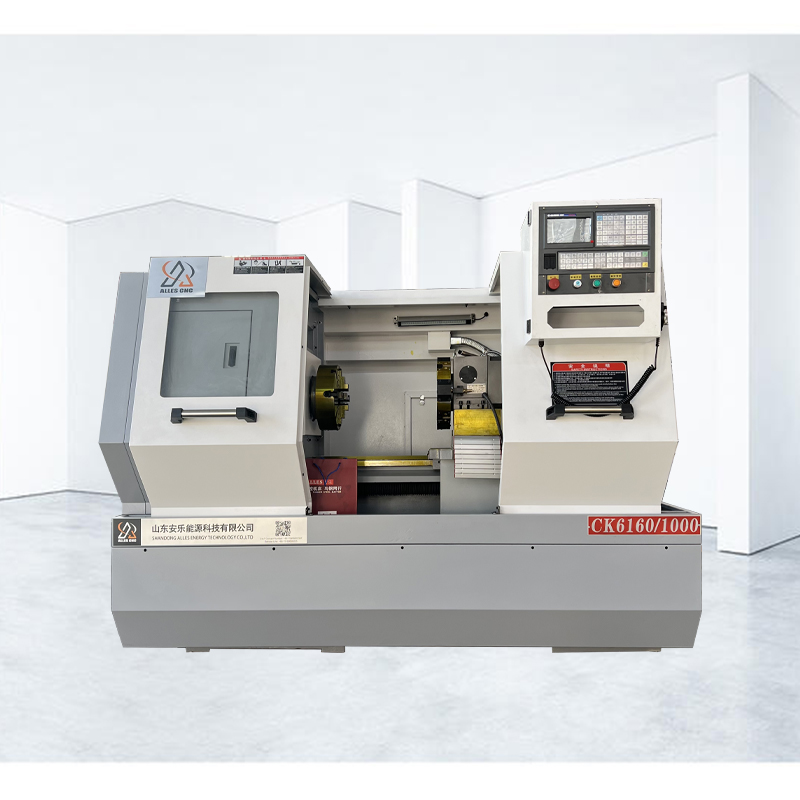

Model
|
Unit | ALCK6160x 1000 |
Maximum turning diameter of bed | mm | Φ600 |
Maximum turning diameter of carriage | mm | Ф310 |
Maximum cutting diameter | mm | Φ500 |
Maximum processing length | mm | 1000 |
X/Z axis maximum stroke | mm | 300/(1000/1500) |
X/Z axis minimum displacement unit | mm | 0.001 |
Spindle hole diameter | mm | Ф82 (105/130) |
Spindle speed limit | rpm | 150-1600 |
Main motor power (frequency conversion) | kW | 11 |
Frequency converter | kW | 11 |
X/Z axis rapid traverse speed | m/min | 6/8 |
Tool bar size | mm | 25*25 |
Diameter of tailstock sleeve | mm | Φ75 |
Tailstock sleeve stroke | mm | 200 |
Net weight of machine tool | kg | 3000 |
Machine size (length×width×height) | mm | 2940*1400*1700 |
Electricity demand (power/current) | kW/A | 15kW/20A |
