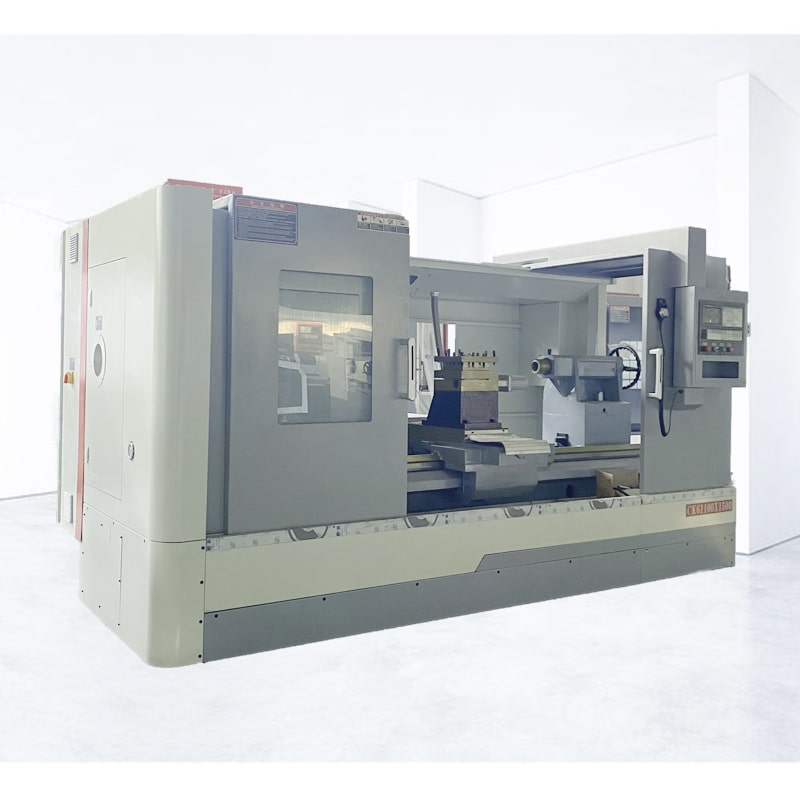

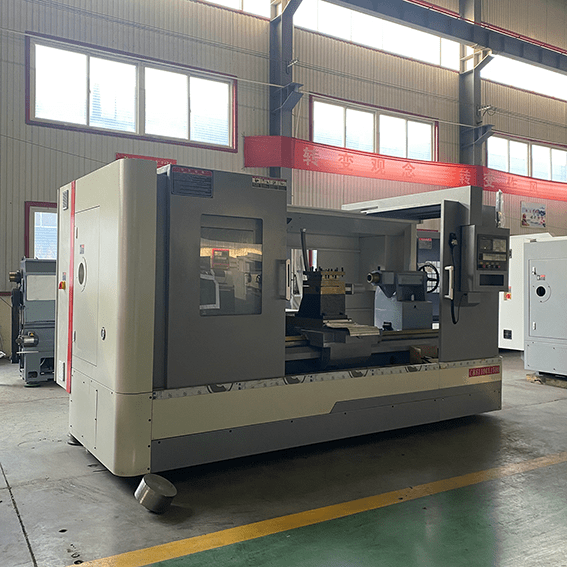

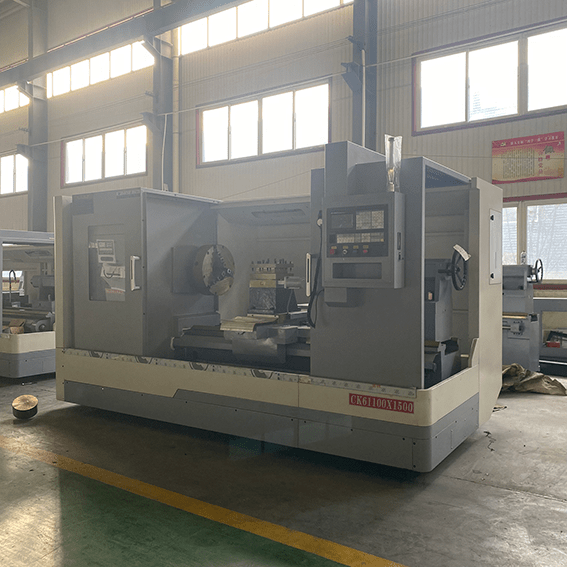

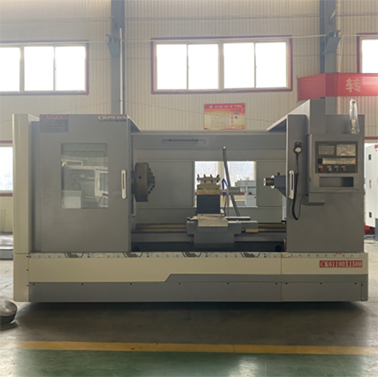

CNC Lathe For Metal ALCK61100X1500 Flat Bed CNC Lathe

Flat bed CNC lathe is suitable for various processes such as turning, boring, tapping, gear processing, etc., and can meet the needs of various precision parts processing.

Product Description

Horizontal CNC Lathe supports high-precision surface processing to meet the processing needs of complex surfaces; CNC turning supports multi-axis linkage processing, which can realize multi-directional processing and high-efficiency production.

Features:

1.CNC turning adopts advanced control system and precise spindle design, which can realize high-precision machining, reaching a machining accuracy of 0.01mm, and is suitable for machining precision mechanical parts.

2.CNC lathe has high-speed, high-precision positioning function and quick tool change system, which can greatly shorten the processing cycle and reduce manual intervention, and improve processing efficiency.

3.Flat bed CNC lathe has a processing length of 1500mm and a processing diameter of 1000mm, which is suitable for processing large-scale parts, such as wind turbine hubs, automobile engine blocks, etc.

CNC lathe ALCK61100X1500application:

Automatic cnc lathe is suitable for machining, aerospace, automotive, mould, electronics, energy and other fields.

Video

Product Specifications

Content	Unit	ALCK61100x1500
Maximum turning diameter of bed	mm	Φ1000
Maximum turning length	mm	1500
Maximum bar diameter	mm	Φ500
Spindle hole diameter	mm	Φ105
Spindle speed range	r/min	30-84/53-150/125-350/300-835
X/Z axis travel	mm	500/1500
X/Z axis screw diameter × pitch	mm	φ3208/φ5010
X/Z direction moving speed	m/min	4/6
Tailstock sleeve stroke	mm	Φ100/250
Main motor power	Kw	11
Machine Net Weight	kg	4700
Machine Size（L×W×H）	mm	3900/1900/2000
