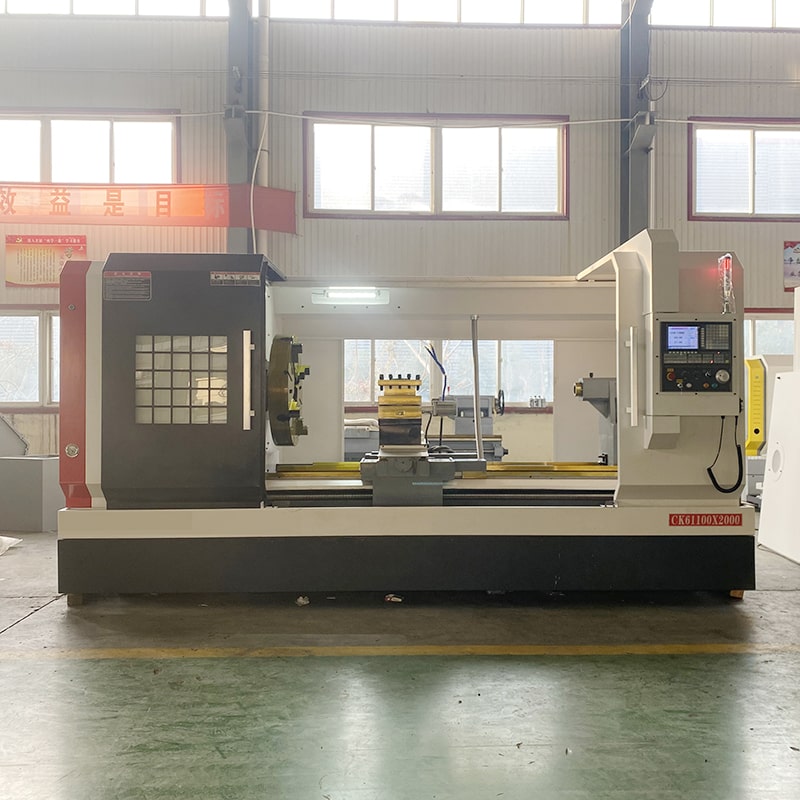

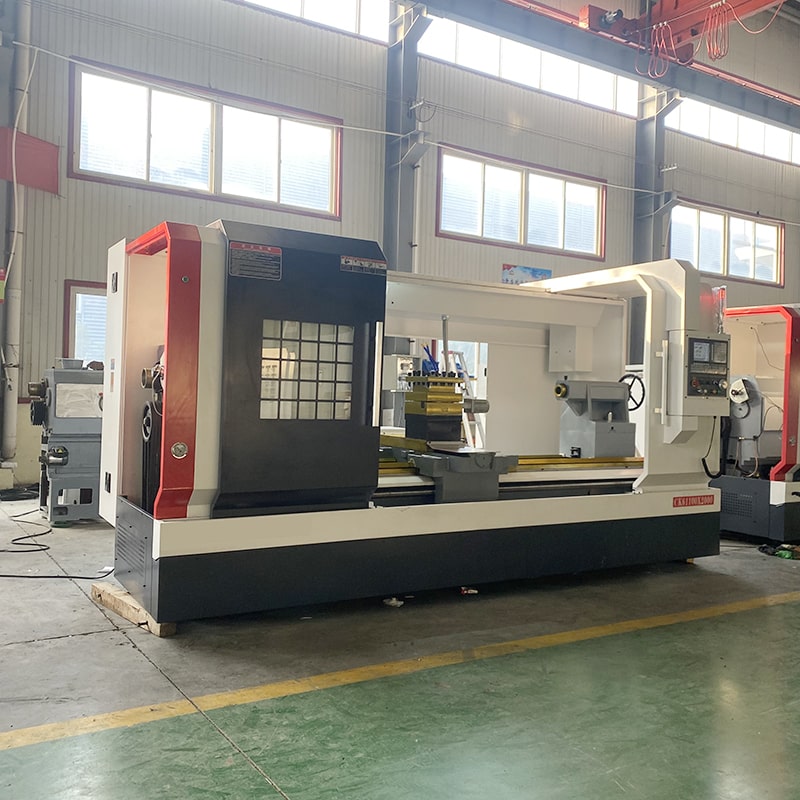

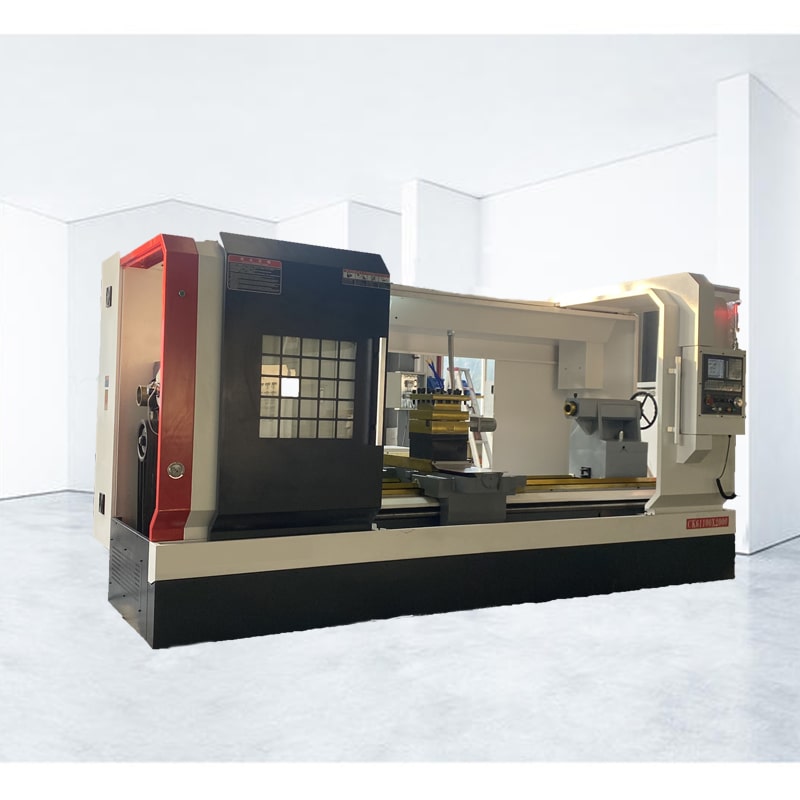

CNC Lathe For Metal ALCK61100X2000 CNC Lathe

ALCK61100x2000 CNC lathe for metal can be used to process various shaft parts, casings, gears and other parts, with high processing efficiency and high processing accuracy, and can meet the processing needs of different parts.

Product Description

Flat bed CNC lathe ALCK61100x2000 is a large CNC lathe with high precision, good stability and multi-functional machining. CNC turning adopts advanced control system and precise spindle design, which can realize high-precision machining, and the machining accuracy can reach 0.01 mm, which is very suitable for the machining of various precision parts in automobile manufacturing.

Features:

1. ALCK61100X200 CNC turning is suitable for manufacturing parts of various materials, and has strong applicability and flexibility.

2. Metal lathe ALCK61100X2000 has the characteristics of high efficiency. It adopts a CNC system with a high degree of automation, which can realize high-speed and high-efficiency processing. In addition, it is also equipped with a multi-head turret and an automatic tool change system, which can complete multiple processes at one time, greatly improving production efficiency.

3. CNC lathe for metal ALCK61100X200 adopts advanced tool cutting technology, which can realize efficient processing and improve processing efficiency and productivity.

4.Flat bed CNC lathe ALCK61100X2000 has high precision, high stability and high reliability.

CNC lathe ALCK61100X2000 application:

ALCK61100X2000 CNC lathe is widely used in various industries, such as aviation, automobile, machinery manufacturing, electronics, medical equipment, etc. It is capable of processing a wide variety of materials, including metals, plastics, ceramics, and more.

Video

Product Specifications

Content	Unit	ALCK61100-2000
Maximum turning diameter of bed	mm	Φ1000
Maximum turning length	mm	2000
Maximum machining	mm	Φ1000
Maximum bar diameter	mm	Φ500
Spindle hole diameter	mm	Φ105
X/Z axis travel	mm	500/2000
Tool Specifications: Turning/Boring	mm	32/40
Tailstock sleeve stroke	mm	Φ100/250
Main motor power	Kw	11
X/Z motor power	Kw	1.5/2.3
Machine Net Weight	kg	5500
Machine Size（L×W×H）	mm	4400/1900/2000
