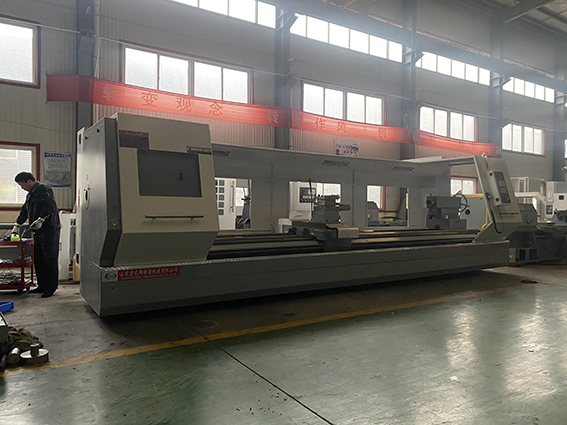

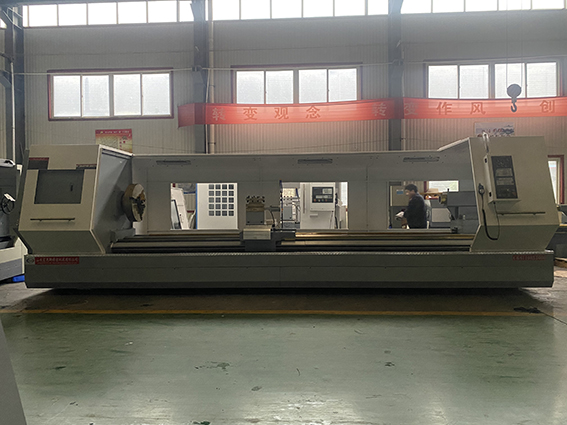

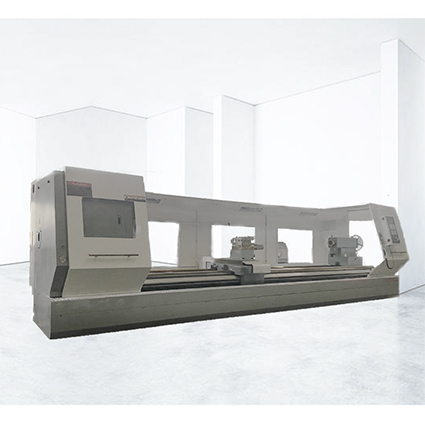

CNC Turning ALCK61100X5000 Flat Bed CNC Lathe

ALCK61100x5000 CNC lathe is a professional processing equipment with the characteristics of high precision, high stability and high efficiency. It has been widely used in the aerospace industry and can meet the high precision and high efficiency requirements for parts processing in this field.

Product Description

ALCK61100x5000 Automatic cnc lathe is widely used in the manufacture of various auto parts, such as wheel hubs, crankshafts, transmission shafts, gears, etc. The flat bed CNC lathe can not only improve machining accuracy and machining efficiency, but also meet the high requirements for the size and quality of parts in automobile manufacturing, and contribute to the development of the automobile industry.

Features:

1. CNC turning adopts high-precision spindle system and imported servo motor, which can realize high-speed and high-precision machining.

2. Automatic lathe adopts a wide bed structure, which has sufficient rigidity and stability, and can withstand high-strength cutting and processing loads.

3. Horizontal CNC Lathe is equipped with a variety of tools and tool holders, which can realize various processing methods, such as turning, drilling, milling, tapping, etc., and can meet various processing needs.

4. Metal lathe ALCK61100x5000 CNC lathe is widely used in the aerospace industry and can be used to process various precision parts, such as aircraft structural parts, engine parts and so on.

5. CNC turning has the advantages of high automation, high precision, and high production efficiency. It can effectively improve the processing quality and efficiency of the aerospace industry, and has important application value.

CNC lathe ALCK61100X5000application:

ALCK61100x5000 CNC lathe is a high-precision processing equipment suitable for various large-scale metal processing fields. In addition to being widely used in the automobile manufacturing industry, CNC turning can also be used in shipbuilding, machinery manufacturing, aerospace and other industries. CNC lathes can meet complex parts processing requirements, such as large wheels, wind power equipment parts, etc. CNC lathe for metal can also be used in high-demand industries such as military manufacturing and energy fields.

Video

Product Specifications

Content	Unit	ALCK61100x5000
Swing over bed	mm	1000
Swing over cross slide	mm	610
Distance between centers	mm	5000
Guideway width	mm	755
Max. load capacity	T	6
Spindle bore	mm	130
Spindle speed range	rpm	4-300
Tool shank size	mm	40x40
X axis travel	mm	520
Z axis travel	mm	4850
X axis rapid traverse	mm/min	4000
Z axis rapid traverse	mm/min	6000
Tailstock quill diameter	mm	160
Tailstock quill travel	mm	300
Main spindle motor	Kw	22
Width x Height	mm	2100x2100
Length	mm	8500
