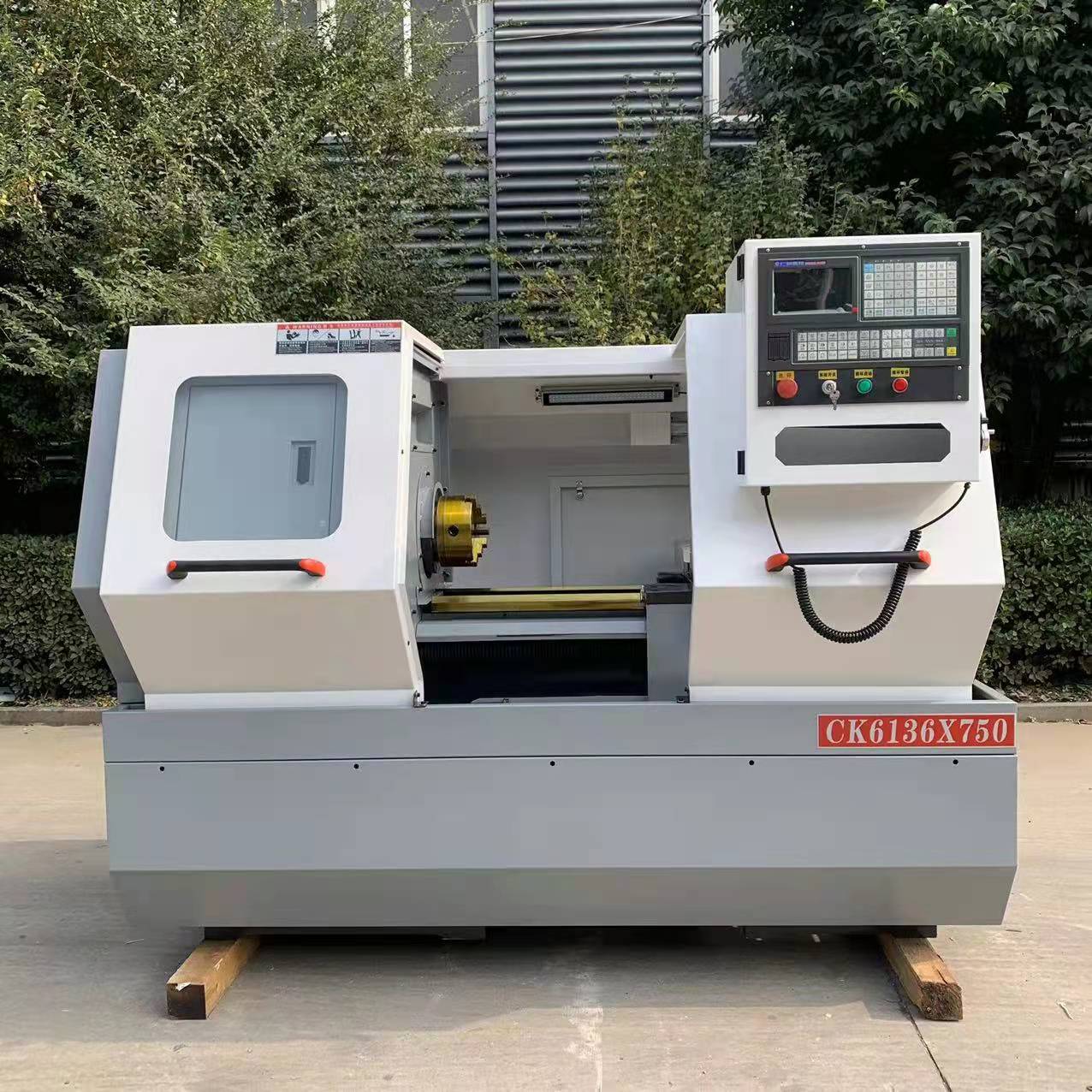

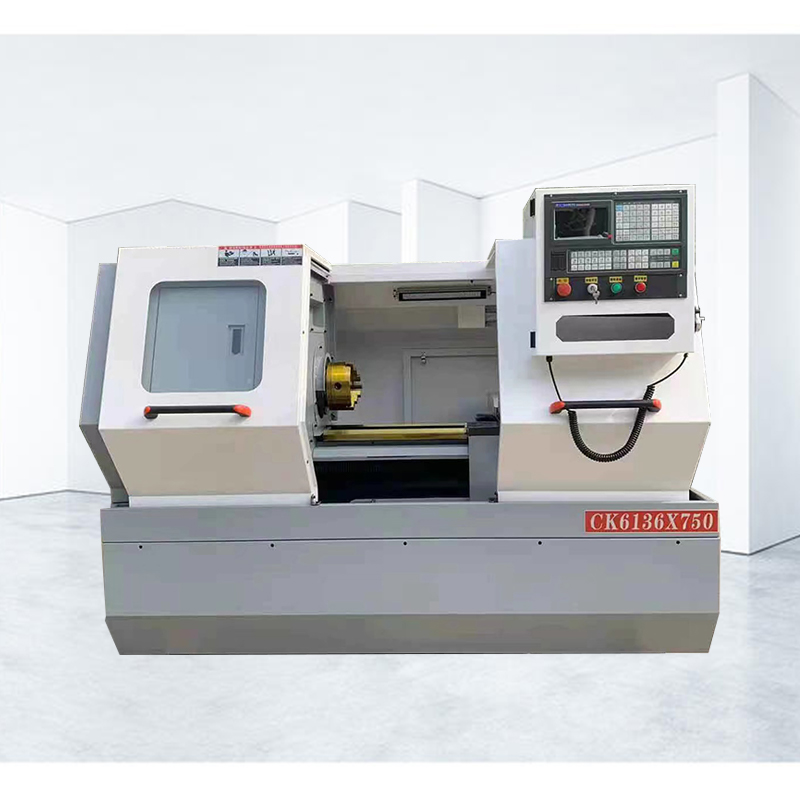

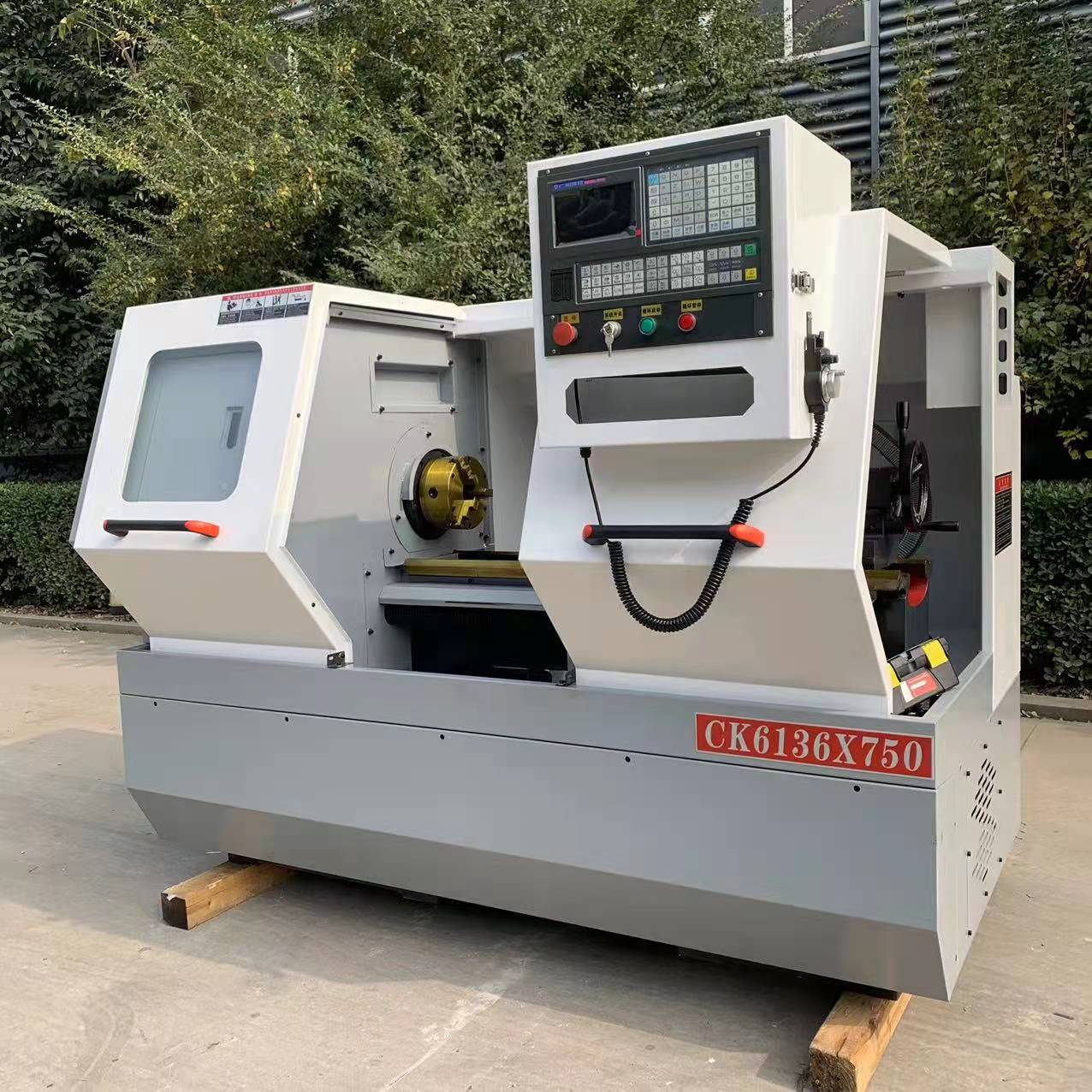

Flat bed CNC lathe ALCK6136 CNC turning
ALCK6136 Flat bed CNC lathe is a high-efficiency and high-precision machine tool equipment, which is widely used in the machinery manufacturing industry. CNC lathe for metal is widely used in auto parts manufacturing, mold manufacturing, aerospace manufacturing.
Product Description
ALCK6136 CNC turning adopts digital control technology, programming according to the processing requirements of different parts, and then realizes automatic processing through the automatic control system. CNC lathe for metal
With high processing precision, high efficiency and high degree of automation, Flat bed CNC lathe is suitable for processing various precision parts.
Features:
1. Automatic cnc lathe ALCK6136 CNC lathe adopts digital control technology, which can realize high-precision machining, and the precision can reach 0.01 mm, which can meet the high-precision requirements of different industries for parts processing.
2.Horizontal CNC Lathe can not only perform basic processing such as turning, boring, tapping, but also process parts with complex shapes, such as spherical surfaces, helical lines, threads, etc.
3. CNC lathe for metal ALCK6136 adopts advanced automatic control system, which can realize automatic loading and unloading, automatic tool change, automatic measurement and other operations, which improves production efficiency and processing accuracy.
CNC lathe CK6136 application:
1. Automatic cnc lathe Auto parts processing requires high-precision and high-efficiency equipment. ALCK6136 CNC lathe can process various parts such as wheels, clutches, and steering gears.
2. Flat bed CNC lathe mold manufacturing requires high-precision and high-precision equipment. ALCK6136Horizontal CNC Lathe can process various mold parts, mold holders, stretch rods, die-casting molds, etc.
3. Automatic cnc lathe ALCK6136 CNC lathe can process various aerospace parts, missile parts, aero engine parts and so on.
Video
Product Specifications
Video
Product Specifications
|
Item
|
Unit | ALCK6136-750 |
| Max swing over bed | mm | Φ360 |
| Maximum turning diameter on the tool post | mm | Φ200 |
| Maximum workpiece length between two centers | mm | 750 |
| Spindle through hole diameter | mm | Φ52 |
| Spindle speed range (infinite) | r/min | 150-2000 |
| Spindle motor power | kw | 5.5 |
| Tool handle size | mm | 20×20 |
| X stroke | mm | 200 |
| Z stroke | mm | 750 |
| Overall dimensions of machine tool (length×width×height) | mm | 2350mm×1380mm×1640mm |
| Net weight | kg | 1600 |
