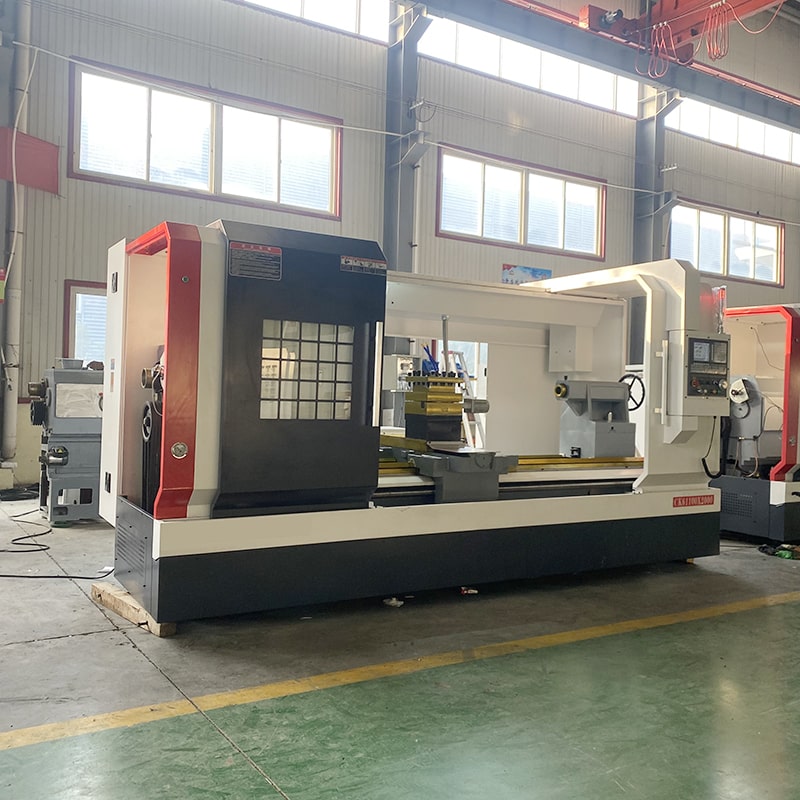

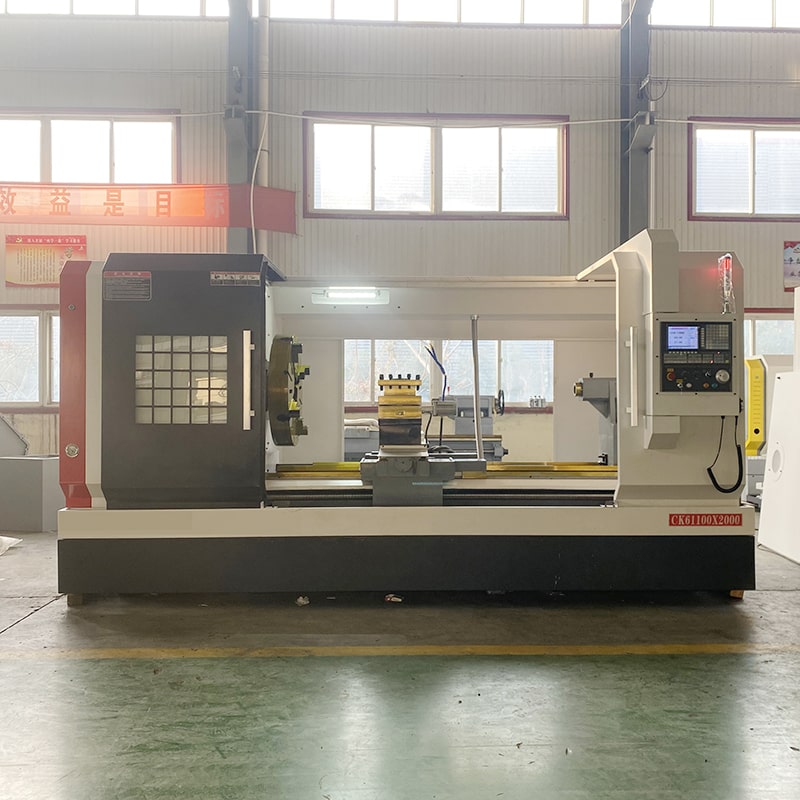

CNC turning ALCK61100X2000 Automatic cnc lathe
Horizontal CNC Lathe ALCK61100X2000 can process various aero-engine components with high requirements on shape and precision, such as turbine blades, blisks, bearing housings, etc. The high-precision control system of CNC lathe for metal can ensure the accuracy and quality of parts and meet the high requirements of aero-engines.
Product Description
Horizontal CNC Lathe ALCK61100X2000 is widely used in various fields in the manufacturing industry, including aerospace, shipbuilding, automobile, petrochemical, heavy machinery and other industries. CNC turning ALCK61100X2000 is mainly used for manufacturing large mechanical parts, shaft parts, hydraulic cylinders, rollers and other workpieces, and can also be used for batch processing of common parts.
Product Specifications
Features:
1.Horizontal CNC Lathe ALCK61100X2000 CNC lathe adopts high-precision ball screw and spindle, which has high-precision positioning and machining accuracy.
2.Flat bed CNC lathe is equipped with high-efficiency spindle motor and feed servo motor, which makes the processing more efficient.
3. CNC lathe for metal ALCK61100X2000 CNC lathe is suitable for processing shaft parts with large diameter and long length. The maximum processing diameter is 1000mm and the maximum processing length is 2000mm.
4. CNC turning adopts numerical control system control, which can realize the processing of various complex shaft parts.
5. CNC turning ALCK61100X2000 CNC lathe adopts intuitive man-machine interface and easy-to-operate CNC system, which is simple and convenient to operate.
Video
CNC lathe ALCK61100X2000 application:
1. CNC turning ALCK61100X2000 can be used to manufacture shaft parts in various aerospace equipment, such as aircraft engines, turbines, etc.
2. CNC lathe for metal can be used to manufacture shaft parts of various energy equipment, such as gas turbines, wind power generators, etc.
3. Flat bed CNC lathe ALCK61100X2000 CNC lathe can be used to manufacture shaft parts in transportation equipment such as ships, automobiles, and high-speed rail.
4. Automatic CNC lathe can be used to manufacture shaft parts in various construction machinery equipment, such as excavators, milling machines, punching machines, etc.
5. CNC turning ALCK61100X2000 can be used to manufacture shaft parts in petrochemical equipment, such as drilling platforms, oil pipelines, etc.
Product Specifications
|
Content
|
Unit | ALCK61100-2000 |
| Maximum turning diameter of bed | mm | Φ1000 |
| Maximum turning length | mm | 2000 |
| Maximum machining | mm | Φ1000 |
| Maximum bar diameter | mm | Φ500 |
| Spindle hole diameter | mm | Φ105 |
| X/Z axis travel | mm | 500/2000 |
| Tool Specifications: Turning/Boring | mm | 32/40 |
| Tailstock sleeve stroke | mm | Φ100/250 |
| Main motor power | Kw | 11 |
| X/Z motor power | Kw | 1.5/2.3 |
| Machine Net Weight | kg | 5500 |
| Machine Size（L×W×H） | mm | 4400/1900/2000 |
