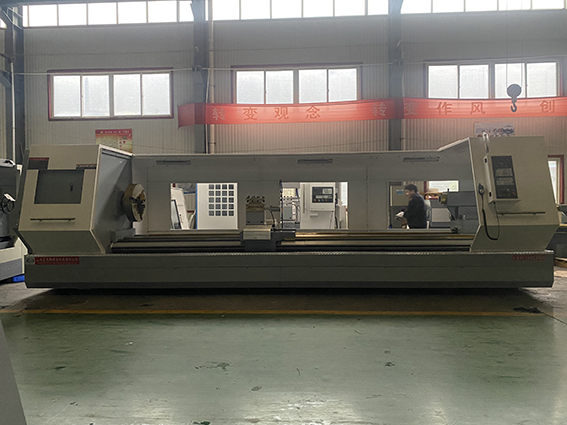

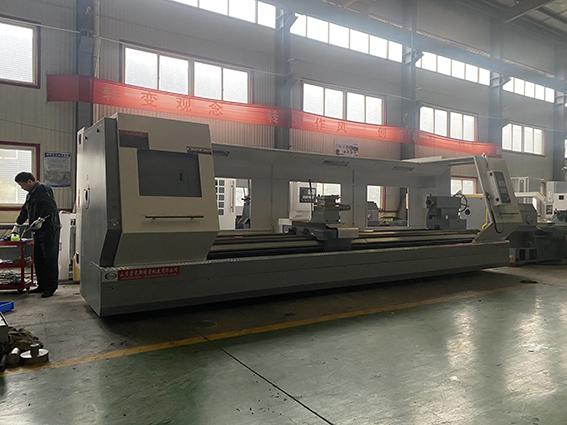

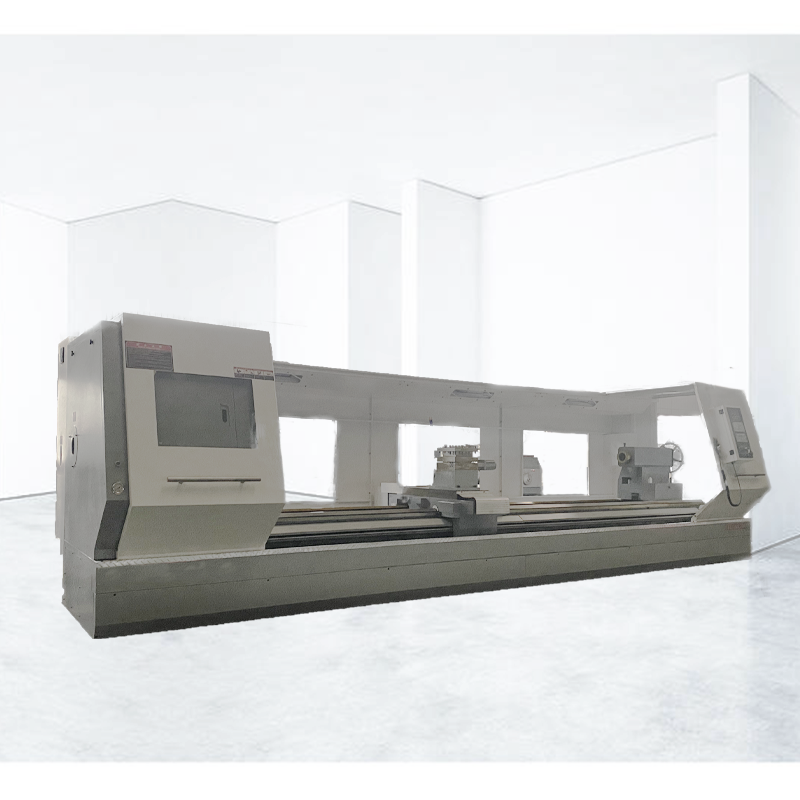

CNC turning ALCK61100X5000 CNC Lathe

Horizontal CNC Lathe ALCK61100x5000 is widely used in the processing of various heavy workpieces, mainly used in the manufacturing process of ships, machinery, aviation, energy and other fields. CNC turning can process various large workpieces, such as ship propellers, hydraulic cylinder blocks, gas turbine blades, etc.

Product Description

ALCK61100x5000 flat bed CNC lathe is a high-precision, high-efficiency machine tool that is widely used in the processing of heavy workpieces in the manufacturing industry. CNC lathe for metal can meet the high-precision processing requirements of complex workpieces, improve production efficiency and quality, and is suitable for manufacturing processes in the fields of ships, machinery, aviation, and energy.

Features:

1. CNC lathe for metal ALCK61100x5000 CNC lathe adopts precise CNC system and high-strength machine tool structure, which can realize high-precision machining and meet the precision requirements of various workpieces.

2. Horizontal CNC Lathe adopts advanced automation technology and tool switching system, which can quickly and efficiently complete the processing tasks of complex workpieces and improve production efficiency.

3. CNC lathe for metal ALCK61100x5000 CNC lathe has a large processing range, which can meet the processing needs of various large workpieces.

4. The CNC turning structure adopts high-strength cast iron material, which has good rigidity and stability, and can guarantee machining accuracy and stability.

CNC lathe ALCK61100X5000application:

Flat bed CNC lathe ALCK61100x5000 is suitable for many application industries, mainly used in machinery manufacturing, aerospace industry, automobile manufacturing, construction industry and other manufacturing fields. CNC turning has the characteristics of high precision and high efficiency, which can improve production efficiency and quality, and meet the processing needs of various complex workpieces.

Video

Product Specifications

Item	Unit	ALCK61100x5000
Swing over bed	mm	1000
Swing over cross slide	mm	610
Distance between centers	mm	5000
Guideway width	mm	755
Max. load capacity	T	6
Spindle bore	mm	130
Spindle speed range	rpm	4-300
Tool shank size	mm	40x40
X axis travel	mm	520
Z axis travel	mm	4850
X axis rapid traverse	mm/min	4000
Z axis rapid traverse	mm/min	6000
Tailstock quill diameter	mm	160
Tailstock quill travel	mm	300
Main spindle motor	Kw	22
Width x Height	mm	2100x2100
Length	mm	8500
