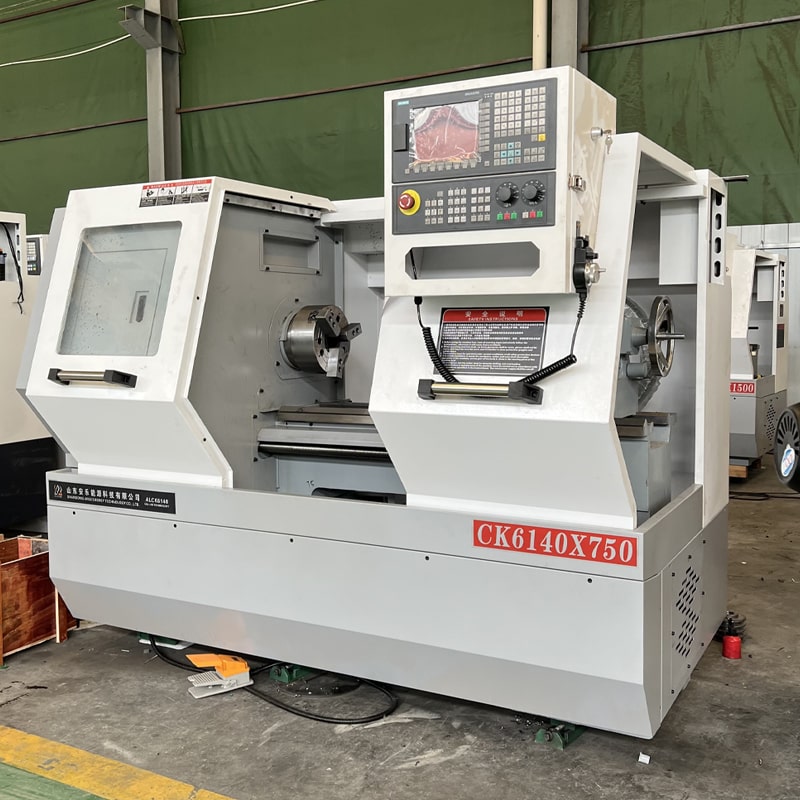

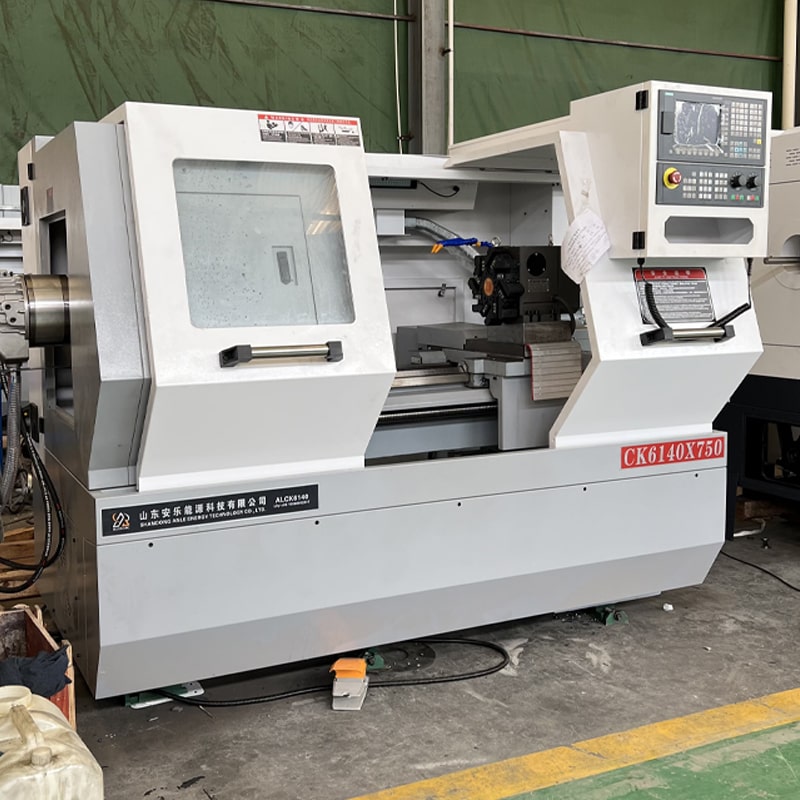

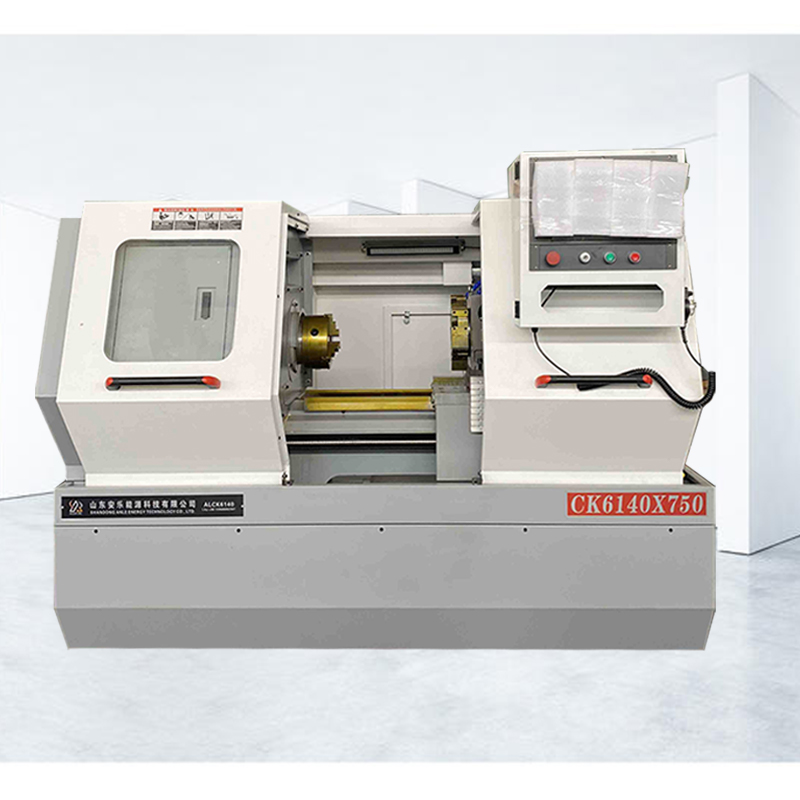

Flat bed CNC lathe ALCK6140 Mini CNC Lathe
ALCK6140 CNC lathe for metal has the characteristics of moderate size, high precision, multi-function and simplified operation, and is widely used in various industries that require precision machining.
Product Description
ALCK6140 Horizontal CNC Lathe is suitable for various industries, including mold manufacturing, electronic parts processing, instrumentation manufacturing, aerospace, medical equipment manufacturing and other fields.
Video
Feature:
1. ALCK6140 mini metal lathe is a small CNC lathe with moderate size, which can not only meet the general processing needs, but also adapt to the limited working space.
2. Equipped with a numerical control system, it can realize automatic operation and programming control, and improve production efficiency and processing accuracy.
3. ALCK6140 CNC lathe for metal has high machining accuracy, is suitable for machining precision parts and small workpieces, and can meet industries with high requirements on size and surface quality.
4. The flat bed CNC lathe can perform various processing operations such as turning, boring, tapping, etc., and is suitable for processing various materials, such as metals, plastics, etc.
5. ALCK6140 Horizontal CNC Lathe adopts user-friendly interface and operating system, which enables the operator to get started quickly and simplifies the programming and operation process.
Flat bed cnc lathe machine:
ALCK6140 Horizontal CNC Lathe is suitable for various industries, including mold manufacturing, electronic parts processing, instrumentation manufacturing, aerospace, medical equipment manufacturing and other fields.
Video
Optional configuration of CNC lathe ALCK6140:
Spindle model and power: DC spindle motor/AC spindle motor
Control system: Siemens, Fanuc, GSK
Cooling system: internal cooling system / external cooling system
Workpiece measuring devices: such as height gauges, trigger probes, etc., are used to measure workpiece dimensions in real time and realize closed-loop control.
Automatic feeding device: adding an automatic feeding device can realize the automatic feeding of workpieces, improve production efficiency and reduce the workload of operators.
Accessories and accessories: Accessories and accessories can be selected according to specific needs, such as fixtures, tools, tool holders, tool holders, tailstocks, etc., to meet different processing needs.
Product Specifications:
|
ALCK6140*750
|
parameter |
| Maximum turning diameter of bed | 400mm |
| Center distance | 750mm |
| Rail width | 360mm |
| X stroke | 250mm |
| Z-stroke | 900mm |
| Spindle hole diameter | 52mm |
| Diameter of tailstock sleeve | 65mm |
| Maximum stroke of tailstock sleeve | 120mm |
| Servo main motor power | 5.5KW |
| Cooling pump | 125W |
