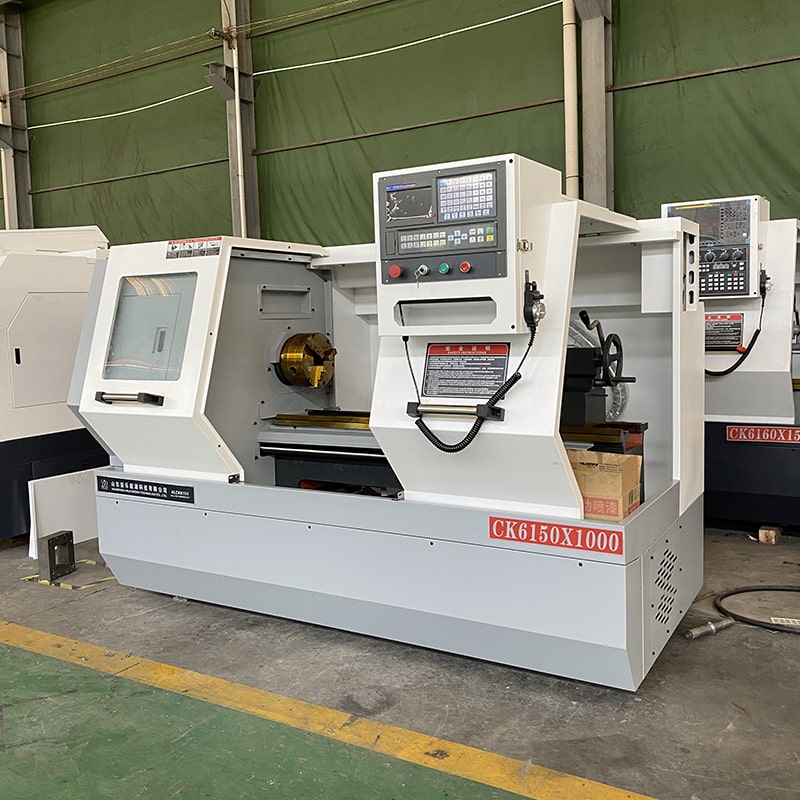

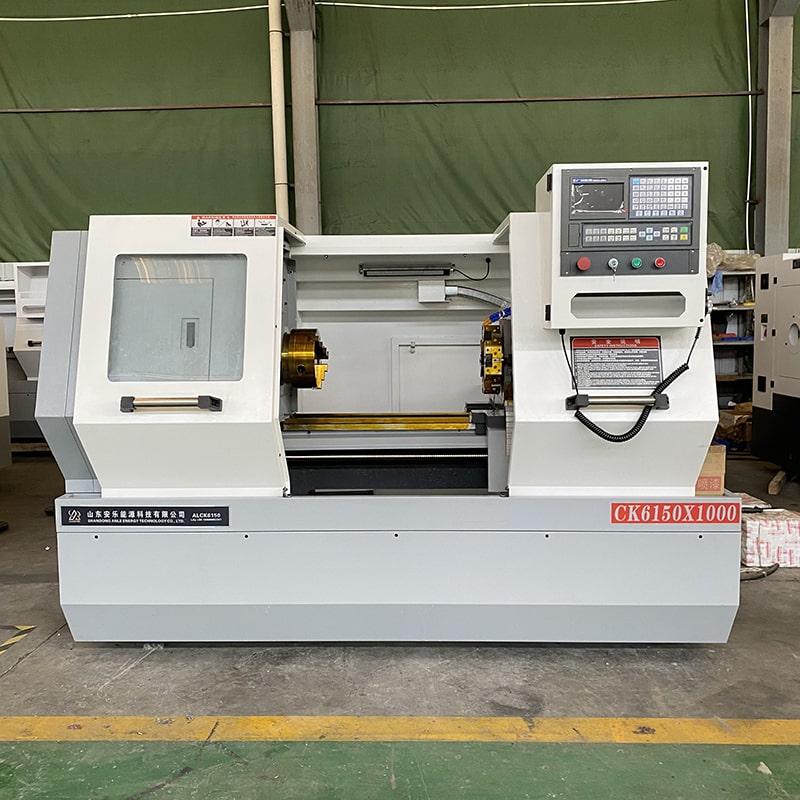

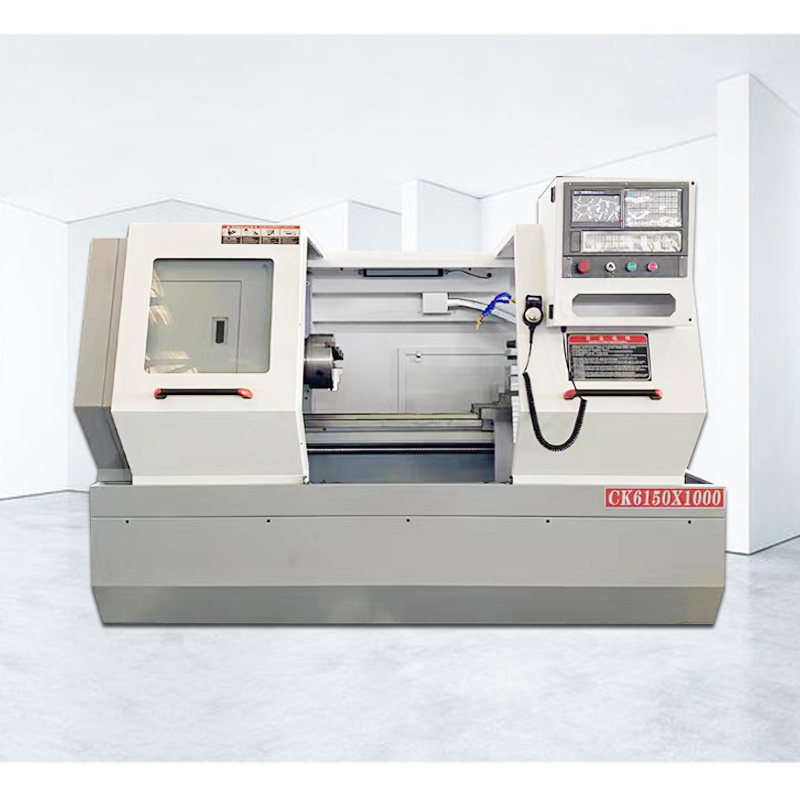

Automatic CNC Lathe ALCK6150 CNC lathe

Features:

1. High-precision machining: CNC lathe manufacturing ALCK6150 adopts advanced numerical control technology to precisely control the machining process of workpieces, and can realize high-precision machining requirements. The rigid structure and stable performance of Automatic cnc lathe ensure the precision and surface quality of workpiece processing, and meet the precision machining requirements for fine size and shape.

2. Multifunctional turret: ALCK6150 Horizontal CNC Lathe is equipped with a multifunctional turret, which can accommodate a variety of tools and realize automatic switching and processing of multiple processes. Horizontal CNC Lathe can not only perform conventional processing such as turning, boring, and drilling, but also perform special processing such as thread processing and gear processing according to needs, which greatly improves the flexibility and efficiency of processing.

3. Efficient production: ALCK6150 flat bed CNC lathe's high-speed spindle and fast feed system enable it to complete processing tasks at a faster speed and greatly shorten the processing cycle. Horizontal CNC Lathe's automatic function and intelligent control system make the operation easier, reduce the influence of human factors on the machining accuracy, and improve production efficiency.

Possible configuration options for CNC lathe ALCK6150:

1. Spindle type: linear spindle, rolling spindle or sliding spindle. Each type of spindle has different characteristics and scope of application.

2. Spindle motor power: Spindle motors with different powers can be selected according to processing requirements. The optional power range usually ranges from a few kilowatts to tens of kilowatts.

3. Turret type: four-station turret, eight-station turret or electric turret, etc. Different types of turrets provide different tool switching methods and cutting functions.

4. Control system: such as Siemens, Fagor, etc. Different control systems have different functions and operation interfaces, which can be selected according to personal preferences and work needs.

5. Automation device: automatic feeding device, automatic tool measuring device, automatic workpiece measuring device, etc. These devices can improve production efficiency and processing accuracy.

6. Processing size: The processing size of ALCK6150 can choose a suitable processing range according to the size and shape of the workpiece, including the maximum turning diameter, the maximum turning length, etc.

7.Auxiliary functions: ALCK6150 can also choose some auxiliary functions, such as cooling system, tool magazine, automatic workpiece clamping device, etc., to meet specific processing requirements.
Product Specifications

Item	Unit	ALCK6150*1000
Max swing over bed	mm	Φ500
Maximum swing over slide	mm	Φ290
Maximum cutting diameter	mm	Φ500
Maximum processing length	mm	1000
X/Z axis maximum stroke	mm	300/1000
X/Z axis minimum displacement unit	mm	0.001
Spindle hole diameter	mm	Φ82
Main motor power (frequency conversion)	kW	7.5
Frequency converter	kW	7.5
Repeated positioning accuracy of tool post	mm	≤0.004
Diameter of tailstock sleeve	mm	Φ65
Tailstock sleeve stroke	mm	130
Electricity demand (power/current)	kW/A	15kW/20A
Weight	Kg	2500
Machine size	mm	3030*1600*2050
