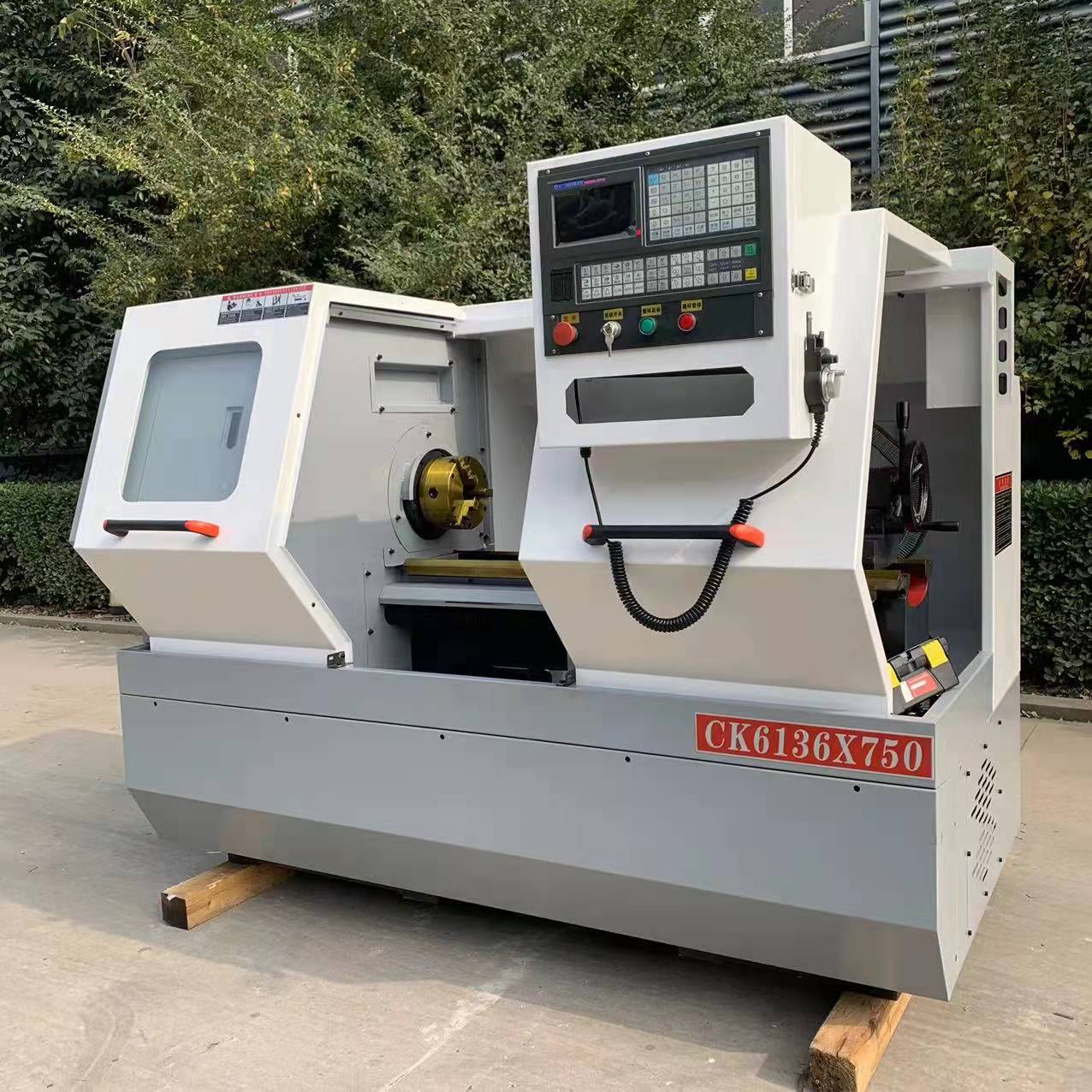

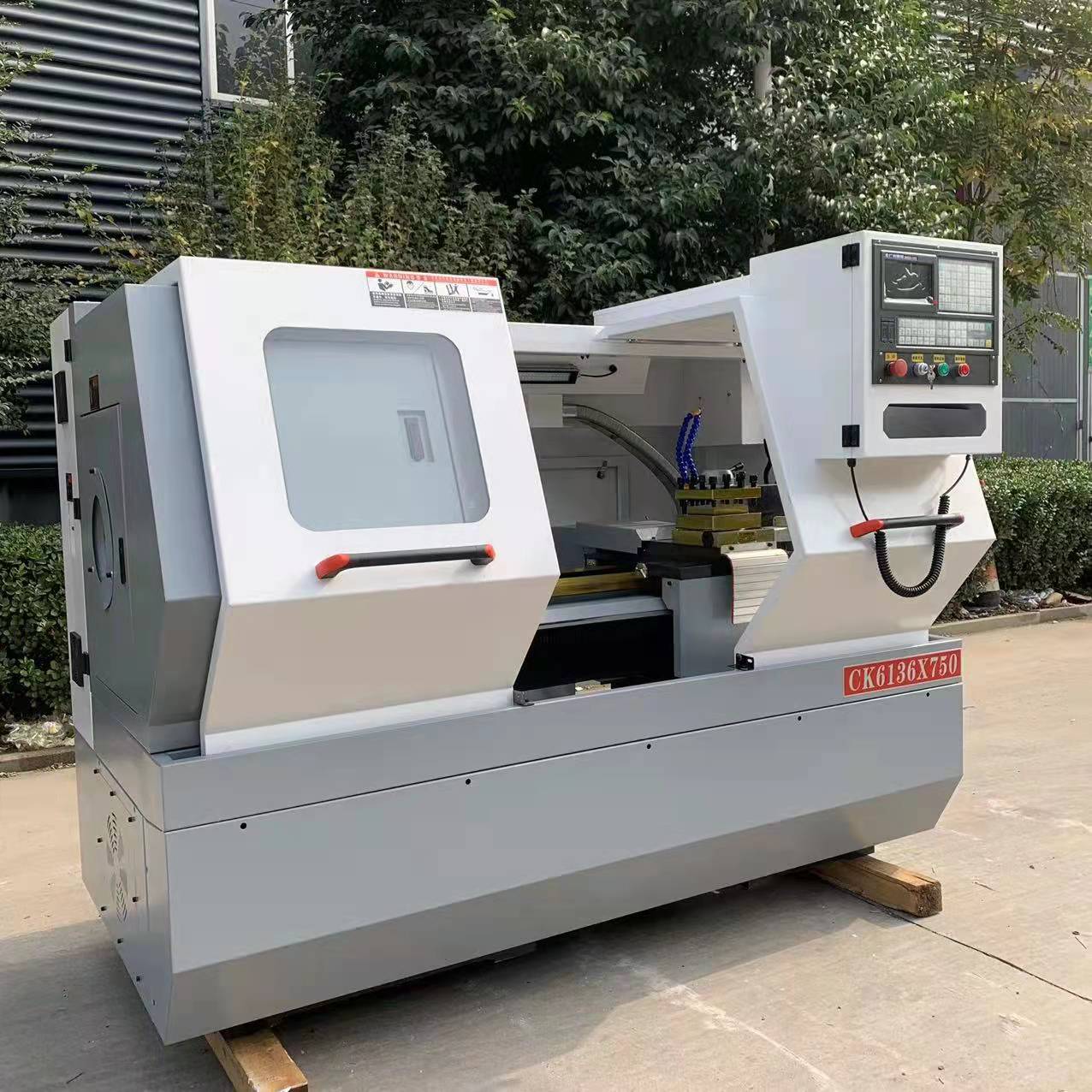

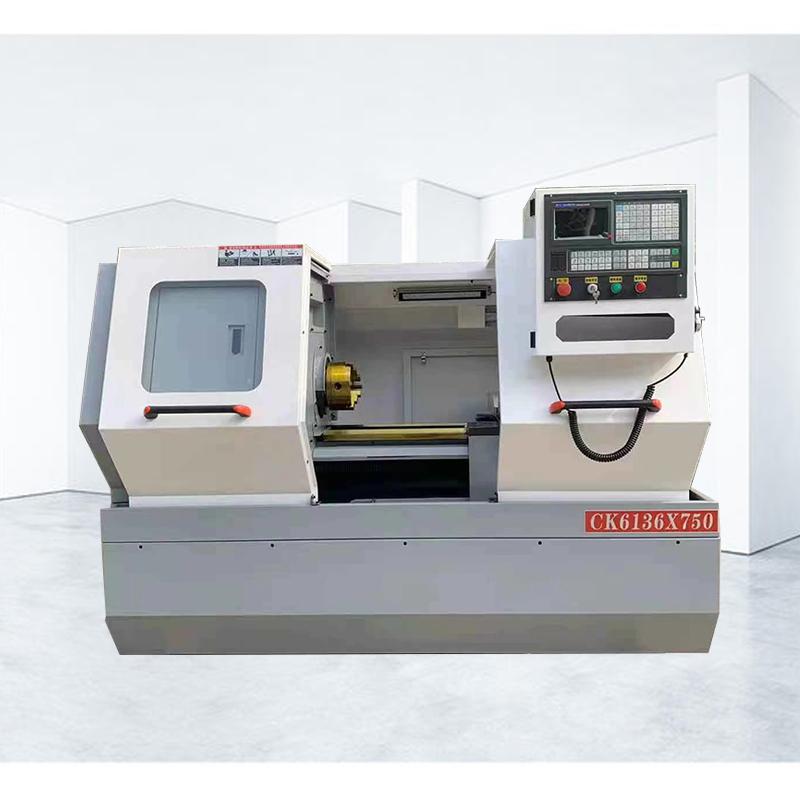

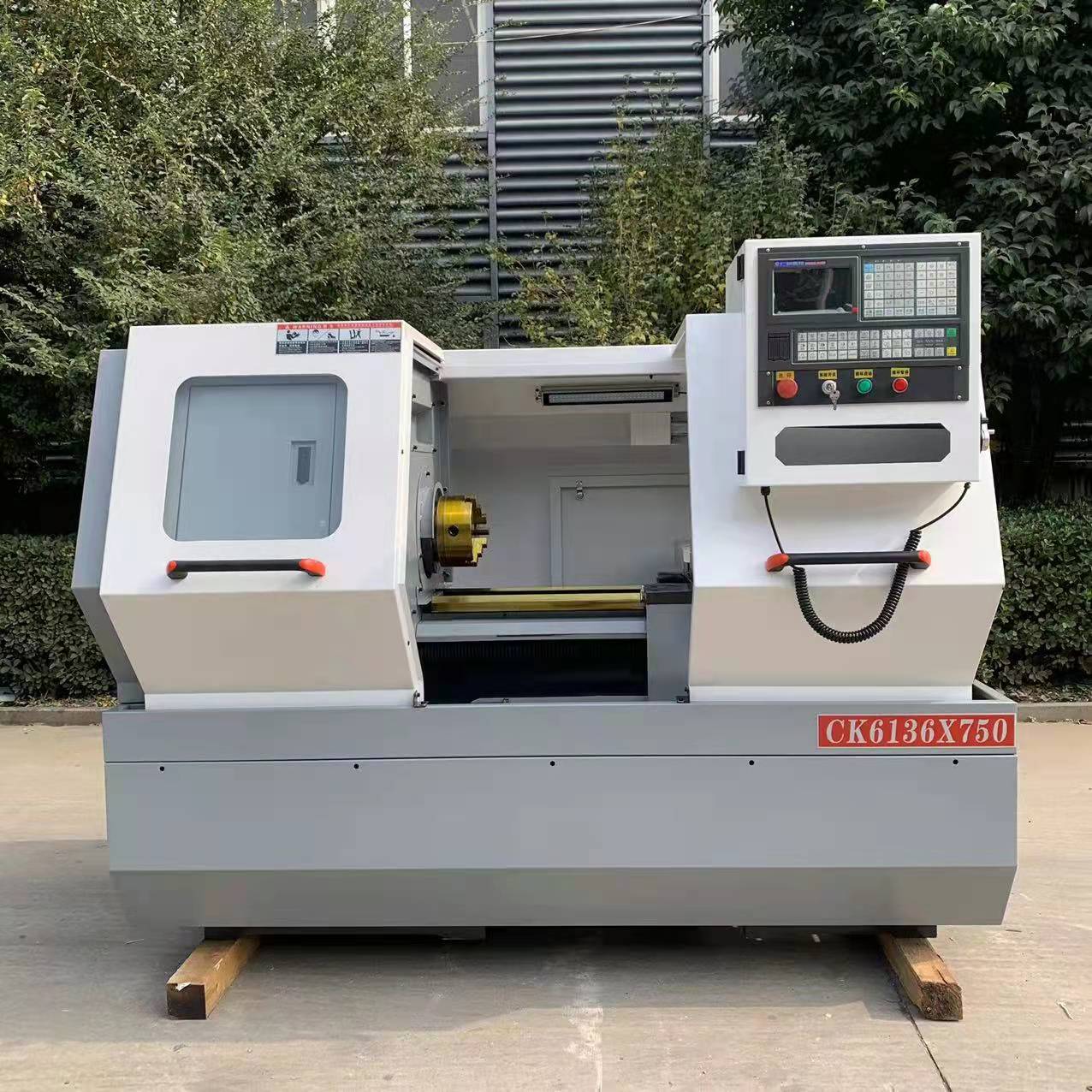

Horizontal CNC Lathe ALCK6136 Flat bed CNC lathe
ALCK6136 Horizontal CNC Lathe can perform a variety of machining operations, including turning, boring, tapping, drilling, etc. The flat bed CNC lathe is suitable for processing workpieces of different shapes and sizes.
Product Description
ALCK6136 CNC lathe for metal adopts CNC system for precision control, which can realize high-precision machining. Through precise tool position control and feed rate control, the dimensional accuracy and surface quality of the machined workpiece are ensured.
Features:
1. ALCK6136 CNC lathe for metal adopts advanced numerical control technology and precise transmission system, and has high-precision machining capability. The cutting accuracy of flat bed CNC lathe can reach 0.01 mm, which can meet the processing requirements for high-precision parts.
2. ALCK6136 mini metal lathe has a variety of processing functions, and can perform various processes such as turning, boring, tapping, gear processing, etc. ALCK6136 mini metal lathe can respond flexibly and provide efficient processing solutions.
3. CNC lathe for metal is made of high-quality cast iron material, which has excellent rigidity and stability. Mini metal lathe can withstand high-speed cutting and heavy-duty processing, ensuring the stability of processing quality and processing efficiency.
4. ALCK6136 flat bed CNC lathe is equipped with an intuitive man-machine interface and a user-friendly operating system, enabling operators to get started quickly and perform precise control. mini metal lathe also supports automatic processing and remote monitoring, which improves production efficiency and work safety.
CNC lathe CK6136 application:
1. Automobile manufacturing industry: CNC lathe for metal ALCK6136 plays an important role in automobile manufacturing industry. Horizontal CNC Lathe can process key parts such as automotive engine parts, steering system parts, transmission system gears, etc., which guarantees the quality and performance of the car.
2. Aerospace industry: Horizontal CNC Lathe ALCK6136 CNC lathe can process key components such as aero-engine parts and flight control system parts, and has made important contributions to the development of the aerospace industry.
3. Electronic equipment manufacturing industry: Flat bed CNC lathe ALCK6136 CNC lathe is widely used in electronic equipment manufacturing industry.
Video
Possible configuration options for CNC lathe ALCK6136:
1. Spindle type: linear spindle, rolling spindle, sliding spindle
2. Spindle motor power: Spindle motors with different powers can be selected according to processing requirements. Power ranges from a few kilowatts to tens of kilowatts.
3. Turret type: four-station turret, eight-station turret, electric turret, etc. Different types of turrets provide different tool switching methods and cutting functions.
4. Control system: Siemens, Fagor, etc.
5. Processing size: The processing size of ALCK6136 can be customized according to needs. The suitable processing range can be selected according to the size and shape of the workpiece, including the maximum turning diameter, the maximum turning length, etc.
6. Auxiliary devices: automatic feeding device, automatic tool measuring device, automatic workpiece measuring device, etc. These devices can improve production efficiency and processing accuracy.
Product Specifications
|
Item
|
Unit | ALCK6136-750 |
| Max swing over bed | mm | Φ360 |
| Maximum turning diameter on the tool post | mm | Φ200 |
| Maximum workpiece length between two centers | mm | 750 |
| Spindle through hole diameter | mm | Φ52 |
| Spindle speed range (infinite): | r/min | 150-2000 |
| Spindle motor power | kw | 5.5 |
| Tool handle size | mm | 20×20 |
| X stroke | mm | 200 |
| Z stroke | mm | 750 |
| Overall dimensions of machine tool (length×width×height) | mm | 2350mm×1380mm×1640mm |
| Net weight | kg | 1600 |
