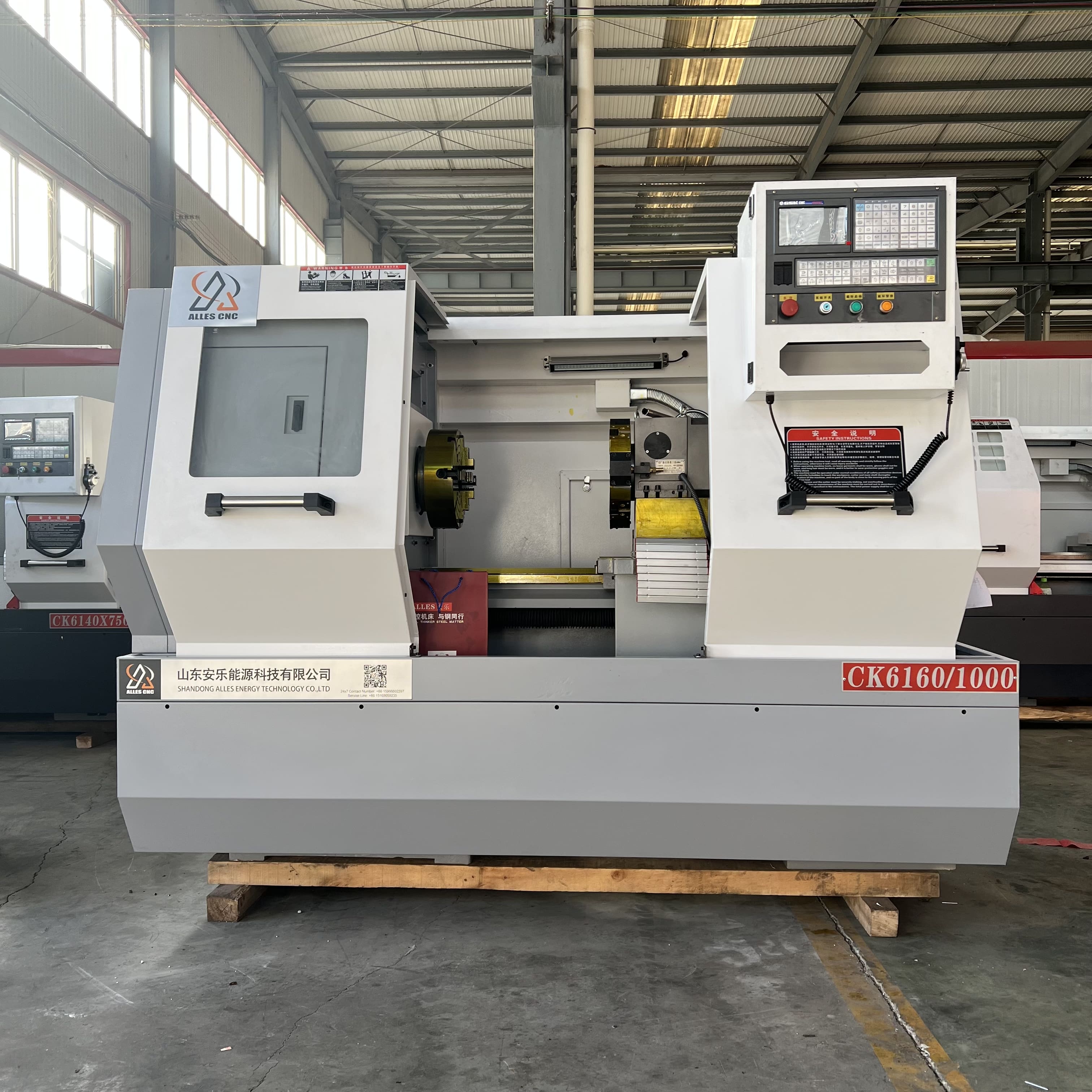

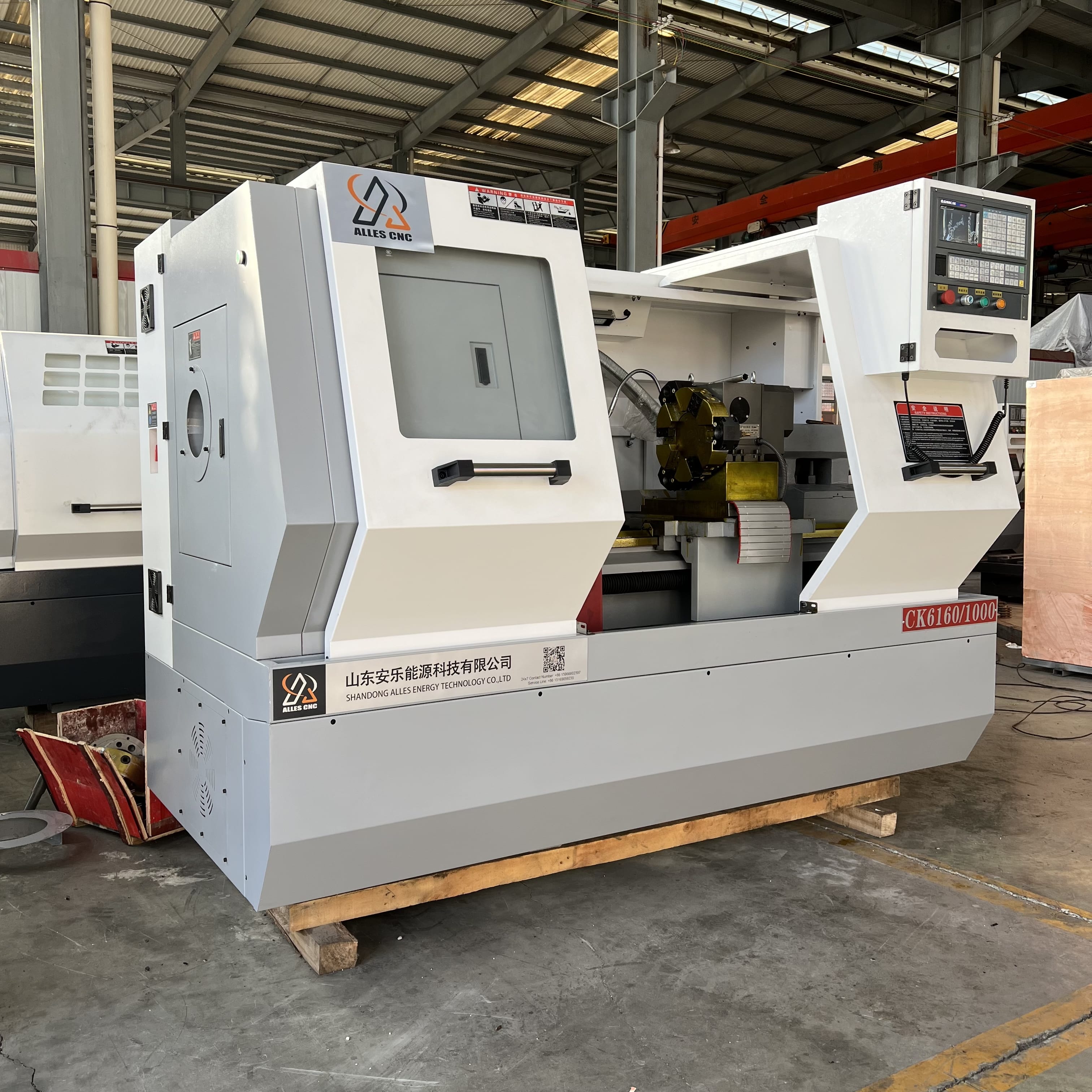

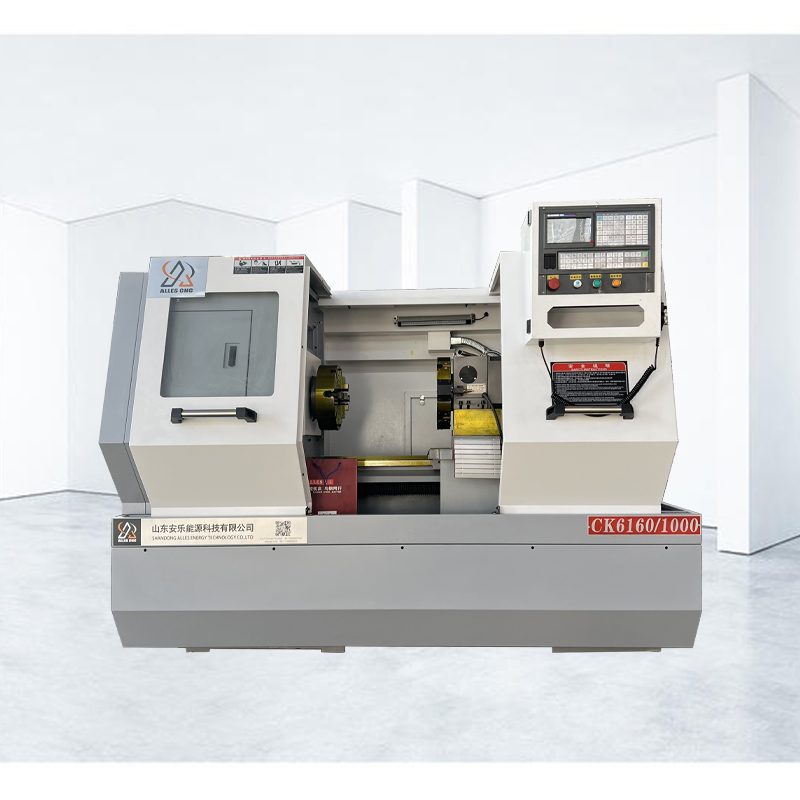

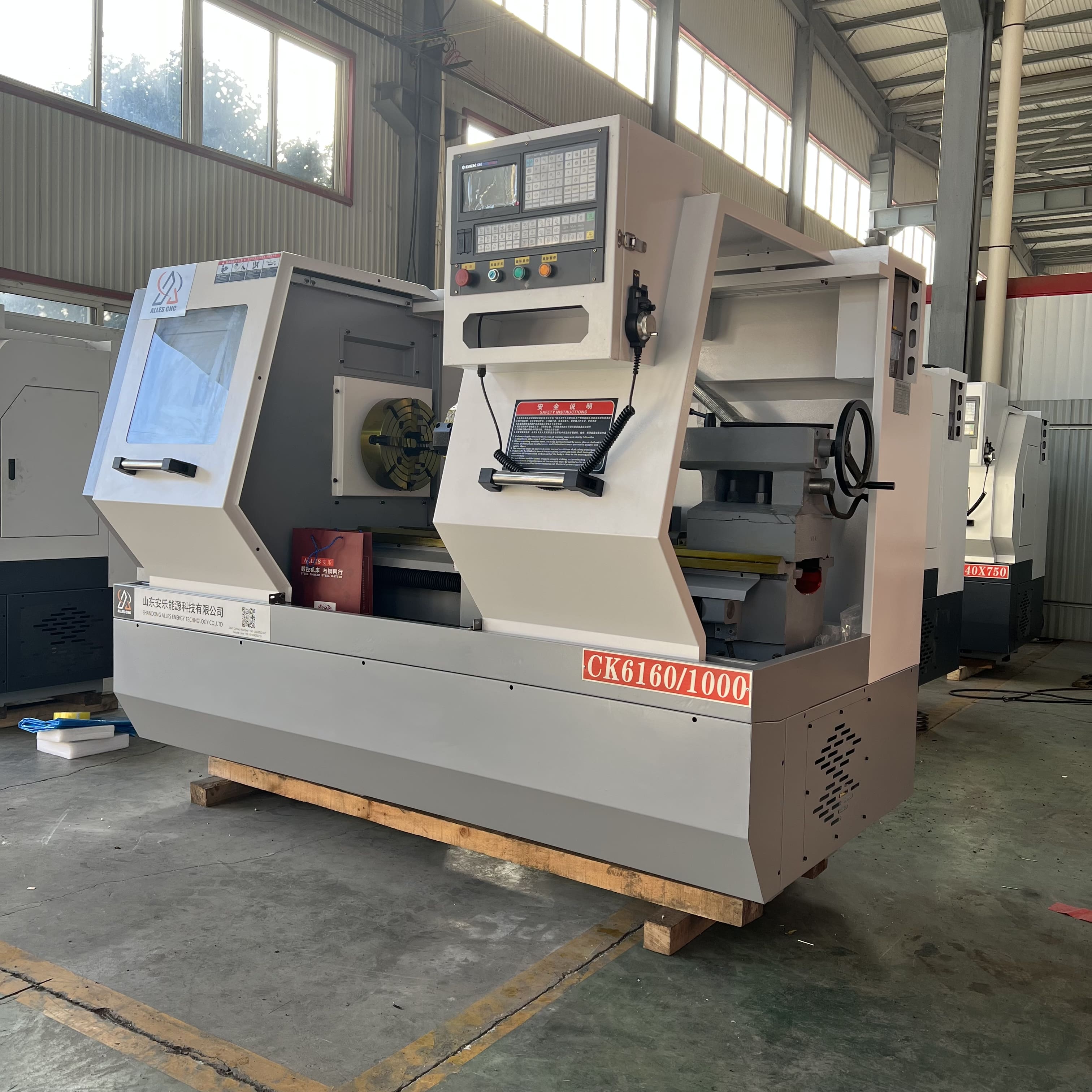

Automatic CNC lathe ALCK6160 Horizontal CNC Lathe

ALCK6160 Horizontal CNC Lathe can manufacture high-precision auto parts, such as engine block, transmission system gear, brake system parts, etc., by precisely controlling the position and motion trajectory of the tool. This helps improve the overall performance and reliability of the car.

Product Description

With the continuous innovation of automobile manufacturing materials, such as high-strength steel, aluminum alloy, etc., ALCK6160 Horizontal CNC Lathe can adapt to the processing requirements of various materials and ensure precise processing while maintaining the characteristics of materials. The precision machining capability of ALCK6160 Horizontal CNC Lathe can reduce material waste, reduce machining times and fine machining, and also reduce energy consumption.

Features:

1. High-precision machining: ALCK6160 Horizontal CNC Lathe, with its advanced control system and optimized structure, can achieve micron-level high-precision machining, meeting the applications that require extremely high precision in part size and geometric shape.

2. Rigid structure: Horizontal CNC Lathe In order to ensure the stability under high cutting force, ALCK6160 adopts a strong and rigid structure to ensure that it can maintain excellent processing quality under any working conditions.

3. Multi-axis control: CNC lathe for metal ALCK6160 can flexibly cope with the processing of various complex parts, including threads, curved surfaces, chamfering and other processes.

CNC lathe CK6160 application:

1. Aerospace industry: Horizontal CNC LatheALCK6160 is used to manufacture high-precision aero-engine parts, structural parts, etc., to ensure flight safety and reliability.

2. Automobile manufacturing: CNC lathe for metal ALCK6160 can process automobile engines, gearboxes, chassis parts, etc., providing strong support for the performance and durability of automobiles.

3. Energy equipment manufacturing industry: Horizontal CNC LatheALCK6160 is used to process turbine blades, gas turbine parts, etc., contributing to the efficient and sustainable energy production.

4. Mold manufacturing: ALCK6160 CNC lathe for metal can not only process high-precision mold parts, but also realize customized processing to meet the manufacturing needs of various complex molds.

5. General machinery manufacturing industry: The flexibility and versatility of Horizontal CNC Lathe ALCK6160 make it widely used in general machinery manufacturing industry. It can process workpieces of various sizes and meet diverse production needs

Video

CNC lathe ALCK6160x1000 optional configuration：

1. Control system: Fanuc, Siemens, GSK, etc. Different control systems may have different functions and user interfaces.

2. Spindle type: direct drive spindle, spindle with gear transmission, etc. Each spindle type has a different speed range and torque output.

3. Turret type: four-station turret, eight-station turret, electric turret, etc. Different types of turrets can accommodate different numbers and types of tools, providing greater processing flexibility.

4. Automatic tool change system: Servo tool changer, mechanical tool changer, etc., used to change cutting tools quickly and accurately.

5. Tailstock type: manual tailstock and hydraulic tailstock. Hydraulic tailstocks generally offer greater precision and stability.

6. Processing auxiliary devices: According to specific needs, some processing auxiliary devices can also be selected, such as automatic feeding devices, tool measuring systems, coolant systems, etc., to improve processing efficiency and quality.

Product Specifications

Model	Unit	Refer to the number
Maximum turning diameter of bed	mm	Φ600
Maximum turning diameter of carriage	mm	Ф310
Maximum cutting diameter	mm	Φ500
Maximum processing length	mm	1000
X/Z axis maximum stroke	mm	300/(1000/1500)
X/Z axis minimum displacement unit	mm	0.001
Spindle hole diameter	mm	Ф82 (105/130)
Spindle speed limit	rpm	150-1600
Main motor power (frequency conversion)	kW	11
Frequency converter	kW	11
X/Z axis rapid traverse speed	m/min	6/8
Tool bar size	mm	25*25
Diameter of tailstock sleeve	mm	Φ75
Tailstock sleeve stroke	mm	200
Net weight of machine tool	kg	3000
Machine size (length×width×height)	mm	294014001700
Electricity demand (power/current)	kW/A	15kW/20A
