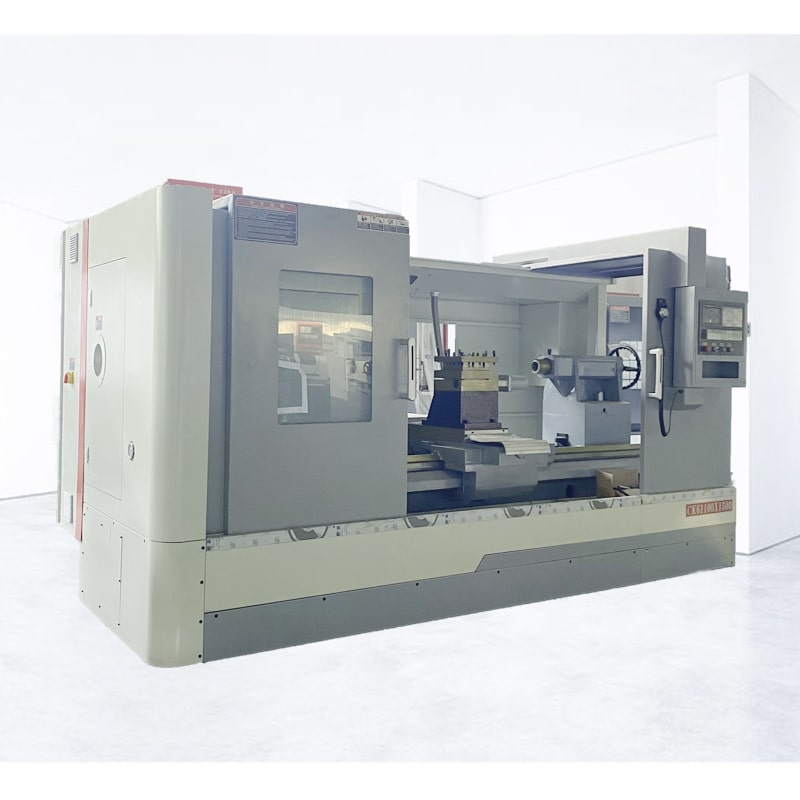

Horizontal CNC Lathe ALCK61100X1500 CNC turning

Automatic cnc lathe is used to produce brake system components such as brake discs, brake drums and brake calipers to ensure driving safety. CNC lathe for metal is used to manufacture various parts of the suspension system, such as suspension arms, shock absorber mounts, etc., which affect the vehicle suspension performance.

Product Description

In the auto parts industry, Automatic cnc lathe ALCK61100X1500 is widely used. ALCK61100X1500 CNC lathe for metal can be used to process parts such as crankshaft, camshaft, cylinder block and cylinder head of the engine to ensure the high precision and performance of the engine.

Features:

1. High-precision processing: CNC lathe for metal ALCK61100X1500 has high-precision processing capabilities and can achieve precision processing of complex workpieces.

2. Automated control: Horizontal CNC Lathe can realize automated processing processes through computer numerical control systems, reduce manual intervention, and improve production efficiency.

3. Multifunctional processing: CNC lathe for metal has multi-axis control and can perform a variety of different processing operations, such as turning, boring, grooving, etc.

4. High rigidity design: Horizontal CNC Lathe ALCK61100X1500 usually has a stable machine tool structure and high rigidity, which can adapt to the processing requirements of different materials.

5. Easy to program: Horizontal CNC Lathe uses CNC programming language (usually G code), the operator can easily write machining programs.

CNC lathe ALCK61100X1500application:

1. Machinery manufacturing industry: Horizontal CNC Lathe is used to manufacture various mechanical parts and workpieces, such as bearings, gears, threads, etc.

2. Aerospace industry: CNC lathe for metal is used to manufacture key components of aircraft and spacecraft, such as engine parts and structural components.

3. Automobile manufacturing industry: Horizontal CNC Lathe plays an important role in the automobile manufacturing industry, and is used to process engine parts, transmission systems, brake components, etc.

4. Electronic manufacturing industry: CNC lathe for metal is used to produce electronic equipment and components, such as precision connectors, electronic housings, etc.

5. Medical equipment manufacturing industry: Horizontal CNC Lathe is used to process medical equipment parts, such as artificial joints, surgical tools, etc.

Video

Product Specifications

Content	Unit	ALCK61100x1500
Maximum turning diameter of bed	mm	Φ1000
Maximum turning length	mm	1500
Maximum bar diameter	mm	Φ500
Spindle hole diameter	mm	Φ105
Spindle speed range	r/min	30-84/53-150/125-350/300-835
X/Z axis travel	mm	500/1500
X/Z axis screw diameter × pitch	mm	φ3208/φ5010
X/Z direction moving speed	m/min	4/6
Tailstock sleeve stroke	mm	Φ100/250
Main motor power	Kw	11
Machine Net Weight	kg	4700
Machine Size（L×W×H）	mm	3900/1900/2000
