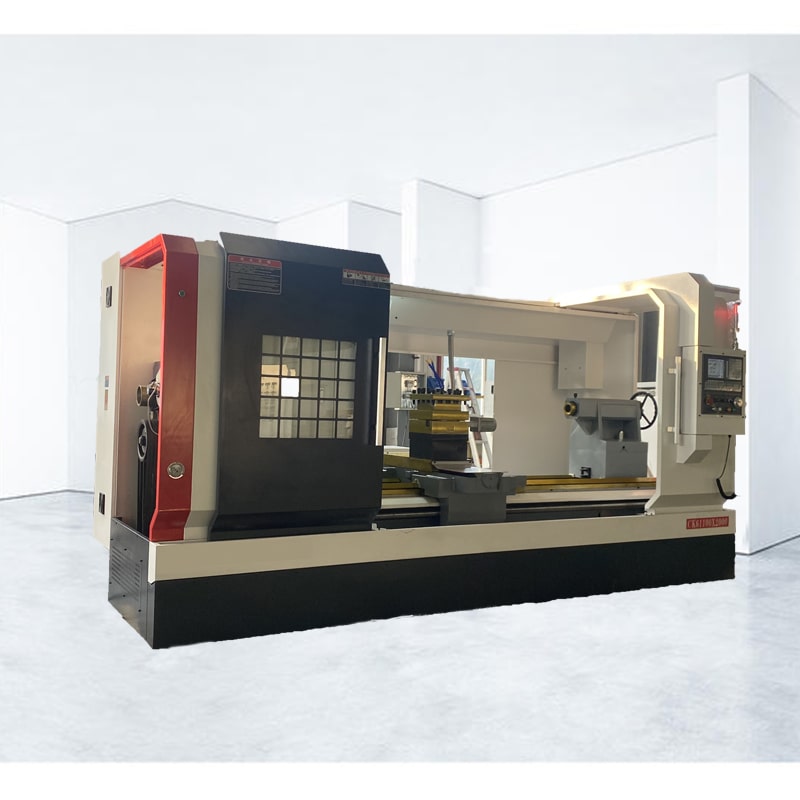

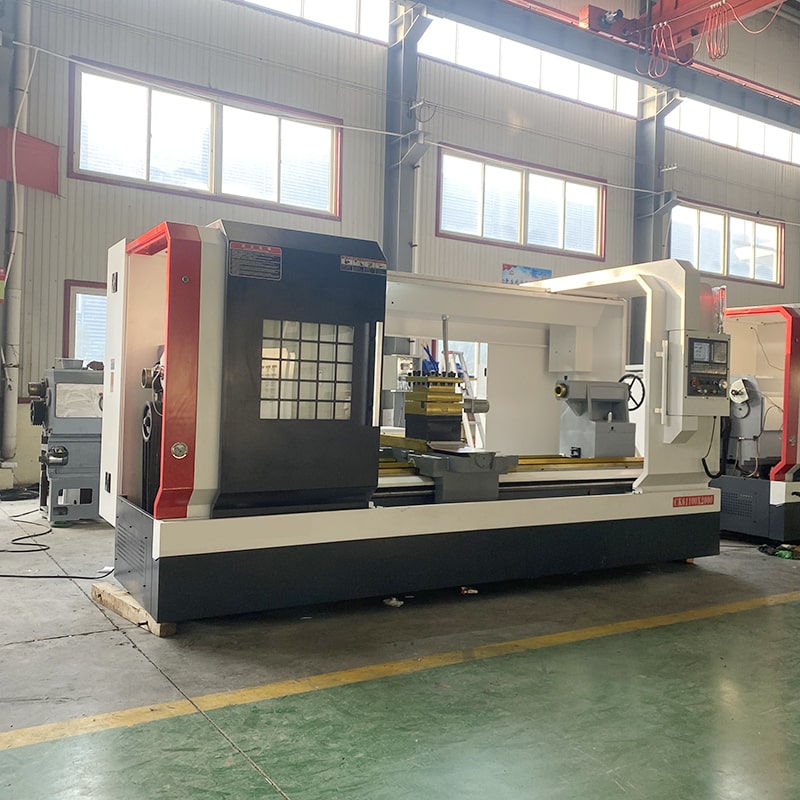

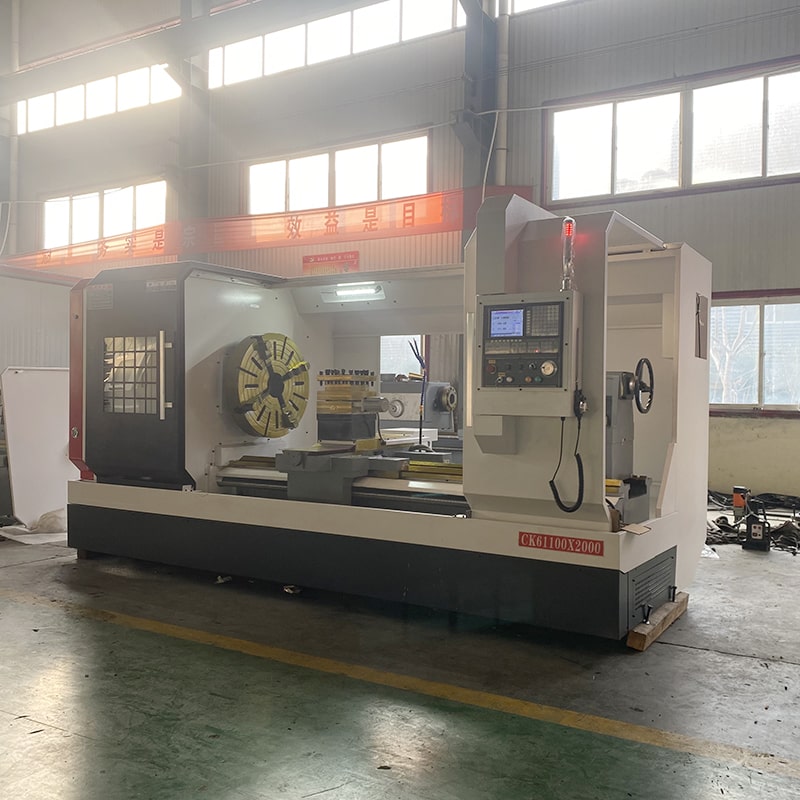

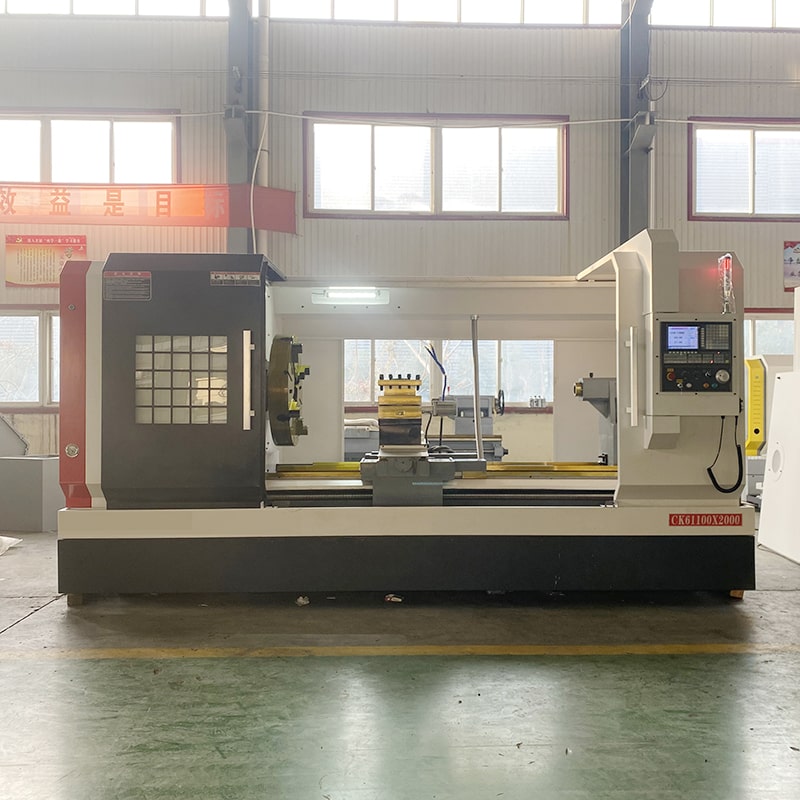

CNC turning ALCK61100X2000 cnc lathe

CNC lathe ALCK61100x2000 is a large CNC lathe, ALCK61100x2000 CNC lathe for metal is used to manufacture various large-diameter shafts, bushings, bearing housings and couplings, etc.

CNC lathe for metal is suitable for manufacturing large gears and gearboxes, such as transmission systems for construction machinery and heavy equipment.

Product Description

CNC lathe for metal ALCK61100x2000 is widely used in the machinery manufacturing industry and is mainly used to manufacture large and high-precision mechanical parts to ensure product quality and performance. CNC lathe for metal can perform large bore boring and drilling operations to create holes in large components. CNC lathe for metal is used for cutting large plates, rods and pipes, manufacturing machine tool beds, etc.

Features:

1. Large processing capacity: Automatic cnc lathe ALCK61100x2000 has a large-sized worktable and processing length, and is suitable for processing long-sized and large-diameter workpieces.

2. High-precision processing: CNC lathe for metal has high-precision processing capabilities and can be used to manufacture high-precision mechanical parts.

3. Automated control: Automatic cnc lathe can realize automated processing processes, reduce manual intervention, and improve production efficiency.

4. Multi-function processing: ALCK61100x2000 CNC lathe for metal usually has multi-axis control and can perform a variety of different processing operations, such as turning, boring, grooving, etc.

5. Stable structure: Automatic CNC lathe has a stable bed structure and high rigidity, which can withstand the cutting force of large workpieces.

CNC lathe ALCK61100X2000 application:

1. Machinery manufacturing industry: CNC lathe for metal is used to manufacture various large mechanical parts and workpieces, such as bearings, gears, large shafts, etc.

2. Aerospace industry: In the aerospace field, Automatic lathe is used to manufacture large aircraft parts, engine components and aircraft structures.

3. Shipbuilding industry: CNC lathe for metal is used to manufacture large ship parts, such as hulls, propulsion systems and marine engines.

4. Energy field: Automatic lathe is used to process components of oil and gas equipment, nuclear energy equipment, and wind and solar energy equipment.

5. Railway transportation: CNC lathe for metal is used to manufacture key components of railway vehicles, such as wheels, bearings and frames.

Video

Product Specifications

Content	Unit	ALCK61100-2000
Maximum turning diameter of bed	mm	Φ1000
Maximum turning length	mm	2000
Maximum machining diameter	mm	Φ1000
Maximum bar diameter	mm	Φ500
Spindle hole diameter	mm	Φ105
X/Z axis travel	mm	500/2000
Tool Specifications: Turning/Boring	mm	32/40
Tailstock sleeve stroke	mm	Φ100/250
Main motor power	Kw	11
X/Z motor power	Kw	1.5/2.3
Machine Net Weight	kg	5500
Machine Size（L×W×H）	mm	4400/1900/2000
