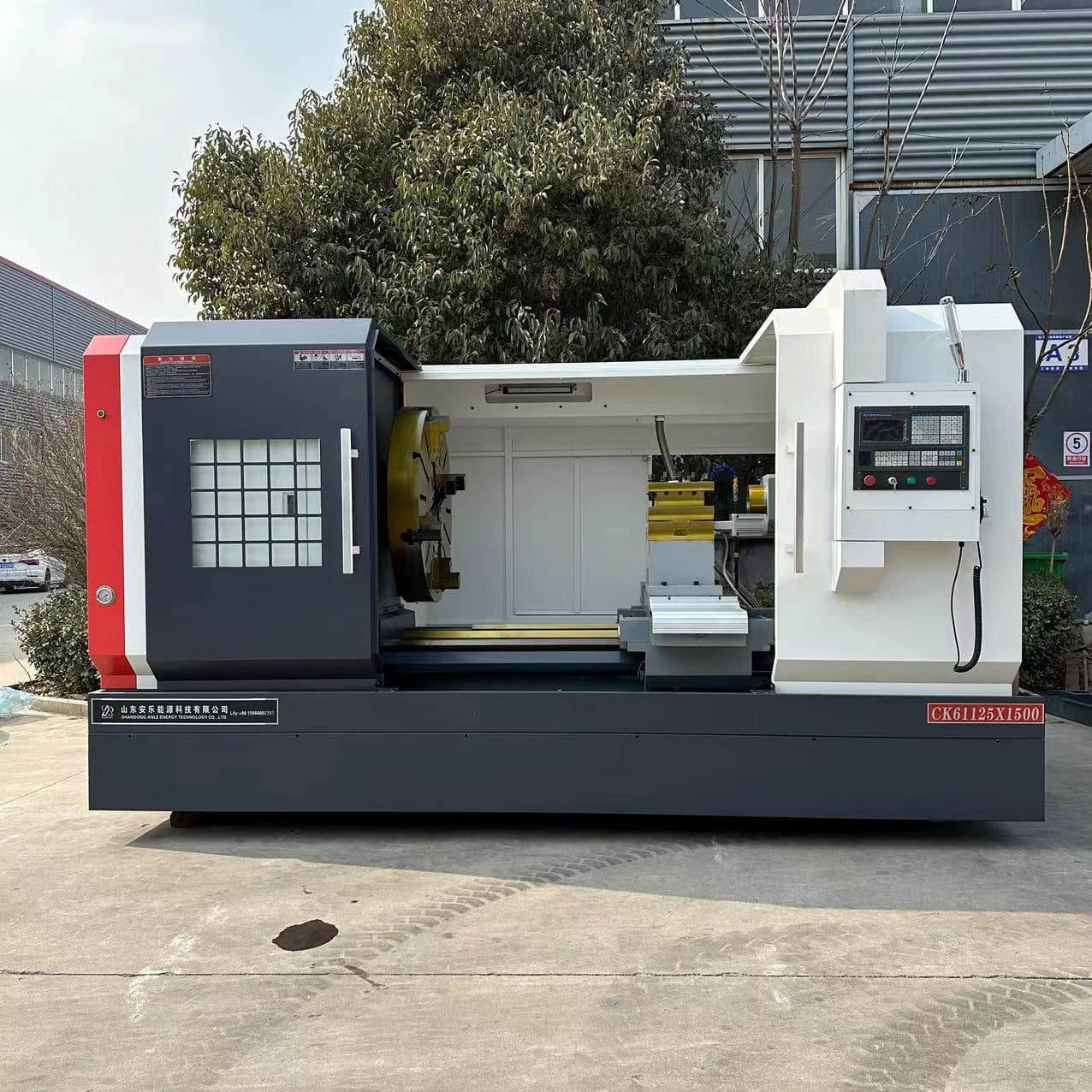

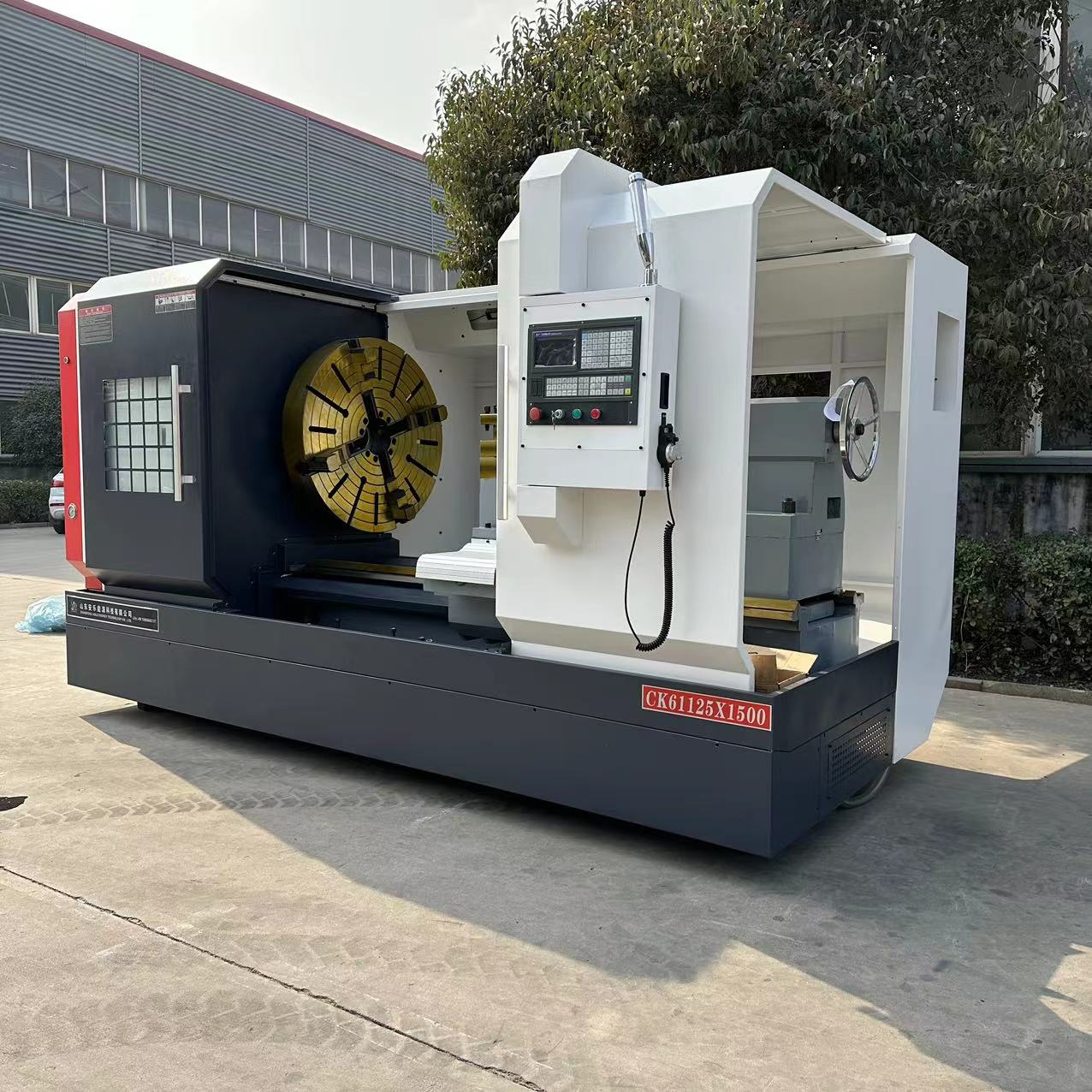

Horizontal CNC LatheALCK61125X1500 CNC turning

ALCK61125x1500Horizontal CNC Lathe can be used to process various metal and non-metal materials, including steel, aluminum alloy, brass, plastic, etc. Its high precision, efficiency and versatility make it an ideal tool for manufacturing a wide range of components and workpieces.

Product Description

CNC lathe for metal Whether working in the aviation, automotive, mold manufacturing or energy fields, the ALCK61125x1500 CNC lathe can meet your processing needs, provide high-quality finished products, and help your production line become more outstanding.

Features:

1. High-precision machining: Horizontal CNC Lathe ALCK61125x1500 CNC lathe uses advanced CNC technology to achieve highly precise machining and ensure the accuracy and quality of workpieces.

2. Versatility: CNC lathe for metal is equipped with a variety of cutting tools and tools, suitable for processing workpieces of various shapes and sizes, providing a wide range of processing flexibility.

3. Efficient production: Horizontal CNC Lathe has automation functions and can run continuously, reducing operator intervention, improving production efficiency and reducing costs.

4. Stability and durability: CNC lathe for metal has a solid structure and uses high-quality materials and manufacturing processes to ensure long-term stable operation and reduce maintenance costs.

5. User-friendly interface: Horizontal CNC Lathe is simple to operate and equipped with an intuitive control interface, which is easy for operators to master and reduces training time.

CNC lathe ALCK61125x1500 application:

1. Aerospace: CNC lathe for metal is used to manufacture high-precision processing of aircraft parts, engine parts and avionics equipment.

2. Automobile manufacturing: Horizontal CNC Lathe ALCK61125x1500 is used to manufacture automobile engines, gearboxes, braking systems and other key components.

3 Mold manufacturing: CNC lathe for metal is suitable for manufacturing injection molds, die-casting molds and stamping molds to ensure high precision and long life of the molds.

4. Energy field: Horizontal CNC Lathe ALCK61125x1500 is used to produce key components of oil and gas equipment, wind energy and solar energy equipment.

5. General machinery manufacturing: CNC lathe for metal is widely used in various general machinery processing fields, such as bearings, gears and shaft parts manufacturing.

Video

Product Specifications

Content	Unit	ALCK61125x1500
Maximum turning diameter on the bed slide	mm	Φ1250
Maximum turning diameter on the skateboard	mm	Φ900
Maximum processing length	mm	1500
Effective processing length	mm	1350
Maximum machining diameter	mm	Φ1250
Maximum bar diameter	mm	Φ630
Spindle through hole diameter	mm	Ф105
X/Z axis rapid traverse speed	m/min	4/6
X/Z axis travel	mm	530/1500
X/Z axis minimum displacement unit	mm	0.001
Tailstock sleeve diameter	mm	Φ100
Tailstock sleeve stroke	mm	250
Machine net weight	kg	5000
Machine tool dimensions (length × width × height)	mm	370018201780
Electricity demand (power/current)	kW/A	20kW/30A

Horizontal CNC LatheALCK61125X1500 CNC turning
