3 Axis CNC Lathe Machining High Precision Parts

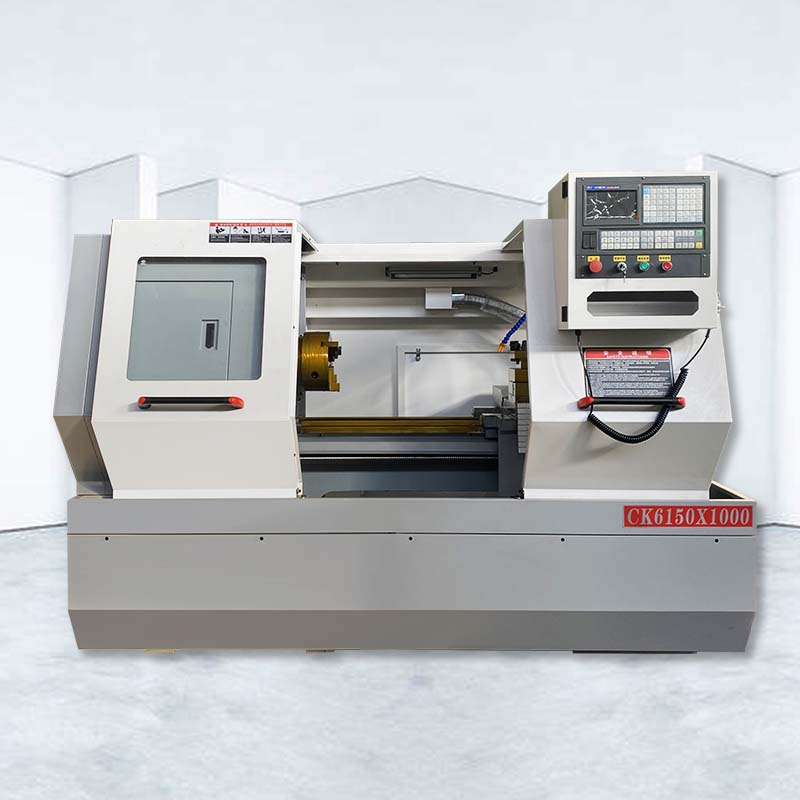

ALCK6150 3 Axis CNC Lathe Machine High Precision Parts
Max swing over bed: Φ500mm
Spindle hole diameter: Φ82mm
Maximum processing length: 1000mm
Product Description
3 Axis CNC Lathe Machining High Precision Parts
| Model | ALCK6150X1000 | |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1000 |
| X/Z axis maximum stroke | mm | 300/1000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
| Spindle speed limit | rpm | 150-2000/60-1600 |
| Tool holder type | 4-station tool holder (Wen chang) | |
| Diameter of tailstock sleeve | mm | Φ65 |
| Weight | Kg | 2500 |
| Machine size | mm | 3030x1600x2050 |

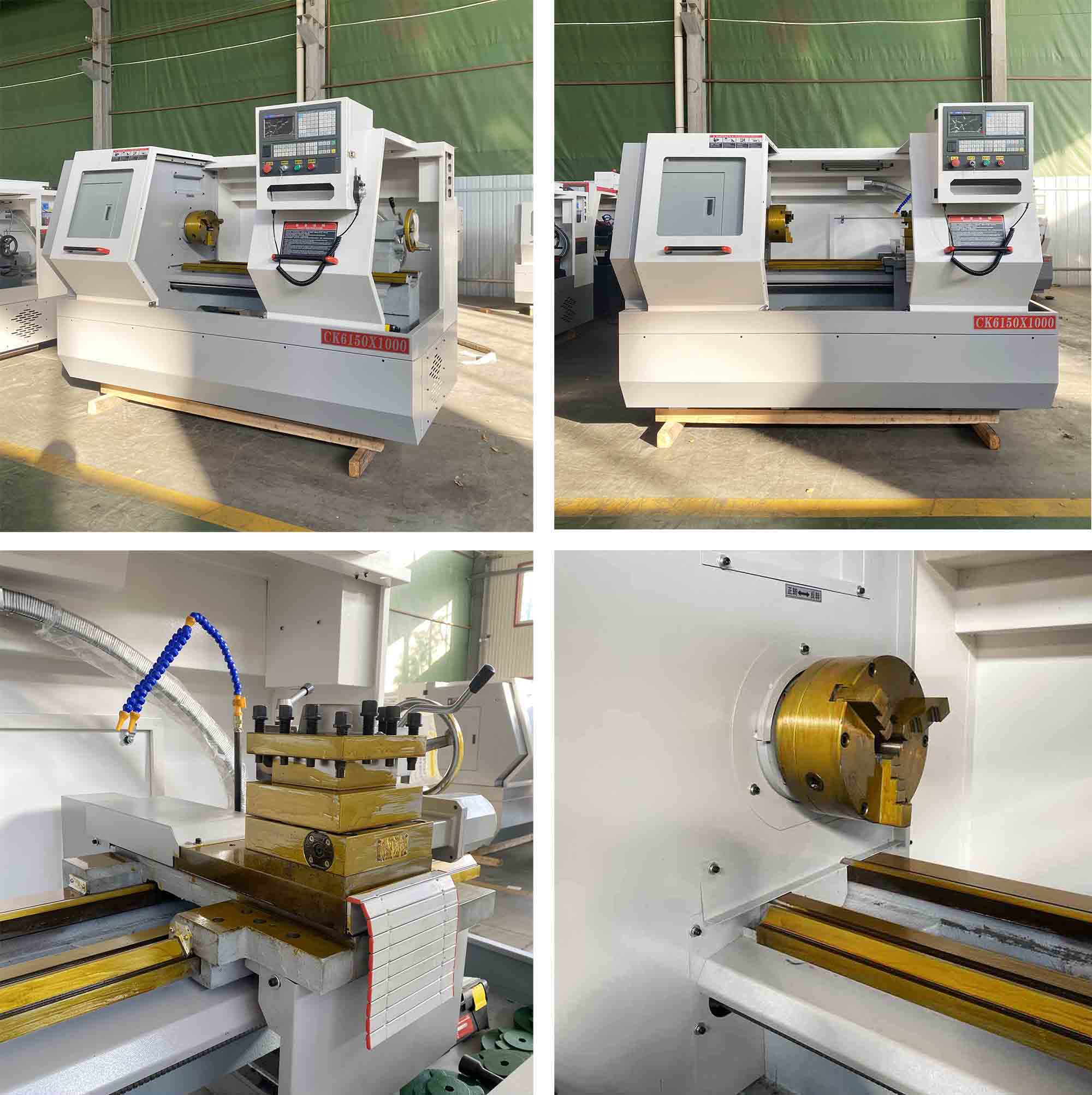

3 Axis CNC Lathe Machine Detailed Images
Horizontal 3 Axis Cnc Lathe can reduce the number of clamping times in large quantities, and can add parts with complex shapes without complex tooling. If you want to change the shape and specifications of parts, you only need to change the processing program of Horizontal Cnc Lathe, you can realize the new Product modification and processing requirements; CNC metal lathe processing accuracy is relatively stable, finishing and repeated processing efficiency and precision are high, very suitable for precision parts processing standards.
3 Axis CNC Lathe Machine Video
3 Axis CNC Lathe Machine Application Industry

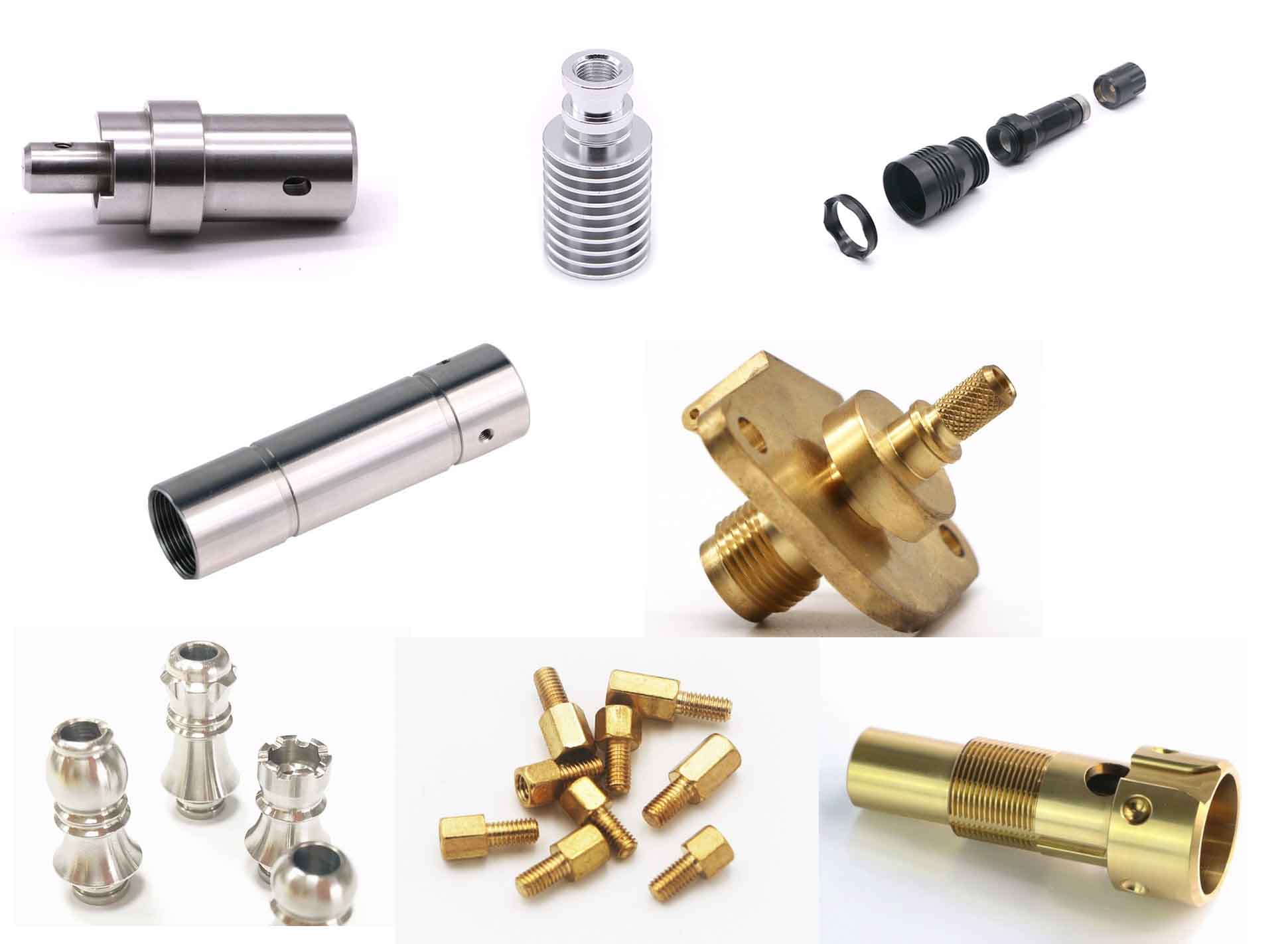

3 axis CNC lathe machining stainless steel auto parts, brass parts, aluminum parts, precision parts, copper parts, etc. Parts with special structures, whether it is turning the outer diameter or the inner hole, should start from the perspective of the deformation of the parts, first roughing, and then finishing.
