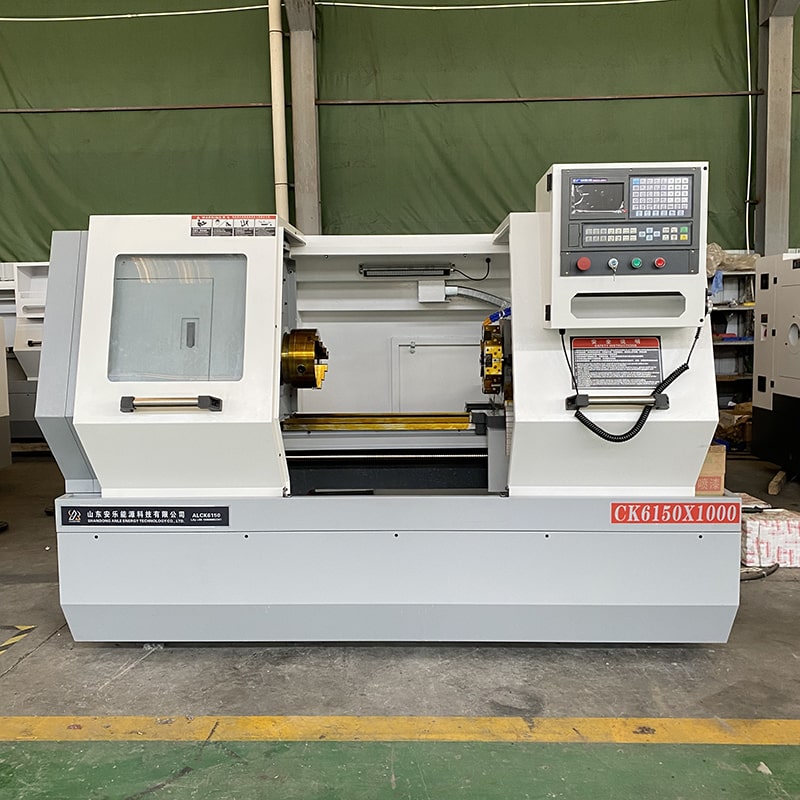

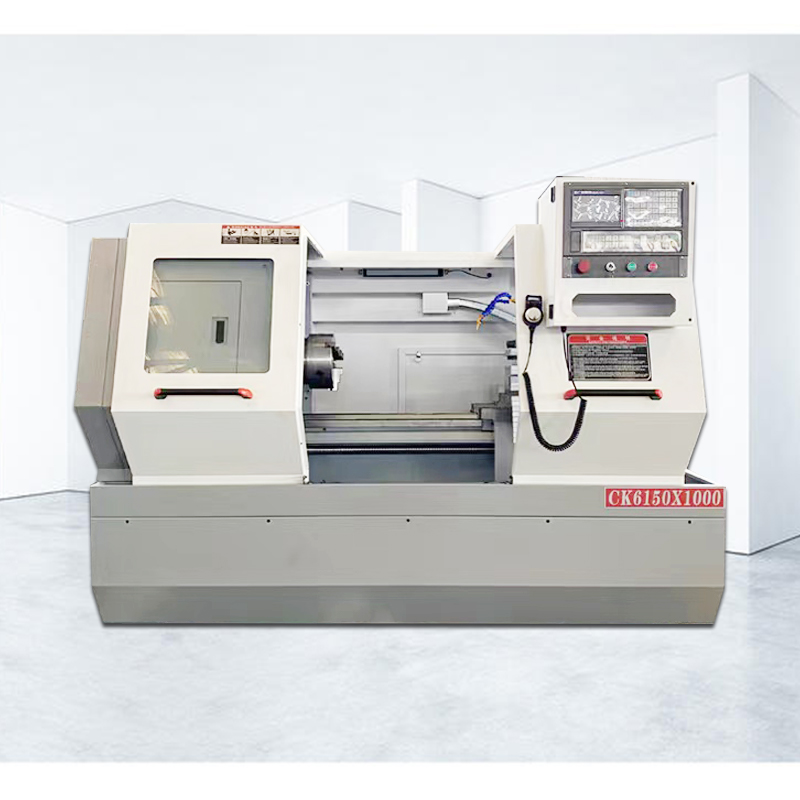

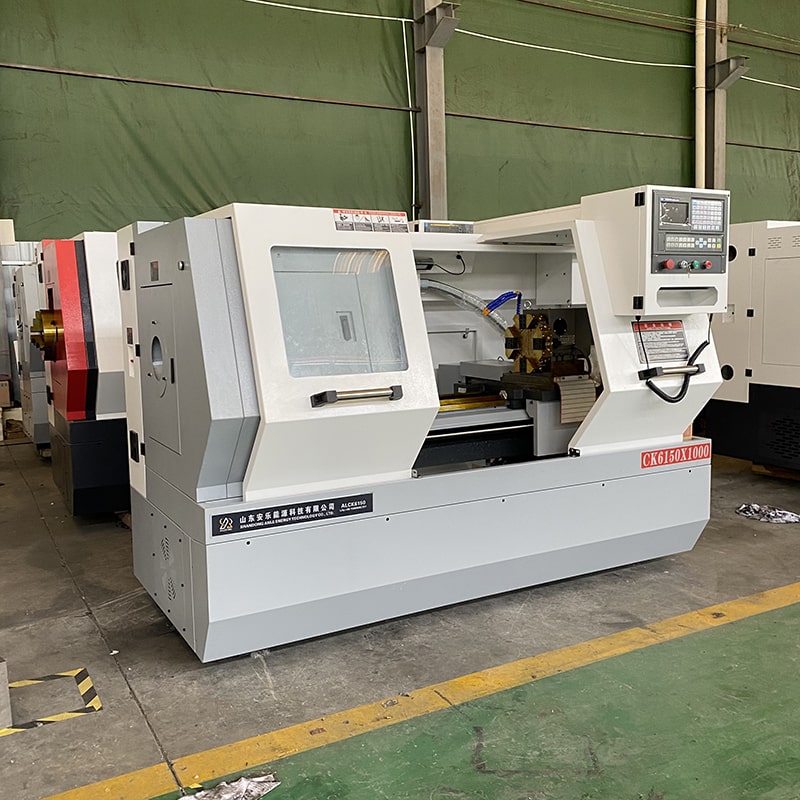

Horizontal CNC Lathe ALCK6150 CNC lathe
The high precision, high efficiency and versatility of Horizontal CNC Lathe ALCK6150 can meet the processing needs of various industries. flat bed CNC lathe high precision, high efficiency and versatility can greatly improve production efficiency and product quality, widely used in various industries.
Product Description
The automobile manufacturing industry is an industry that manufactures various automobiles and their parts, and it is one of the important application fields of the CNC lathe ALCK6140. Horizontal CNC Lathe ALCK6140 is widely used in the automobile manufacturing industry for machining various auto parts, such as engine cylinder head, crankshaft, gear, bearing and so on. The high precision and high efficiency of CNC turning ALCK6140 can greatly improve the production efficiency and product precision of the automobile manufacturing industry.
Product Specifications
Features:
1. CNC turning ALCK6150 adopts high-precision transmission device and control system, which can realize high-precision machining and stable working status.
2. Horizontal CNC Lathe ALCK6150 adopts intelligent operating system and fast feed speed, which can greatly improve the processing efficiency.
3. CNC lathe for metal ALCK6150 can process parts with different shapes and specifications, and has strong adaptability.
4.Mini cnc lathe ALCK6150 is easy to operate, without complicated manual adjustment and operation, and can be processed automatically only by inputting the processing program.
Video
Application fields of CNC metal lathes:
1.Flat bed CNC lathe ALCK6150 has been widely used in machinery manufacturing industry. The machinery manufacturing industry is an industry that manufactures various machinery and equipment, including machine tools, agricultural machinery, automobiles, aerospace, ships and other manufacturing industries.
2.Horizontal CNC Lathe ALCK6150 is also widely used in the hardware manufacturing industry. The hardware manufacturing industry includes locks, tools, sanitary ware and other manufacturing industries.
3. CNC turning ALCK6150 also has certain applications in the electronics manufacturing industry. The electronics manufacturing industry is an industry that produces various electronic products, including electronic components, electronic equipment, electronic communications and other manufacturing industries.
Video
Video
Product Specifications
|
Item
|
Unit | ALCK6150*1000 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1000 |
| X/Z axis maximum stroke | mm | 300/1000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
| Main motor power (frequency conversion) | kW | 7.5 |
| Frequency converter | kW | 7.5 |
| Repeated positioning accuracy of tool post | mm | ≤0.004 |
| Diameter of tailstock sleeve | mm | Φ65 |
| Tailstock sleeve stroke | mm | 130 |
| Electricity demand (power/current) | kW/A | 15kW/20A |
| Weight | Kg | 2500 |
| Machine size | mm | 3030*1600*2050 |
