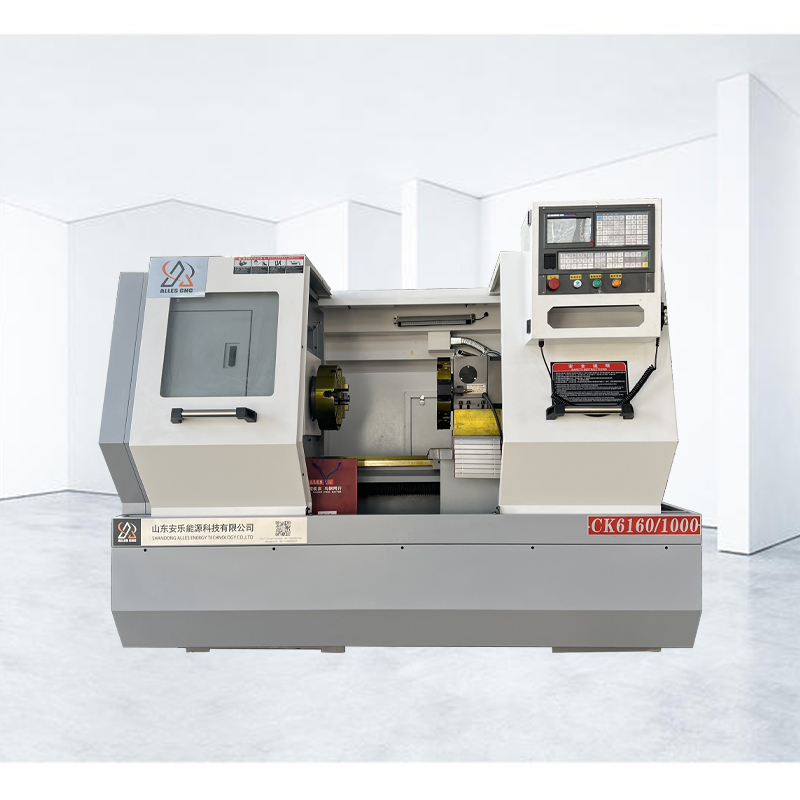

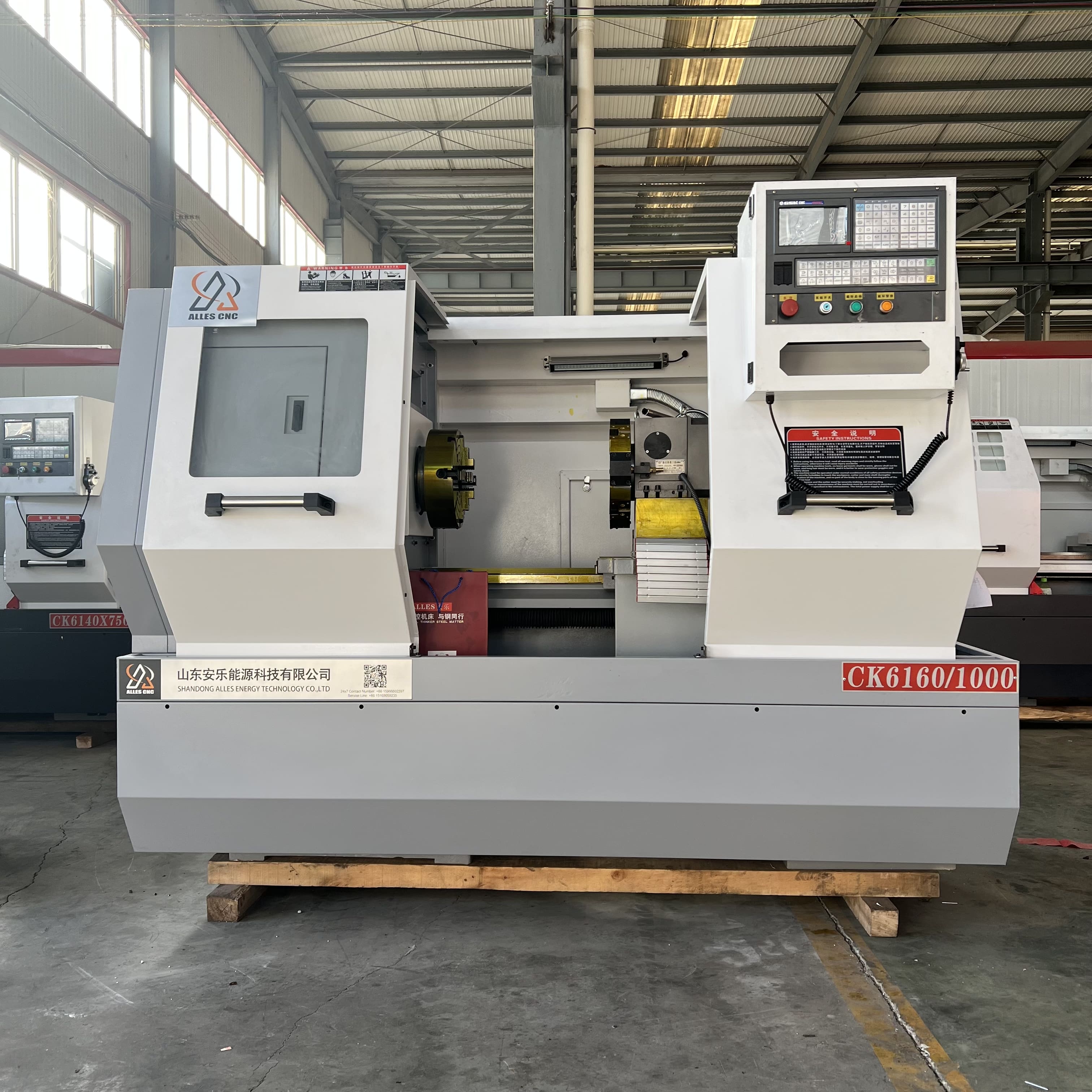

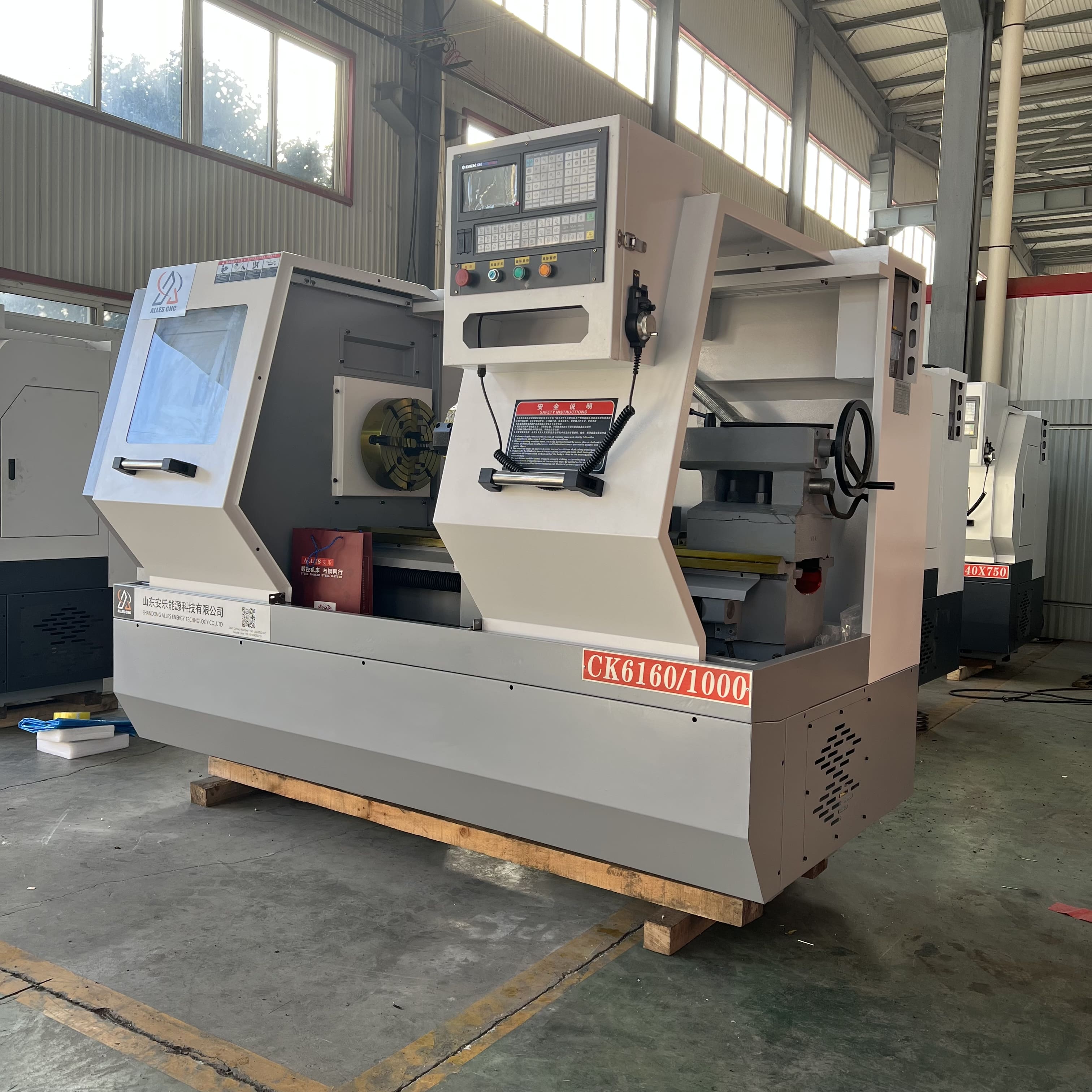

ALCK6160 Horizontal CNC Lathe CNC lathe for metal

Flat bed CNC lathe ALCK6160 has a high-precision motion control system and powerful processing capabilities, and can complete various parts processing tasks that require high precision.

Product Description

CNC lathe for metal ALCK6160 is a metal processing machine tool controlled by advanced numerical control technology. The Horizontal CNC Lathe is capable of high-precision machining of a wide variety of metal materials, including steel, copper, aluminum, stainless steel, and more.

Features:

1. CNC turning ALCK6160 adopts precision ball screw and high-precision servo motor, which makes it have high motion accuracy and repeat positioning accuracy.

2. Horizontal CNC Lathe ALCK6160 adopts a highly automated CNC system with fast cutting speed and automatic tool change function, which can greatly improve processing efficiency.

3. CNC turning ALCK6160 adopts high-rigidity body structure and advanced numerical control system, which has good vibration resistance and stability, and can guarantee the precision and stability during processing.

4. CNC lathe for metal ALCK6160 has multiple processing modes and processing parameter setting functions, which can meet the processing requirements of different parts.

Horizontal CNC Lathe ALCK6160x1000 is used in the medical device industry to process the following workpieces:

Automatic CNC lathe ALCK6160 is widely used in machinery manufacturing, aerospace, automobile manufacturing, military and other industries. CNC turning can process various complex parts, including shaft parts, gears, threads, hole parts, etc. CNC lathe for metal ALCK6160 can improve the accuracy and quality of parts, reduce production costs, improve production efficiency, and meet market demand.

Video

Product Specifications

Model	Unit	ALCK6160x1000
Maximum turning diameter of bed	mm	Φ600
Maximum turning diameter of carriage	mm	Ф310
Maximum cutting diameter	mm	Φ500
Maximum processing length	mm	1000
X/Z axis maximum stroke	mm	300/(1000/1500)
X/Z axis minimum displacement unit	mm	0.001
Spindle hole diameter	mm	Ф82 (105/130)
Spindle speed limit	rpm	150-1600
Main motor power (frequency conversion)	kW	11
Frequency converter	kW	11
X/Z axis rapid traverse speed	m/min	6/8
Tool bar size	mm	25*25
Diameter of tailstock sleeve	mm	Φ75
Tailstock sleeve stroke	mm	200
Net weight of machine tool	kg	3000
Machine size (length×width×height)	mm	294014001700
Electricity demand (power/current)	kW/A	15kW/20A
