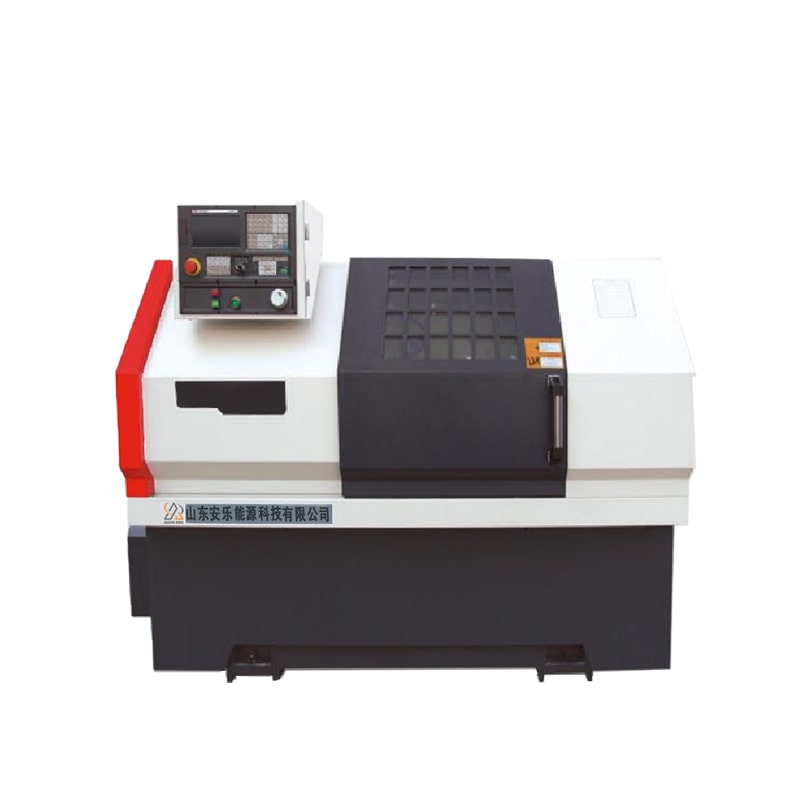

Horizontal mini metal cnc lathe machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body. This machine is widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle, bearings and so on.
Main parameters
Specifications | Unit | ALH32i |
Max. swing over bed | mm | Φ320 |
Swing over cross slide | mm | Φ70 |
Max. processing length | mm | 280 |
X/Z axis travel | mm | 280/330 |
X/Z Rapid traverse |
m/min | 20/20 |
Machine dimension (L×W×H) |
mm |
1580×1250×1680 |
Net. weight (about |
kg | 1200 |
CNC Lathe Features
Higher accuracy Taiwan linear guideways;
Higher speed spindle unit,Optional homemade spindle;
Higher rigidity cast iron;
Integrated automatic lubrication.
