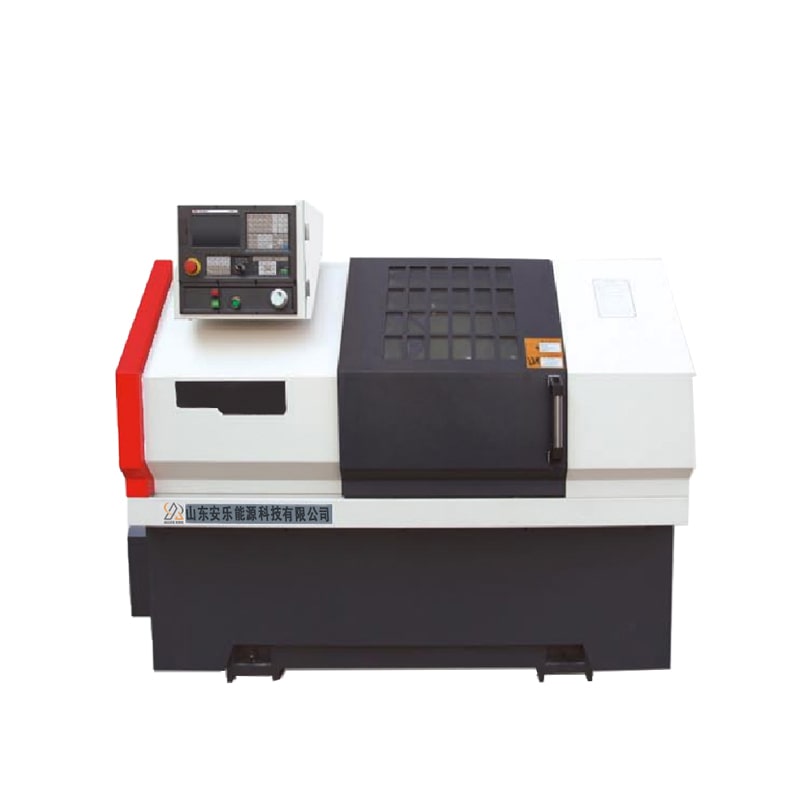

Flat Bed CNC Metal Lathe Machining Center

Product Description

Flat bed cnc metal lathe machining center is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body. This machine is widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle, bearings and so on.

Main parameters

Specifications	Unit	ALH32i	ALH36	ALH46
Max. swing over bed	mm	Φ320	Φ360	Φ460
Swing over cross slide	mm	Φ70	Φ110	Φ150
Max. processing length	mm	280	250	330
X/Z axis travel	mm	280/330	320/250	360/330
X/Z Rapid traverse	m/min	20/20	15/15	15/15
Machine dimension (L×W×H)	mm	1580×1250×1680	2000×1400×1580	2200×1580×1815
Net. weight (about	kg	1200	1500	2200

CNC Lathe Features

Higher accuracy Taiwan linear guideways;

Higher speed spindle unit,Optional homemade spindle;

Higher rigidity cast iron;

Integrated automatic lubrication.
