Horizontal Metal Cutting Lathe Pneumatic Chuck

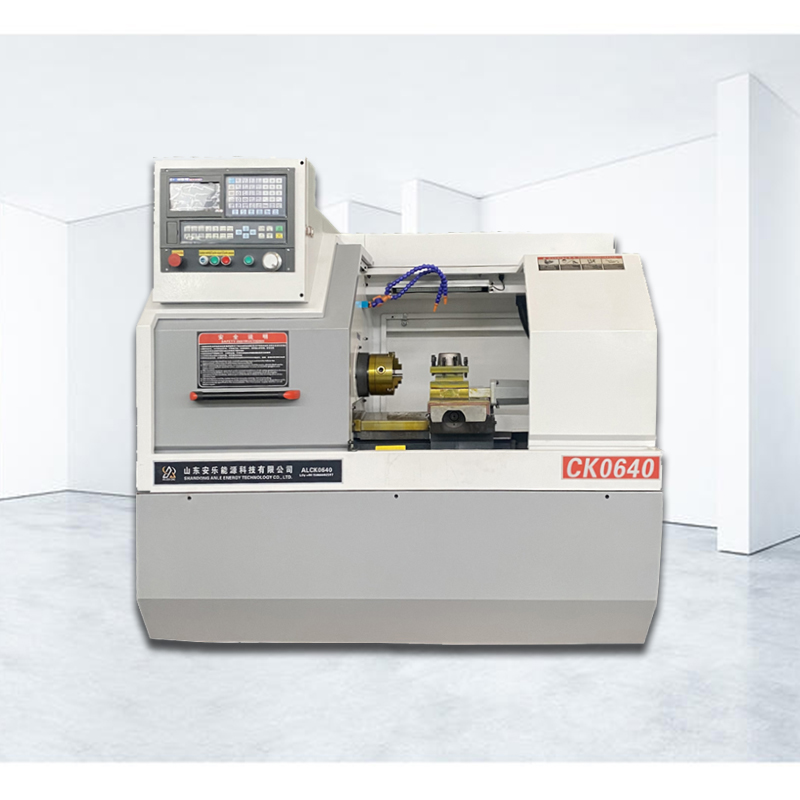

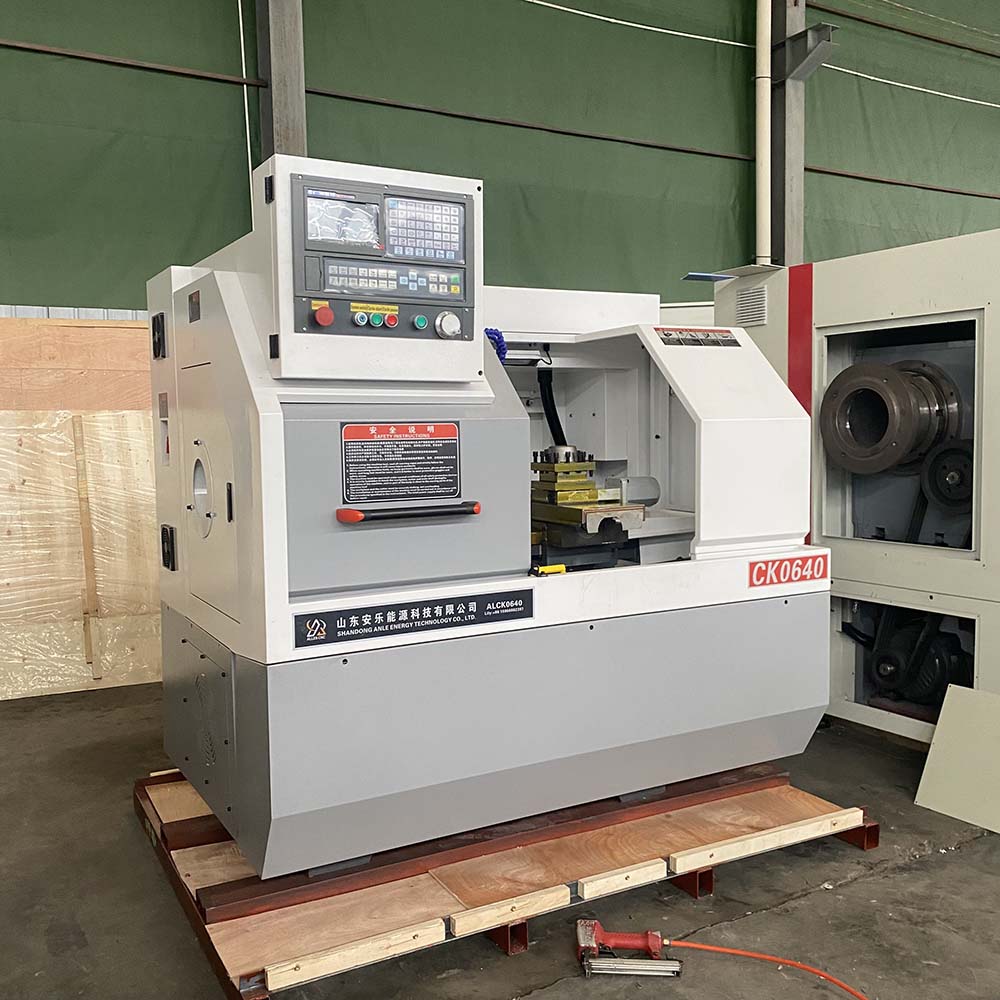

CK0640 CNC lathe is a practical and economical CNC lathe developed according to the actual needs of the majority of machining users.
Product Description
Horizontal Metal Cutting Lathe Pneumatic Chuck
CK0640 horizontal metal cutting lathe has the characteristics of practicality, convenient operation and high machining accuracy. It can realize the processing of complex parts such as straight lines, tapers, arcs, threads, etc. It is especially suitable for single-piece and mass-produced products with complex shapes of parts, such as various instruments, Instruments, electronic products, micro components, connectors, glasses, clocks, lighters and various hardware accessories, etc.
Horizontal Metal Cutting Lathe Pneumatic Chuck Specifications:
CK0640 horizontal metal cutting lathe has the characteristics of practicality, convenient operation and high machining accuracy. It can realize the processing of complex parts such as straight lines, tapers, arcs, threads, etc. It is especially suitable for single-piece and mass-produced products with complex shapes of parts, such as various instruments, Instruments, electronic products, micro components, connectors, glasses, clocks, lighters and various hardware accessories, etc.
Horizontal Metal Cutting Lathe Pneumatic Chuck Specifications:
| Item | Unit | ALCK0640 |
| Max swing over bed | mm | Φ250 |
| Maximum swing over slide | mm | Φ120 |
| Spindle hole diameter | mm | Φ48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 3000 |
| Knife square size | mm | 20×20 (four stations) |
| X/Z direction fast moving speed | m/min | 6/8 |
| X stroke | mm | 200(Optional 300/400mm） |
| Z stroke | mm | 220 |
| Main motor power | KW | 3（Optional 4kw) |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Machine weight | Kg | 800 |
| Dimensions (length × width × height) | mm | 1620×1340×1680mm |
CK0640 Flat Bed CNC Lathe Features:
1. The machine tool control adopts various CNC numerical control system customers to choose;
2. The feeding movement adopts ball screw and sliding guide rail. The speed change of spindle motor adopts AC frequency converter;
3. It is clamped with a spring clamp, and the tightening device has manual and hydraulic control forms for customers to choose from;
4. Electric spindles with different angles are installed on the carriage, which can realize various spiral grooves, straight grooves, drilling, etc.;
5. The feed shaft is controlled by stepper motor or servo motor for customers to choose;
6. The guide rail adopts super audio quenching;
7. Adopt waterproof spindle.
