CK6150 flat bed cnc lathe machine
CK6150 bench top cnc lathe machine is a high-precision and high-efficiency fully automatic lathe, suitable for turning of disc and shaft parts. CK6150 cnc lathe machine can perform complex processes such as straight lines, arcs, metric and inch threads, multi-threads, polygons, multi-faces, and multi-angles. High precision processing, especially suitable for military, aerospace, automotive, mold, instrumentation and other mechanical processing industries.
Product Description
CK6150 flat bed cnc lathe machine
Product description:
The CNC lathe CK6150 is an economical CNC machining lathe. This machine tool can perform semi-finishing and finishing machining of mechanical parts. CK6150 automatic cnc lathe machine has reliable structure, convenient operation, economical application, and can meet the needs of many industries. This CNC lathe is especially suitable for high-efficiency, large-scale, and high-precision turning of the inner and outer cylindrical surfaces, tapered surfaces, threads, drilling, reaming, and curved revolving parts of shaft and disc parts.

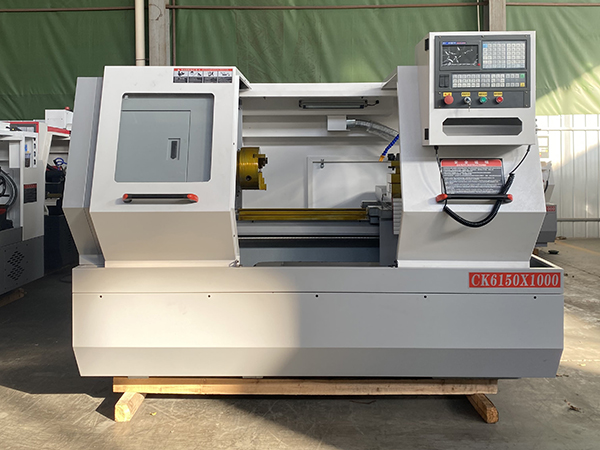

ALCK6150X1000 CNC lathe machine
The CNC lathe CK6150 is an economical CNC machining lathe. This machine tool can perform semi-finishing and finishing machining of mechanical parts. CK6150 automatic cnc lathe machine has reliable structure, convenient operation, economical application, and can meet the needs of many industries. This CNC lathe is especially suitable for high-efficiency, large-scale, and high-precision turning of the inner and outer cylindrical surfaces, tapered surfaces, threads, drilling, reaming, and curved revolving parts of shaft and disc parts.
ALCK6150X1000 CNC lathe machine
Video:
Product Specifications:
| Item | Unit | Parameter |
| ALCK6150*1000 | ||
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1000 |
| X/Z axis maximum stroke | mm | 300/1000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
| Main motor power (frequency conversion) | kW | 7.5 |
| Frequency converter | kW | 7.5 |
| X/Z axis | N.m | 5/7.5 |
| X/Z axis rapid traverse speed | m/min | 6/8 |
| Diameter of tailstock sleeve | mm | Φ65 |
| Tailstock sleeve stroke | mm | 130 |
| Weight | Kg | 2500 |
| Machine size | mm | 3030X1600X2050 |

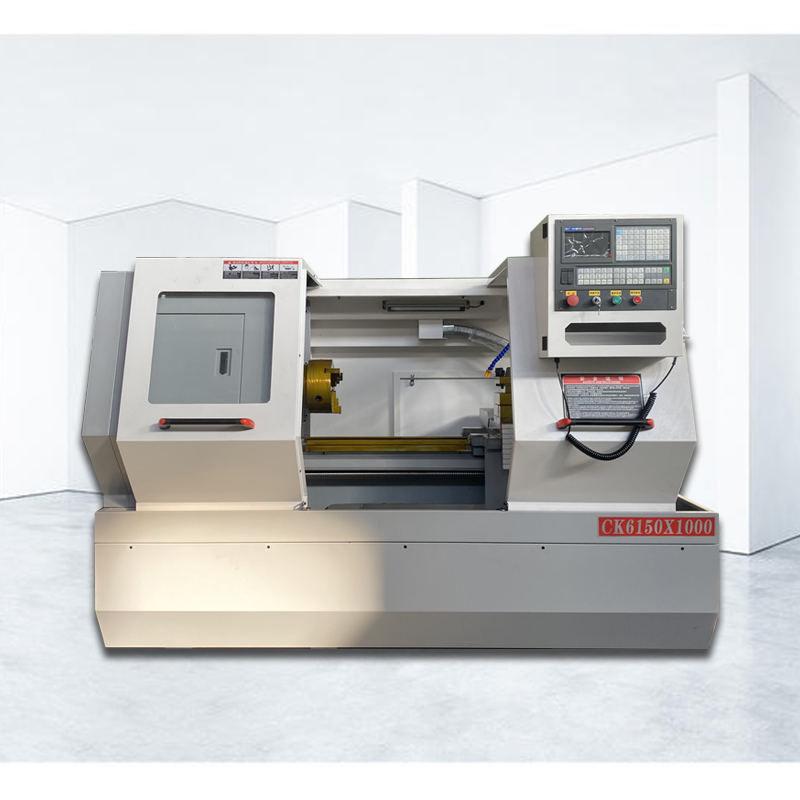

ALCK6150X1000 CNC lathe machine
Video:
Product advantages:
1. The machine tool has high precision, and the main shaft is supported by high-precision double ball bearings, with low noise, high precision and good stability.
2. The bed guide rail is finely ground after ultrasonic quenching, with high hardness and good rigidity.

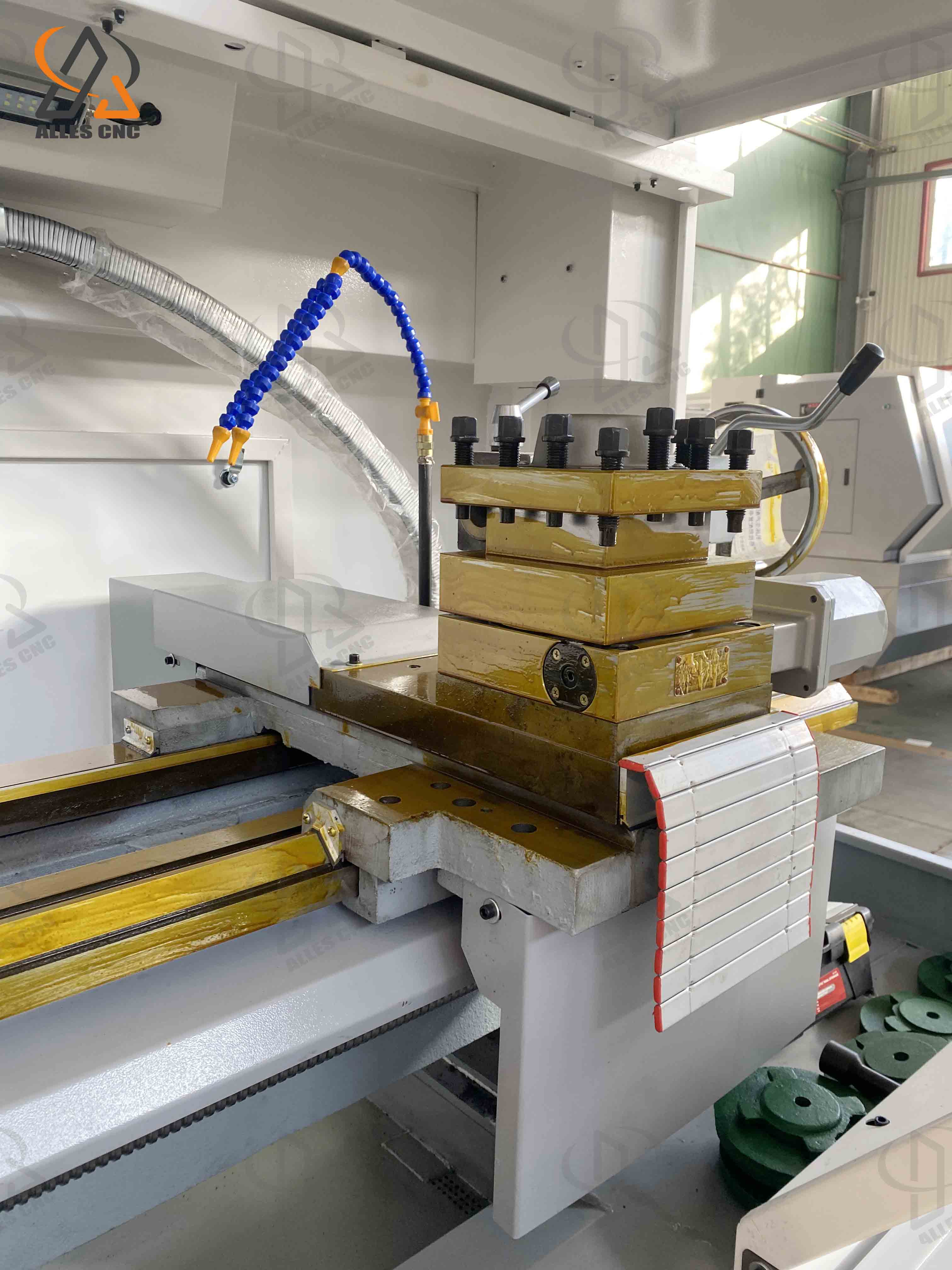

3. The electric four-station tool rest adopts precise toothed disc positioning, with high repeat positioning accuracy.

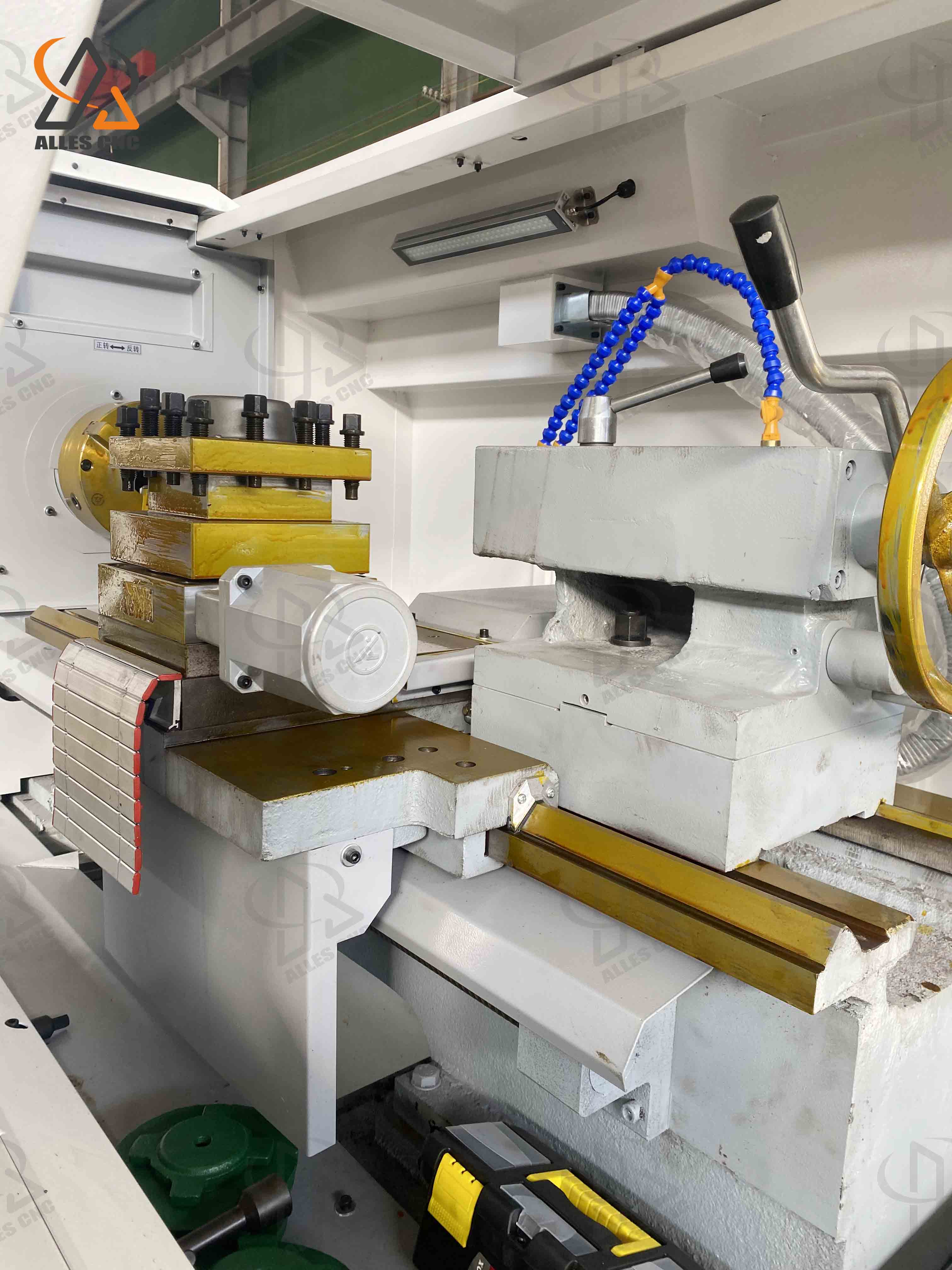

4. The tailstock has a quick cam clamping device with high working efficiency. There is a device in the tailstock sleeve to prevent the drill bit from rotating, which avoids damage to the taper of the inner hole of the tailstock sleeve due to the rotation of the drill bit caused by misoperation, and effectively protects the tailstock components.
5. Easy to operate, especially suitable for the processing of complex parts or high-precision mass parts.

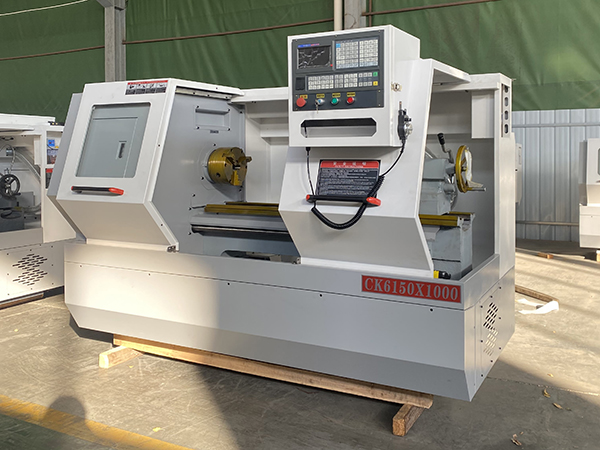

Super low price ALCK6150x1000 CNC Lathe
