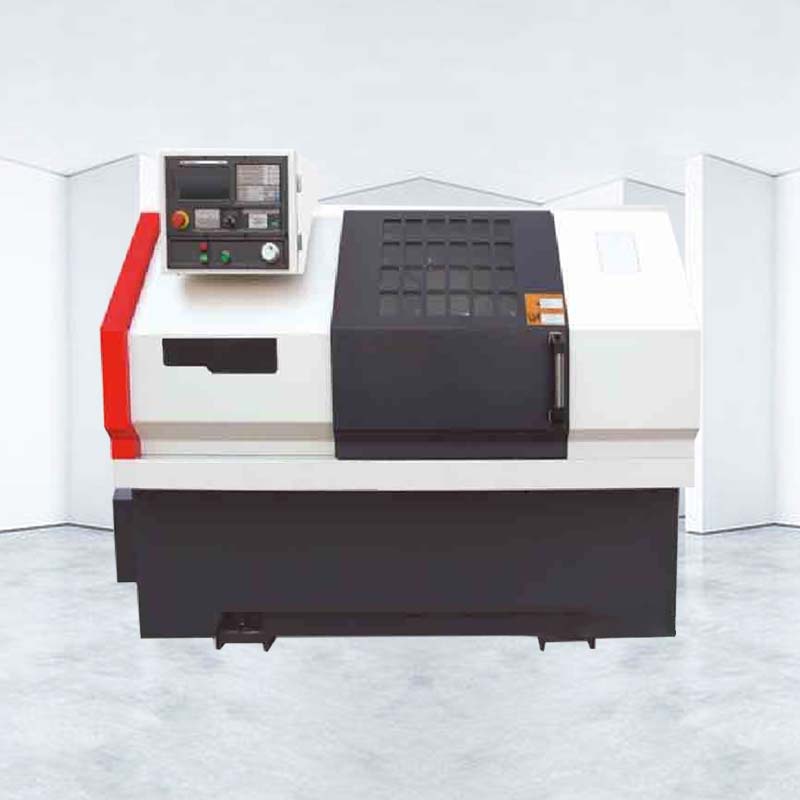

CNC Horizontal Lathe Machine for Parts Manufacturing
cnc lathe processing is mainly used to process various shaft and disc parts. It can turn various threads, arcs, cones and inner and outer surfaces of rotating bodies, and can meet the high-speed cutting speed requirements of ferrous and non-ferrous metals. It is suitable for high-efficiency, high-volume, high-precision machining of rotating parts in automobiles, motorcycles, electronics, aerospace, military and other industries.
Product Description
| Project | Unit | ALH46 |
| Maximum turning diameter of bed | mm | φ460 |
| X-direction rail span | mm |
195
|
| Maximum turning diameter of slide | mm | φ140 |
| Maximum turning length | mm | 330 |
| Spindle hole diameter | mm | φ56 |
| Bar diameter | mm | φ44 |
| With hollow chuck rod through hole | mm | φ45 |
| Knife square size | mm | □25×25 |
| X/Z stroke | mm | 360/330 |
| Minimum setting unit | mm | 0.001 |
| Total power | KW | 9.5 |
| Net weight of machine too | Kg | About 2200 |
| Dimensions (length×width×height) | mm | 2335×1815×1605 |
Flatbed CNC lathe has the following characteristics:
The cnc lathe 3 axis adopts mechatronics design, with beautiful appearance, reasonable structure, low noise and high positioning accuracy. It is versatile and easy to operate. It can automatically complete the processing of internal and external circles, grooving, end faces, spherical surfaces and various metric and inch cylindrical and conical threads of various parts.

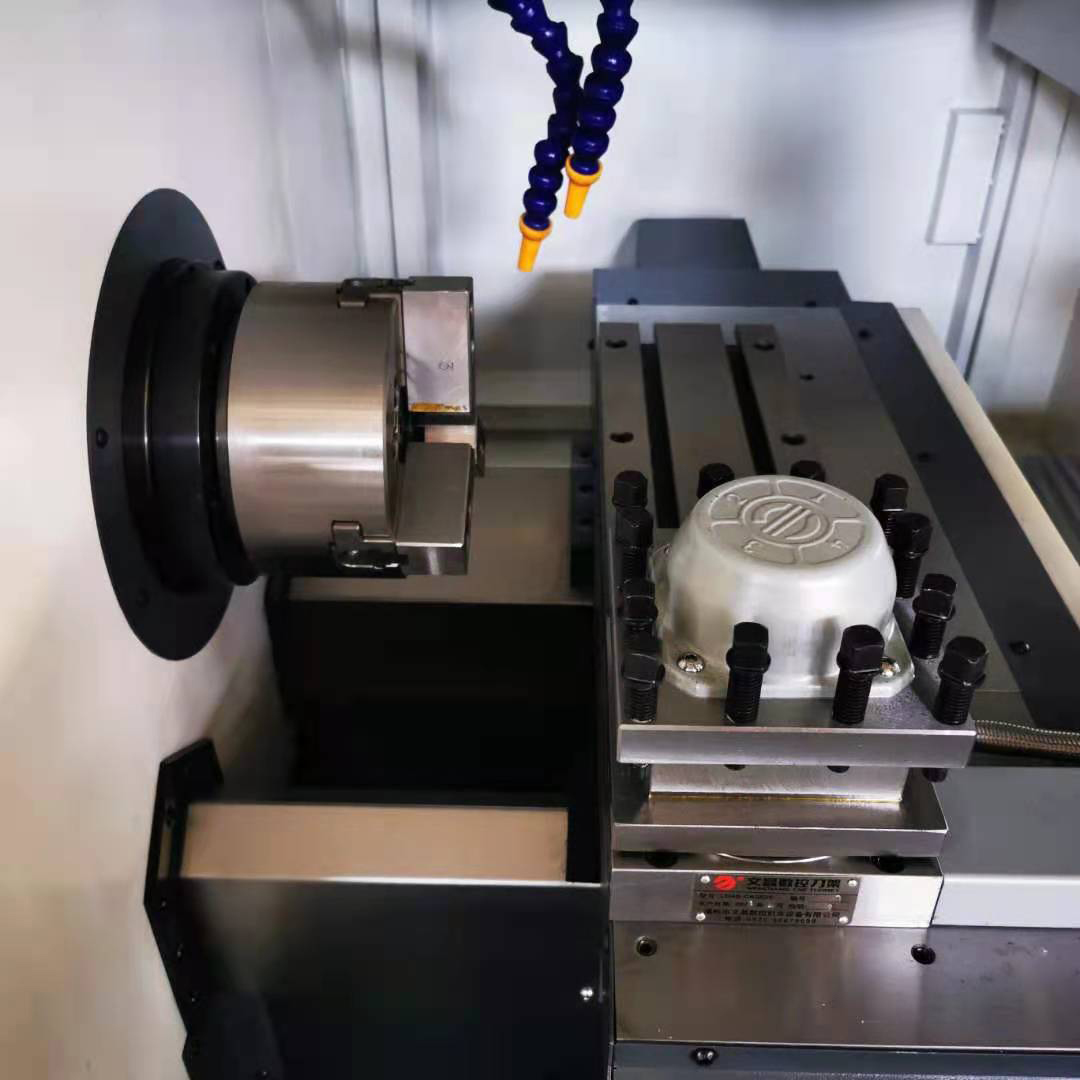

The rigidity of the spindle system is good. The spindle adopts variable frequency stepless speed regulation. The spindle diameter is large, and the optional accessories are complete. It is suitable for complex parts of various shapes, long shafts, disc parts, etc.
Flat Bed CNC Iathe Advantages
The reliability of Horizontal CNC Lathe is a key indicator of the product quality of Horizontal CNC Lathe. Whether automatic cnc lathe can exert its high performance, high precision and high efficiency, and obtain good benefits, depends on its reliability.
Application Of Cnc Iathe
CNC lathe sed to process and manufacture high-precision and complex components such as electrical appliances, etc.
