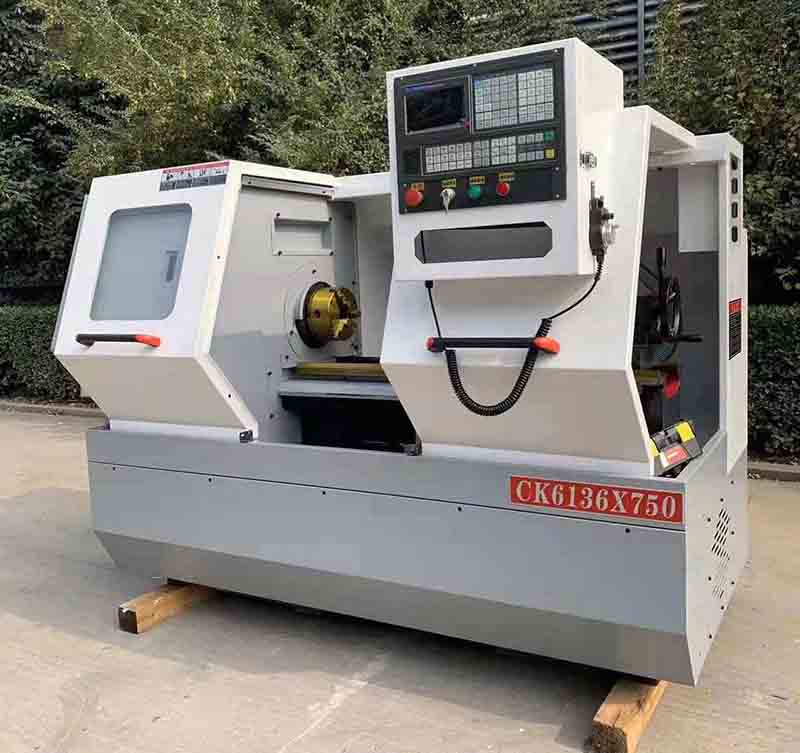

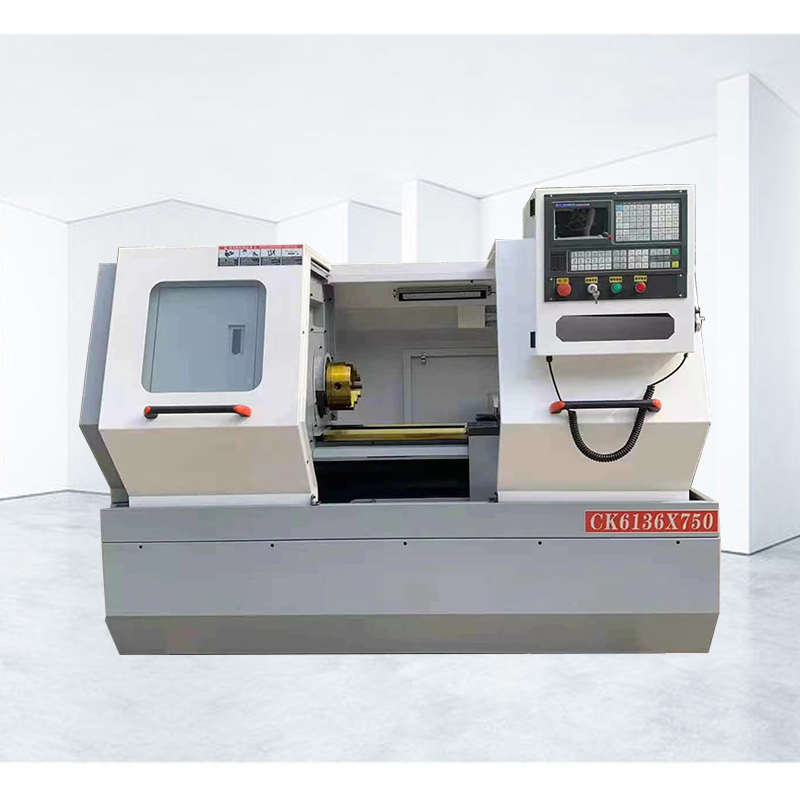

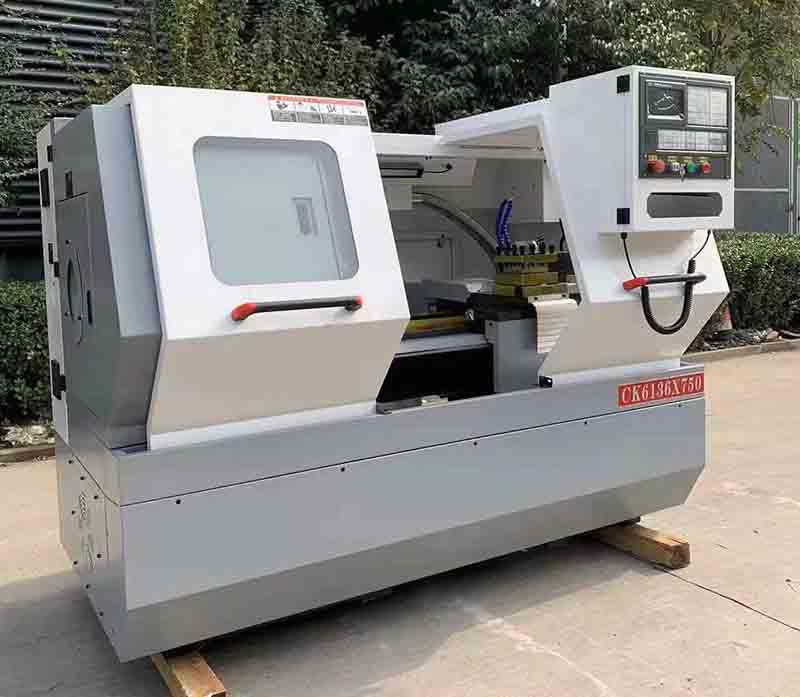

CNC Lathe Metal CK6136X750 horizontal lathe machine
CNC flat bed lathe is a high-precision, high-efficiency automatic machine tool,horizontal lathe machine has a wide range of processing performance,high Precision CNC Lathe can process straight cylinders, oblique cylinders, arcs and various threads,CNC Lathe Machine Horizontal gives good performance advantages in the mass production of complex parts!
Product Description
Features of CNC Lathe Machine Metal Horizontal
1. CNC Lathe Machine Metal directly uses the servo motor to drive the slide plate and the tool rest through the ball screw to realize the feeding movement, so the structure of the feeding system is greatly simplified.
2.CNC Lathe Machine Horizontal can realize unmanned management in 24-hour operation, with very high reliability.
3. Turning Machine CNC Lathe has the function of multi-axis linkage, which can process parts with complex shapes, and can change the processing program according to the requirements of parts processing, and the processing tasks can be changed without complicated adjustments to the processing equipment.
Video
Product Specifications:
Application of CNC Horizontal Lathe in Auto Parts
For the manufacture of thin-walled shell parts in the automotive industry, some special post-processing procedures should be loaded in the milling process such as engine shells, gearbox shells, etc.
For example, in the CNC Lathe Turning cutting process, the cutting chatter caused by the low stiffness shell leads to the reduction of the machining accuracy. The adaptive speed control and the torque and torque monitoring modules of each axis of the machine tool are installed.
By automatically adjusting the spindle speed to achieve the torque of each axis to maintain a stable cutting state, improve the processing quality and processing efficiency.
Video
Product Specifications:
| Item | Unit | Parameter |
| ALCK6136X750 | ||
| Max swing over bed | mm | Φ360 |
| Maximum turning diameter on the tool post | mm | Φ200 |
| Maximum workpiece length between two centers | mm | 750 |
| Spindle through hole diameter | mm | Φ52 |
| Spindle motor power | kw | 5.5 |
| Tool handle size | mm | 20×20 |
| X stroke | mm | 200 |
| Z stroke | mm | 750 |
| Minimum setting unit | mm | 0.01 |
| Tailstock sleeve diameter | mm | 60 |
| Tailstock sleeve stroke | mm | 100 |
| Cooling motor power | w | 125 |
| Cooling water pump head | m | 5 |
| Cooling water pump flow | L/min | 25 |
| Overall dimensions of machine tool (length×width×height) | mm | 2350×1380×1640 |
| Net weight | kg | 1600 |
