Flat Bed CNC Lathe Part Machining

The optimized design of automatic cnc lathe headstock is suitable for turning of disc and shaft parts. It can process straight, round, metric and inch threads as well as multiple threads. It can be used to process discs and shafts with complex shapes and high precision requirements. Parts Processing.

Product Description

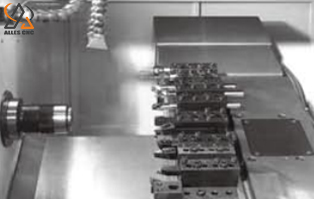

Structural Features And Functional Requirements Of Cnc Turning Center

cnc lathe The whole machine has compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and good precision retention.

CNC lathe for metal guide rails and saddle guide rails are made of hard guide rails made of special materials, high-frequency quenching, super hard and wear-resistant, durable, and maintain good machining accuracy.

Equipment parameters and accessories
Item	Unit	ALCK36i
Max swing over bed	mm	Φ360
X-direction rail span	mm	180
Z-direction rail span	mm	320
Maximum swing over slide	mm	Φ200
Center distance	mm	600
Maximum turning length	mm	450
Spindle hole diameter	mm	Φ48
Bar diameter	mm	Φ45
With hollow chuck pull rod through hole	mm	Φ40
Diameter of tailstock sleeve	mm	Φ52
Tailstock sleeve stroke	mm	80
Knife square size	mm	□20×20 (four stations)
X/Z direction fast moving speed	m/min	6/10
X stroke	mm	280
Minimum setting unit	mm	0.001
main motor power	KW	5.5
Total power	KW	11
Machine weight	Kg	1800
Dimensions (length × width × height)	mm	2050×1360×1820

Flat Bed CNC Lathe Advantages

The numerical control system adopts GSK980TC3 system, domestic famous brand ball screw and high precision screw bearing.

The spindle adopts high-precision spindle bearing set, and is precisely assembled and dynamically balanced to ensure high precision, low noise and strong rigidity of the spindle.

Each lubricating point adopts a forced automatic lubricating device to carry out fixed-point quantitative lubrication to the screw rod and guide rail. When an abnormal state occurs or the oil volume is insufficient, a warning signal is automatically generated.

The standard configuration adopts domestic three-jaw self-centering manual chuck.

The guide rail is equipped with a scraping device to prevent the guide rail from being corroded by iron filings and coolant, which is convenient for cleaning the iron filings.

CNC lathe Application

CNC lathe for metal has a wide range of applications: aviation industry, aerospace industry, shipbuilding industry, automobile manufacturing, weapon manufacturing, power generation equipment manufacturing, metallurgical equipment manufacturing, engineering machinery manufacturing, mold manufacturing, electronic information equipment manufacturing, etc....
