Technology Parameter
Specifications |
Unit |
ALCK6150 |
Max. swing over bed | mm |
Φ500 |
Max. swing over cross slide |
mm |
Φ250 |
Max. processing length |
mm |
850/1350/1850 |
X/Z axis travel |
mm |
X:280 Z:1000/1500/2000 |
Spindle bore |
mm |
Φ82 |
Bar capacity |
mm |
Φ65 |
Maximum spindle speed |
rpm |
1800 |
X/Z axis repeatability |
mm |
±0.005 |
Machine dimension (L×W×H) |
mm |
2650/3250/3750×1700×1820 |
Net. weight (about) |
kg |
2580/2860/3150 |

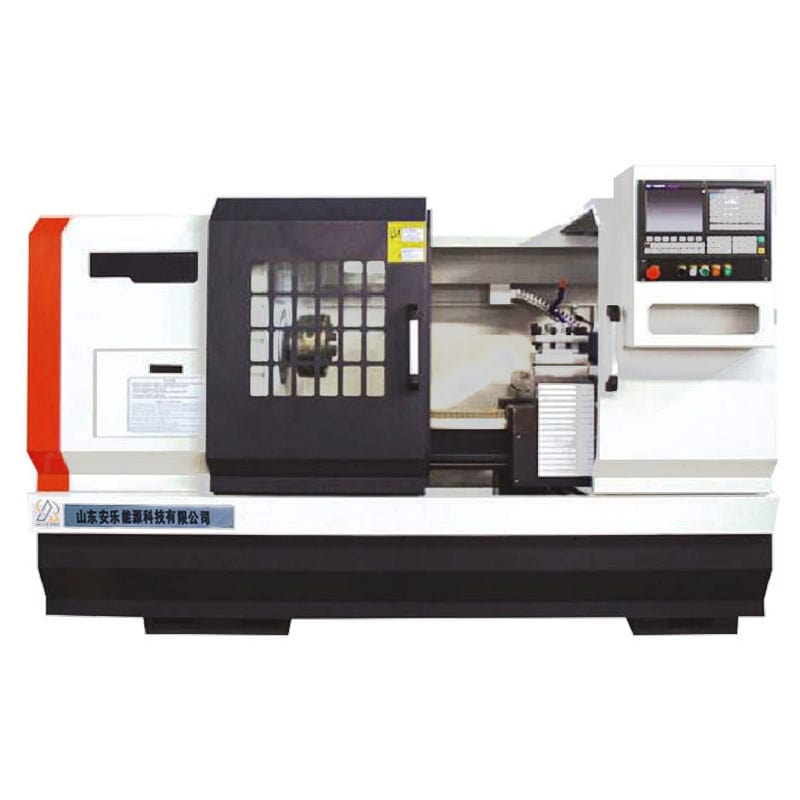

CNC Turning Center Metal Machine Advantages
The CNC lathe high-performance turning center can accurately manufacture complex parts and shorten setup time. Flat bed CNC lathe spindle has high speed, fast work efficiency, long service life, and can work continuously for a long time. Our CNC lathe goes through the process of casting, aging, tempering, and secondary tempering to ensure the quality of our equipment.
Parts

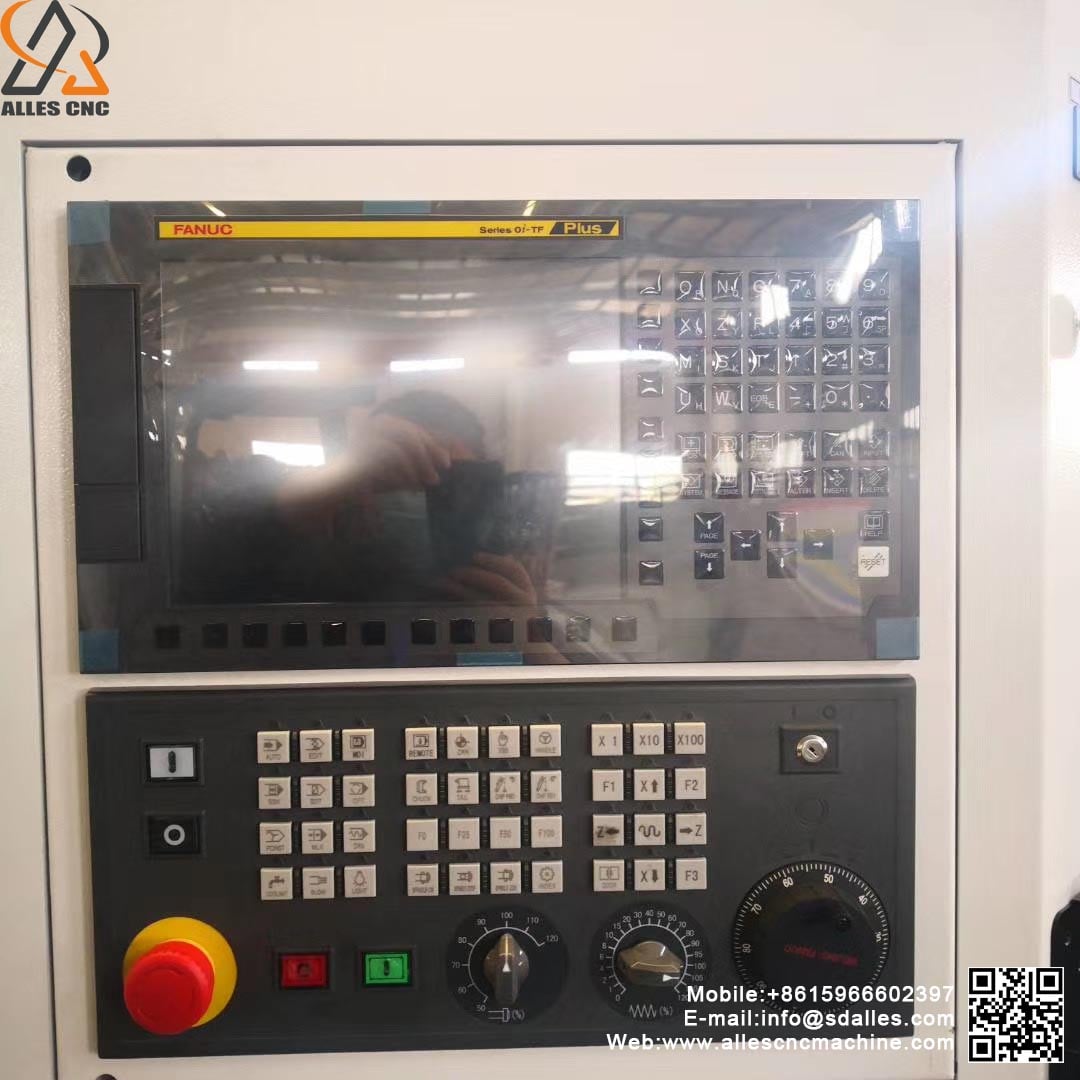

CNC Control System
Standard :GSK
Optional :Siemens, Fanuc,Syntec, Mitsubishi and others.

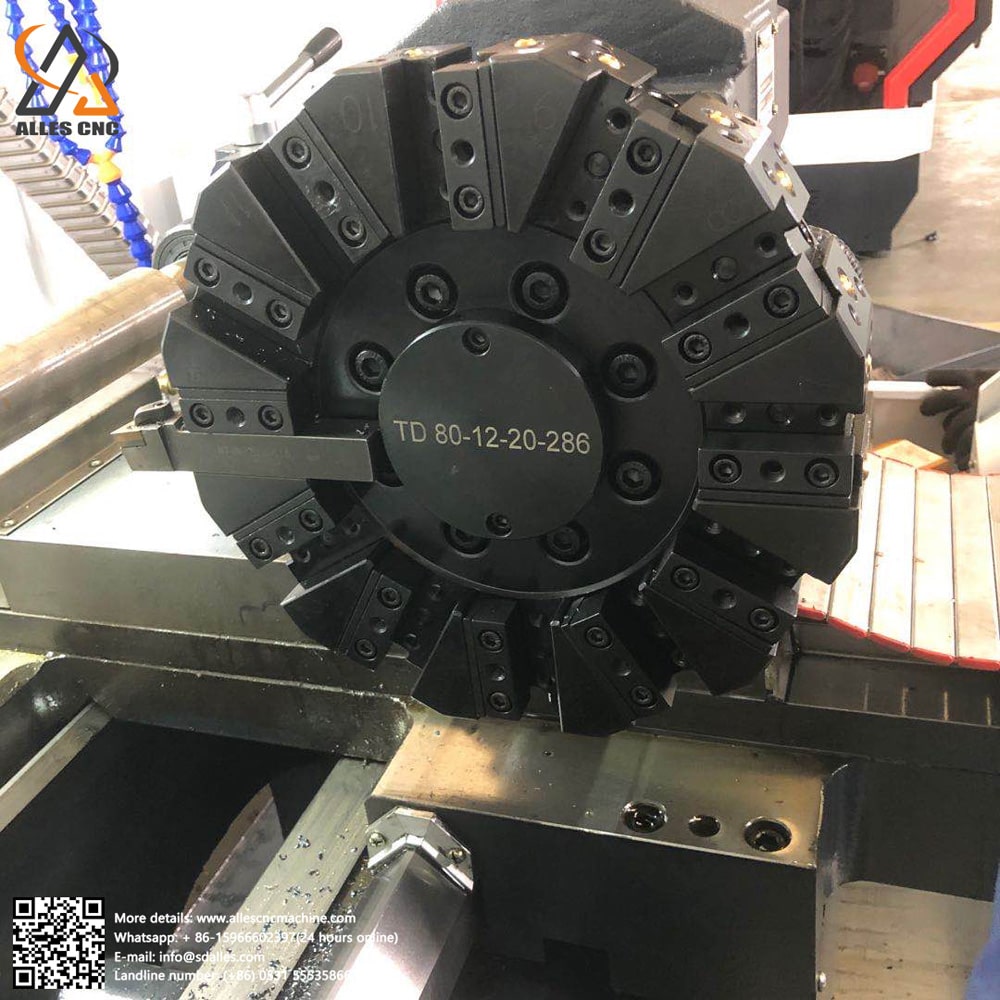

Tool Post/ Turre T
Standard with 4 staion electric tool post ,6/8 station electric turret are optional.

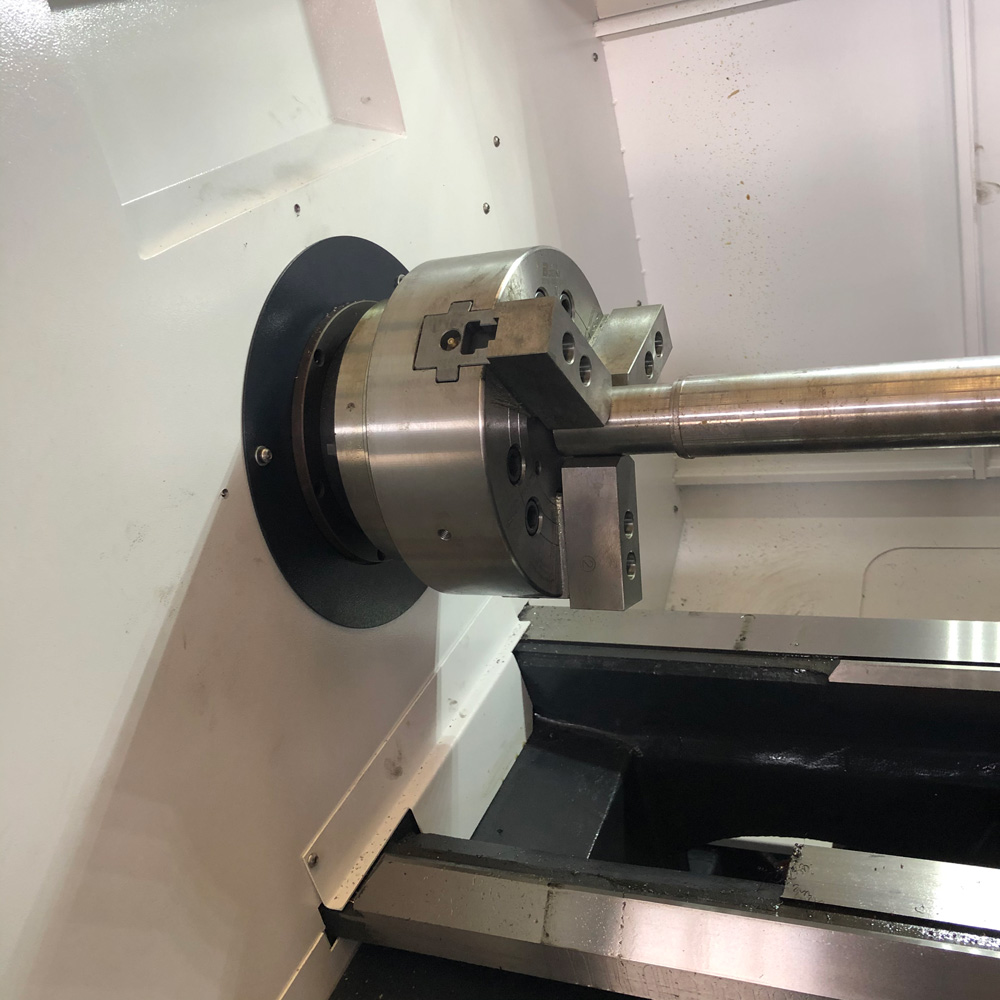

Precision Chuck
Standard with Manual chuck,
Optional:hydraulic chuck or pneumatic chuck.
Machine Base
A high strength, widening the carriage, suitable for heavy cutting

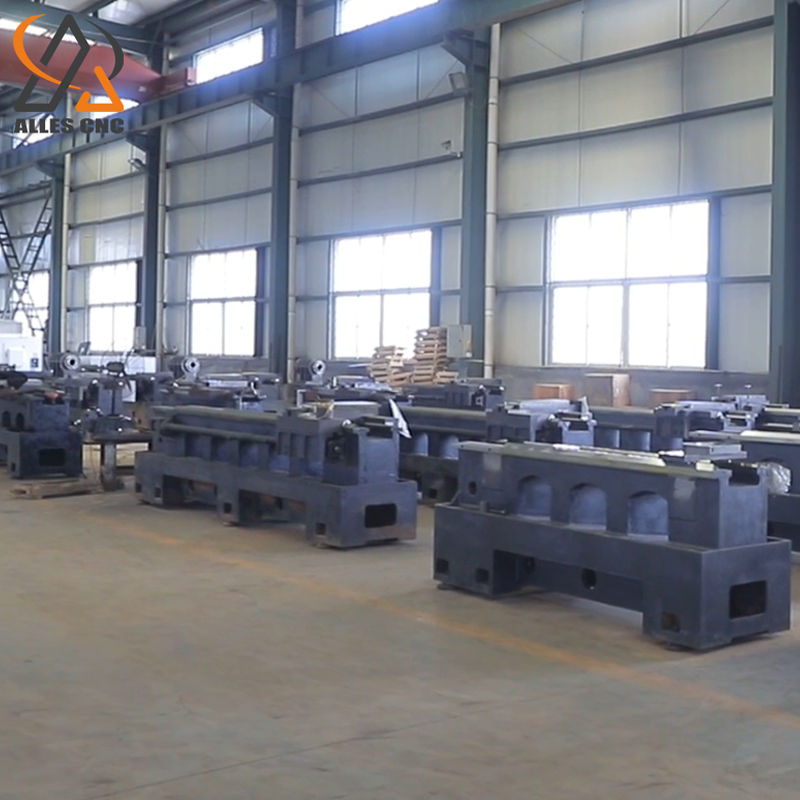

Factory Display
ALCK Series CNC Turning Center Metal Of After Sales
PRE SALE SERVICE
1)Provide corresponding guidance and equipment information according to customer development needs;
2)To solve the problems raised by customers, from the feasibility and the development needs of the local industries, formulate solutions;
AFTER-SALE SERVICE
1)The seller provides one time free installation and training in buyer’s factory. Seller pays for the airplane tickets and salary for engineers, buyer should provide accommodation and food to engineers.
2)The seller will provide technical guide’s e-mail, telephone, Wechat, Whatsapp and so on.
3)The seller should pay for the travel expense if local service needed within warranty time.
