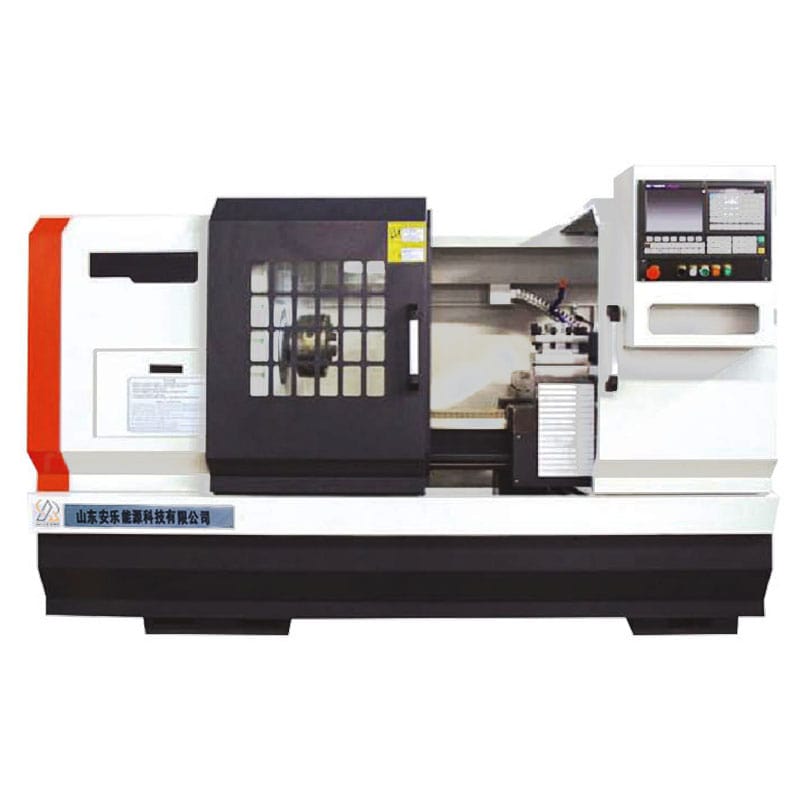

Horizontal CNC Lathe Turning Machine for Metal
CNC metal turning lathe machine center is suitable for the precision and semi-finish machining of shafts and disc parts in small and medium batches, with a degree of automation
High, simple programming, stable precision and other advantages.
High, simple programming, stable precision and other advantages.
Product Description
ALCK6165E
ALLES CNC
1、CNC metal turning lathe machine center both the machine tool guide rail and the sliding saddle guide rail adopt hard guide rails made of special materials. After high frequency quenching, they are super hard and wear-resistant, durable, and have good machining accuracy retention.
2、The flat bed cnc lathe high-precision spindle bearing group and the spindle that has been precisely assembled and dynamically balanced to ensure that the spindle has high precision, low noise and strong rigidity.
Main Parameter
| Specificaions | Unit | ALCK6156E |
| Max. swing over bed | mm | Φ650 |
| Max. swing over cross slide | mm | Φ375 |
| Max. processing length | mm | 1000/1500/2000/3000 |
|
X/Z axis travel |
mm | X:400 Z:1100/1600/2100/3100 |
| X/Z axis repeatability | mm | ±0.005 |
| Processing accuracy | IT6-IT7 | |
|
Machine dimension (L×W×H) |
mm |
3500/4000/4500/5500×1900×1900 |
|
Net. weight (about) |
kg |
3900/4500/5200/6200 |
Advantage
The CNC metal turning lathe machine center whole machine has compact structure, elegant appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.
Factory display
There are more than 50 sets of CNC lathe finished products in the factory.
The ALLES CNC factory has its own R&D team to provide services 24 hours a day.
