Name: ALCK6156E CNC Wheel Lathe Metal Machine Machining
Brand: Alles CNC
SKU: AllesCNC3591000
Availability: InStock
Rating: 4.7 (120 reviews)

ALCK6156E CNC Wheel Lathe Metal Machine Machining

ALCK6156E CNC Wheel Lathe Metal Machine Machine
Specificaions	ALCK6156E
Max. swing over bed	Φ650 mm
Max. swing over cross slide	Φ375 mm
Max. processing length	1000/1500/2000/3000 mm
X/Z axis travel	X:400 Z:1100/1600/2100/3100 mm
X/Z axis repeatability	±0.005 mm
Processing accuracy	IT6-IT7
Machine dimension (L×W×H)	3500/4000/4500/5500×1900×1900 mm
Net. weight (about)	3900/4500/5200/6200 kg

Product Description

Model:ALCK6156E
Brand:ALLES CNC

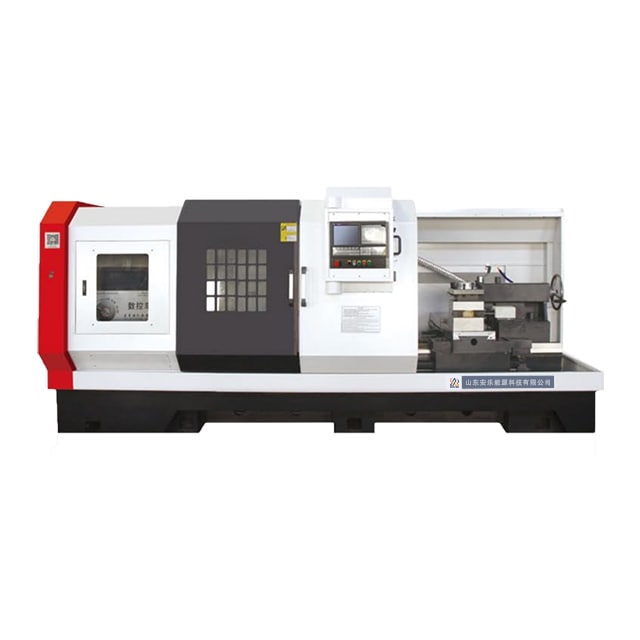

ALCK6156E CNC Wheel Lathe Metal Machine Machining

China cnc wheel lathe metal machine / CNC Wheel Lathe Metal Machine Machining is suitable to process the middle and large size work piece in steel, cast iron, non-ferrous metal material. With the feature of big power and high rigidity, ALCK6156E CNC Wheel Lathe machine is applied to heavy-cut the inner circle, ex-circle, end surface and thread in both metric and English system, and could drill and bore the holes.

ALCK6156E CNC Wheel Lathe machine Main Parameter

Specificaions	Unit	ALCK6156E
Max. swing over bed	mm	Φ650
Max. swing over cross slide	mm	Φ375
Max. processing length	mm	1000/1500/2000/3000
X/Z axis travel	mm	X:400 Z:1100/1600/2100/3100
X/Z axis repeatability	mm	±0.005
Processing accuracy		IT6-IT7
Machine dimension (L×W×H)	mm	3500/4000/4500/5500×1900×1900
Net. weight (about)	kg	3900/4500/5200/6200

Advantage

Higher stability one-piece machine bed

3-gear spindle speed, step-less in gear

Higher rigidity pedestal

Wider layer board

Integrated automatic lubrication syste

falt bed cnc metal machine

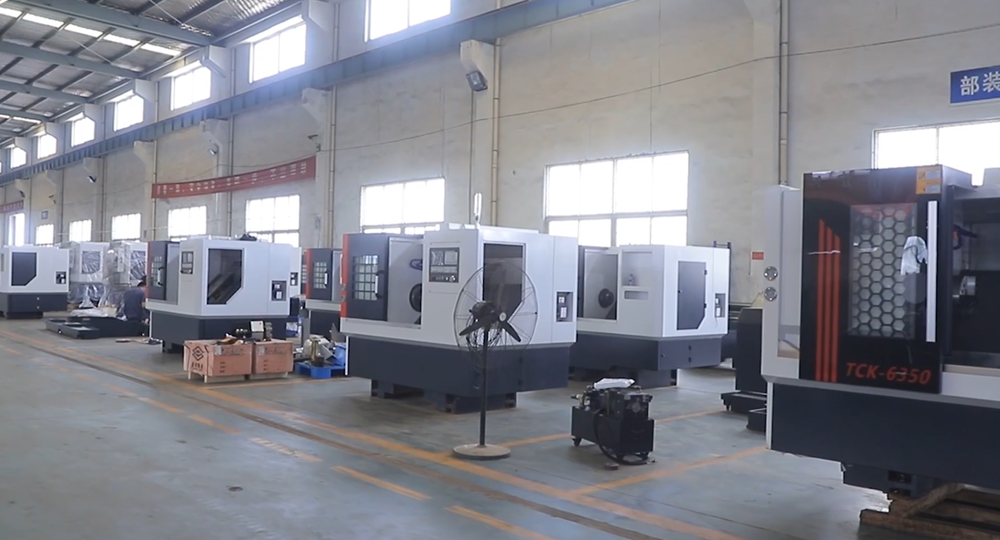

Factory display
There are more than 50 sets of CNC lathe finished products in the factory.
The ALLES CNC factory has its own R&D team to provide services 24 hours a day.

ALCK6156E CNC Wheel Lathe Metal Machine Machining
