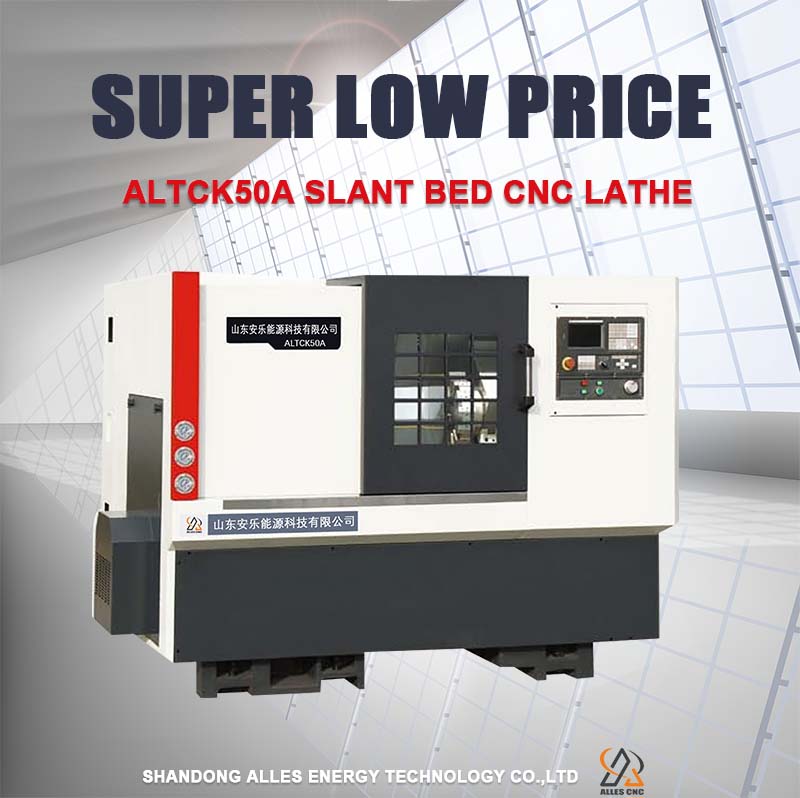

Slant Bed CNC Lathe For Parts
Higher accuracy Taiwan linear guideways
Higher speed spindle unit, Optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece Casting slant bed CNC lathe
Product Description
Slant Bed CNC Lathe Machine Show
Slant bed CNC turning machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body. This machine is widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle, bearings and so on.
Slant Bed CNC Lathe Technology Parameter
| Specifications | Unit | ALTCK50A |
| Max. swing over bed | mm | Φ360 |
| Max. swing over cross slide | mm | Φ170 |
| Max. processing length | mm | 300 |
| The spindle motor power | kW | 3.7 |
| Highest spindle speed | rpm | 4000 |
| Spindle bore | mm | Φ48 |
| Bar capacity | mm | Φ40 |
| The X-axis limit stroke | mm | 310 |
| The Z axis stroke limit | mm | 350 |
| X/Z axis repeatability | mm | ±0.003 |
| Machine dimension(L×W×H) | mm | 2100×1450×1700 |
| Net. weight (about) | kg | 2100 |
Slant Bed CNC Lathe Advantages
Higher accuracy Taiwan linear guideways
Higher speed spindle unit,Optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece Casting slant bed CNC lathe
Slant Bed CNC Lathe For Parts

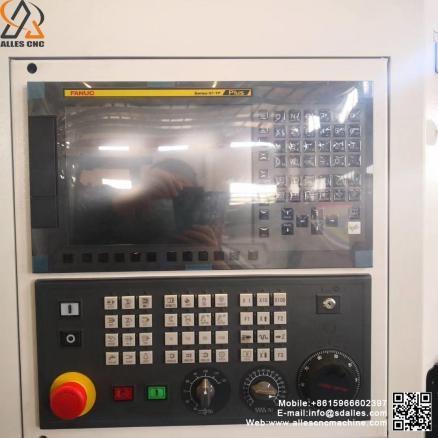

CNC Control System
standard:GSK,
optional:siemens,fanuc,syntec,mitsubishi and others.

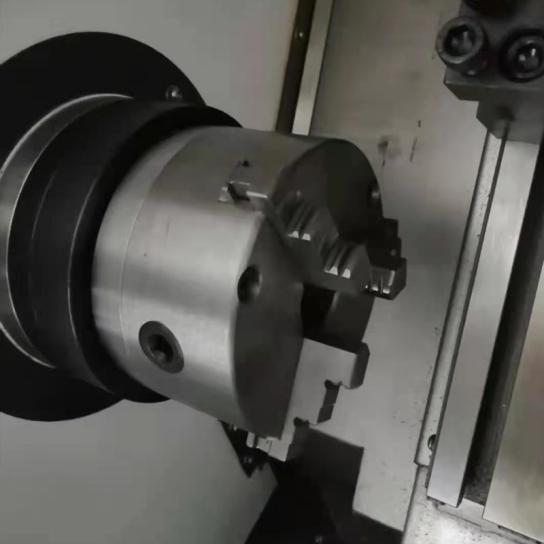

hydraulic chuck
standdard with hydraulic chuck

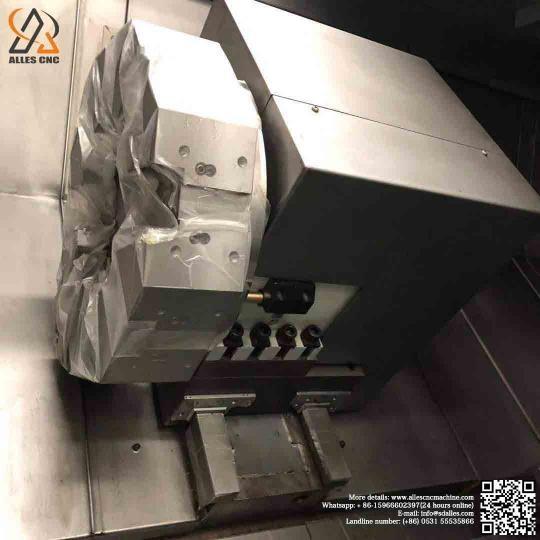

Electric tool post/turret
standard:4 PCS Gang type tool post,
optional:8/12station hydraulic turret.

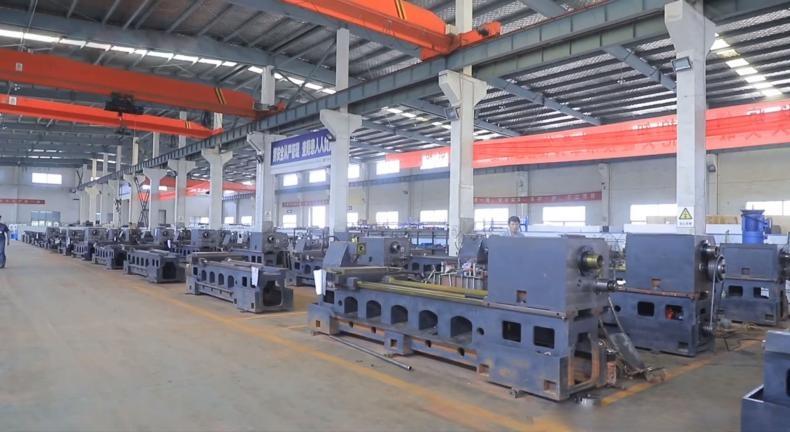

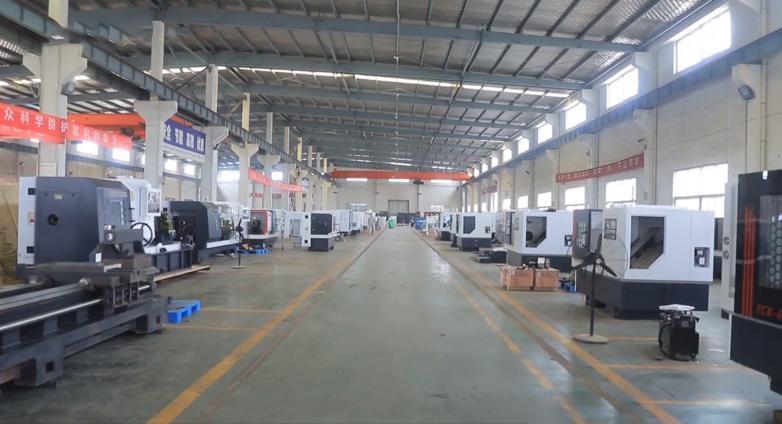

Slant Bed CNC Lathe Factory Display
ALTCK50A CNC Lathe Series Of After Sales
PRE SALE SERVICE
1)Provide corresponding guidance and equipment information according to customer development needs；
2)To solve the problems raised by customers, from the feasibility and the development needs of the local industries, formulate solutions;
AFTER-SALE SERVICE1)The seller provides one time free installation and training in buyer’s factory. Seller pays for the airplane tickets and salary for engineers, buyer should provide accommodation and food to engineers.
2)The seller will provide technical guide’s e-mail, telephone, Wechat, Whatsapp and so on.
3)The seller should pay for the travel expense if local service needed within warranty time.
