Slant Bed CNC Lathe CNC Turning Center TCK50Ax500

Full-automatic slant bed gang type cnc lathe TCK50A 5 axis mini slant bed cnc lathe.

Inclined bed CNC lathe TCK56Ax500:

Line rail CNC inclined car, high precision.

Product Description

Slant Bed CNC Lathe CNC Turning Center TCK50Ax500

Full-automatic slant bed gang type cnc lathe TCK50A 5 axis mini slant bed cnc lathe.

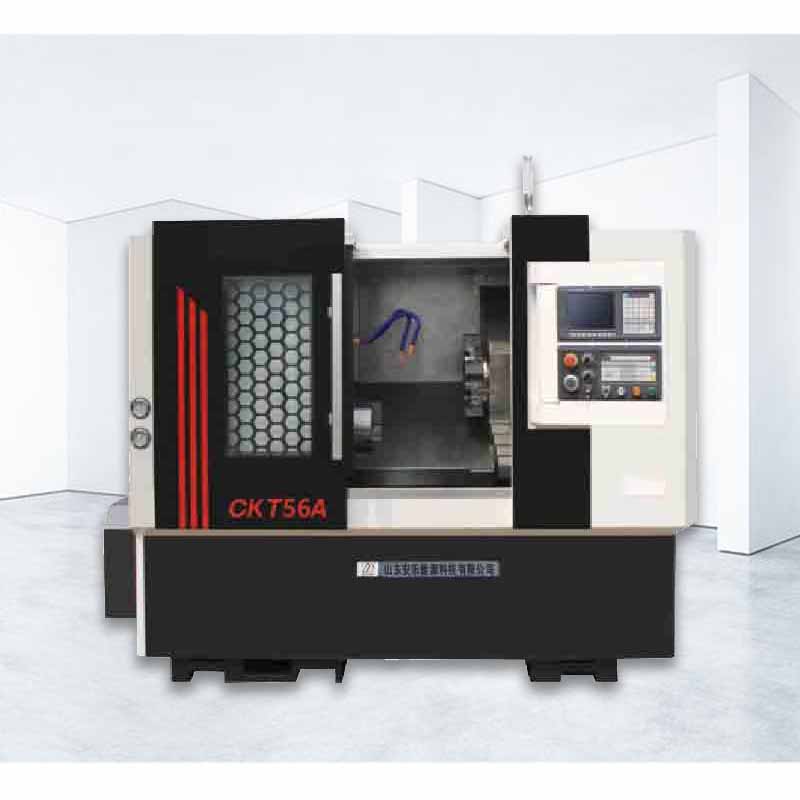

Inclined bed CNC lathe TCK56Ax500:

Line rail CNC inclined car, high precision.

Full-automatic slant bed gang type cnc lathe TCK50A 5 axis mini slant bed cnc lathe.

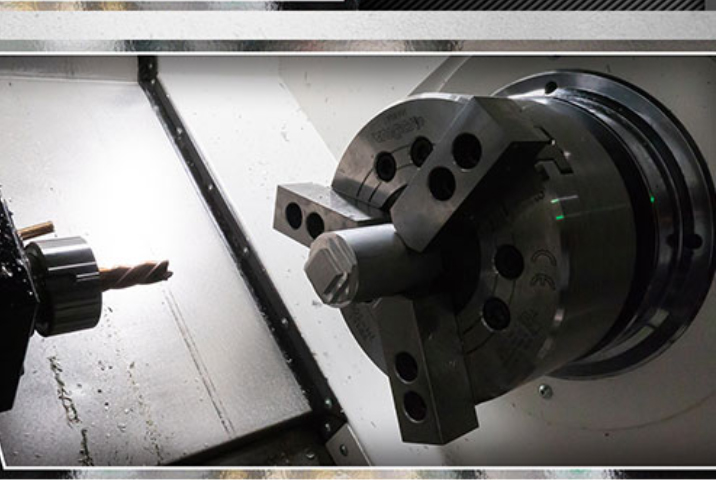

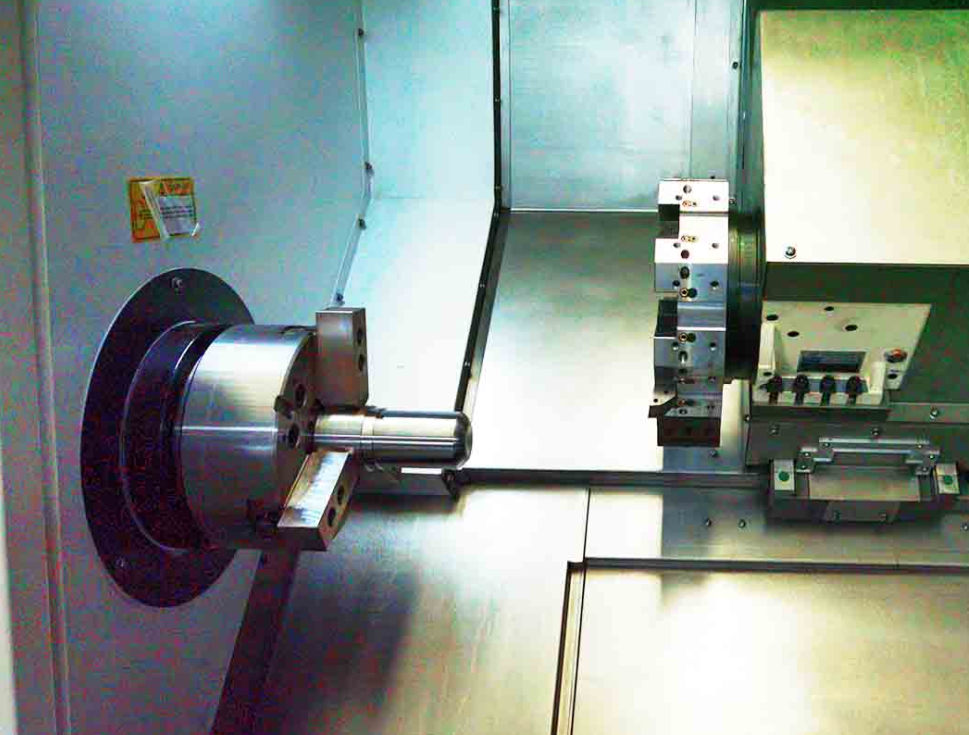

1.High-rigidity three-jaw chuck, the workpiece is firmly clamped, and the use time is long.

2.Inclined bed CNC lathe TCK56Ax500 using servo motor, the tool change time is short, the precision deceleration structure is low in noise, and the load torque is large.

3.Hydraulic tailstock with integral structure.

4.Equipped with Guangshu numerical control system as standard, X/Z direction original drive motor and driver, good compatibility and good stability.

5.Taiwan line rails have low noise, high precision rail grooves, and long service life.

Slant Bed CNC Lathe CNC Turning Center Specifications:

Slant Bed CNC Lathe CNC Turning Center Specifications:
Item	Unit	ALTCK56A/500
Maximum turning diameter of bed	mm	φ560
X-direction rail span	mm	254
Z-direction rail span	mm	364
Maximum turning diameter of slide	mm	φ360
Center Head Distance	mm	500
Maximum turning length	mm	500
Spindle hole diameter	mm	φ65
Bar diameter	mm	φ50
With hollow chuck pull rod through hole	mm	φ50
Spindle speed limit	rpm	0-3500（automatic）
Diameter of tailstock sleeve	mm	φ74
Tools in electric tool post	pcs	8
X/Z direction moving speed	m/min	18/18
X direction stroke	mm	200
Z direction stroke	mm	560
Minimum Setting Unit	mm	0.001
Machine Weight	Kg	4000
Machine Size（L×W×H）	mm	2950×1860×1850

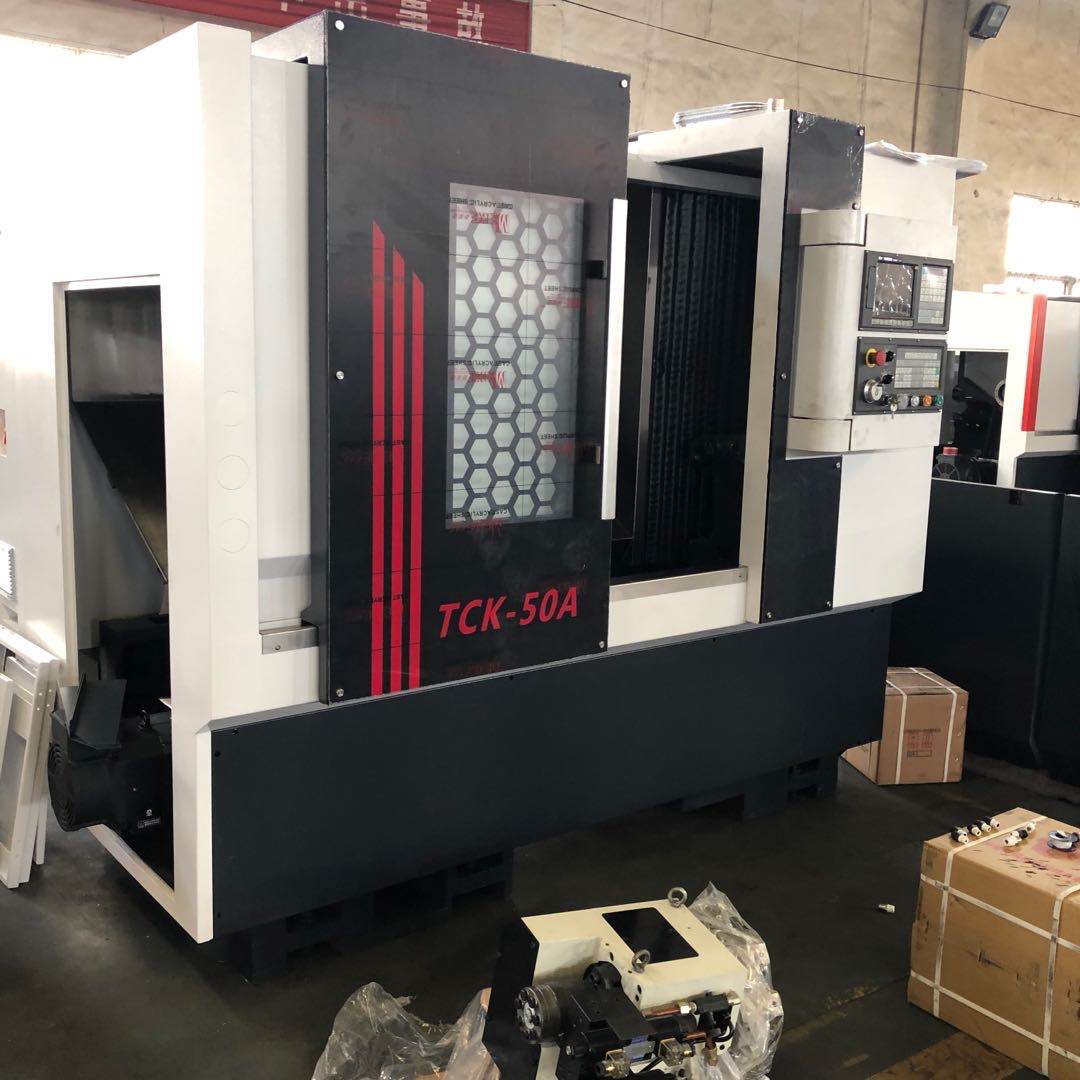

Slant Bed CNC Lathe TCK50Ax500 Equipment Display:

Slant Bed CNC Lathe CNC Turning Center TCK50Ax500
