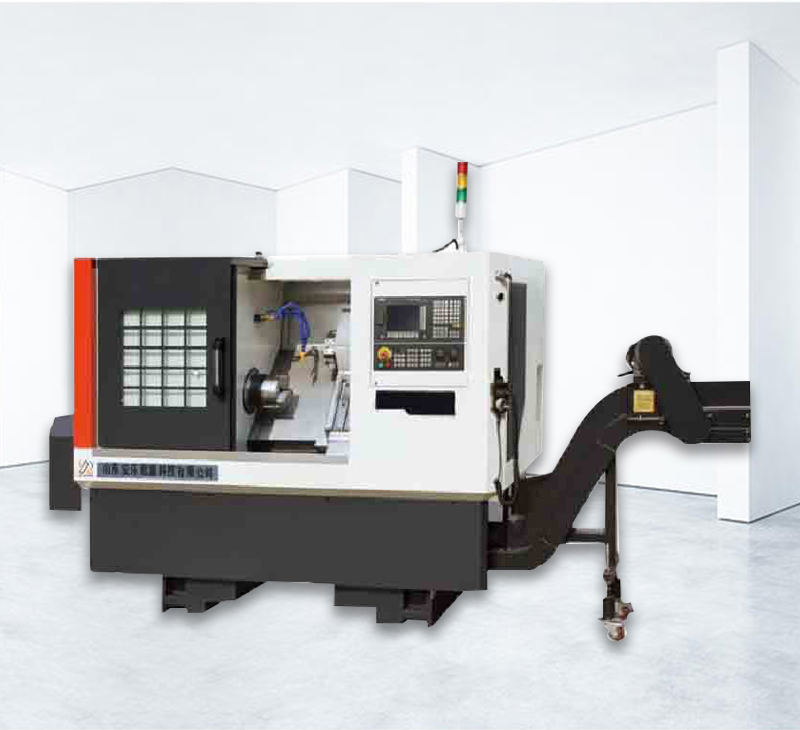

TCK6340 Slant Bed Turning Center Linear Guideway Cnc Automatic Lathe

TCK6340 Slant Bed Turning Center Linear Guideway Cnc Automatic Lathe

---

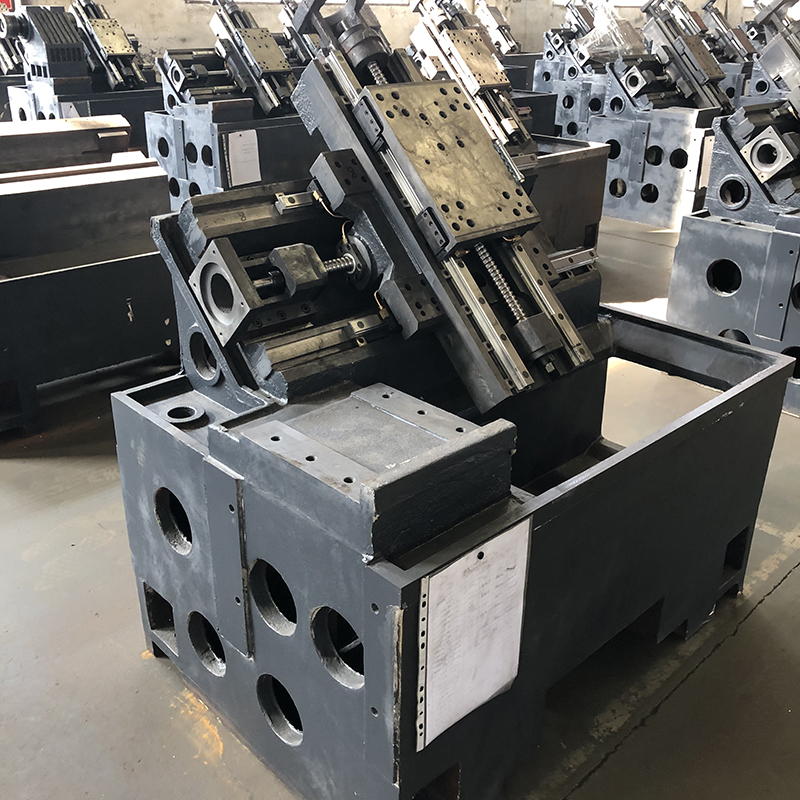

TCK6340 Slant Bed Turning Center Linear Guideway Cnc Automatic Lathe is a high-speed, high-precision, high-reliability slant bed machine tool. The main components such as the bed base, bed body, and headstock are all cast with high-strength materials to ensure the long-term stability of the machine tool.

---

TCK6340 Slant Bed Cnc Automatic Lathe Specifications:

TCK6340 Slant Bed Cnc Automatic Lathe Specifications

Machine Model	Unit	ALTCK6340(Row tools+Chunk)
Max swing over bed	mm	Φ400
Max swing over cross slide	mm	Φ120
Maximum processing length	mm	260
Standard chuck specifications		6″
X axis maximum stroke	mm	380
Z axis maximum stroke	mm	Infinitely variable speed
Spindle speed	rpm	A2-5
Spindle speed stage		Φ45
Inner diameter of main shaft pull tube	mm	1-15000
Fast moving speed	m/min	6/6 (X direction with brake)
Cutting feed rate	mm/min	Infinitely Variable Speed
X/Z motor torque	Nm	A2-5
Spindle motor power	KW	5.5
Tool holder	mm	Row knife
Total power capacity	mm	18
Cutting water tank capacity	KVA	90
Dimensions (L×W×H)	L	2300X1500X1750

---

---
