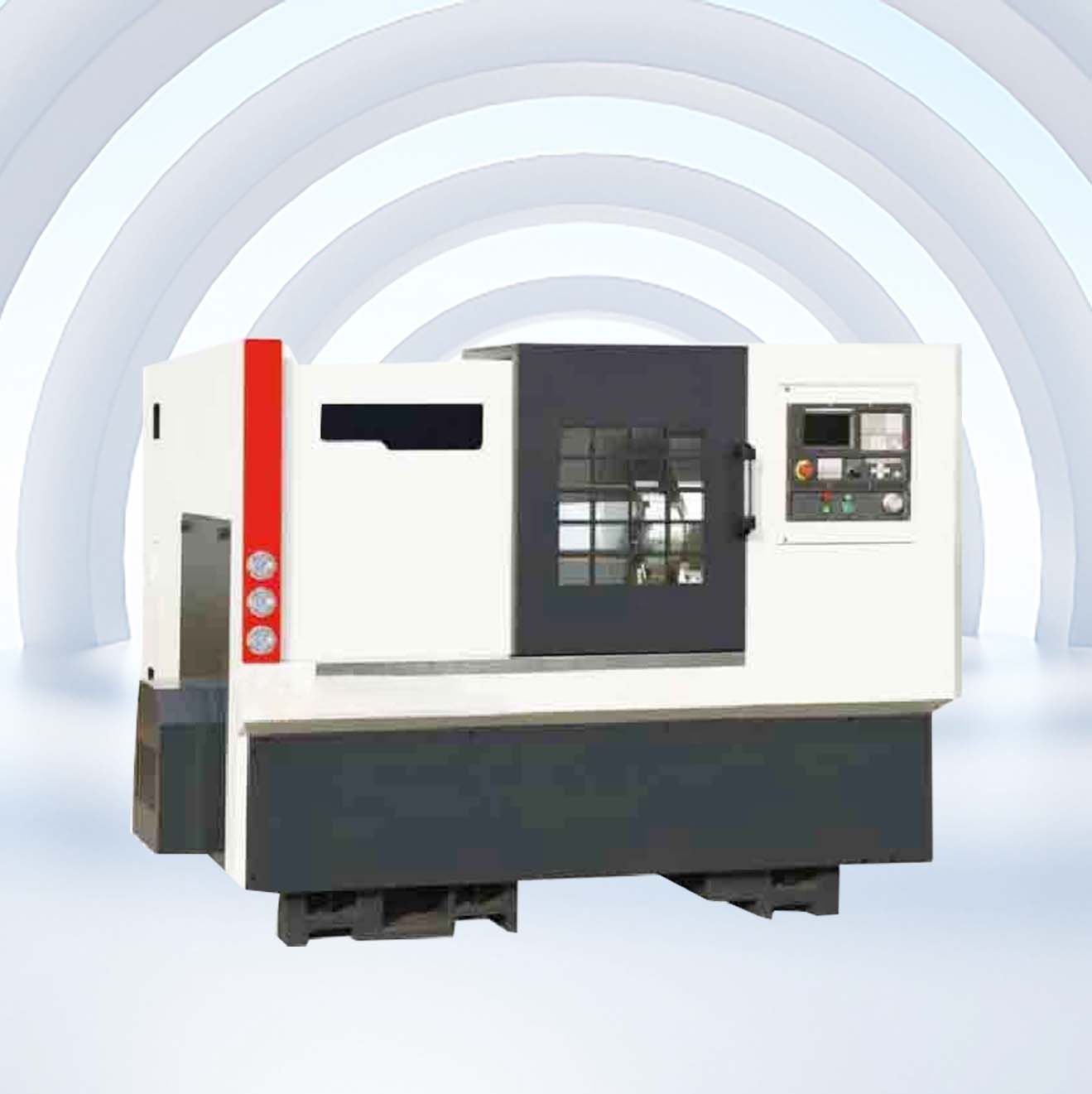

slant bed lathe is suitable for precise and efficient machining of shaft and disc parts
slant bed lathe It is widely used in the processing of shaft parts and disc parts in automobile, mold, bearing, petroleum, coal machinery manufacturing and other industries. The parts can be automatically processed by multi-process turning and boring after one clamping.
Product Description
Structural features
1. It adopts a 30° overall inclined bed structure, and is equipped with high-precision preloading Taiwan linear rolling guides, with high positioning accuracy and smooth chip removal, suitable for high-speed and high-precision machining.
2. The spindle adopts high-precision spindle bearing set, and is precisely assembled and dynamically balanced to ensure high precision, low noise and strong rigidity of the spindle.

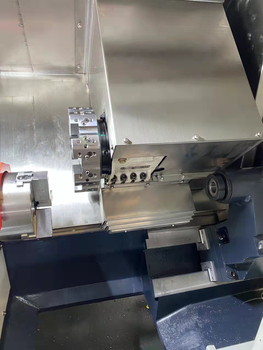

3. Using the turret method, the tool change speed is fast and the positioning accuracy is high.
Accessories
1. The slant bed lathe adopts the turret method, which has fast tool changing speed and high positioning accuracy.
2. Servo motor is used for feeding in X and Z directions, which is directly connected with the screw rod through the elastic coupling with high torque and low inertia, so as to ensure the positioning accuracy and repeated positioning accuracy.
3. The cnc lathe adopts advanced centralized automatic lubricating device, regular quantitative automatic intermittent lubricating, stable and reliable work.
4.cnc lathe adopts domestic hydraulic chuck.
5. The hydraulic tailstock is manually adjusted and locked, and the hydraulic piston pushes the workpiece for processing.
| Machine model | Unit | ALTCK50A |
|
Maximum turning diameter of bed
|
mm | Φ560 |
| Maximum turning diameter of cross slide | mm | Φ260 |
| Maximum machining diameter (disk type) | mm | Φ400 |
| X axis maximum stroke | mm | 240 |
| Z axis maximum stroke | mm | 400 |
| Spindle speed | rpm | 3000rpm |
| Spindle through hole | mm | Φ66 |
| X/Z motor torque | NM | 7.5/7.5 (X direction with brake) |
| Horizontal turret station | 8 | |
| Maximum stroke of tailstock | KVA | 200 |
| Dimensions (l×w×h) | mm | 2500*1700*1890 |
| Total Weight | KG | 2600 |
Vertical Machining Center CNC Lathe Machine Factory Vertical machining center has the characteristics of high productivityveritability,high ALLEs CNC all castings must pass the test of time before they can be aoplied to the accuracy.ease of programmingenvironmental friendly and so onVertical machining machine. All parts must be tempered a second time.After the production of the machine center is suitable for the mechanicalorocessine and mold makine.And it can adapt to is comoletedthe machine will continue to work for 72 hours without processine the the processing requirement from rough machining to finish machiningIt can also finish workpiece to ensure that the machine can be used ormally. many working procedures like millingdrillingtappingboring etc warehouse covers an area of about 4000 square meters.equipped with various factory produced parts, purchased parts and CNC systems.GSK systen purchases about 200-300 sets at a time, and the system is in stock,the yield is very high.
In order to ensure the working accuracy of the CNC lathe and prolong the service life, it is necessary to carry out reasonable maintenance work on the CNC lathe with inclined bed for self-use. The quality of lathe maintenance directly affects the processing quality and production efficiency of the workpiece. The maintenance work of CNC lathes is mainly carried out by operators, and maintenance workers cooperate with each other. During maintenance, the electric probe must be cut off first, and then maintained according to the maintenance content and requirements.
advantage
1. Good stability
Machine tools with inclined bed or flat bed are generally used for machining oversized parts. Because the corresponding parts of medium and large machine tools are also large, especially the turret part, the inclined guide rail is mainly used to overcome gravity and have better stability to improve The precision of the machine tool can reflect the superiority of the inclined machine tool in some harsh environments.
two. increase profit
The slant bed lathe can effectively use space and greatly reduce the plane footprint of CNC turning.
three. Easy chip evacuation
The inclined guide rail also facilitates the concentration of iron chips on the chip conveyor for automatic chip removal. The iron scraps under cutting have high heat, and the accumulation on the guide rail will cause the guide rail to be deformed by heat, which will change the working accuracy. In the process of batch automatic processing, the workpiece will be scrapped in batches.
