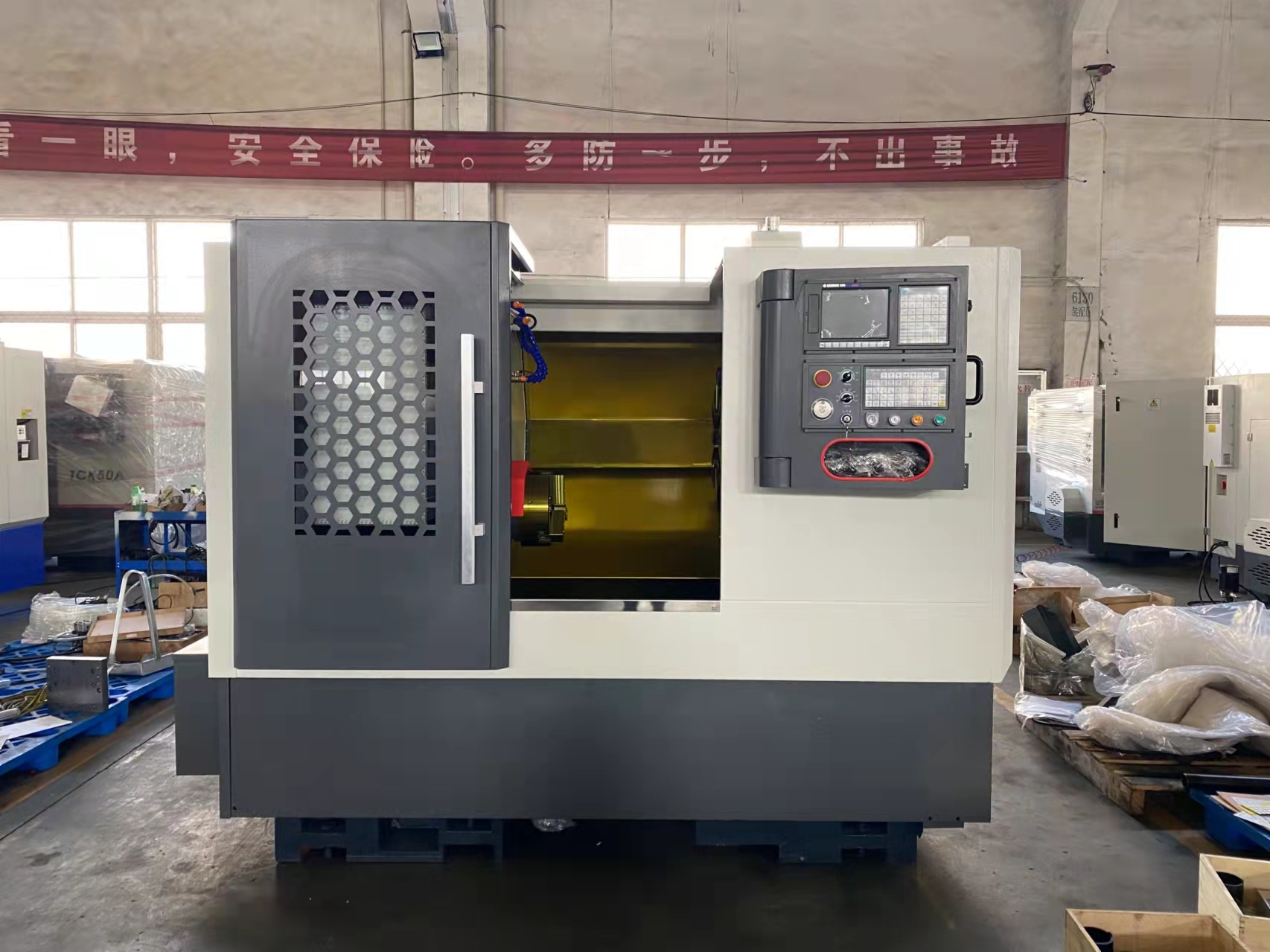

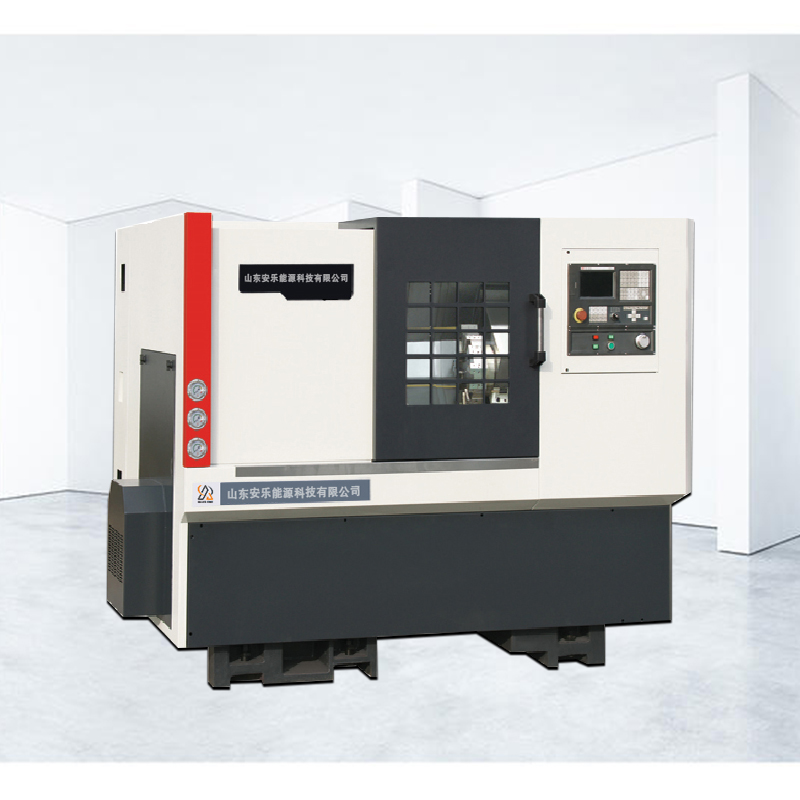

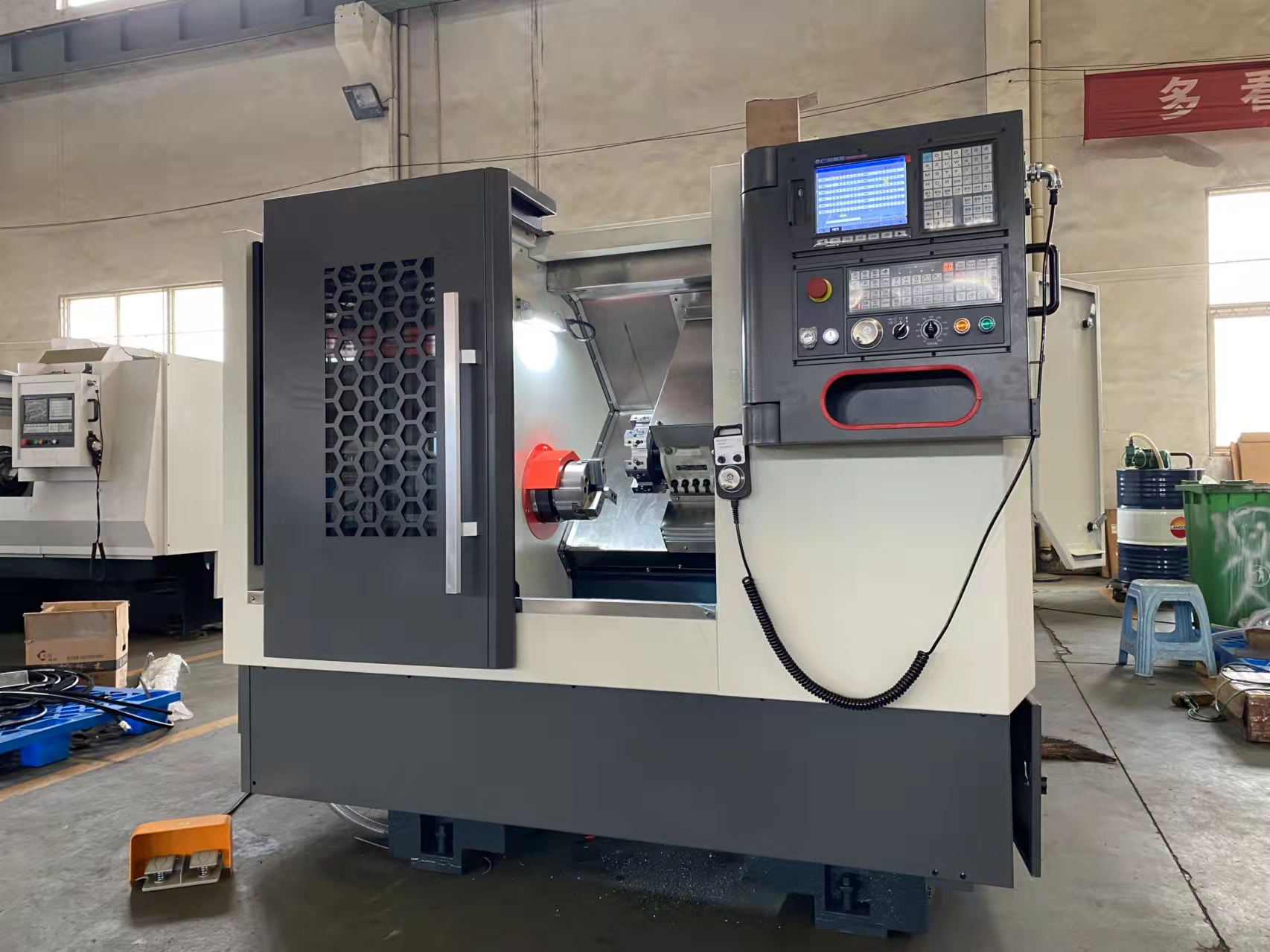

Machine model | Unit | TCK50A |
Maximum turning diameter of bed | mm | Φ560 |
Maximum turning diameter of cross slide | mm | Φ260 |
Maximum processing length | mm | 330 |
Maximum machining diameter (disk type) | mm | Φ400 |
X axis maximum stroke | mm | 240 |
Z axis maximum stroke | mm | 400 |
Spindle speed | rpm | 3000 |
Spindle through hole | mm |
Φ66
|
Pull tube through hole | mm | Φ55 |
Fast moving speed | m/min | X:18 Z:18 |
Cutting feed rate | mm/min | 1-15000 |
Spindle motor power | KW | 11 |
Tool body size | mm | 2525 |
Diameter of boring tool | mm | 40 |
Sleeve diameter | mm | 70 |
Sleeve stroke | mm | 80 |
Maximum stroke of tailstock | mm | 200 |
Total power capacity | KVA | 18 |
Cutting water tank capacity | L | 90 |
Dimensions (l×w×h) | mm | 2500*1700*1890 |
Total Weight | KG | 2600 |
