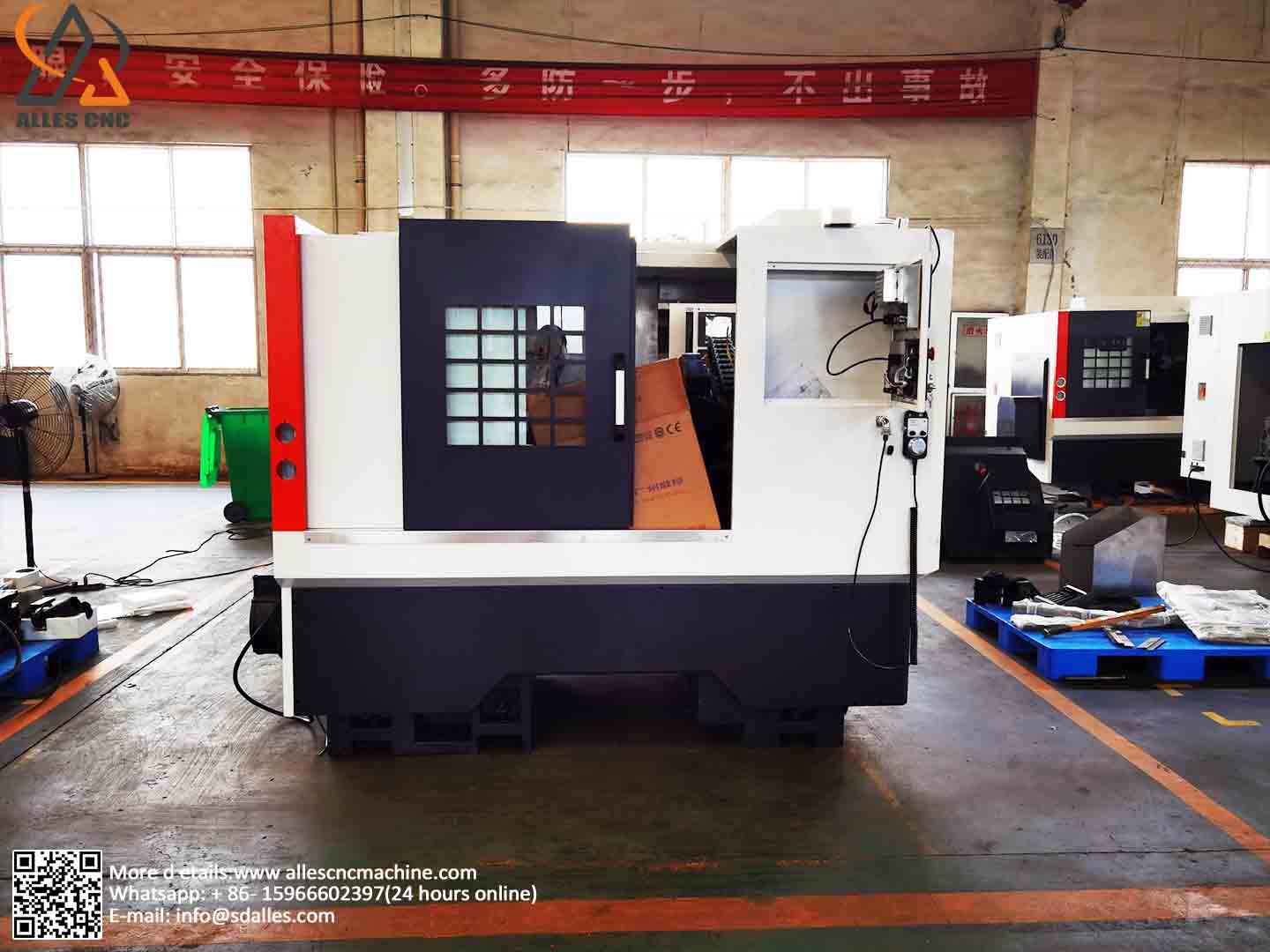

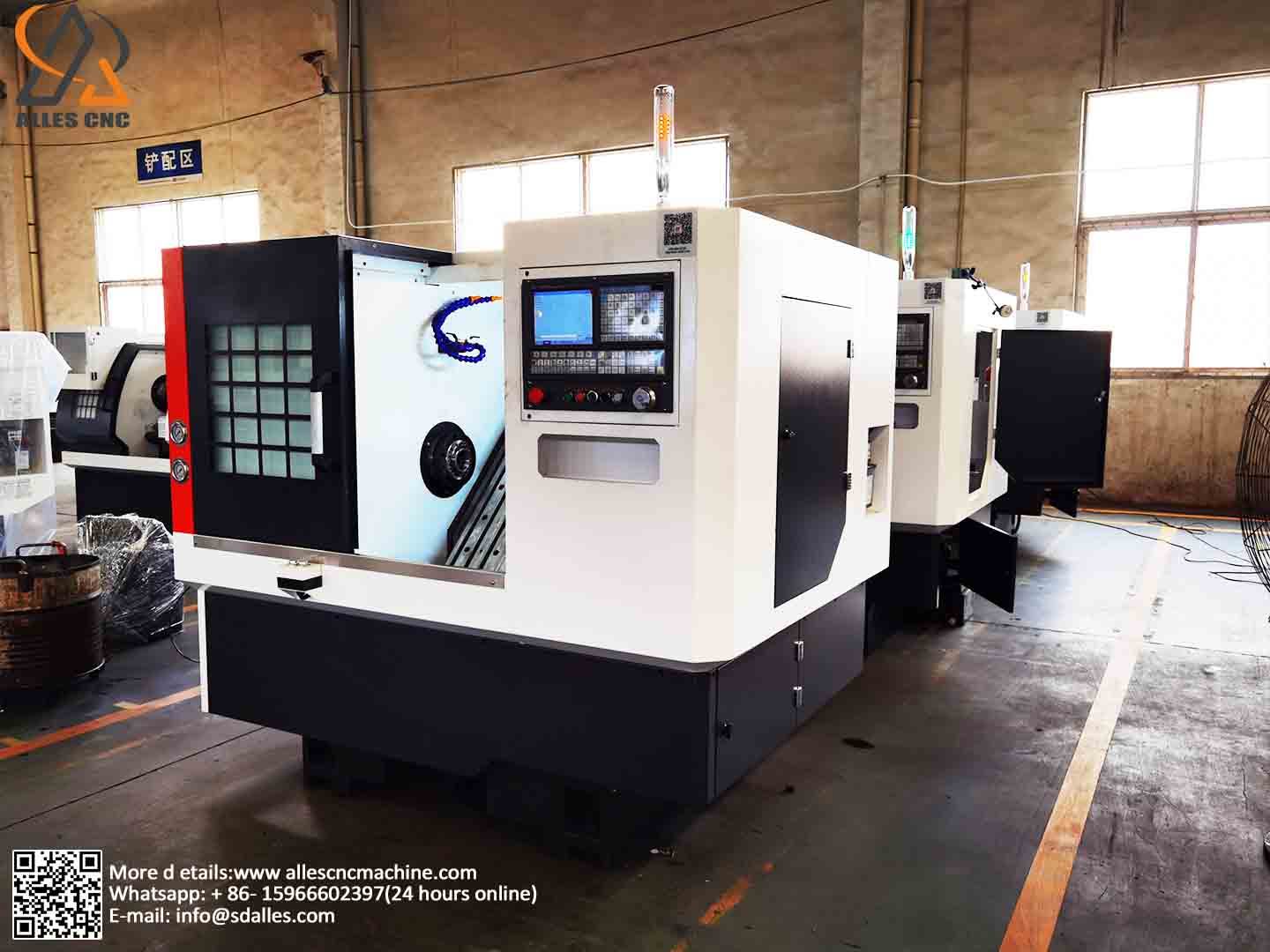

TCK6350 slant bed cnc lathe with bar feeder
TCK6350 cnc lathe slant bed with live milling is mainly used to process various shafts, disc pieces, turning can be various threads, arcs, cones, and planes of internal and external surfaces, which can meet the speed requirements of non-ferrous metals and non-ferrous metals for high-speed chips, suitable for automobiles, Electronics, aerospace, military and other industries.
Product Description
TCK6350 slant bed cnc lathe with bar feeder
product description:
TCK6350 inclined bed line rail CNC lathe has a wide range of technological performance, can process linear cylinder, inclined cylinder, arc and various threads, grooves, worms and other complex workpieces, with linear interpolation, circular interpolation various compensation functions , and has played a good economic effect in the mass production of complex parts.

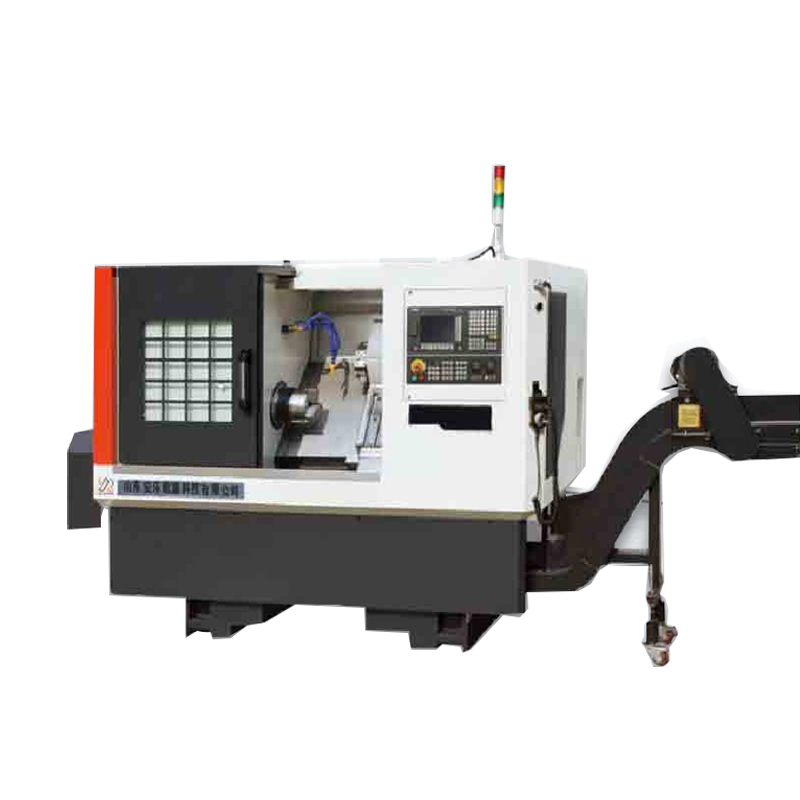

Slant Bed And Linear Guide Way CNC LatheALTCK6350
Video:
Slant bed and linear guide way CNC lathe ALTCK6350
Video:
Product Specifications:
Product Specifications:
| Machine Model | Unit | TCK6350 |
| Max swing over bed | mm | Φ520 |
| Max swing over cross slide | mm | Φ220 |
| Maximum processing length | mm | 410 |
| X/Z axis travel | mm | 500/500 |
| Spindle unit | mm | Φ200 |
| Spindle nose | A2-6 | |
| Spindle bore | mm | Φ66 |
| Bar Capacity | mm | Φ55 |
| Max. spindle speed | rpm | 3000 |
| Spindle motor | kw | 7.5/11 |
| X/Z axis repeatability | mm | ±0.003 |
| X/Z axis feed motor torque | N.m | 7.5/7.5 |
| X/Z Rapid traverse | m/min | 24/24 |
| Cutting tool size | mm | 25×25 |
| Machine dimension(L×W×H) | mm | 2500×1620×1890 |
| Net. weight (about) | kg | 2900 |
Product advantages:
1. Good stability
The machine tool with inclined bed or flat bed and inclined guide rail is generally used for oversized parts that need to be processed. The inclined guide rail is mainly used to overcome the gravity and have better stability to improve the accuracy of the machine tool.
2. Improve space utilization
The inclined machine tool can effectively use the space and greatly reduce the plane occupying position of the machine tool.
3. Easy to remove chips
The inclined guide rail also facilitates the concentration of iron chips on the chip conveyor for automatic chip removal.

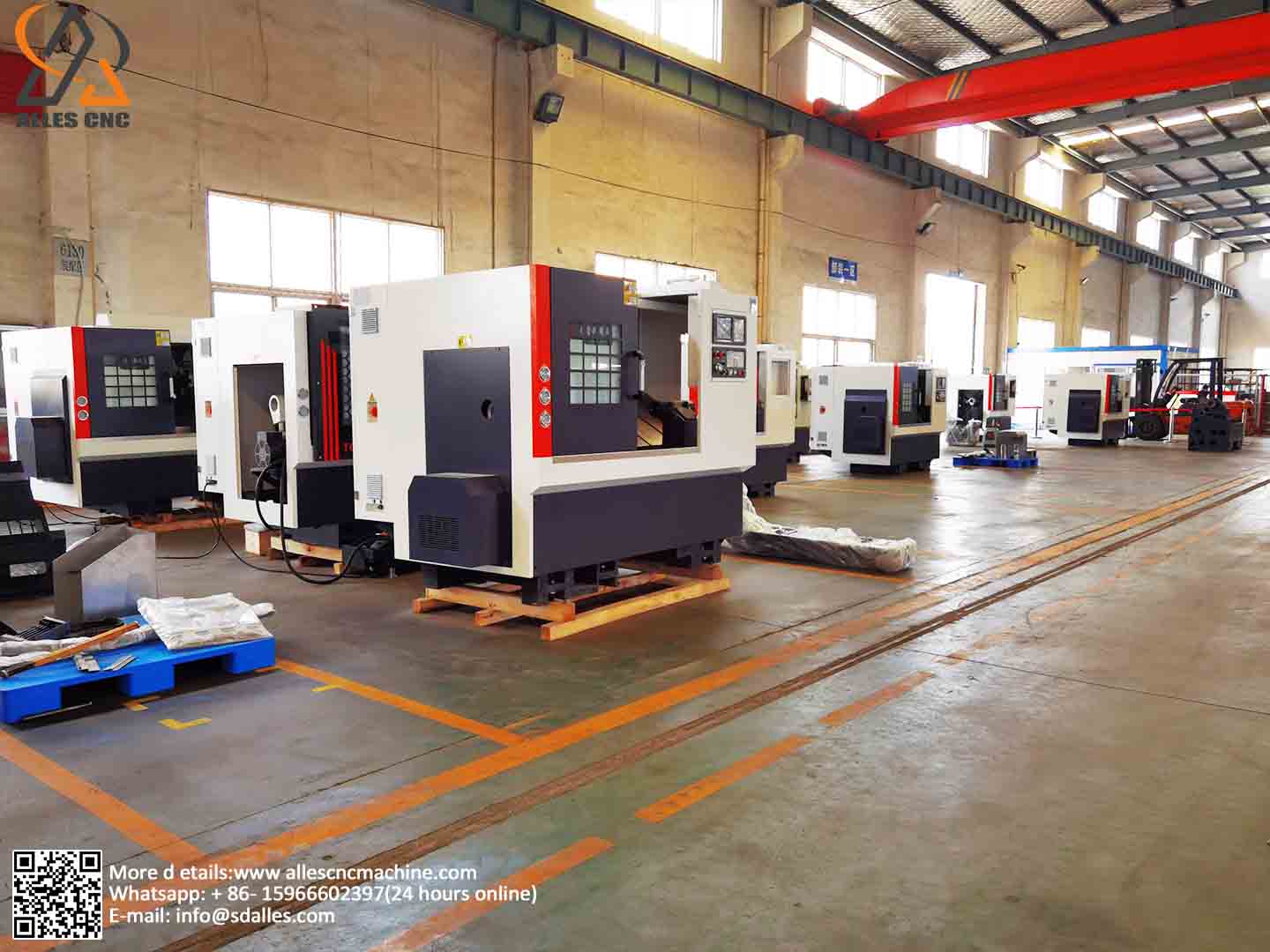

CNC Lathe Factory
