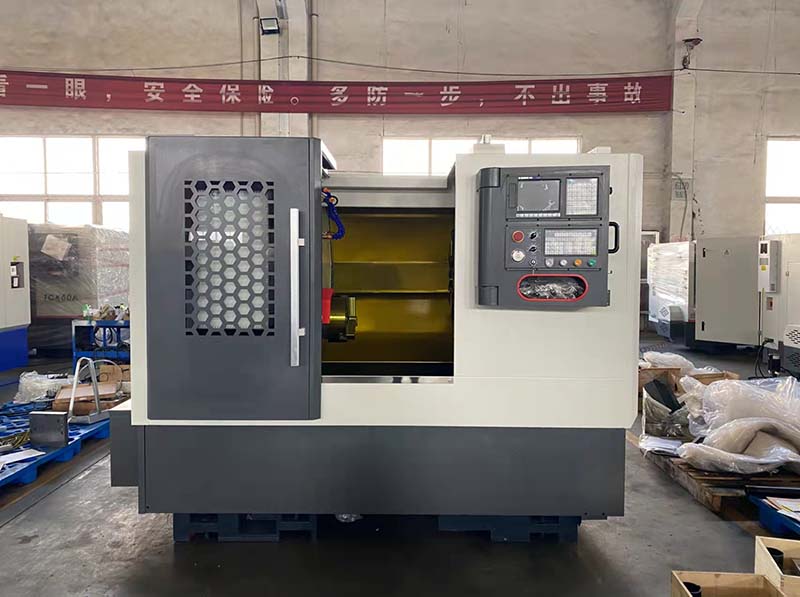

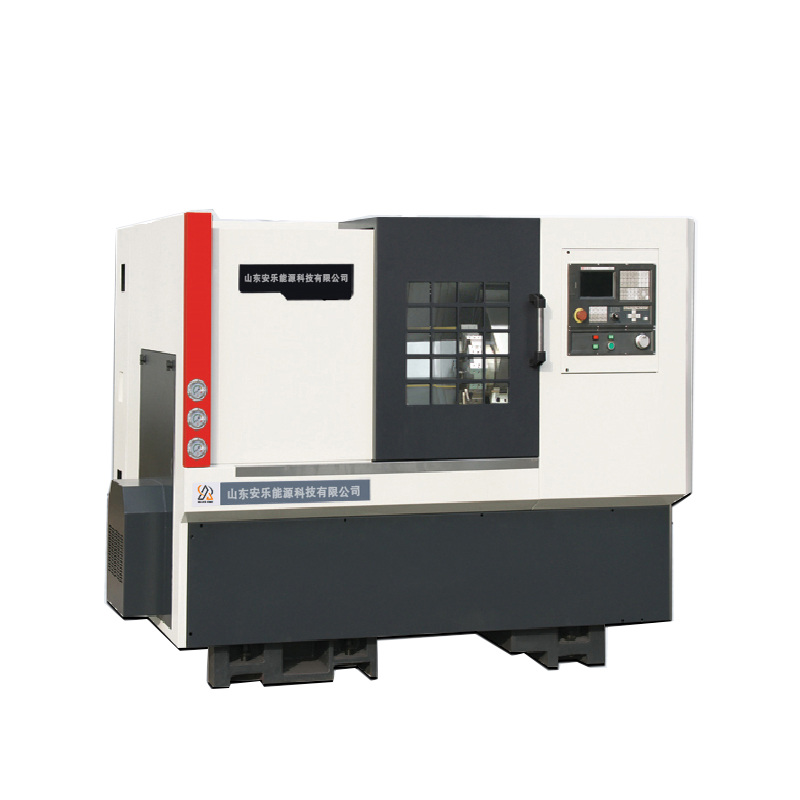

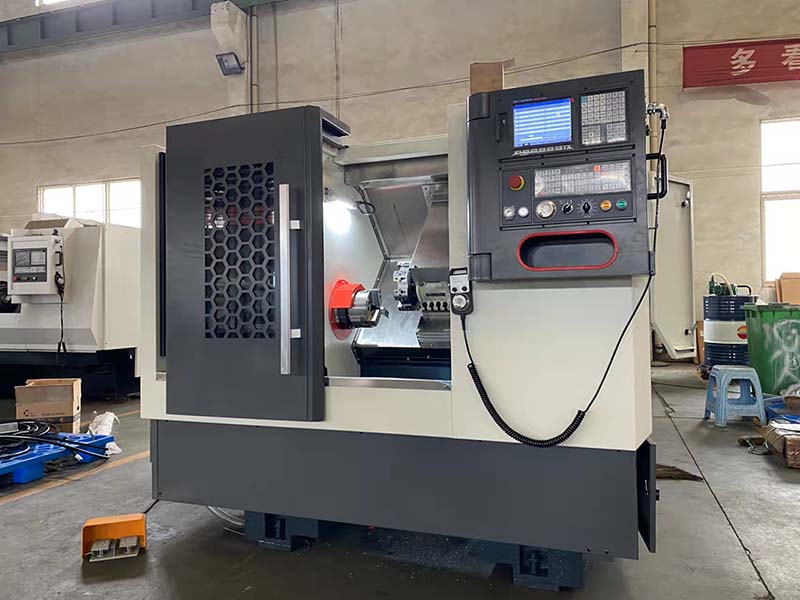

TCK36A cnc lathe slant bed machine

TCK36A mini slant bed CNC lathe is suitable for processing various small and medium shafts, disc parts, linear cylinders, oblique cylinders, arcs and various threads, grooves, worms and other complex workpieces. TCK36A linear rail slant bed cnc lathe can turn various threads and is widely used. In plumbing equipment bearings and other industries.

Product Description

TCK36A cnc lathe slant bed machine

Product description:

TCK36A cnc lathe slant bed machine is a kind of automatic machine tool with high precision and high efficiency. Equipped with a multi-station turret or a power turret, the machine tool has a wide range of technological performance, which can process linear cylinders, oblique cylinders, arcs and various threads, grooves, worms and other complex workpieces. Complement various compensation functions, and play a good economical effect in the mass production of complex parts.

Slant Bed And Linear Guide Way CNC Lathe ALTCK36A

Video:

Product Specifications:

Item	ALTCK36A
Maximum upper turning diameter of bed	Φ360mm
Maximum machining diameter on tool post	Φ140mm
Maximum processing length	300
Spindle head type (optional chuck)	A2-5
Spindle motor power	3.7/5.5KW
Spindle speed	4000pm
Spindle hole diameter	Φ48
Bar diameter	Φ41
X axis limit stroke	170
X axis motor torque	6N.M
X/Z axis rail specifications	30/30
Z axis limit stroke	350
Z-axis motor torque	6N.M
X, Z axis connection	Direct
Sleeve diameter	Φ65
Sleeve stroke	60
Maximum stroke of tailstock	200
length * width * height (mm)	2200×1600×1850
Weight (approximate weight)	2200kg

Product advantages:

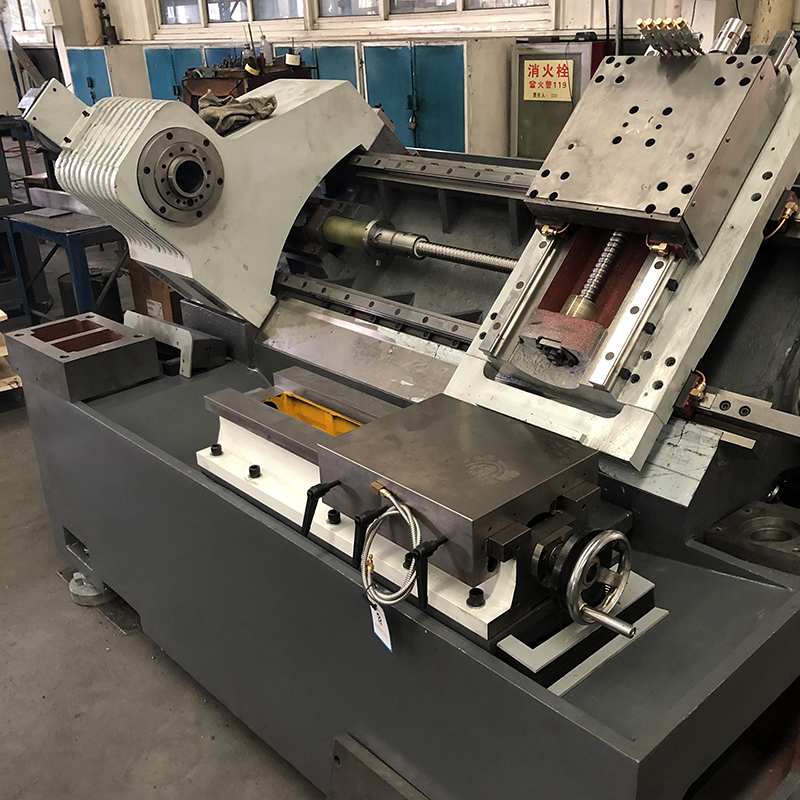

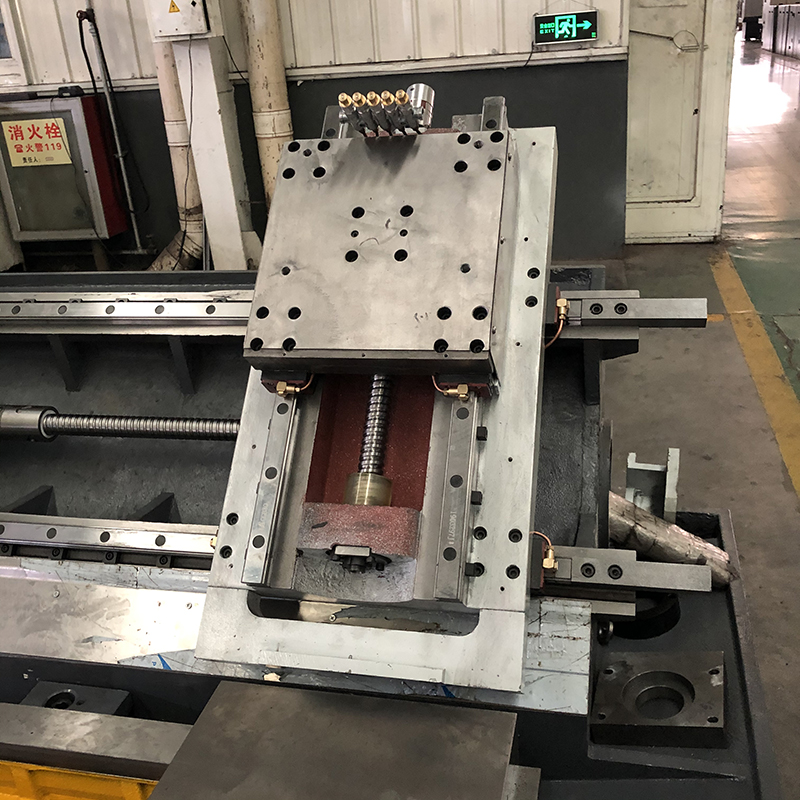

1. TCK36A cnc lathe slant bed machine adopts a 45° overall inclined bed structure and is equipped with high-precision preloaded linear rolling guides from Taiwan, China. The machine tool has high positional accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining.

2. The spindle unit is assembled in a constant temperature room. After assembling, it runs in constant temperature for 72 hours, and then goes on the machine for 72 hours of continuous trial operation to ensure the reliability of high-speed and high-precision performance.

3. Equipped with 8-station hydraulic turret as standard, with fast tool change and high positioning accuracy.

4. Adopt advanced centralized automatic lubrication device, regular and quantitative automatic intermittent lubrication, stable and reliable work.
