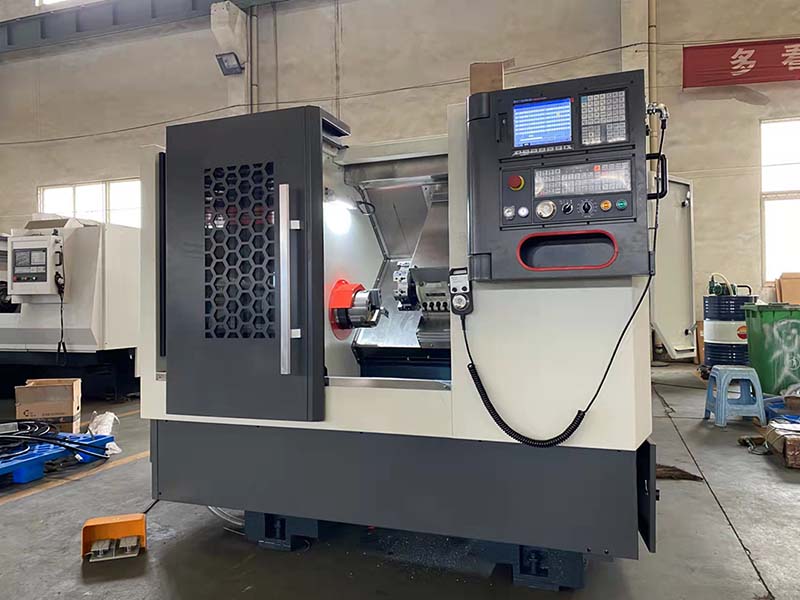

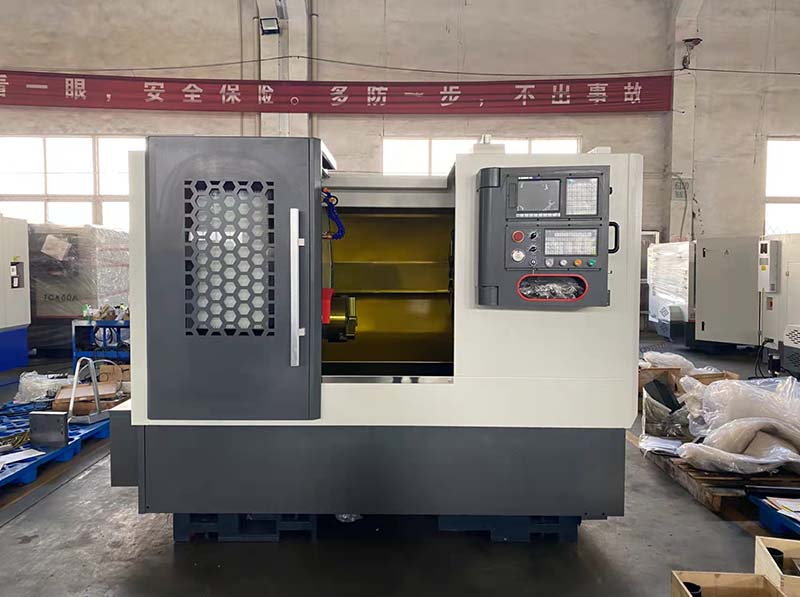

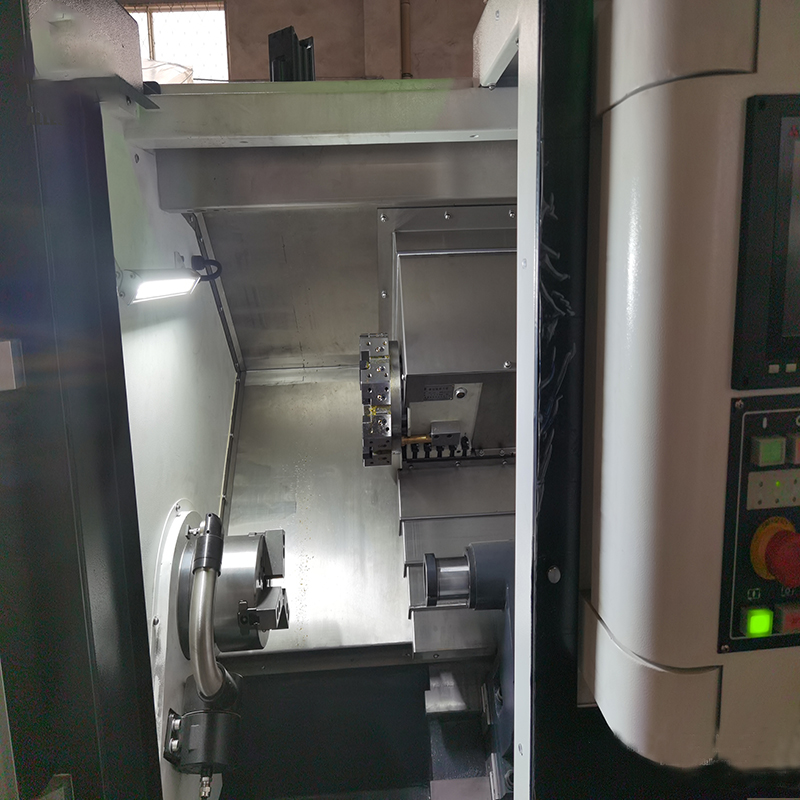

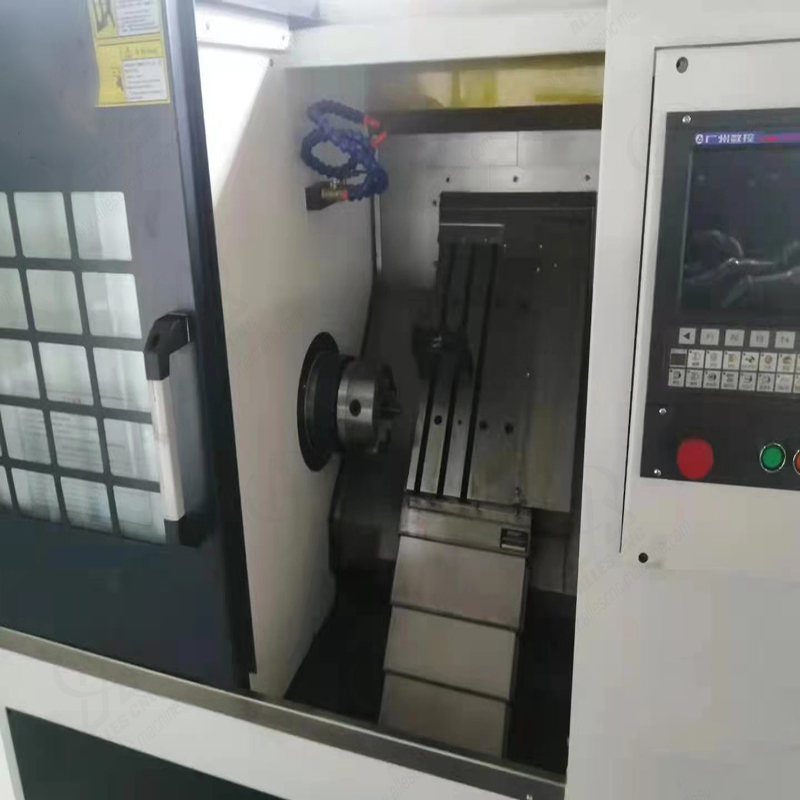

TCK46A slant bed cnc lathe machine

TCK46A Inclined bed and linear guide CNC lathes are suitable for machining various small and medium shaft and plate workpieces, and can also turn various threads, arcs, conical, inner and outer surfaces of the rotating body.

Product Description

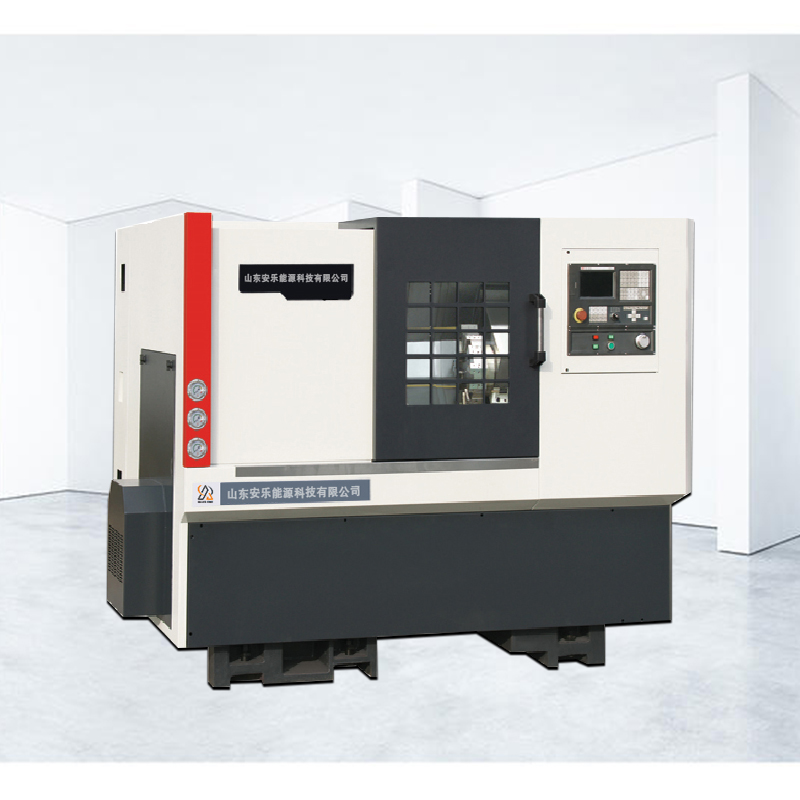

TCK46A slant bed cnc lathe machine

Product description:

The slant bed CNC lathe TCK46A is a high-precision CNC lathe. The guide surface of the bed forms a certain angle with the horizontal plane. TCK46A cnc lathe machine can process complex workpieces such as threads, cylinders, and auto parts. TCK46A cnc turning lathe slant bed is widely used in aviation, electronics, military, automobile and other industries.
Video:

Product Specifications:

Item	ALTCK46A
Maximum upper turning diameter of bed	Φ460mm
Maximum machining diameter on tool post	Φ170mm
Maximum processing length	350mm
Spindle head type (optional chuck)	A2-5
Spindle motor power	5.5KW
Spindle speed	3500pm
Spindle hole diameter	Φ56mm
Bar diameter	Φ45mm
X axis limit stroke	240mm
The X/Z axis screw specifications	3210/4010
The X-axis limit stroke	240mm
The Z axis stroke limit	400mm
The X axis motor torque	7.5N.m
The Z axis motor torque	7.5N.m
X/Z axis repeatability	±0.003mm
Maximum stroke of tailstock	200mm
length * width * height (mm)	2500×1700×1890mm
Weight (approximate weight)	2600kg

Product advantages:

1. Good stability: Machine tools with inclined bed or flat bed and inclined guide rail are generally used for processing oversized parts.

2. Ease of chip removal: The inclined guide rail also facilitates the concentration of iron chips on the chip conveyor for automatic chip removal.

3. In the design of CNC lathe with inclined bed, the spindle box adopts corresponding measures to reduce the thermal deformation of the spindle, so that the relative stability of the spindle axis can be maintained when the spindle works for a long time.
