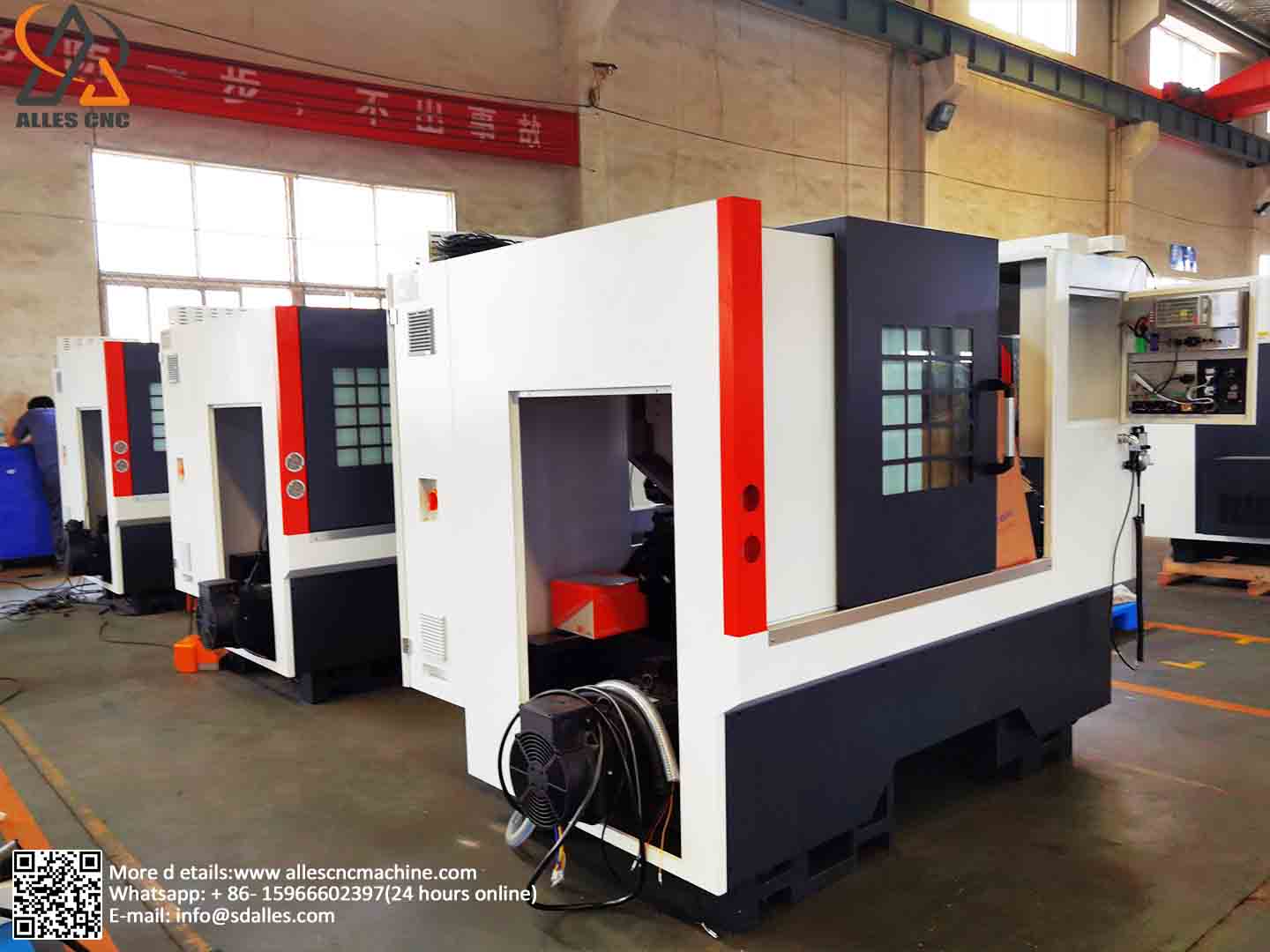

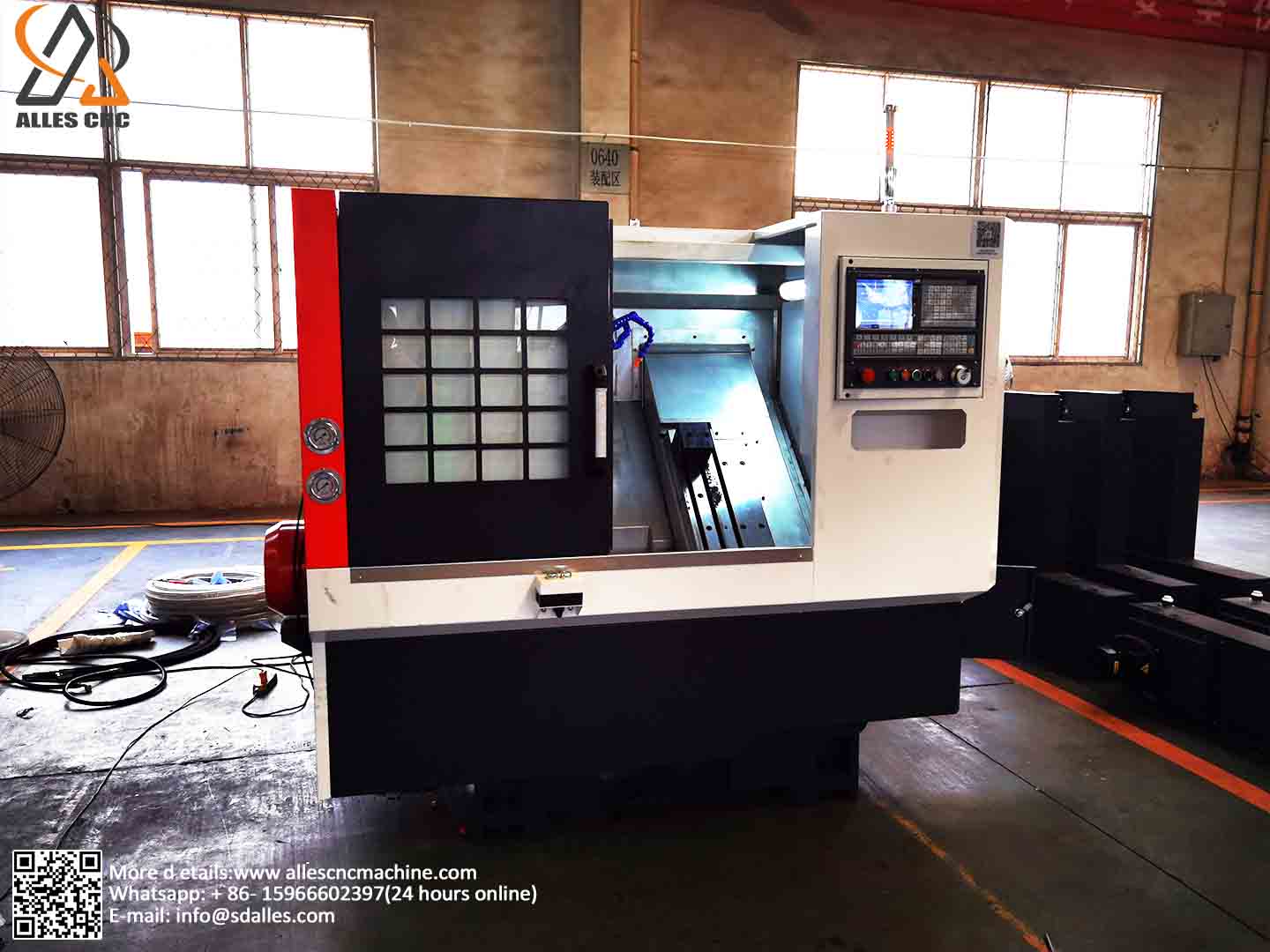

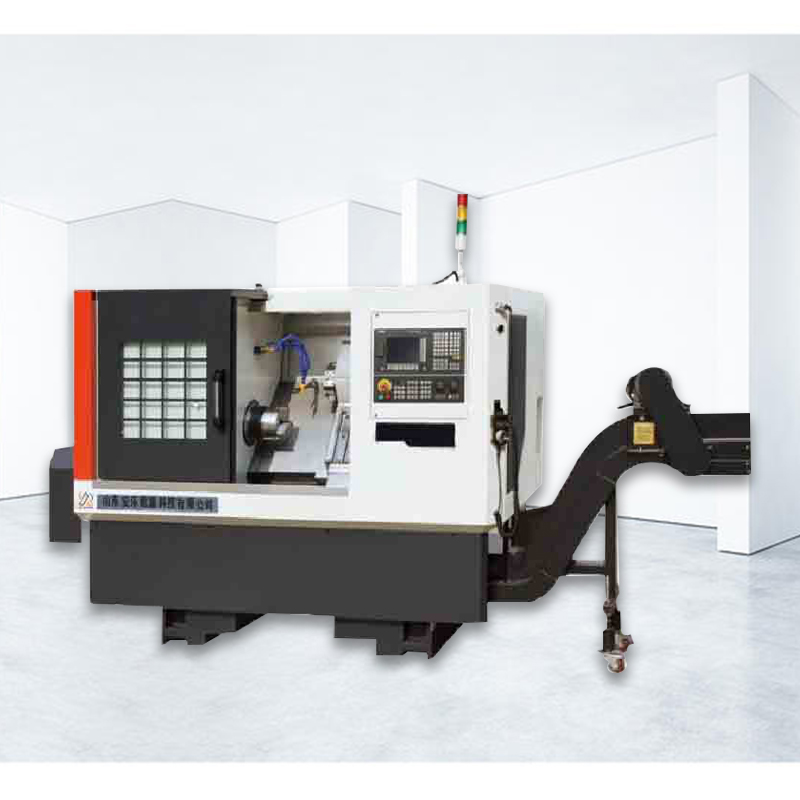

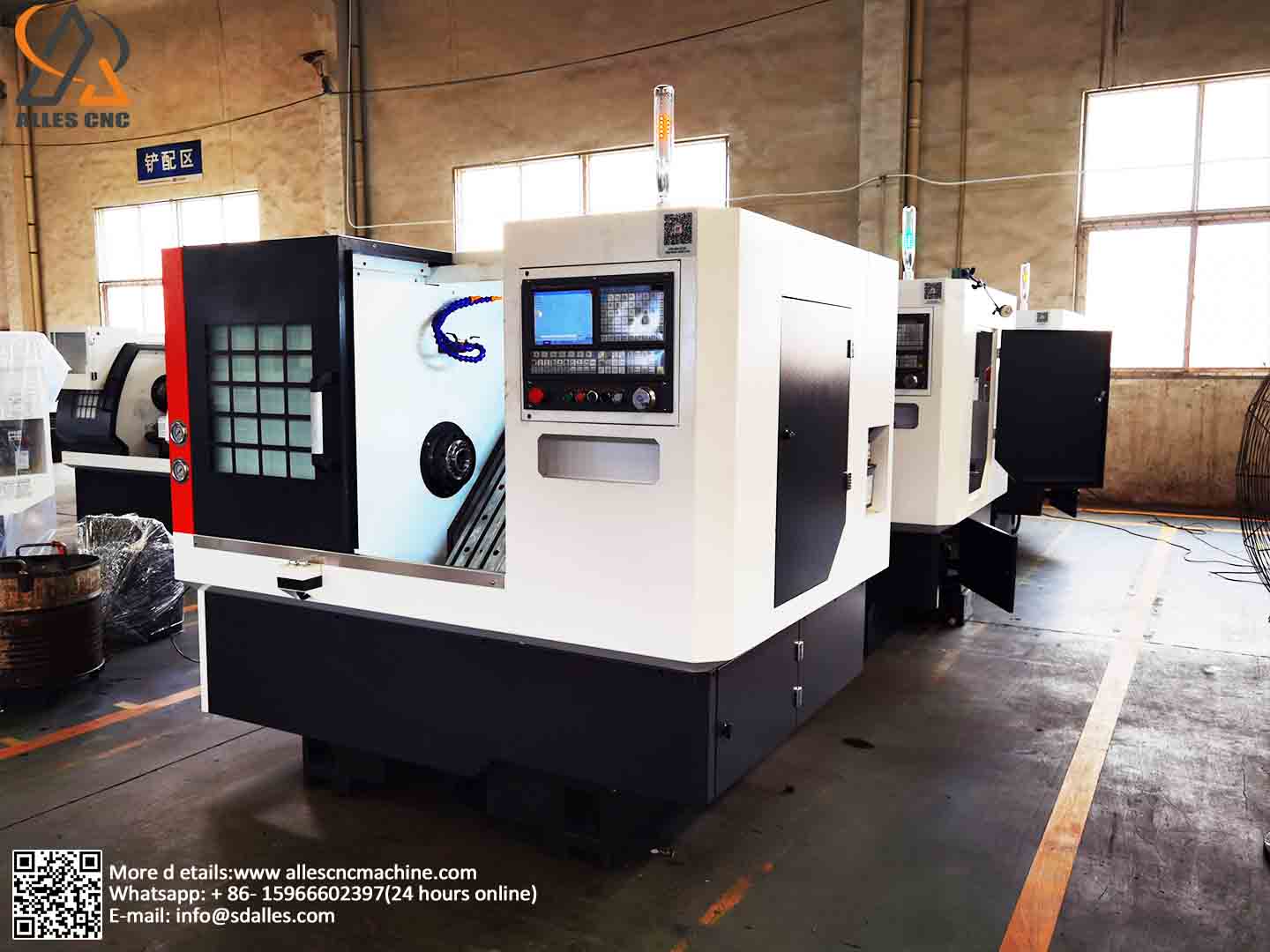

TCK6340 slant bed cnc lathe machine

The bed of TCK6340 CNC lathe adopts a 45°high rigidity integral bed, high-precision spindle unit. The spindle unit is divided into two types: heavy-cut and high-speed. The heavy-cut spindle unit is suitable for the processing of bearings and gears. The high-speed spindle unit is suitable for high-speed High finishing.

Product Description

TCK6340 slant bed cnc lathe machine

Product description:

TCK6340 CNC lathe is suitable for processing various small and medium shaft and disc parts, and can turn various threads, arcs, cones and inner and outer surfaces of rotary parts. Widely used in plumbing equipment, valves, electrical appliances, instruments, automobiles, motorcycles, bearings and other industries. High-precision Taiwan line rail, high-speed spindle unit, high-strength cast iron, automatic centralized lubrication.
Video:

Product Specifications:

Machine Model	Unit	ALTCK6340
Max swing over bed	mm	Φ400
Max swing over cross slide	mm	Φ120
Maximum processing length	mm	260
Standard chuck specifications		6″
X axis maximum stroke	mm	380
Z axis maximum stroke	mm	Infinitely variable speed
Spindle speed	rpm	A2-5
Spindle speed stage		Φ45
Spindle end code		X:18 Z:18
Inner diameter of main shaft pull tube	mm	1-15000
Fast moving speed	m/min	6/6 (X direction with brake)
Cutting feed rate	mm/min	Infinitely Variable Speed
X/Z motor torque	Nm	A2-5
Spindle motor power	KW	5.5
Tool bar section		20×20
Tool holder	mm	Row knife
Total power capacity	mm	18
Cutting water tank capacity	KVA	90
Dimensions (L×W×H)	L	2300X1500X1750

Product advantages:

1. The TCK6340 CNC lathe has high precision, and the main shaft is supported by high-precision double ball bearings, with low noise, high precision and good stability.

2. The guide rail of TCK6340 CNC lathe bed is finely ground after quenching by ultra-sonic frequency, with high hardness and good rigidity.

3. The TCK6340 CNC lathe adopts the electric four-station tool rest and adopts the precise tooth plate positioning, and the repeat positioning accuracy is high.

4. The TCK6340 CNC lathe tailstock has a quick cam clamping device, which has high working efficiency.
